NISSAN TEANA 2008 Service Manual TM-8
Step Motor .............................................................338Torque Converter ..................................................338

Page 4482 of 5121

NISSAN TEANA 2008 Service Manual DIAGNOSIS AND REPAIR WORK FLOW
TM-9
< BASIC INSPECTION >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000003848914
INTRODUCTION
The

DIAGNOSIS AND REPAIR WORK FLOW
TM-9
< BASIC INSPECTION >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000003848914
INTRODUCTION
The TCM receives signals from the vehicle speed sensor and PNP switch. Then it provides shift control or
lock-up control via CVT solenoid valves.
The TCM also communicates with the ECM by means of signals
sent from sensing elements used with the OBD-related parts of the
CVT system for malfunction-diagnostic purposes. The TCM is capa-
ble of diagnosing malfunctioning parts while the ECM can store mal-
functions in its memory.
Input and output signals must always be correct and stable in the
operation of the CVT system. The CVT system must be in good
operating condition and be free of valve seizure, solenoid valve mal-
function, etc.
It is much more difficult to diagnose a malfunction that occurs inter-
mittently rather than continuously. Most intermittent malfunctions are
caused by poor electric connections or improper wiring. In this case,
careful checking of suspected circuits may help prevent the replace-
ment of good parts.
A visual check only may not find the cause of the malfunctions. A
road test with CONSULT-III (or GST) or a circuit tester connected
should be performed. Follow the “DETAILED FLOW”.
Before undertaking actual checks, take a few minutes to talk with a
customer who approaches with a driveability complaint. The cus-
tomer can supply good information about such malfunctions, espe-
cially intermittent ones. Find out what symptoms are present and
under what conditions they occur. A “Diagnostic Work Sheet” as
shown on the example (Refer to TM-10
) should be used.
Start your diagnosis by looking for “conventional” malfunctions first.
This will help troubleshoot driveability malfunctions on an electroni-
cally controlled engine vehicle.
Also check related Service Bulletins.
DETAILED FLOW
1.COLLECT THE INFORMATION FROM THE CUSTOMER
Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred) using the diagnosis work sheet. Refer to TM-10, "
Diagnostic Work Sheet".
>> GO TO 2.
2.CHECK SYMPTOM 1
Check the following items based on the information obtained from the customer.
Fail-safe. Refer to TM-120, "
Fail-safe".
CVT fluid inspection. Refer to TM-142, "
Inspection".
Line pressure test. Refer to TM-146, "
Inspection and Judgment".
SAT631IB
SAT632I
SEF234G

Page 4483 of 5121

NISSAN TEANA 2008 Service Manual TM-10
< BASIC INSPECTION >[CVT: RE0F09B]
DIAGNOSIS AND REPAIR WORK FLOW
Stall test. Refer to TM-144, "Inspection and Judgment".
>> GO TO 3.
3.CHECK DTC
1. Check DTC.
2. Perform the following procedu

Page 4484 of 5121

NISSAN TEANA 2008 Service Manual DIAGNOSIS AND REPAIR WORK FLOW
TM-11
< BASIC INSPECTION >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
DIAGNOSTIC WORK SHEET
Symptomso Vehicle does not move. (o Any positiono Particular position)
o N

Page 4485 of 5121

NISSAN TEANA 2008 Service Manual TM-12
< BASIC INSPECTION >[CVT: RE0F09B]
INSPECTION AND ADJUSTMENT
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Precaution

TM-12
< BASIC INSPECTION >[CVT: RE0F09B]
INSPECTION AND ADJUSTMENT
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Precaution for TCM
and CVT Assembly Replacement
INFOID:0000000003848916
CAUTION:
• Check if new data (Unit ID) are entered correctly after replacing CVT assembly and erasing data in
TCM. (Connect CONSULT-III, and then turn ignition switch OFF.)
When replacing CVT assembly or TCM, refer to the pattern table below and erase the EEPROM in the
TCM if necessary.
EEPROM ERASING PATTERNS
METHOD FOR ERASING THE EEPROM IN THE TCM
1. Turn ignition switch ON.
2. Move selector lever to “R” position.
3. Perform “Self-Diagnostic Results” mode for “TRANSMISSION”.
4. Press the brake pedal and turn the brake switch ON.
5. Press the accelerator pedal (0.5/8 - 4/8 throttle) not to exceed the half, and hold it in the half or less open
position. (This will set the closed throttle position signal to OFF and the wide open throttle position signal
to OFF.)
6. Perform “ERASE”.
7. Wait 3 seconds and then release the accelerator pedal.
8. Turn ignition switch OFF.
METHOD FOR WRITING DATA FROM THE ROM ASSEMBLY IN THE TRANSAXLE
In the following procedure, the TCM reads data from the ROM assembly and writes it to the EEPROM in the
TCM.
1. Erase the EEPROM in the TCM.
2. Move selector lever to “P” position.
3. Turn ignition switch ON.
CHECK METHOD
Standard: About 2 seconds after the ignition switch ON, the CVT indicator lamp lights up for 2 seconds.
Non-standard: Even after the ignition switch ON, the CVT indicator lamp does not light up after 2 seconds or
illuminates immediately.
CAUTION:
Perform in the “P” or “N” position.
Action for Non-standard
Replace the CVT assembly.
Replace the TCM.
CVT assembly TCM Erasing EEPROM in TCM Remarks
Replaced Replaced Not requiredNot required because the EEPROM in the TCM is in
the default state. (CVT assembly must be replaced
first.)
Not replaced Replaced Not requiredNot required because the EEPROM in the TCM is in
the default state.
Replaced Not replaced RequiredRequired because data has been written in the EE-
PROM in the TCM and because the TCM cannot write
data from the ROM assembly in the transmission.

Page 4486 of 5121

NISSAN TEANA 2008 Service Manual CVT SYSTEM
TM-13
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
FUNCTION DIAGNOSIS
CVT SYSTEM

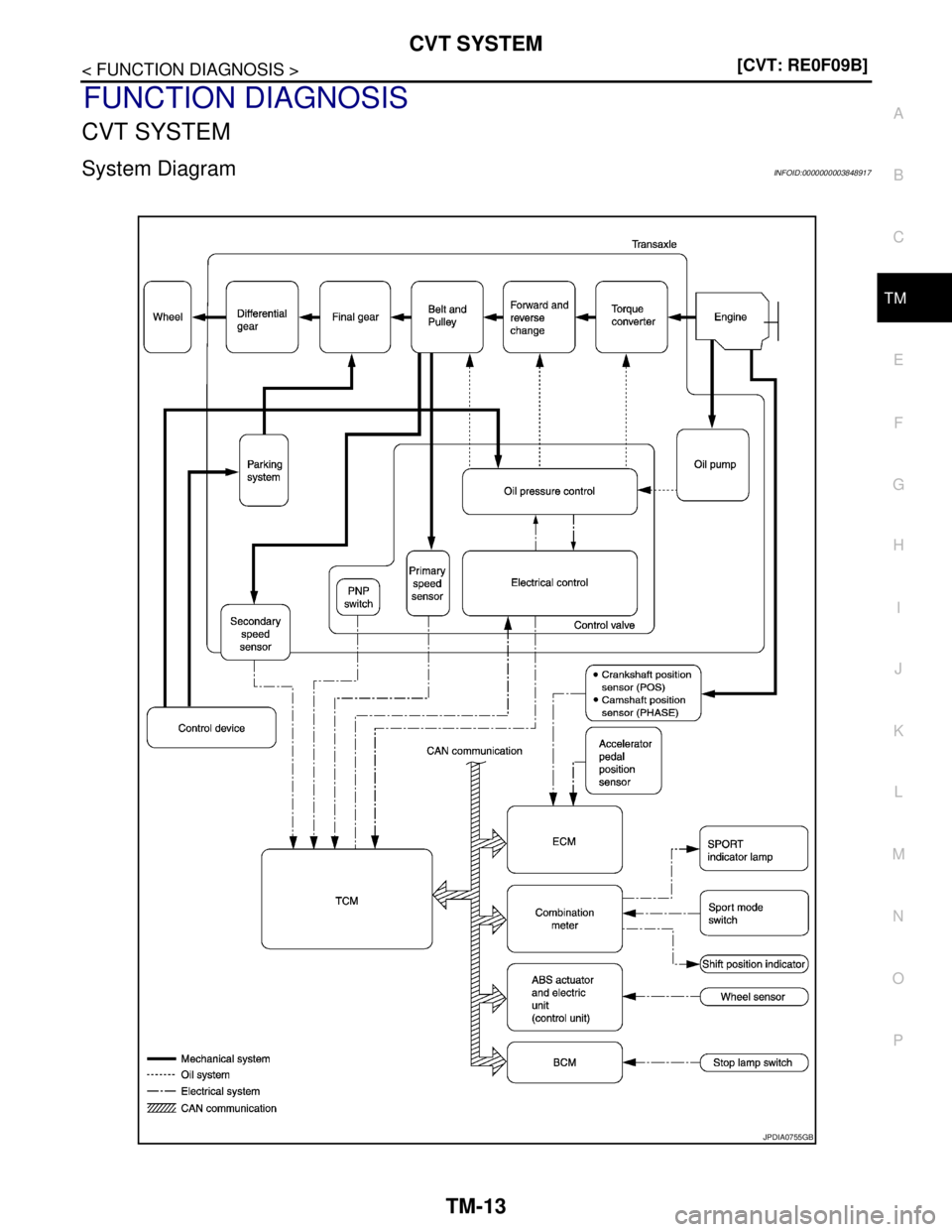

System DiagramINFOID:0000000003848917
JPDIA0755GB

Page 4487 of 5121

NISSAN TEANA 2008 Service Manual TM-14
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
CVT SYSTEM
Component Parts Location
INFOID:0000000003848918
*1: Primary pressure sensor is included in CVT assembly.
*2: Control valve assembly is included i

Page 4488 of 5121

NISSAN TEANA 2008 Service Manual CVT SYSTEM
TM-15
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
CVT fluid temperature sensor
Secondary pressure sensor
ROM assembly
