Page 4489 of 5121

NISSAN TEANA 2008 Service Manual TM-16
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
MECHANICAL SYSTEM
MECHANICAL SYSTEM

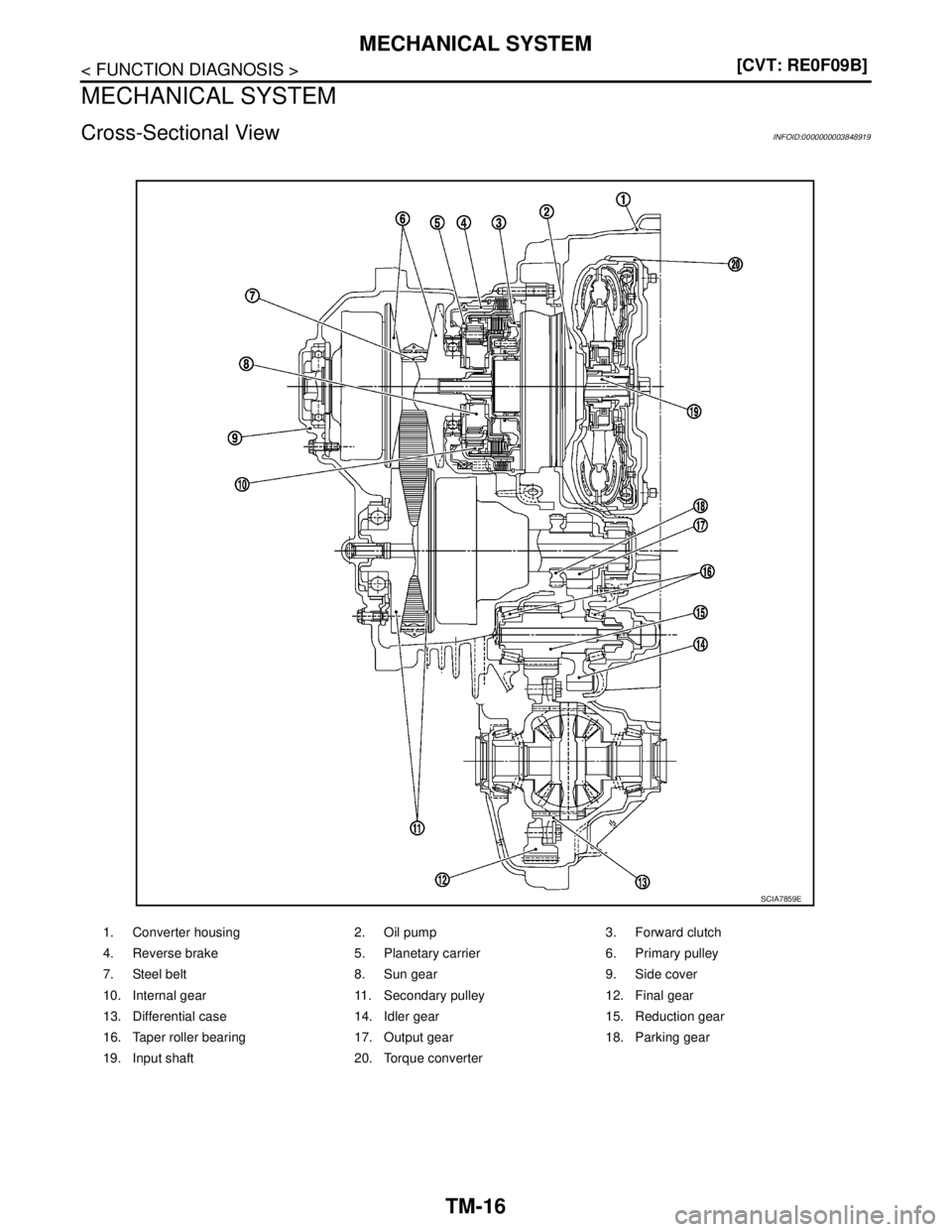

Cross-Sectional ViewINFOID:0000000003848919
1. Converter housing 2. Oil pump 3. Forward clutch
4. Reverse brake 5. Planet

Page 4490 of 5121

NISSAN TEANA 2008 Service Manual MECHANICAL SYSTEM
TM-17
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
System DiagramINFOID:0000000003848920
System DescriptionINFOID:0000000003848921
Transmits the power from th

Page 4491 of 5121

NISSAN TEANA 2008 Service Manual TM-18
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
MECHANICAL SYSTEM
Component Parts Location
INFOID:0000000003848922
*1: Primary pressure sensor is included in CVT assembly.
*2: Control valve assembly is inc

Page 4492 of 5121

NISSAN TEANA 2008 Service Manual MECHANICAL SYSTEM
TM-19
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
CVT fluid temperature sensor
Secondary pressure sensor
ROM assembly
Component DescriptionINFOID:00000

Page 4493 of 5121

NISSAN TEANA 2008 Service Manual TM-20
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
HYDRAULIC CONTROL SYSTEM
HYDRAULIC CONTROL SYSTEM

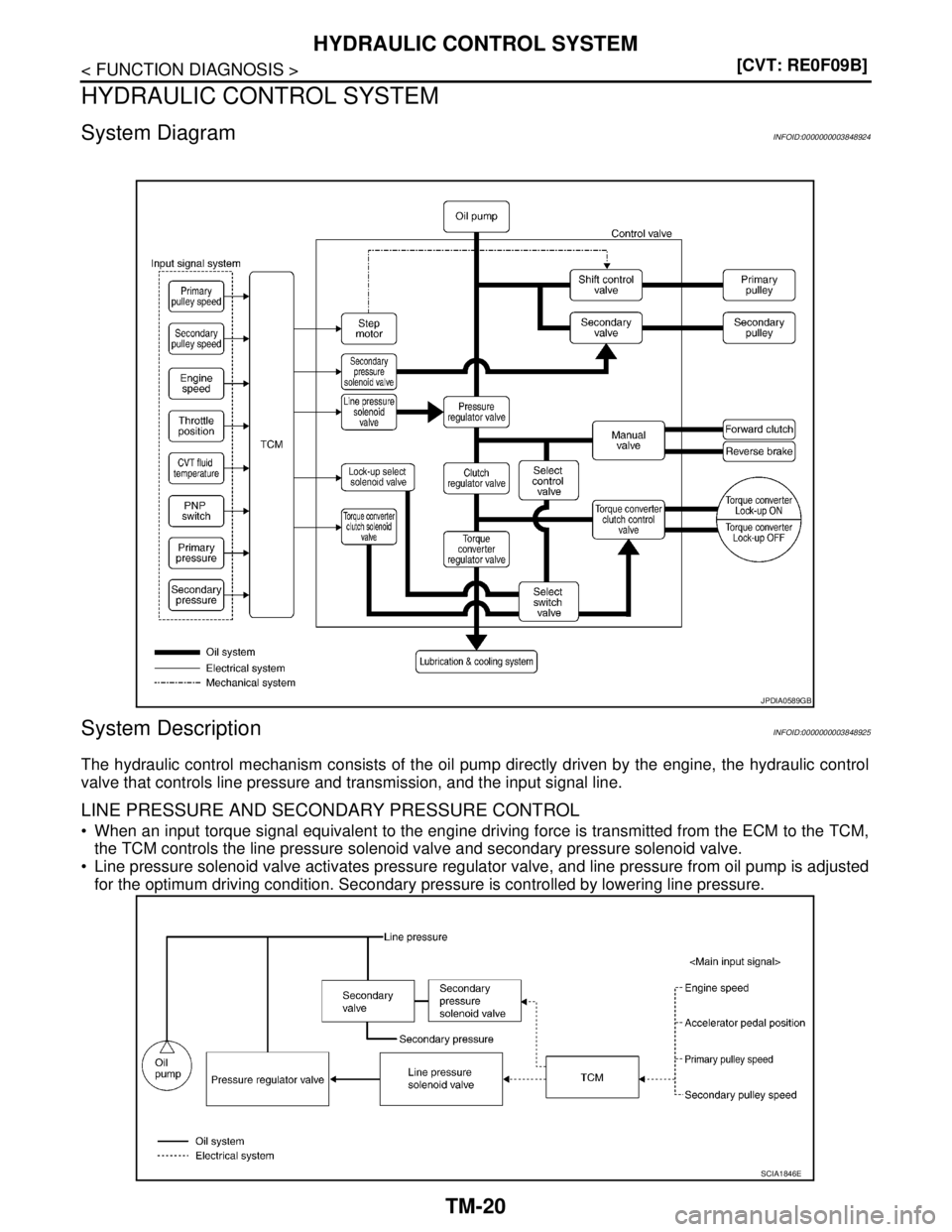

System DiagramINFOID:0000000003848924
System DescriptionINFOID:0000000003848925
The hydraulic control mecha

Page 4494 of 5121

NISSAN TEANA 2008 Service Manual HYDRAULIC CONTROL SYSTEM
TM-21
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P Normal Control
Optimize the line pressure and secondary pressure, depending on driving conditions, o

Page 4495 of 5121

NISSAN TEANA 2008 Service Manual TM-22
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
HYDRAULIC CONTROL SYSTEM
Primary speed sensor
Step motor
Secondary pressure solenoid valve
Line pressure solenoid valve
Torque converter clutch sol

TM-22
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
HYDRAULIC CONTROL SYSTEM
Primary speed sensor
Step motor
Secondary pressure solenoid valve
Line pressure solenoid valve
Torque converter clutch solenoid valve
Shift control valve
Secondary valve
Manual valve
Lock-up select solenoid valve
CVT fluid temperature sensor
Secondary pressure sensor
ROM assembly
Component DescriptionINFOID:0000000003848927
TRANSAXLE ASSEMBLY
EXCEPT TRANSAXLE ASSEMBLY
Name Function
Torque converter regulator valve Optimizes the supply pressure for the torque converter depending on driving conditions.
Pressure regulator valve Optimizes the discharge pressure from the oil pump depending on driving conditions.
TCC control valve Activates or deactivates the lock-up.
Locks up smoothly by opening lock-up operation excessively.
Shift control valveControls inflow/outflow of line pressure from the primary pulley depending on the stroke
difference between the stepping motor and the primary pulley.
Secondary valve Controls the line pressure from the secondary pulley depending on operating conditions.
Clutch regulator valve Adjusts the clutch operating pressure depending on operating conditions.
Manual valveTransmits the clutch operating pressure to each circuit in accordance with the selected
position.
Select control valve Engages forward clutch, reverse brake smoothly depending on select operation.
Select switch valveThe select switch valve enables to select engagement/disengagement of lock-up clutch
and that of forward clutch and reverse clutch.
TCC solenoid valveTM-62
Secondary pressure solenoid valveTM-72
Line pressure solenoid valveTM-66
Ste p m ot orTM-97
Lock-up select solenoid valveTM-94
Primary speed sensorTM-52
Secondary speed sensorTM-55
PNP switchTM-47
Primary pulley
TM-19
Secondary pulley
Forward clutch
Torque converter
Name Function
TCMJudges driving condition according to signals from each sensor, and optimally controls
variable speed mechanism.
Accelerator pedal position sensorTM-88

Page 4496 of 5121

NISSAN TEANA 2008 Service Manual CONTROL SYSTEM
TM-23
< FUNCTION DIAGNOSIS >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
CONTROL SYSTEM
System DiagramINFOID:0000000003848928
System DescriptionINFOID:0000000003848929
The CVT senses
