Page 1537 of 5121

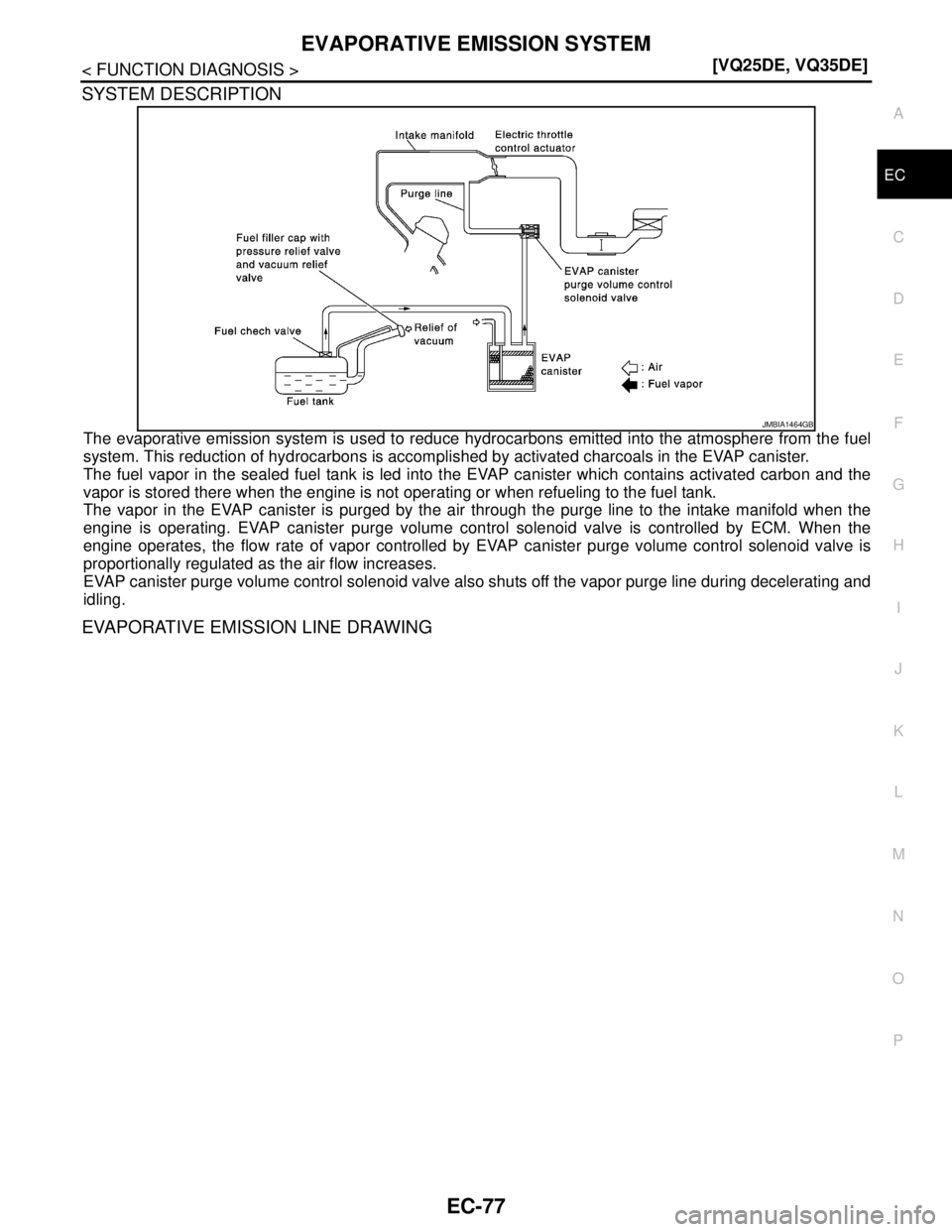

NISSAN TEANA 2008 Service Manual EC-76 < FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE] EVAPORATIVE EMISSION SYSTEM EVAPORATIVE EMISSION SYSTEM System DiagramINFOID:0000000003949755 System DescriptionINFOID:0000000003949756 INPUT/OUTPUT SIGNAL

Page 1538 of 5121

NISSAN TEANA 2008 Service Manual EVAPORATIVE EMISSION SYSTEM EC-77 < FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE] C D E F G H I J K L MA EC N P O SYSTEM DESCRIPTION The evaporative emission system is used to reduce hydrocarbons emitted into

Page 1539 of 5121

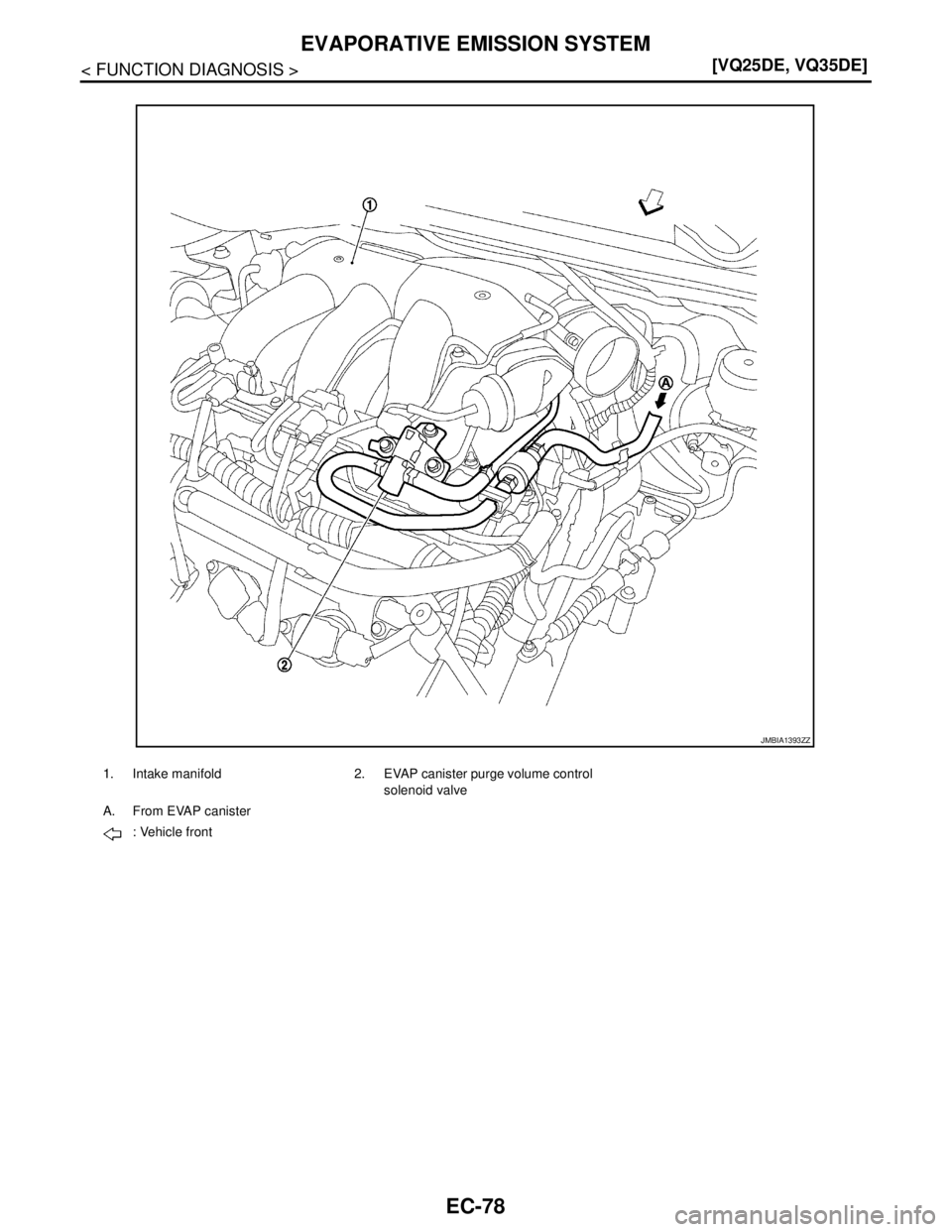

NISSAN TEANA 2008 Service Manual EC-78 < FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE] EVAPORATIVE EMISSION SYSTEM 1. Intake manifold 2. EVAP canister purge volume control solenoid valve A. From EVAP canister : Vehicle front JMBIA1393ZZ

Page 1540 of 5121

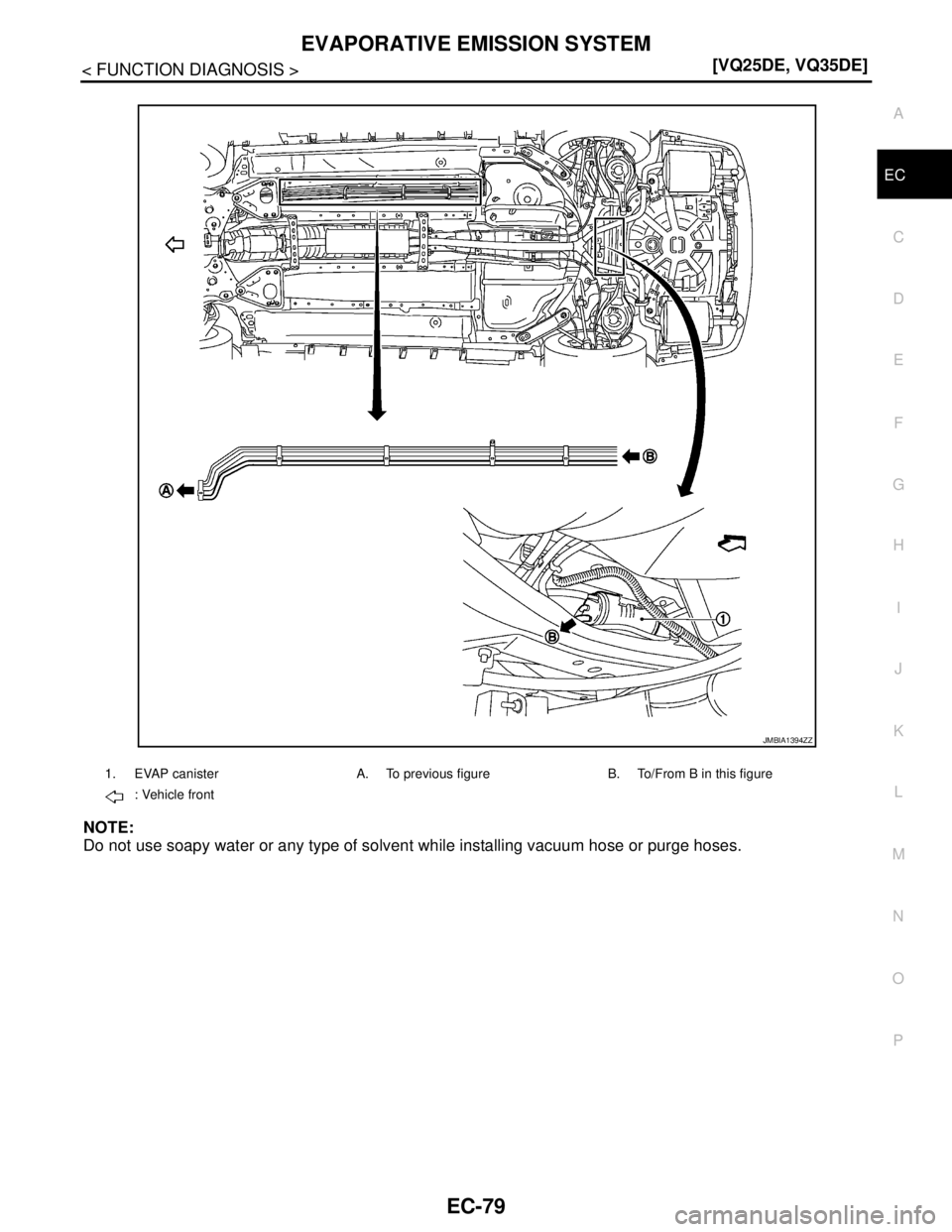

NISSAN TEANA 2008 Service Manual EVAPORATIVE EMISSION SYSTEM EC-79 < FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE] C D E F G H I J K L MA EC N P O NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses

Page 1541 of 5121

NISSAN TEANA 2008 Service Manual EC-80 < FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE] EVAPORATIVE EMISSION SYSTEM Component Parts Location INFOID:0000000003857776 1. Intake valve timing control solenoid valve (bank 1)2. Intake valve timing

Page 1542 of 5121

NISSAN TEANA 2008 Service Manual EVAPORATIVE EMISSION SYSTEM EC-81 < FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE] C D E F G H I J K L MA EC N P O 1. Mass air flow sensor (with intake air temperature sensor)2. Electric throttle control actua

Page 1543 of 5121

NISSAN TEANA 2008 Service Manual EC-82 < FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE] EVAPORATIVE EMISSION SYSTEM 1. Crankshaft position sensor (POS) 2. Camshaft position sensor (PHASE) (bank 2)3. Camshaft position sensor (PHASE) (bank 1)

Page 1544 of 5121

NISSAN TEANA 2008 Service Manual EVAPORATIVE EMISSION SYSTEM EC-83 < FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE] C D E F G H I J K L MA EC N P O 1. A/F sensor 1 (bank 1) harness con- nector2. A/F sensor 1 (bank 1) 3. A/F sensor 1 (bank 2) h
