2008 NISSAN TEANA Service Manual

parking brake radiator cap warning battery navigation ABS

Page 2873 of 5121

NISSAN TEANA 2008 Service Manual FLUORESCENT LEAK DETECTOR
HAC-245
< PRECAUTION >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
FLUORESCENT LEAK DETECTOR
General PrecautionsINFOID:0000000003884821
CAUTION:
The A/C system co

FLUORESCENT LEAK DETECTOR
HAC-245
< PRECAUTION >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
FLUORESCENT LEAK DETECTOR
General PrecautionsINFOID:0000000003884821
CAUTION:
The A/C system contains a fluorescent leak detection dye used for locating refrigerant leakages. An
ultraviolet (UV) lamp is required to illuminate the dye when inspecting for leakages.
Always wear fluorescence enhancing UV safety goggles to protect eyes and enhance the visibility of
the fluorescent dye.
The fluorescent dye leak detector is not a replacement for an electrical leak detector (SST: J-41995).
The fluorescent dye leak detector should be used in conjunction with an electrical leak detector
(SST: J-41995) to pin-point refrigerant leakages.
Read and follow all manufacture operating instructions and precautions prior to performing the work
for the purpose of safety and customer satisfaction.
A compressor shaft seal should not necessarily be repaired because of dye seepage. The compres-
sor shaft seal should only be repaired after confirming the leakage with an electrical leak detector
(SST: J-41995).
Always remove any remaining dye from the leakage area after repairs are completed to avoid a mis-
diagnosis during future service.
Never allow dye to come into contact with painted body panels or interior components. Clean imme-
diately with the approved dye cleaner if dye is spilled. Fluorescent dye left on a surface for an
extended period of time cannot be removed.
Never spray the fluorescent dye cleaning agent on hot surfaces (engine exhaust manifold, etc.).
Never use more than one refrigerant dye bottle (1/4 ounce /7.4 cc) per A/C system.
Leak detection dyes for HFC-134a (R-134a) and CFC-12 (R-12) A/C systems are different. Never use
HFC-134a (R-134a) leak detection dye in CFC-12 (R-12) A/C system, or CFC-12 (R-12) leak detection
dye in HFC-134a (R-134a) A/C system, or A/C system damage may result.
The fluorescent properties of the dye remains for three or more years unless a compressor malfunc-
tion occurs.
IDENTIFICATION
NOTE:
Vehicles with factory installed fluorescent dye have a green label.
Vehicles without factory installed fluorescent dye have a blue label.
IDENTIFICATION LABEL FOR VEHICLE
Vehicles with factory installed fluorescent dye have an identification label on the front side of hood.

Page 2874 of 5121

NISSAN TEANA 2008 Service Manual HRN-1
DRIVER CONTROLS
C
DE
F
G H
I
J
K
M
SECTION HRN
A
B
HRN
N
O P
CONTENTS
HORN
COMPONENT DIAGNOSIS ..........................2
HORN ............................................................. ...

Page 2875 of 5121

NISSAN TEANA 2008 Service Manual HRN-2
< COMPONENT DIAGNOSIS >
HORN
COMPONENT DIAGNOSIS
HORN

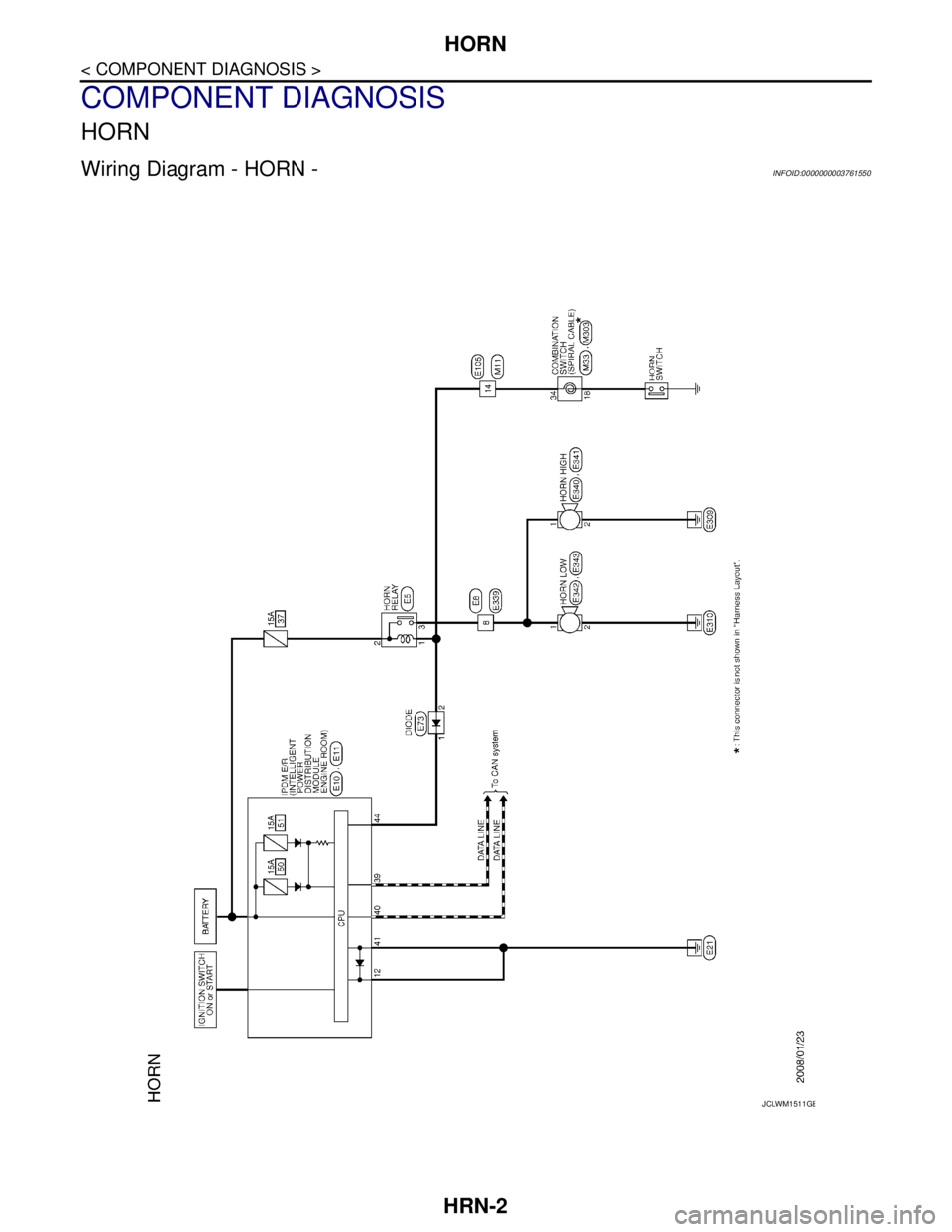

Wiring Diagram - HORN -INFOID:0000000003761550
JCLWM1511GB

Page 2876 of 5121

NISSAN TEANA 2008 Service Manual HORN
HRN-3
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
HRN
N
O
P

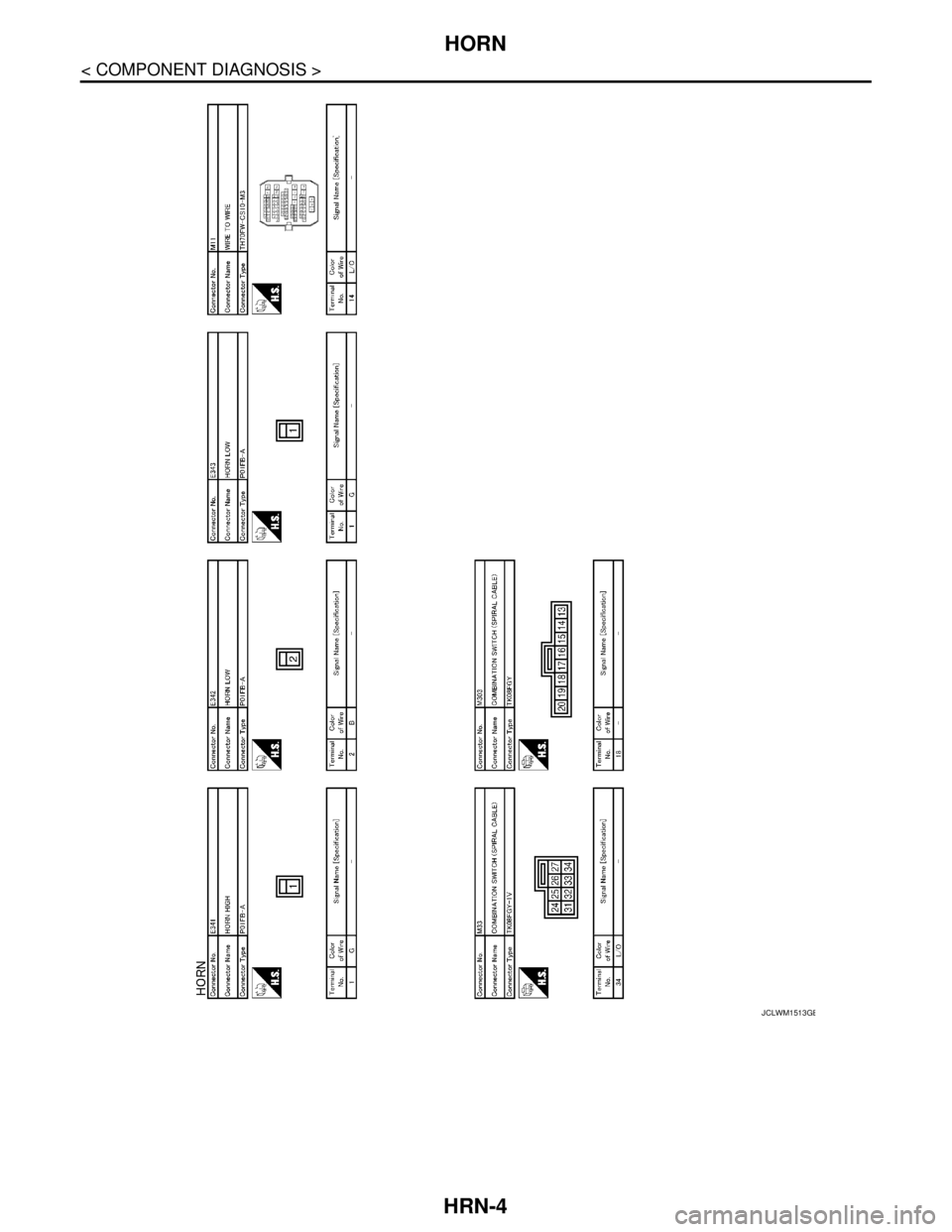

JCLWM1512GB

Page 2877 of 5121

NISSAN TEANA 2008 Service Manual HRN-4
< COMPONENT DIAGNOSIS >
HORN
JCLWM1513GB

Page 2878 of 5121

NISSAN TEANA 2008 Service Manual PRECAUTIONS
HRN-5
< PRECAUTION >
C
D
E
F
G
H
I
J
K
MA
B
HRN
N
O
P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:000000000376

Page 2879 of 5121

NISSAN TEANA 2008 Service Manual HRN-6
< ON-VEHICLE REPAIR >
HORN
ON-VEHICLE REPAIR
HORN

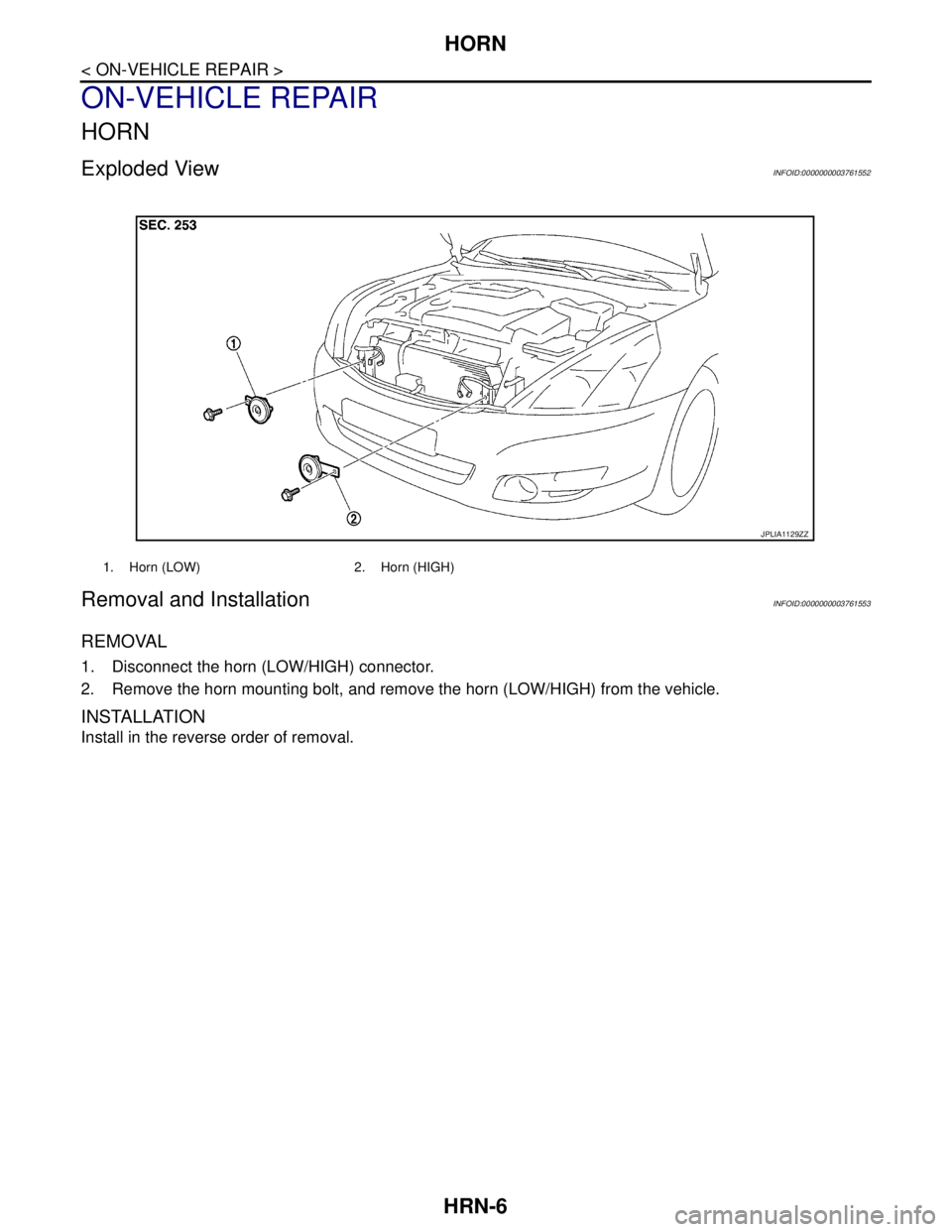

Exploded ViewINFOID:0000000003761552
Removal and InstallationINFOID:0000000003761553
REMOVAL
1. Disconnect the horn (LOW/HIGH) connector.
2. Rem

Page 2880 of 5121

NISSAN TEANA 2008 Service Manual INL-1
DRIVER CONTROLS
C
D
E
F
G
H
I
J
K
M
SECTION INL
A
B
INL
N
O
P
CONTENTS
INTERIOR LIGHTING SYSTEM
BASIC INSPECTION ....................................3
DIAGNOSIS AND REPAIR WORKFLOW ..........3

INL-1
DRIVER CONTROLS
C
D
E
F
G
H
I
J
K
M
SECTION INL
A
B
INL
N
O
P
CONTENTS
INTERIOR LIGHTING SYSTEM
BASIC INSPECTION ....................................3
DIAGNOSIS AND REPAIR WORKFLOW ..........3
Work Flow .................................................................3
FUNCTION DIAGNOSIS ...............................5
INTERIOR ROOM LAMP CONTROL SYSTEM
.....
5
System Diagram ........................................................5
System Description ...................................................5
Component Parts Location ........................................7
Component Description ............................................8
INTERIOR ROOM LAMP BATTERY SAVER
SYSTEM ..............................................................
9
System Diagram ........................................................9
System Description ...................................................9
Component Parts Location ......................................10
Component Description ..........................................10
ILLUMINATION CONTROL SYSTEM ................12
System Diagram ......................................................12
System Description .................................................12
Component Parts Location ......................................13
Component Description ...........................................13
DIAGNOSIS SYSTEM (BCM) ............................14
COMMON ITEM .........................................................14
COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................
14
INT LAMP ..................................................................15
INT LAMP : CONSULT-III Function (BCM - INT
LAMP) .....................................................................
16
BATTERY SAVER .....................................................17
BATTERY SAVER : CONSULT-III Function (BCM
- BATTERY SAVER) ...............................................
17
COMPONENT DIAGNOSIS .........................19
POWER SUPPLY AND GROUND CIRCUIT ....19
BCM ...........................................................................19
BCM : Diagnosis Procedure ....................................19
INTERIOR ROOM LAMP POWER SUPPLY
CIRCUIT ............................................................
20
Description ...............................................................20
Component Function Check ....................................20
Diagnosis Procedure ...............................................20
INTERIOR ROOM LAMP CONTROL CIRCUIT
...
22
Description ...............................................................22
Component Function Check ....................................22
Diagnosis Procedure ...............................................22
STEP LAMP CIRCUIT .......................................24
Description ...............................................................24
Component Function Check ....................................24
Diagnosis Procedure ...............................................24
TRUNK ROOM LAMP CIRCUIT .......................26
Description ...............................................................26
Component Function Check ....................................26
Diagnosis Procedure ...............................................26
PUSH-BUTTON IGNITION SWITCH ILLUMI-
NATION CIRCUIT .............................................
28
Description ...............................................................28
Component Function Check ....................................28
Diagnosis Procedure ...............................................28
INTERIOR ROOM LAMP CONTROL SYSTEM
...
30
Wiring Diagram - INTERIOR ROOM LAMP - ..........30
ILLUMINATION .................................................39
Wiring Diagram - ILLUMINATION - .........................39
ECU DIAGNOSIS .........................................53
