2008 NISSAN TEANA Service Manual

coolant level tire pressure battery location ECO mode transmission language

Load previous 8 pages

Page 3993 of 5121

NISSAN TEANA 2008 Service Manual PREPARATION
SE-129
< PREPARATION >[WITHOUT VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
PREPARATION
PREPARATION
Commercial Service ToolsINFOID:0000000003840022
Tool nameDescription
Engine earLoca

Page 3994 of 5121

NISSAN TEANA 2008 Service Manual SE-130
< ON-VEHICLE REPAIR >[WITHOUT VENTILATION SEAT]
FRONT SEAT
ON-VEHICLE REPAIR
FRONT SEAT
Exploded ViewINFOID:0000000003840023
MANUAL SEAT
1. Headrest 2. Seatback trim 3. Seatback pad
4. Seat cus

Page 3995 of 5121

NISSAN TEANA 2008 Service Manual FRONT SEAT
SE-131
< ON-VEHICLE REPAIR >[WITHOUT VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
DRIVERS POWER SEAT
13. Seat harness clamp 14. Seat harness 15. Rear slide cover
16. End cap 17. Recli

Page 3996 of 5121

NISSAN TEANA 2008 Service Manual SE-132
< ON-VEHICLE REPAIR >[WITHOUT VENTILATION SEAT]
FRONT SEAT
1. Headrest 2. Seatback trim 3. Seatback pad
4. Lumbar support lever knob 5. Snap pin 6. Seat cushion trim
7. Seat cushion pad 8. Seat

Page 3997 of 5121

NISSAN TEANA 2008 Service Manual FRONT SEAT
SE-133
< ON-VEHICLE REPAIR >[WITHOUT VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P

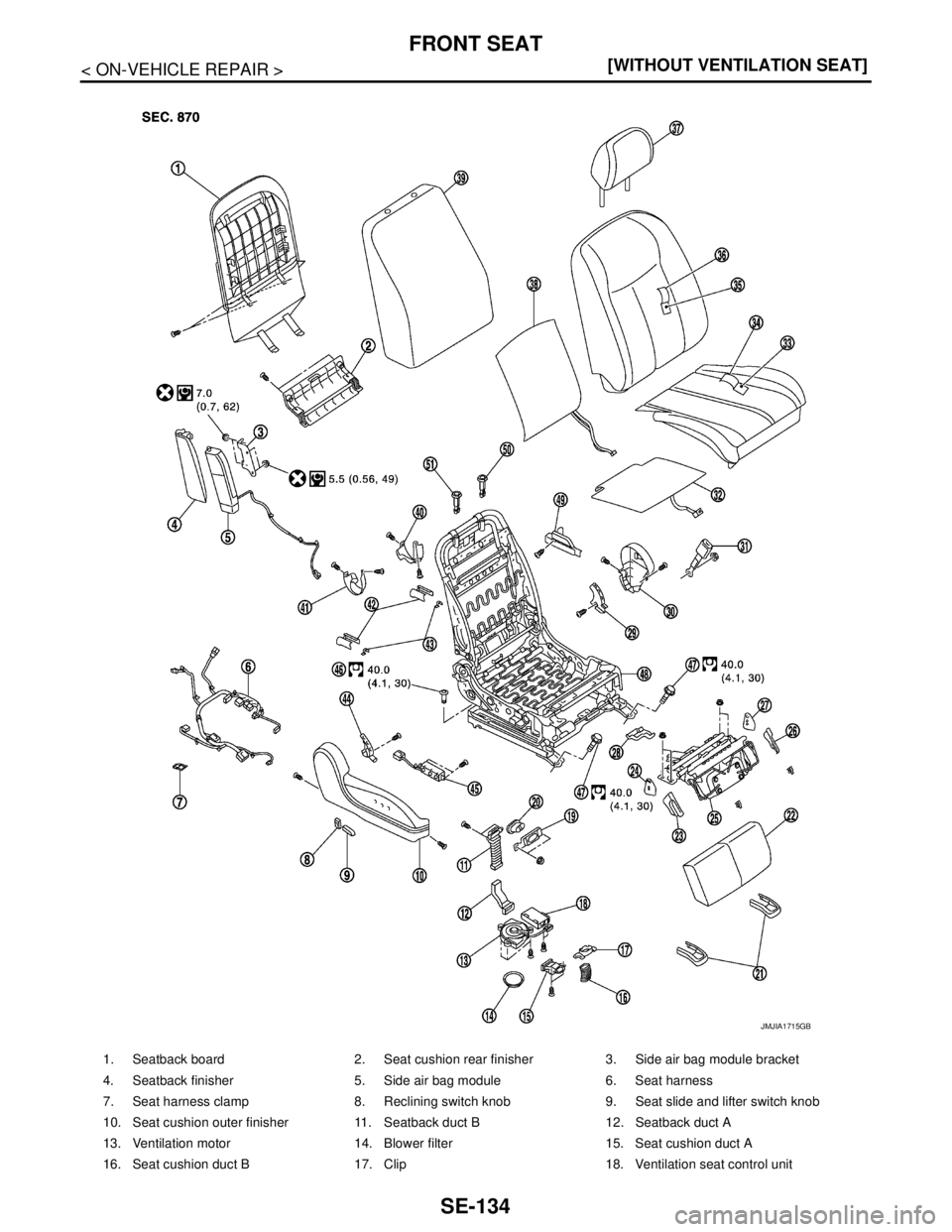

PASSENGERS POWER SEAT
19. Seatback duct B 20. Seatback duct C 21. Clip
22. Seat slide and lifter swit

Page 3998 of 5121

NISSAN TEANA 2008 Service Manual SE-134
< ON-VEHICLE REPAIR >[WITHOUT VENTILATION SEAT]
FRONT SEAT
1. Seatback board 2. Seat cushion rear finisher 3. Side air bag module bracket
4. Seatback finisher 5. Side air bag module 6. Seat har

Page 3999 of 5121

NISSAN TEANA 2008 Service Manual FRONT SEAT
SE-135
< ON-VEHICLE REPAIR >[WITHOUT VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
Removal and InstallationINFOID:0000000003840024
REMOVAL
CAUTION:
When removing and installing, use s

FRONT SEAT
SE-135
< ON-VEHICLE REPAIR >[WITHOUT VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
Removal and InstallationINFOID:0000000003840024
REMOVAL
CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
Before removal, turn ignition switch OFF, disconnect battery negative terminal, and then wait for at
least 3 minutes.
NOTE:
Confirming a position of connector before work.
1. Remove the headrest.
2. Slide the seat to the frontmost position.
3. Remove the rear outer mounting TORX bolt.
4. Remove the rear inner mounting TORX bolt.
5. Slide the seat to the rearmost position.
6. Remove the front slide cover.
Open the front end of the front slide cover to release the
pawls.
Slide the front slide cover forward to release the pawls.
7. Remove the front outer mounting TORX bolt.
8. Remove the front inner mounting TORX bolt.
9. Set seatback in a standing position.
10. Lift the seat to the uppermost position.
11. Disconnect harness connector under the seat and remove harness clamps.
12. Remove seat from the vehicle.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Before installation, turn ignition switch OFF, disconnect battery negative terminal, and then wait for
at least 3 minutes.
Clamp the harness in position.
Disassembly and AssemblyINFOID:0000000003840025
SEATBACK
19. Clip 20. Seatback duct C 21. Front slide cover
22. Ottoman trim and pad 23. Front outer link cover 24. Rear outer link cover
25. Ottoman unit assembly 26. Front inner link cover 27. Rear inner link cover
28. Ottoman protector 29. Seat cushion inner finisher inside 30. Seat cushion inner finisher
31. Seat belt buckle 32. Seat cushion heater unit 33. Seat cushion pad
34. Seat cushion trim 35. Seatback pad 36. Seatback trim
37. Headrest 38. Seatback heater unit 39. Seatback silencer
40. Reclining device inner cover 41. Reclining device outer cover 42. Rear slide cover
43. End cap 44. Seat cushion outer finisher inside 45. Seat control switch
46. TORX bolt 47. TORX bolt 48. Seat frame assembly
49. Seat slide inner cover 50. Headrest holder (locked) 51. Headrest holder (free)
Refer to GI-4, "
Components" for symbols in the figure.
: Pawl
JMJIA1863ZZ

Page 4000 of 5121

NISSAN TEANA 2008 Service Manual SE-136
< ON-VEHICLE REPAIR >[WITHOUT VENTILATION SEAT]
FRONT SEAT
Disassembly
1. Remove the seatback board.
Remove the hook, and then remove screws (A).
Remove the pawls, and then pull out seatbac

Load next 8 pages
