TM-152
< ON-VEHICLE MAINTENANCE >[CVT: RE0F09B]
CVT POSITION
CVT POSITION
Inspection and AdjustmentINFOID:0000000003849084
INSPECTION
1. Move selector lever to “P” position, and turn ignition switch ON (engine stop).
2. Check that selector lever can be shifted to other than “P” position when brake pedal is depressed. Also
check that selector lever can be shifted from “P” position only when brake pedal is depressed.
3. Move selector lever and check for excessive effort, sticking, noise or rattle.
4. Check that selector lever stops at each position with the feel of engagement when it is moved through all
the positions. Check that the actual position of selector lever matches the position shown by shift position
indicator and manual lever on the transaxle.
5. The method of operating selector lever to individual positions
correctly should be as shown.
6. When selector button is pressed in “P”, “R”, “N”, “D” or “L” posi-
tion without applying forward/backward force to selector lever,
check button operation for sticking.
7. Check that back-up lamps illuminate only when selector lever is
placed in the “R” position.
8. When in “R” position, check that back-up lamps illuminate even
when the selector lever is pushed toward the “P” position.
CAUTION:
Check the lighting without pressing shift button.
9. Check that back-up lamps do not illuminate when selector lever is pushed toward the “R” position when in
the “P” or “N” position.
CAUTION:
Check the lighting without pressing shift button.
10. Check that the engine can only be started with selector lever in the “P” and “N” positions.
11. Check that transaxle is locked completely in “P” position.
ADJUSTMENT
1. Move selector lever to “ P” position.
CAUTION:
Turn wheels more than 1/4 rotations and apply the park
lock.
2. Loosen the control cable nut (A).
3. Place manual lever (B) to “P” position.
CAUTION:
Never apply any force to manual lever.
4. Tighten the control cable nut. Refer to TM-157, "
Exploded View".
CAUTION:
Fix manual lever when tightening.
JPDIA0343GB
JPDIA0794ZZ
Page 4626 of 5121
TRANSMISSION CONTROL MODULE
TM-153
< ON-VEHICLE REPAIR >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

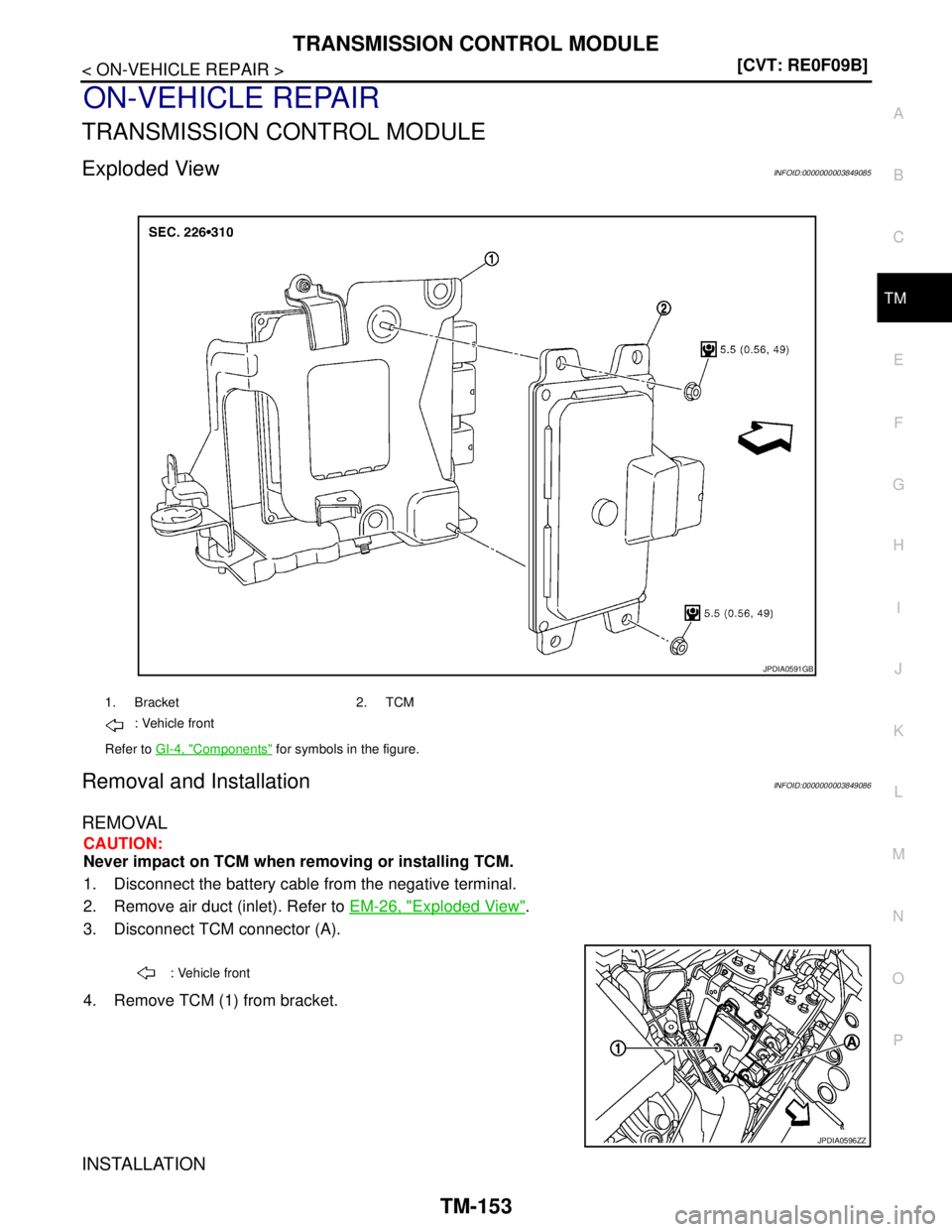

ON-VEHICLE REPAIR
TRANSMISSION CONTROL MODULE
Exploded ViewINFOID:0000000003849085
Removal and InstallationINFOID:0000000003849086
REMOVAL
CAUTION:
Never impact on TCM when removing or installing TCM.
1. Disconnect the battery cable from the negative terminal.
2. Remove air duct (inlet). Refer to EM-26, "
Exploded View".
3. Disconnect TCM connector (A).
4. Remove TCM (1) from bracket.
INSTALLATION
1. Bracket 2. TCM
: Vehicle front
Refer to GI-4, "
Components" for symbols in the figure.
JPDIA0591GB
: Vehicle front
JPDIA0596ZZ
Page 4627 of 5121
TM-154
< ON-VEHICLE REPAIR >[CVT: RE0F09B]
TRANSMISSION CONTROL MODULE
Install in the reverse order of removal.
AdjustmentINFOID:0000000003849087
ADJUSTMENT AFTER INSTALLATION
After TCM is replaced. Refer to TM-12, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Pre-
caution for TCM and CVT Assembly Replacement".
Page 4628 of 5121
CONTROL DEVICE
TM-155
< ON-VEHICLE REPAIR >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
CONTROL DEVICE
Exploded ViewINFOID:0000000003849088
Removal and InstallationINFOID:0000000003849089
REMOVAL
1. Disconnect the battery cable from the negative terminal.
1. Selector lever knob 2. Lock pin 3. Knob cover
4. Control device assembly 5. Shift lock unit 6. Dust cover
Refer to GI-4, "
Components" for symbols in the figure.
JPDIA0741GB
Page 4629 of 5121
![NISSAN TEANA 2008 Service Manual TM-156
< ON-VEHICLE REPAIR >[CVT: RE0F09B]
CONTROL DEVICE
2. Slide knob cover (1) below selector lever downward.
CAUTION:
Be careful not to damage knob cover.
3. Pull lock pin (2) out of selector leve NISSAN TEANA 2008 Service Manual TM-156
< ON-VEHICLE REPAIR >[CVT: RE0F09B]
CONTROL DEVICE
2. Slide knob cover (1) below selector lever downward.
CAUTION:
Be careful not to damage knob cover.
3. Pull lock pin (2) out of selector leve](/manual-img/5/57391/w960_57391-4628.png)

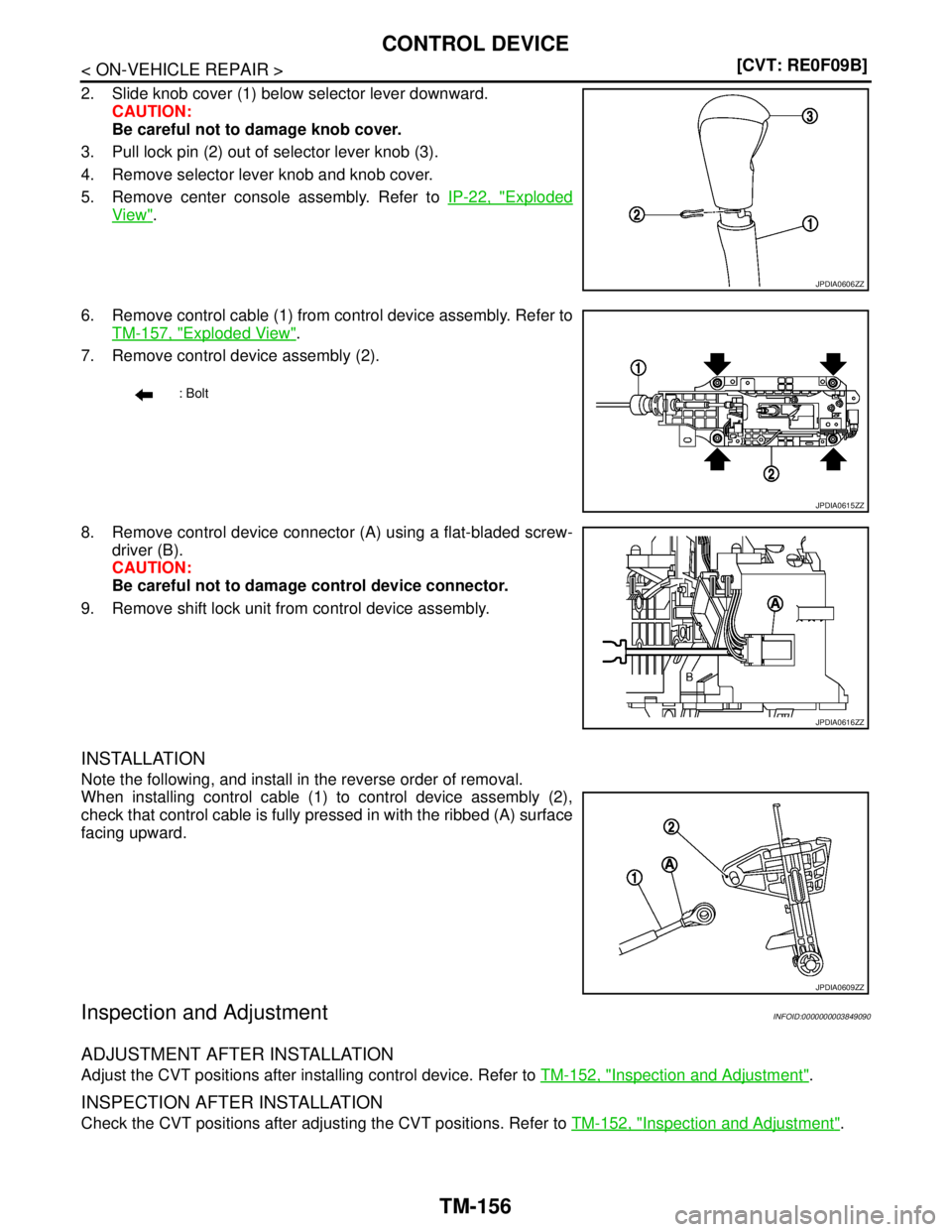

TM-156
< ON-VEHICLE REPAIR >[CVT: RE0F09B]
CONTROL DEVICE
2. Slide knob cover (1) below selector lever downward.
CAUTION:
Be careful not to damage knob cover.
3. Pull lock pin (2) out of selector lever knob (3).
4. Remove selector lever knob and knob cover.
5. Remove center console assembly. Refer to IP-22, "
Exploded
View".
6. Remove control cable (1) from control device assembly. Refer to
TM-157, "
Exploded View".
7. Remove control device assembly (2).
8. Remove control device connector (A) using a flat-bladed screw-
driver (B).
CAUTION:
Be careful not to damage control device connector.
9. Remove shift lock unit from control device assembly.
INSTALLATION
Note the following, and install in the reverse order of removal.
When installing control cable (1) to control device assembly (2),
check that control cable is fully pressed in with the ribbed (A) surface
facing upward.
Inspection and AdjustmentINFOID:0000000003849090
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT positions after installing control device. Refer to TM-152, "Inspection and Adjustment".
INSPECTION AFTER INSTALLATION
Check the CVT positions after adjusting the CVT positions. Refer to TM-152, "Inspection and Adjustment".
JPDIA0606ZZ
: Bolt
JPDIA0615ZZ
JPDIA0616ZZ
JPDIA0609ZZ
Page 4630 of 5121
CONTROL CABLE
TM-157
< ON-VEHICLE REPAIR >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

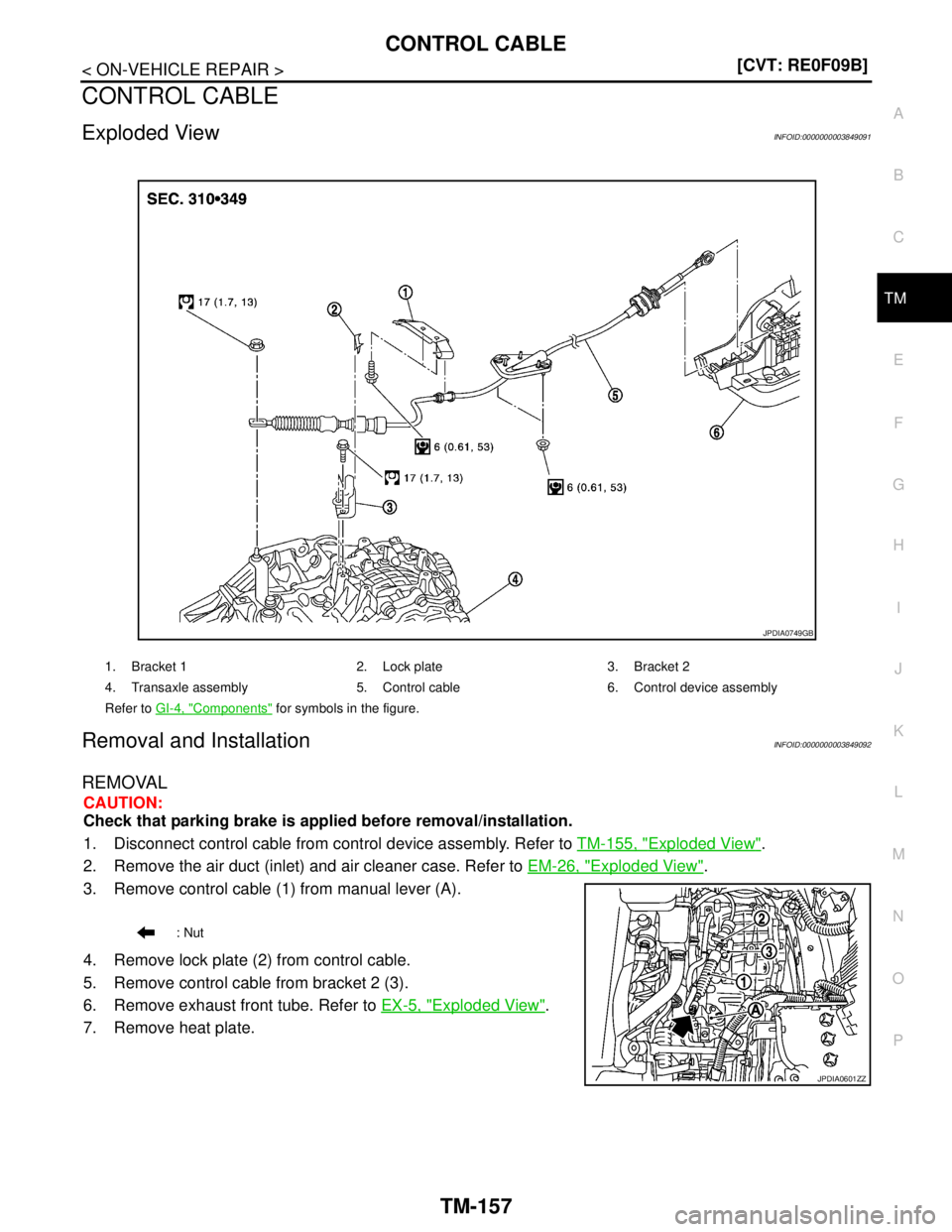

CONTROL CABLE
Exploded ViewINFOID:0000000003849091
Removal and InstallationINFOID:0000000003849092
REMOVAL
CAUTION:
Check that parking brake is applied before removal/installation.
1. Disconnect control cable from control device assembly. Refer to TM-155, "
Exploded View".
2. Remove the air duct (inlet) and air cleaner case. Refer to EM-26, "
Exploded View".
3. Remove control cable (1) from manual lever (A).
4. Remove lock plate (2) from control cable.
5. Remove control cable from bracket 2 (3).
6. Remove exhaust front tube. Refer to EX-5, "
Exploded View".
7. Remove heat plate.
1. Bracket 1 2. Lock plate 3. Bracket 2
4. Transaxle assembly 5. Control cable 6. Control device assembly
Refer to GI-4, "
Components" for symbols in the figure.
JPDIA0749GB
: Nut
JPDIA0601ZZ
Page 4631 of 5121

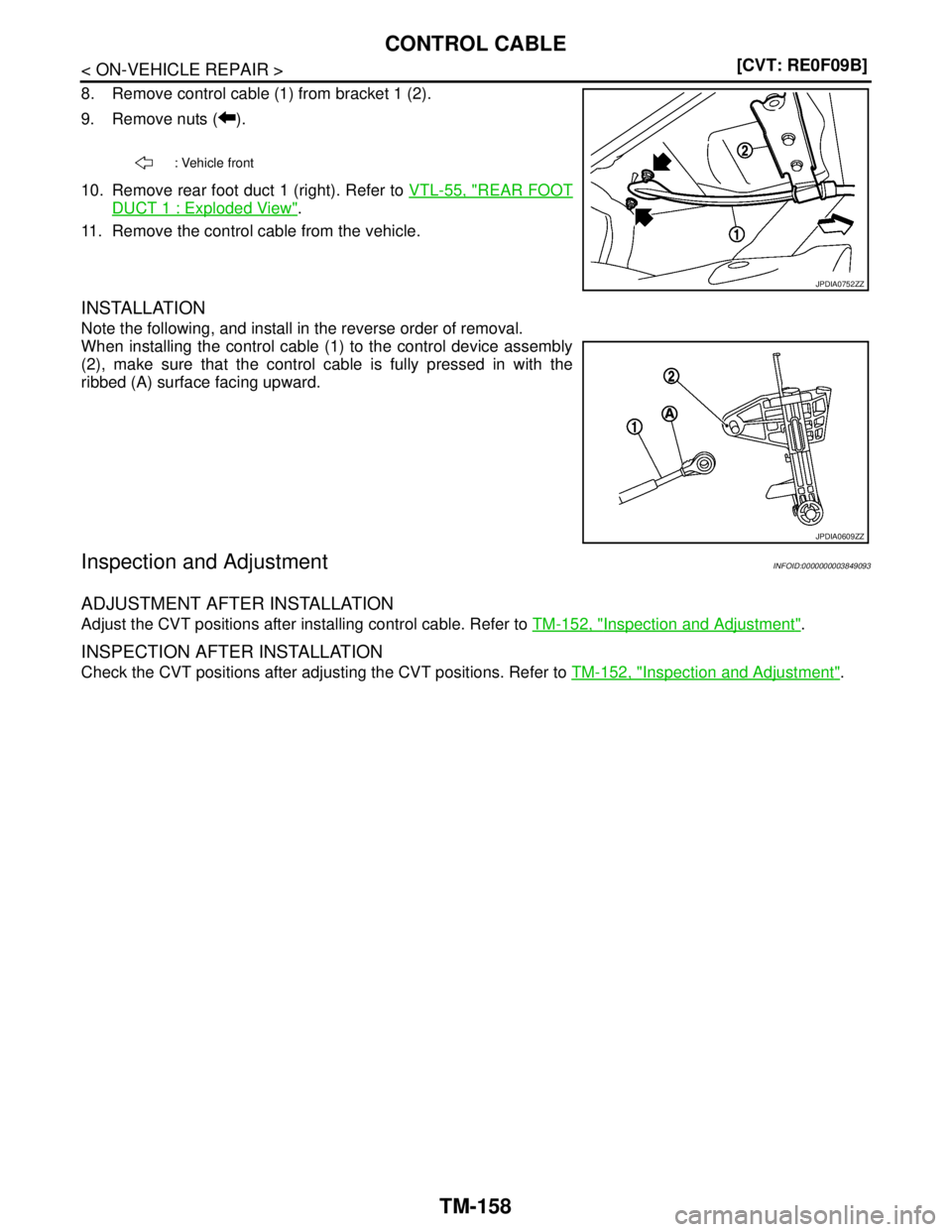

TM-158
< ON-VEHICLE REPAIR >[CVT: RE0F09B]
CONTROL CABLE
8. Remove control cable (1) from bracket 1 (2).
9. Remove nuts ( ).
10. Remove rear foot duct 1 (right). Refer to VTL-55, "
REAR FOOT
DUCT 1 : Exploded View".
11. Remove the control cable from the vehicle.
INSTALLATION
Note the following, and install in the reverse order of removal.
When installing the control cable (1) to the control device assembly
(2), make sure that the control cable is fully pressed in with the
ribbed (A) surface facing upward.
Inspection and AdjustmentINFOID:0000000003849093
ADJUSTMENT AFTER INSTALLATION
Adjust the CVT positions after installing control cable. Refer to TM-152, "Inspection and Adjustment".
INSPECTION AFTER INSTALLATION
Check the CVT positions after adjusting the CVT positions. Refer to TM-152, "Inspection and Adjustment".
: Vehicle front
JPDIA0752ZZ
JPDIA0609ZZ
Page 4632 of 5121
OIL PAN
TM-159
< ON-VEHICLE REPAIR >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

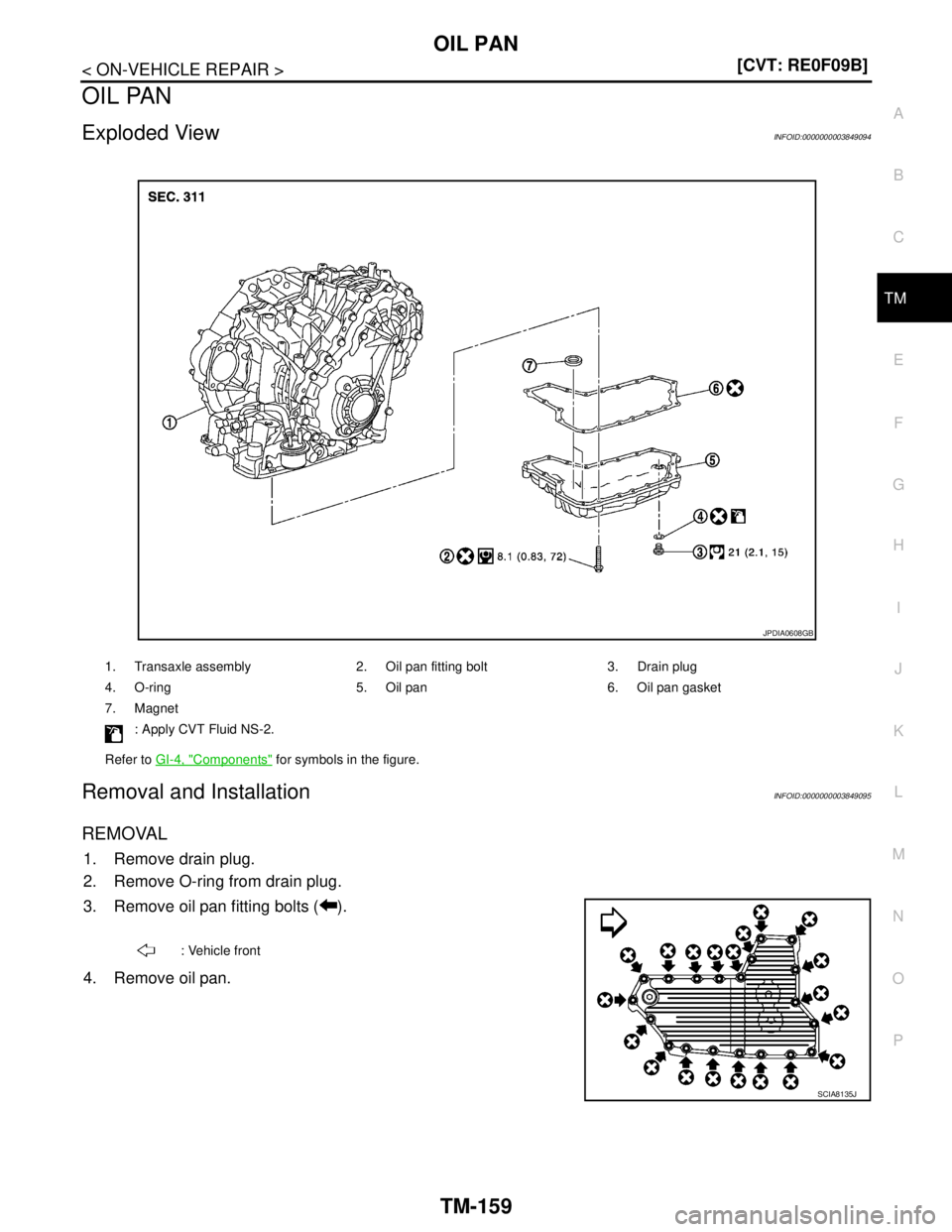

OIL PAN
Exploded ViewINFOID:0000000003849094
Removal and InstallationINFOID:0000000003849095
REMOVAL
1. Remove drain plug.
2. Remove O-ring from drain plug.
3. Remove oil pan fitting bolts ( ).
4. Remove oil pan.
1. Transaxle assembly 2. Oil pan fitting bolt 3. Drain plug
4. O-ring 5. Oil pan 6. Oil pan gasket
7. Magnet
: Apply CVT Fluid NS-2.
Refer to GI-4, "
Components" for symbols in the figure.
JPDIA0608GB
: Vehicle front
SCIA8135J
