NISSAN TEANA 2008 Service Manual RF-30 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) 73 (W/R)GroundRoom antenna 2 (+) (center console)OutputIgnition switch OFFWhen Intelligent Key is in the passenger compart- ment When Intelligent K

Page 3762 of 5121

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) RF-31 < ECU DIAGNOSIS > C D E F G H I J L MA B RF N O P 76 (V)GroundDriver door antenna (-)OutputWhen the driver door request switch is operat- ed with ignition switch OF

Page 3763 of 5121

NISSAN TEANA 2008 Service Manual RF-32 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) 79 (G)GroundRoom antenna 1 (+) (instrument panel)OutputIgnition switch OFFWhen Intelligent Key is in the passenger compart- ment When Intelligent K

Page 3764 of 5121

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) RF-33 < ECU DIAGNOSIS > C D E F G H I J L MA B RF N O P 87 (R/Y)GroundCombination switch INPUT 5InputCombination switchAll switch OFF (Wiper intermittent dial 4) 1.4 V Fron

Page 3765 of 5121

NISSAN TEANA 2008 Service Manual RF-34 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) 88 (R/G)GroundCombination switch INPUT 3InputCombination switchAll switch OFF (Wiper intermittent dial 4) 1.4 V Lighting switch HI (Wiper intermitte

Page 3766 of 5121

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) RF-35 < ECU DIAGNOSIS > C D E F G H I J L MA B RF N O P 93 (Y)Ground ON indicator lamp Output Ignition switchOFF (LOCK indicator is not illuminated)Battery voltage ON or ACC

Page 3767 of 5121

NISSAN TEANA 2008 Service Manual RF-36 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) 107 (R/W)GroundCombination switch INPUT 1InputCombination switch (Wiper intermit- tent dial 4)All switch OFF 1.4 V Turn signal switch LH 1.3 V Turn

Page 3768 of 5121

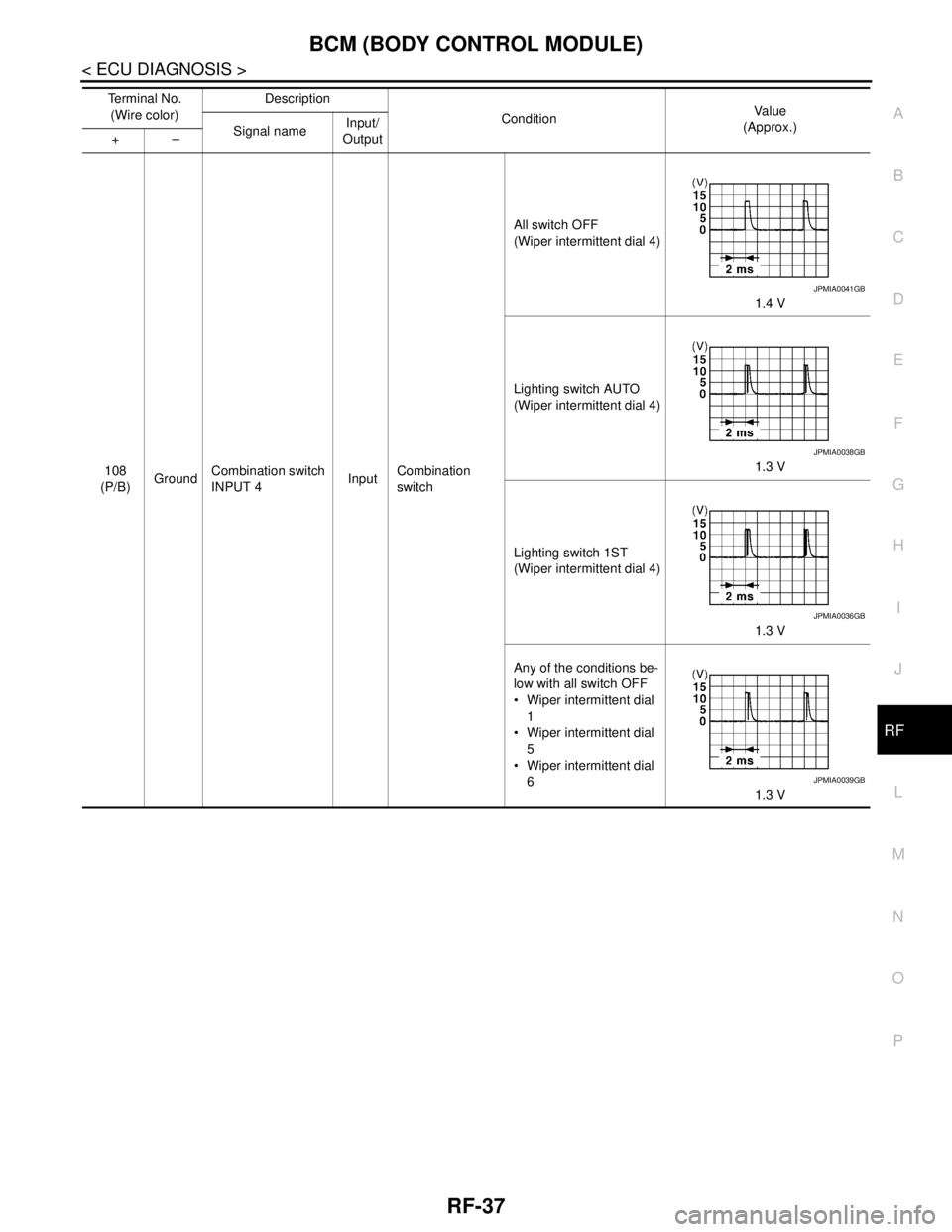

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) RF-37 < ECU DIAGNOSIS > C D E F G H I J L MA B RF N O P 108 (P/B)GroundCombination switch INPUT 4InputCombination switchAll switch OFF (Wiper intermittent dial 4) 1.4 V Lig
