Page 2225 of 5121

NISSAN TEANA 2008 Service Manual EXL-196
< ON-VEHICLE REPAIR >[XENON TYPE]
LICENSE PLATE LAMP
2. Turn the license plate lamp bulb socket (1) counterclockwise
and unlock it.
3. Remove the bulb (2) from the license plate lamp bulb soc

Page 2226 of 5121

NISSAN TEANA 2008 Service Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EXL-197
< SERVICE DATA AND SPECIFICATIONS (SDS) [XENON TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATION

Page 2227 of 5121

NISSAN TEANA 2008 Service Manual EXL-198
< BASIC INSPECTION >[HALOGEN TYPE]
DIAGNOSIS AND REPAIR WORKFLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW

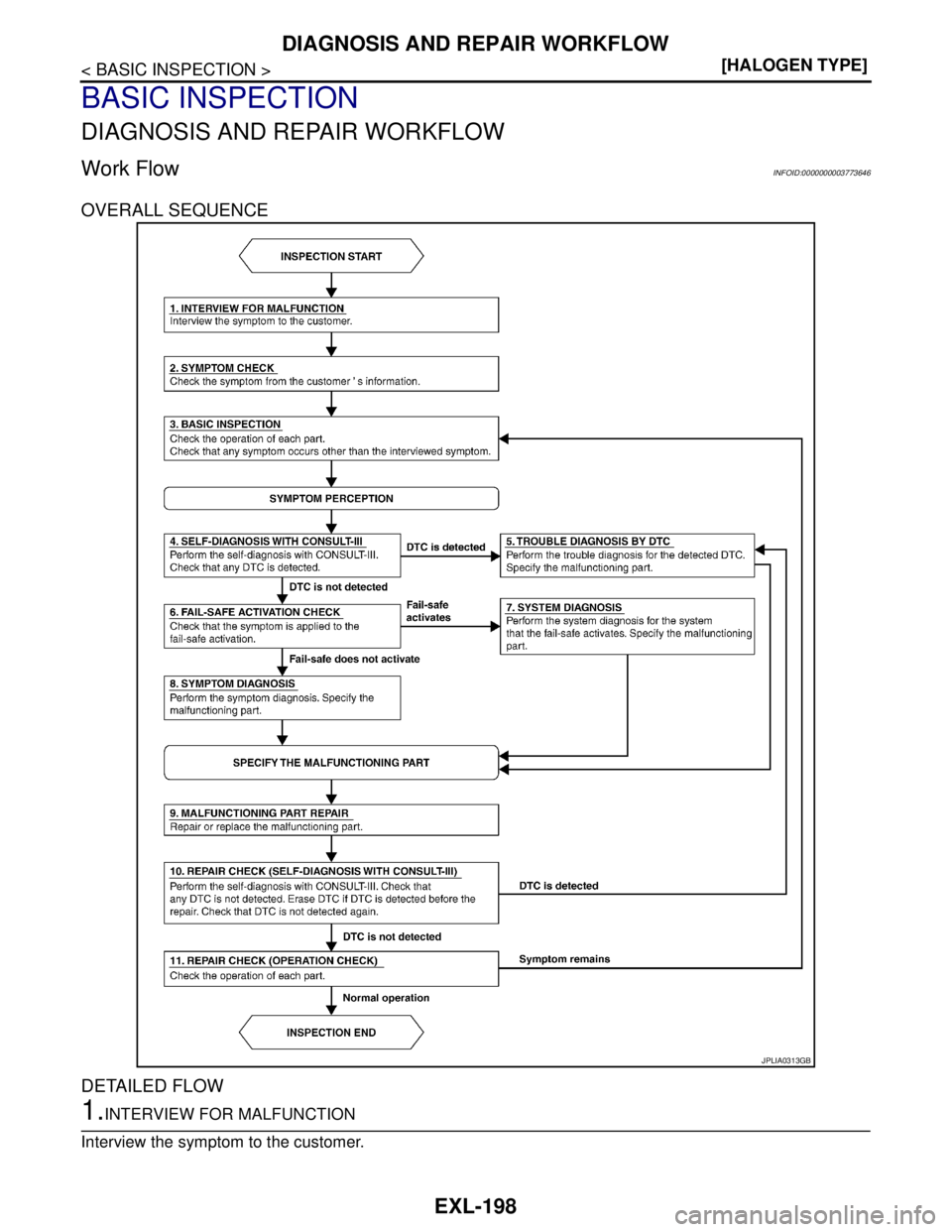

Work FlowINFOID:0000000003773646
OVERALL SEQUENCE
DETAILED FLOW
1.INTERVIEW FOR

Page 2228 of 5121

NISSAN TEANA 2008 Service Manual DIAGNOSIS AND REPAIR WORKFLOW
EXL-199
< BASIC INSPECTION >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
>> GO TO 2.
2.SYMPTOM CHECK
Check the symptom from the customers information.
>> GO TO 3.
3.B

Page 2229 of 5121

NISSAN TEANA 2008 Service Manual EXL-200
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
HEADLAMP SYSTEM
FUNCTION DIAGNOSIS
HEADLAMP SYSTEM

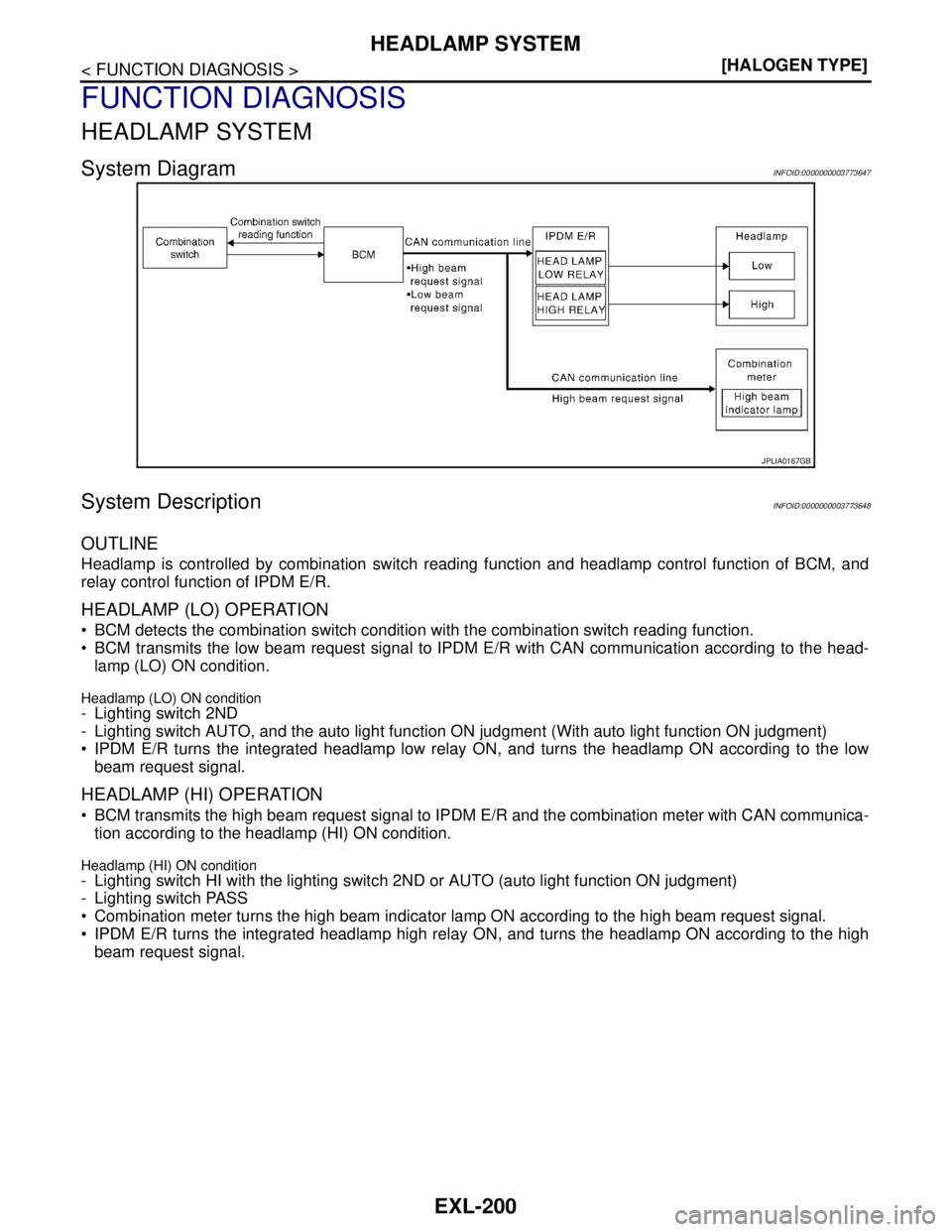

System DiagramINFOID:0000000003773647
System DescriptionINFOID:0000000003773648
OUTLINE
Headlamp is cont

Page 2230 of 5121

NISSAN TEANA 2008 Service Manual HEADLAMP SYSTEM
EXL-201
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P

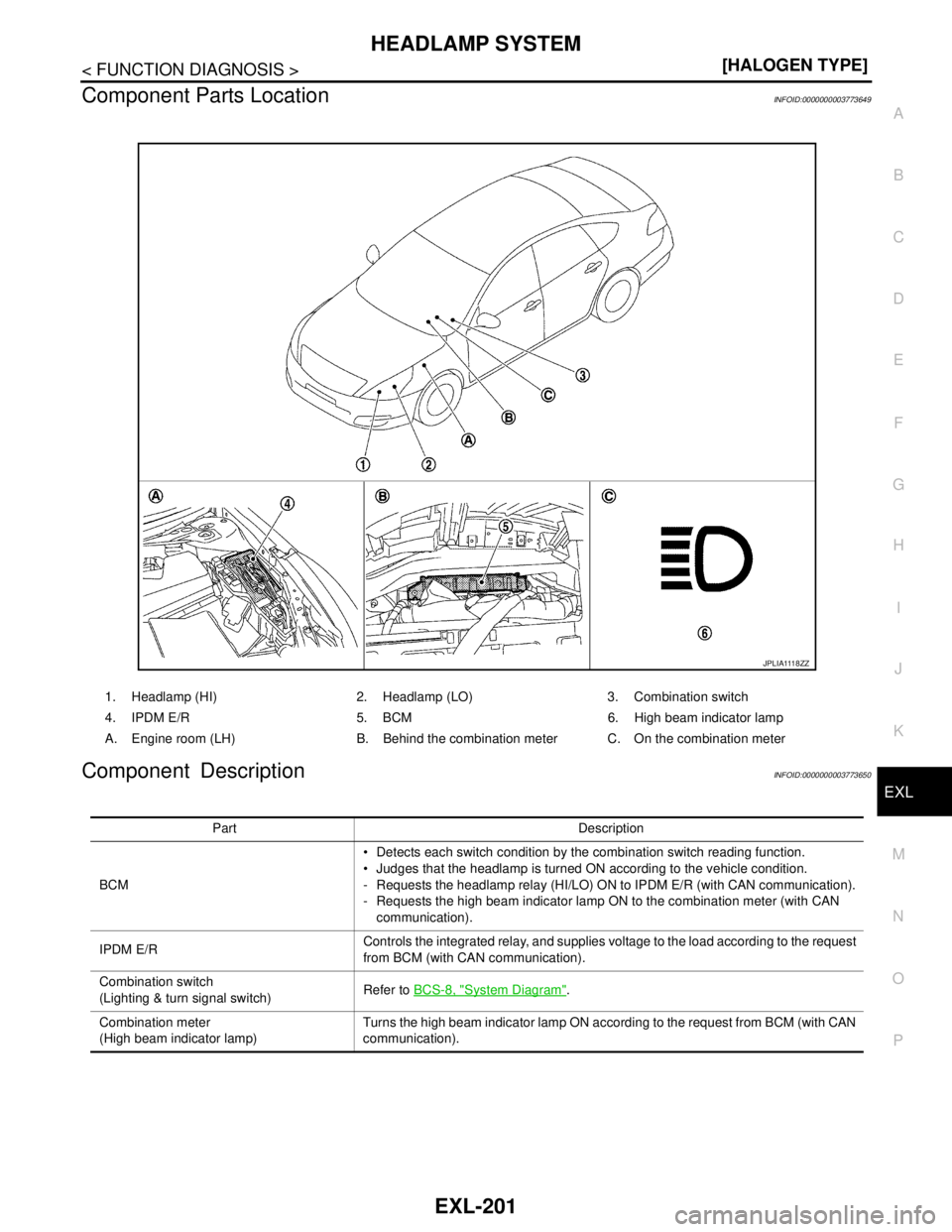

Component Parts LocationINFOID:0000000003773649
Component DescriptionINFOID:0000000003773650
1. Headlamp (

Page 2231 of 5121

NISSAN TEANA 2008 Service Manual EXL-202
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
AUTO LIGHT SYSTEM
AUTO LIGHT SYSTEM
System DiagramINFOID:0000000003894281
System DescriptionINFOID:0000000003894282
OUTLINE
Auto light system is control

EXL-202
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
AUTO LIGHT SYSTEM
AUTO LIGHT SYSTEM
System DiagramINFOID:0000000003894281
System DescriptionINFOID:0000000003894282
OUTLINE
Auto light system is controlled by each function of BCM and IPDM E/R.
Control by BCM- Combination switch reading function
- Headlamp control function
- Auto light function
- Delay timer function
Control by IPDM E/R- Relay control function
Auto light system has the auto light function and the delay timer function.
- Auto light function turns the exterior lamps* and each illumination ON/OFF automatically according to the
outside brightness.
- When auto light system turns the exterior lamps ON with the ignition switch OFF, delay timer function turns
the exterior lamps OFF depending on the vehicle condition with the auto light function after a certain period
of time.
*: Headlamp (LO/HI), parking lamp, tail lamp and front fog lamp (Headlamp HI and front fog lamp depend on
the combination switch condition.)
AUTO LIGHT FUNCTION
BCM detects the combination switch condition with the combination switch reading function.
BCM supplies voltage to optical sensor when the ignition switch is turned ON or ACC.
Optical sensor converts outside brightness (lux) to voltage and transmits the optical sensor signal to BCM.
BCM judges outside brightness from the optical sensor signal and judges ON/OFF condition of the exterior
lamp and each illumination according to the outside brightness.
BCM transmits each request signal to IPDM E/R with CAN communication according to ON/OFF condition
by the auto light function.
NOTE:
ON/OFF timing differs based on the sensitivity from the setting. The setting can be set by CONSULT-III. Refer
to EXL-215, "
HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)".
DELAY TIMER FUNCTION
BCM turns the exterior lamp OFF depending on the vehicle condition with the auto light function when the igni-
tion switch is turned OFF.
Turns the exterior lamp OFF 5 minutes after detecting that any door opens (Door switch ON).
Turns the exterior lamp OFF a certain period of time* after closing all doors (Door switch ON→OFF).
JPLIA0804GB

Page 2232 of 5121

NISSAN TEANA 2008 Service Manual AUTO LIGHT SYSTEM
EXL-203
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
Turns the exterior lamp OFF with the ignition switch ACC or the light switch OFF.
*: The preset time i
