DIAGNOSIS AND REPAIR WORK FLOW
3.PERFORM SELF-DIAGNOSIS USING “CONSULT-III” (WITH CONSULT-III)
Perform “AIR BAG” Self Diagnostic Result.
Is
“MALFUNCTIONING PART” displayed on CONSULT-III?
YES >> GO TO 5.
NO >> Repeat DTC confirmation with diagnostic procedure.
4.PERFORM SELF-DIAGNOSIS “AIR BAG” WARNING LAMP (WITHOUT CONSULT-III)
Check the air bag warning lamp status.
Is
“MALFUNCTIONING PART” detected?
YES >> GO TO 5.
NO >> Repeat DTC confirmation with diagnostic procedure.
5.REPAIR OR REPLACE
Repair or replace the malfunctioning part.
After the malfunction is repaired, erase the self-diagnostic result. Refer to SRC-10, "
Air Bag Warning Lamp
Diagnosis" or SRC-15, "CONSULT-III Function".
>> GO TO 6.
6.FINAL CHECK
Perform “AIR BAG” Self Diagnostic Result with CONSULT-III and /or, air bag warning lamp status.
Are all malfunctions corrected?
YES >>INSPECTION END
NO-1 >> GO TO 3. (With CONSULT-III)
NO-2 >> GO TO 4. (Without CONSULT-III)
Page 4250 of 5121
SRS AIR BAG SYSTEM
SRC-7
< FUNCTION DIAGNOSIS >
C
D
E
F
G
I
J
K
L
MA
B
SRC
N
O
P
FUNCTION DIAGNOSIS
SRS AIR BAG SYSTEM

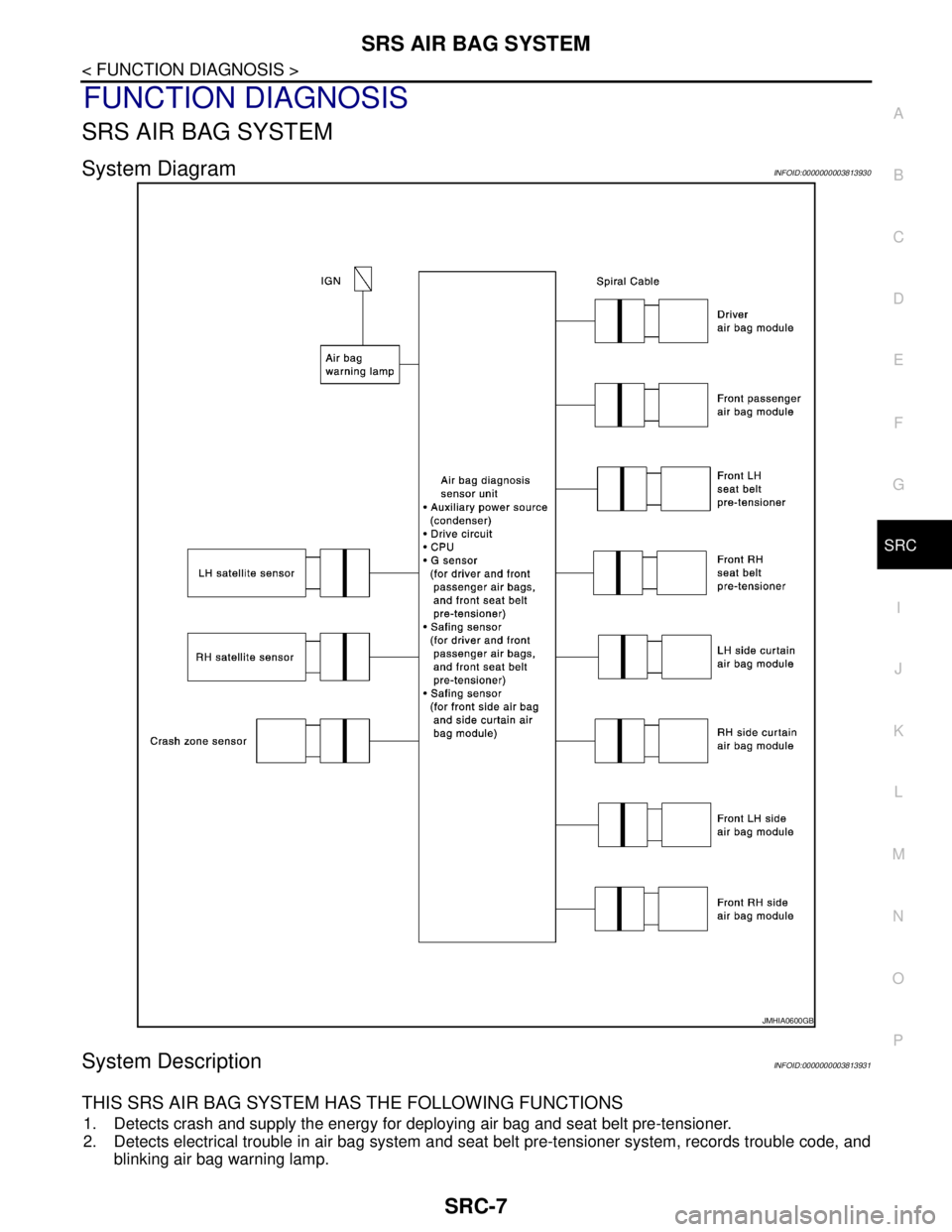

System DiagramINFOID:0000000003813930
System DescriptionINFOID:0000000003813931
THIS SRS AIR BAG SYSTEM HAS THE FOLLOWING FUNCTIONS
1. Detects crash and supply the energy for deploying air bag and seat belt pre-tensioner.
2. Detects electrical trouble in air bag system and seat belt pre-tensioner system, records trouble code, and
blinking air bag warning lamp.
JMHIA0600GB
Page 4251 of 5121

SRC-8
< FUNCTION DIAGNOSIS >
SRS AIR BAG SYSTEM
3. Detects and records the deployment of air bag and seat belt pre-tensioner, and turns on air bag warning
lamp.
4. Indicates malfunctioning portion with blinking times of air bag warning lamp in diagnosis mode.
5. Indicates the malfunctioning record by CONSULT-III.
Component Parts LocationINFOID:0000000003813932
Component DescriptionINFOID:0000000003813933
Air bag diagnosis sensor units are prepared for operation while the ignition switch is in the ON or START
position.
The operation of Supplemental Restraint System is different from collision modes application. For example,
the driver air bag module and front passenger air bag module are activated in a frontal collision but not in a
side collision.
SRS configurations which are activated for some collision modes are as follows.
1. Front passenger air bag module M62 2. Driver air bag module M350 3. Conbination switch (Spiral cable)
M32
4. Air bag diagnosis sensor unit B14,
B228, M595. LH/RH satellite sensor
LH B37
RH B2116. Front LH/RH seat belt pre-tensioner
LH B36
RH B213
7. Front LH/RH side air bag module
LH B16
RH B2128. Crash zone sensor E313 9. Combination meter (Air bag warning
lamp) M34
10. LH/RH side curtain air bag module
LH B72
RH B256
JMHIA0599ZZ
SRS configuration Frontal collision Left side collision Right side collision
Driver air bag module. Refer to SRC-122, "
Diagnosis
Procedure"×——
Front passenger air bag module. Refer to SRC-122,
"Diagnosis Procedure"×——
Page 4252 of 5121
SRS AIR BAG SYSTEM
SRC-9
< FUNCTION DIAGNOSIS >
C
D
E
F
G
I
J
K
L
MA
B
SRC
N
O
P
×: Application, —: No application
Front LH seat belt pre-tensioner. Refer to SRC-122,
"Diagnosis Procedure"×——
Front RH seat belt pre-tensioner. Refer to SRC-122,
"Diagnosis Procedure"×——
Front LH side air bag module. Refer toSRC-124, "
Di-
agnosis Procedure" —×—
Front RH side air bag module. Refer to SRC-124, "
Di-
agnosis Procedure"——×
LH side curtain air bag module. Refer to SRC-124,
"Diagnosis Procedure"—×—
RH side curtain air bag module. Refer to SRC-124,
"Diagnosis Procedure"——× SRS configuration Frontal collision Left side collision Right side collision
Page 4253 of 5121

SRC-10
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (AIRBAG)
DIAGNOSIS SYSTEM (AIRBAG)
Diagnosis DescriptionINFOID:0000000003813934
CAUTION:
• Never use electrical test equipment on any circuit related to the SRS unless instructed in this Ser-
vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.
Never repair, splice or modify the SRS wiring harness. If the harness is damaged, replace it with a
new one.
Keep ground portion clean.
DIAGNOSIS FUNCTION
The SRS self-diagnosis results can be read by using air bag warning lamp and/or CONSULT-III.
The user mode is exclusively prepared for the customer (driver). This mode warns the driver of a system
malfunction through the operation of the air bag warning lamp.
The diagnosis mode allows the technician to locate and inspect the malfunctioning part.
The mode applications for the air bag warning lamp and CONSULT-III are as follows.
HOW TO PERFORM TROUBLE DIAGNOSIS FOR QUICK AND ACCURATE REPAIR
A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a malfunction. It is important to fully understand the symp-
toms or conditions for a customer complaint.
Information from Customer.
WHAT..... Vehicle model.
WHEN..... Date, Frequency.
WHERE..... Road conditions.
HOW..... Operating conditions, Symptoms.
Preliminary Check.
Check that the following parts are in good order.
Battery (Refer to PG-3, "
How to Handle Battery").
Fuse (Refer to PG-82, "
Fuse").
System component-to-harness connections.
Air Bag Warning Lamp DiagnosisINFOID:0000000003843289
SELF-DIAGNOSIS FUNCTION
The reading of these results is accomplished by “User mode” and “Diagnosis mode”.
After a malfunction is repaired, turn ignition switch ON. Diagnosis mode returns to the User mode. At that
time, the self-diagnosis result is cleared.
User mode Diagnosis mode Display type
Air bag warning lamp X X ON-OFF operation
CONSULT-III – X Monitoring
Page 4254 of 5121
DIAGNOSIS SYSTEM (AIRBAG)
SRC-11
< FUNCTION DIAGNOSIS >
C
D
E
F
G
I
J
K
L
MA
B
SRC
N
O
P HOW TO CHANGE SELF-DIAGNOSIS MODE WITHOUT CONSULT-III
DIAGNOSTIC PROCEDURE (USER MODE)
Checking air bag operation according to air bag warning lamp-User mode
1. Turn the ignition switch from OFF to ON, and check that the air bag warning lamp blinks.
2. Compare the air bag warning lamp blinking pattern with the
examples.
PHIA0709E
BF-1845D
Page 4255 of 5121

SRC-12
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (AIRBAG)
Air bag warning lamp examples (User mode)
DIAGNOSTIC PROCEDURE (DIAGNOSIS MODE)
1. Turn the ignition switch ON, and check that the air bag warning lamp blinks.
2. There are 2 blinking patterns for the air bag warning lamp. One is a 3-second blink followed by a 0.5- sec-
ond blink repeat. The other is two 1.5-second blinks followed by a 0.5-second blink repeat.
Air bag warning lamp operation -User mode SRS condition Reference item
No malfunction is detected
No further action is necessary—
The system is malfunctioning and
needs to be repaired as indicatedGo to SRC-10, "
Air Bag Warning
Lamp Diagnosis"
Air bag is deployed
Seat belt pre-tensioner is deployedGo to SRC-122, "Diagnosis Proce-
dure" or SRC-124, "Diagnosis Pro-
cedure"
Air bag diagnosis sensor unit is mal-
functioning
Air bag power supply circuit is mal-
functioning
Air bag warning lamp circuit is mal-
functioningGo to SRC-145, "
Diagnosis Proce-
dure"
Air bag diagnosis sensor unit is mal-
functioning
Air bag warning lamp circuit is mal-
functioningGo to SRC-146, "
Diagnosis Proce-
dure"
SHIA0011E
SHIA0012E
SHIA0013E
SHIA0014E
Page 4256 of 5121

DIAGNOSIS SYSTEM (AIRBAG)
SRC-13
< FUNCTION DIAGNOSIS >
C
D
E
F
G
I
J
K
L
MA
B
SRC
N
O
P An Example of a 3-second Blink Followed by a 0.5-second Blink Repeat
a through b are repeated.
b: Seven 0.5-second blinks indicate that the air bag diagnosis sensor unit circuit is malfunctioning.
Number of 0.5-second Blinks After a 3-second Blink Indicates Malfunctioning Items
JMHIA0640GB
Number of 0.5-second blinks Malfunctioning items Blinking pattern
0 Self-diagnosis result is not deleted —
1 Front LH seat belt pre-tensionerRefer to the following
SRC-60, "
DTC Logic"
SRC-62, "DTC Logic"
SRC-64, "DTC Logic"
SRC-66, "DTC Logic"
2 Driver air bag moduleRefer to the following
SRC-32, "
DTC Logic"
SRC-34, "DTC Logic"
SRC-36, "DTC Logic"
SRC-38, "DTC Logic"
3 Front RH seat belt pre-tensionerRefer to the following
SRC-52, "
DTC Logic"
SRC-54, "DTC Logic"
SRC-56, "DTC Logic"
SRC-58, "DTC Logic"
6 Crash zone sensorRefer to the following
SRC-24, "DTC Logic"
SRC-26, "DTC Logic"
SRC-28, "DTC Logic"
7 Air bag diagnosis sensor unitRefer to the following
SRC-16, "
DTC Logic"
SRC-18, "DTC Logic"
SRC-20, "DTC Logic"
SRC-22, "DTC Logic"
SRC-30, "DTC Logic"
SRC-40, "DTC Logic"
SRC-50, "DTC Logic"
SRC-70, "DTC Logic"
SRC-80, "DTC Logic"
SRC-98, "DTC Logic"
SRC-120, "DTC Logic"
SRC-68, "DTC Logic"
SRC-118, "DTC Logic"
SRC-130, "DTC Logic"
