NISSAN TEANA 2008 Service Manual FRONT SEAT
SE-89
< ON-VEHICLE REPAIR >[WITH VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
ON-VEHICLE REPAIR
FRONT SEAT

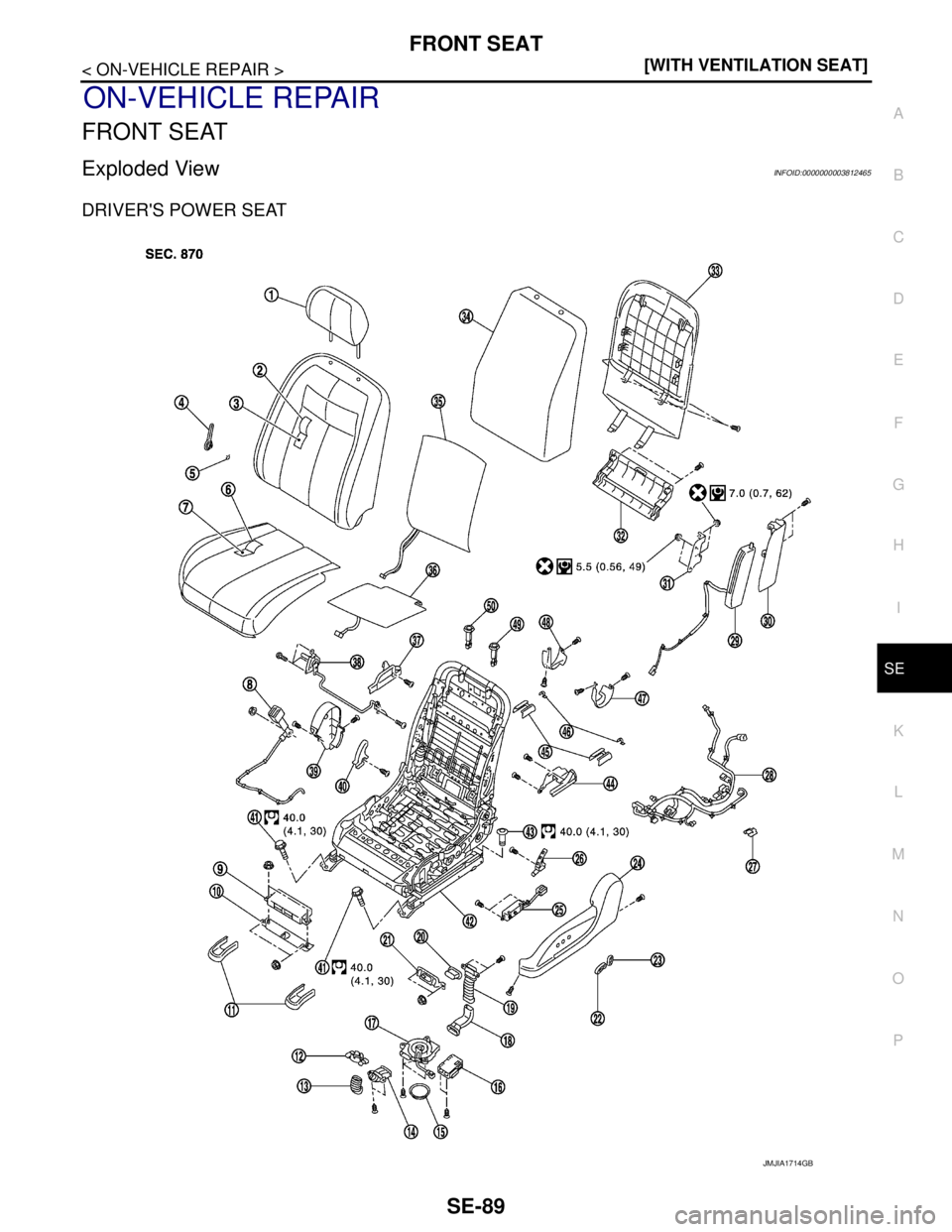

Exploded ViewINFOID:0000000003812465
DRIVERS POWER SEAT
JMJIA1714GB

Page 3954 of 5121

NISSAN TEANA 2008 Service Manual SE-90
< ON-VEHICLE REPAIR >[WITH VENTILATION SEAT]
FRONT SEAT

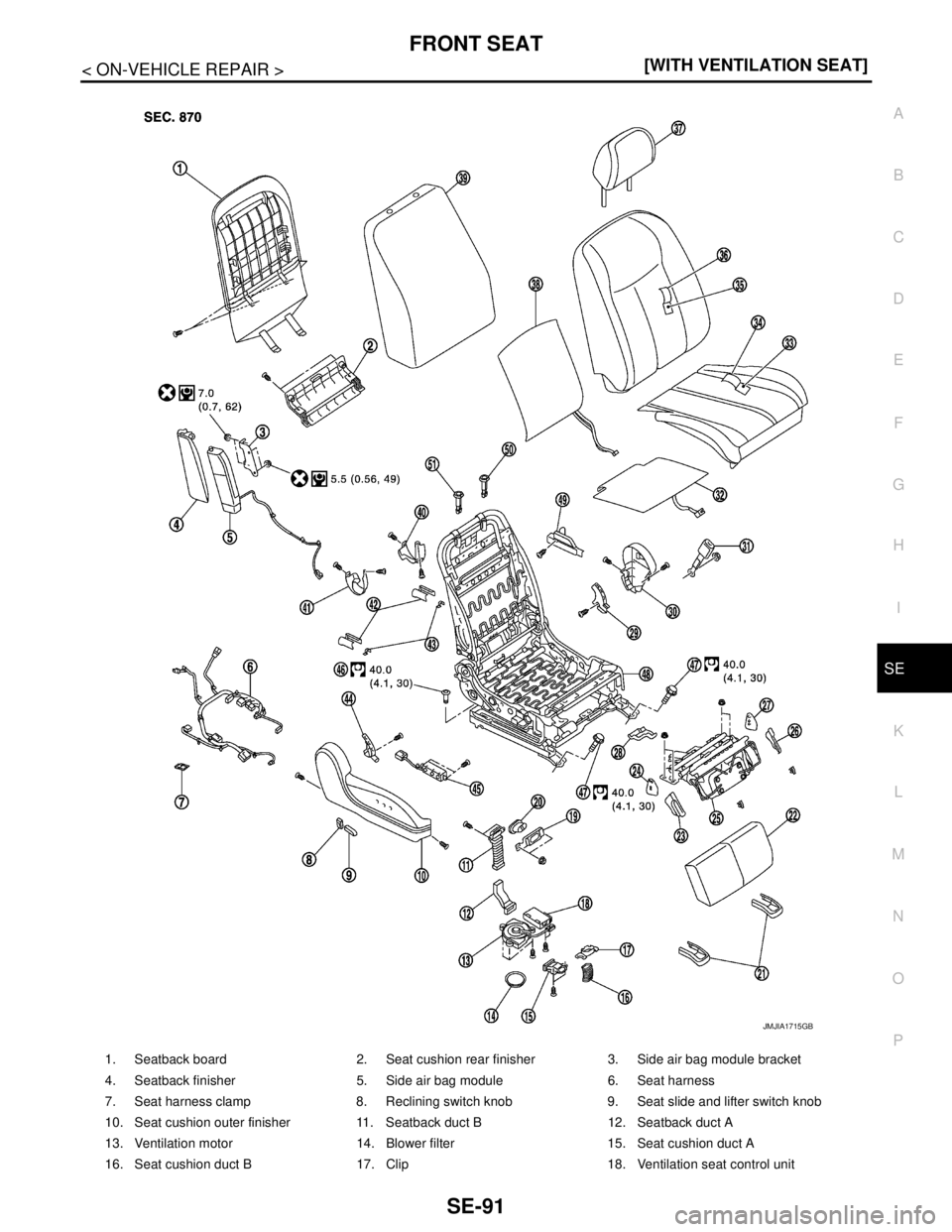

PASSENGERS POWER SEAT
1. Headrest 2. Seatback trim 3. Seatback pad
4. Lumbar support lever knob 5. Snap pin 6. Seat cushion trim
7. Seat

Page 3955 of 5121

NISSAN TEANA 2008 Service Manual FRONT SEAT
SE-91
< ON-VEHICLE REPAIR >[WITH VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
1. Seatback board 2. Seat cushion rear finisher 3. Side air bag module bracket
4. Seatback finisher 5. Sid

Page 3956 of 5121

NISSAN TEANA 2008 Service Manual SE-92
< ON-VEHICLE REPAIR >[WITH VENTILATION SEAT]
FRONT SEAT
Removal and Installation
INFOID:0000000003812466
REMOVAL
CAUTION:
When removing and installing, use shop cloths to protect parts from da

SE-92
< ON-VEHICLE REPAIR >[WITH VENTILATION SEAT]
FRONT SEAT
Removal and Installation
INFOID:0000000003812466
REMOVAL
CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
Before removal, turn ignition switch OFF, disconnect battery negative terminal and then wait for at
least 3 minutes.
NOTE:
Confirm the position of connector before starting work.
1. Remove the headrest.
2. Slide the seat to the frontmost position.
3. Remove the rear outer mounting TORX bolt.
4. Remove the rear inner mounting TORX bolt.
5. Slide the seat to the rearmost position.
6. Remove the front slide cover.
Open the front end of the front slide cover to release the
pawls.
Slide the front slide cover forward to release the pawls.
7. Remove the front outer mounting TORX bolt.
8. Remove the front inner mounting TORX bolt.
9. Set seatback in a standing position.
10. Lift the seat to the uppermost position.
11. Lift the ottoman to the uppermost position. (With ottoman model)
12. Disconnect harness connector under the seat and remove harness clamps.
13. Remove seat from the vehicle.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Before installation, turn ignition switch OFF, disconnect battery negative terminal, and then wait for
at least 3 minutes.
Clamp the harness in position.
19. Clip 20. Seatback duct C 21. Front slide cover
22. Ottoman trim and pad 23. Front outer link cover 24. Rear outer link cover
25. Ottoman unit assembly 26. Front inner link cover 27. Rear inner link cover
28. Ottoman protector 29. Seat cushion inner finisher inside 30. Seat cushion inner finisher
31. Seat belt buckle 32. Seat cushion heater unit 33. Seat cushion pad
34. Seat cushion trim 35. Seatback pad 36. Seatback trim
37. Headrest 38. Seatback heater unit 39. Seatback silencer
40. Reclining device inner cover 41. Reclining device outer cover 42. Rear slide cover
43. End cap 44. Seat cushion outer finisher inside 45. Seat control switch
46. TORX bolt 47. TORX bolt 48. Seat frame assembly
49. Seat slide inner cover 50. Headrest holder (locked) 51. Headrest holder (free)
Refer to GI-4, "
Components" for symbols in the figure.
: Pawl
JMJIA1863ZZ

Page 3957 of 5121

NISSAN TEANA 2008 Service Manual FRONT SEAT
SE-93
< ON-VEHICLE REPAIR >[WITH VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
Disassembly and AssemblyINFOID:0000000003812467
SEATBACK
Disassembly
1. Remove the seatback board.
Remov

Page 3958 of 5121

NISSAN TEANA 2008 Service Manual SE-94
< ON-VEHICLE REPAIR >[WITH VENTILATION SEAT]
FRONT SEAT
Disconnect the seatback heater unit harness connector (A).
Remove the headrest holder.
CAUTION:
Before installing headrest holder, che

Page 3959 of 5121

NISSAN TEANA 2008 Service Manual FRONT SEAT
SE-95
< ON-VEHICLE REPAIR >[WITH VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
Remove the screws (A).
Remove the pawls, and then pull out seat cushion inner fin-
isher.
4. Remove th

Page 3960 of 5121

NISSAN TEANA 2008 Service Manual SE-96
< ON-VEHICLE REPAIR >[WITH VENTILATION SEAT]
FRONT SEAT
Disconnect the harness connector (B).
Remove the bolts (C), and then remove the ottoman frame.
8. Remove the seat slide outer cover.
R
