Page 3385 of 5121

NISSAN TEANA 2008 Service Manual PB-4
< ON-VEHICLE MAINTENANCE >
PARKING BRAKE SHOE
PARKING BRAKE SHOE
AdjustmentINFOID:0000000003811313
1. Adjust parking brake pedal stroke. Refer to PB-2, "Inspection and Adjustment".
2. Perform par

Page 3386 of 5121

NISSAN TEANA 2008 Service Manual PARKING BRAKE CONTROL
PB-5
< ON-VEHICLE REPAIR >
C
D
E
G
H
I
J
K
L
MA
B
PB
N
O
P
ON-VEHICLE REPAIR
PARKING BRAKE CONTROL

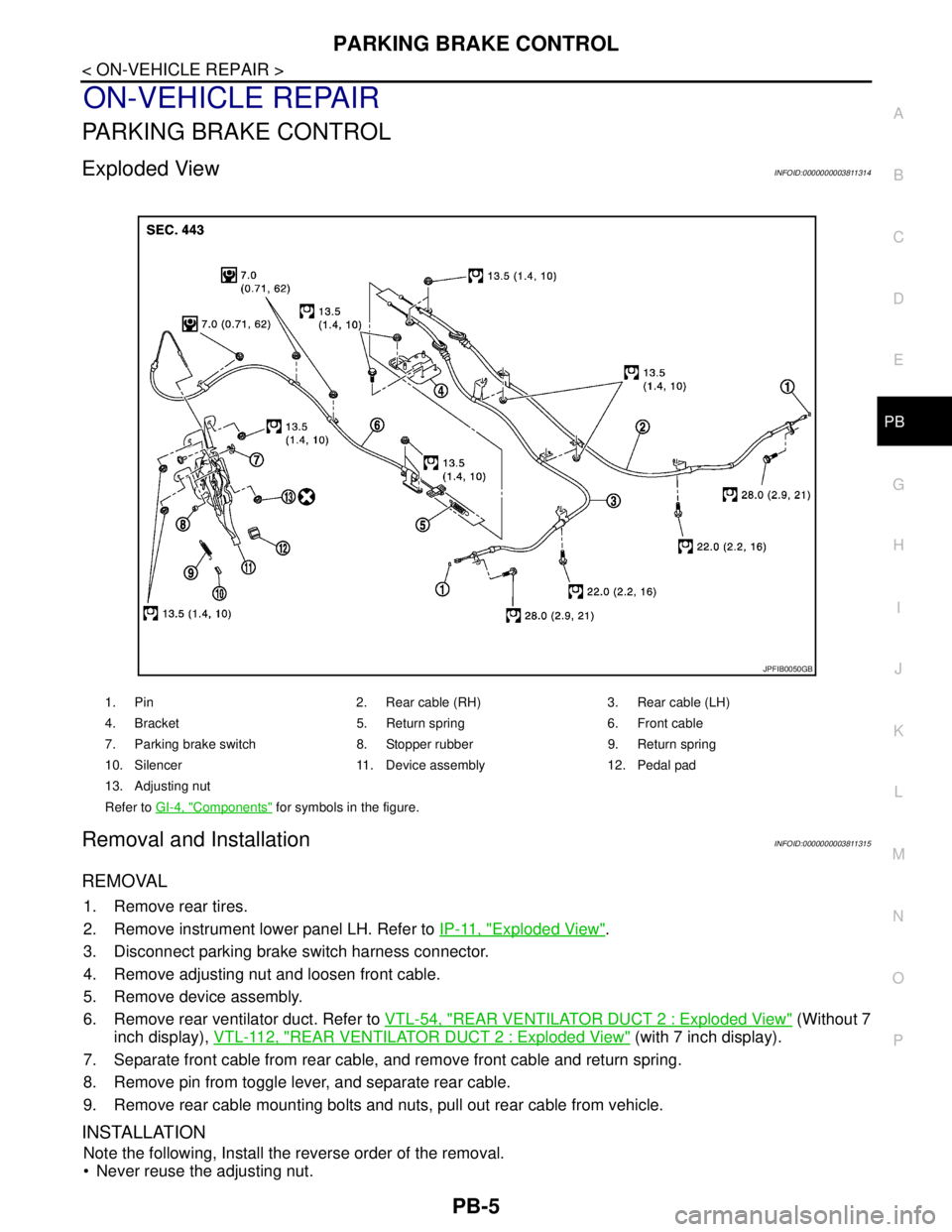

Exploded ViewINFOID:0000000003811314
Removal and InstallationINFOID:00000000038

Page 3387 of 5121

NISSAN TEANA 2008 Service Manual PB-6
< ON-VEHICLE REPAIR >
PARKING BRAKE CONTROL
Adjustment
INFOID:0000000003811316
ADJUSTMENT AFTER INSTALLATION
Adjust the parking brake pedal stroke. Refer to PB-2, "Inspection and Adjustment".

Page 3388 of 5121

NISSAN TEANA 2008 Service Manual PARKING BRAKE SHOE
PB-7
< ON-VEHICLE REPAIR >
C
D
E
G
H
I
J
K
L
MA
B
PB
N
O
P
PARKING BRAKE SHOE
Exploded ViewINFOID:0000000003811317
Removal and InstallationINFOID:0000000003811318
REMOVAL
WARNING:
C

Page 3389 of 5121

NISSAN TEANA 2008 Service Manual PB-8
< ON-VEHICLE REPAIR >
PARKING BRAKE SHOE
CAUTION:
The parking brake shoes for the front side are made of different materials from those for the rear
side. Never misidentify them when removing and

Page 3390 of 5121

NISSAN TEANA 2008 Service Manual PARKING BRAKE SHOE
PB-9
< ON-VEHICLE REPAIR >
C
D
E
G
H
I
J
K
L
MA
B
PB
N
O
P
CAUTION:
If any drag is found, inspection the rear disc brake. Refer to BR-42, "
BRAKE CALIPER ASSEMBLY
: Disassembly and

Page 3391 of 5121

NISSAN TEANA 2008 Service Manual PB-10
< SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Parking Drum BrakeINFOID:00000000038113

Page 3392 of 5121

NISSAN TEANA 2008 Service Manual PCS
PCS-1
ELECTRICAL & POWER CONTROL
C
DE
F
G H
I
J
K L
B
SECTION PCS
A
O P
N
CONTENTS
POWER CONTROL SYSTEM
IPDM E/R
FUNCTION DIAGNOSIS .. .............................
4
RELAY CONTROL SYSTEM .......

PCS
PCS-1
ELECTRICAL & POWER CONTROL
C
DE
F
G H
I
J
K L
B
SECTION PCS
A
O P
N
CONTENTS
POWER CONTROL SYSTEM
IPDM E/R
FUNCTION DIAGNOSIS .. .............................
4
RELAY CONTROL SYSTEM ......................... .....4
System Diagram .................................................. ......4
System Description ...................................................4
Component Parts Location ........................................6
POWER CONTROL SYSTEM .............................7
System Diagram .................................................. ......7
System Description ...................................................7
Component Parts Location ........................................7
SIGNAL BUFFER SYSTEM ................................8
System Diagram .................................................. ......8
System Description ...................................................8
Component Parts Location ........................................8
POWER CONSUMPTION CONTROL SYS-
TEM .....................................................................
9
System Diagram .................................................. ......9
System Description ...................................................9
Component Parts Location ......................................10
DIAGNOSIS SYSTEM (IPDM E/R) .....................11
Diagnosis Description ......................................... ....11
CONSULT-III Function (IPDM E/R) .........................13
COMPONENT DIAGNOSIS .........................16
U1000 CAN COMM CIRCUIT ......................... ....16
Description .......................................................... ....16
DTC Logic ...............................................................16
Diagnosis Procedure ...............................................16
B2098 IGNITION RELAY ON STUCK ...............17
Description .......................................................... ....17
DTC Logic ...............................................................17
Diagnosis Procedure ...............................................17
B2099 IGNITION RELAY OFF STUCK ..............18
Description ........................................................... ....18
DTC Logic ................................................................18
Diagnosis Procedure ...............................................18
POWER SUPPLY AND GROUND CIRCUIT ....19
Diagnosis Procedure ...............................................19
ECU DIAGNOSIS .........................................20
IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) ................
20
Reference Value .................................................. ....20
Wiring Diagram - IPDM E/R - ..................................28
Fail-safe ...................................................................31
DTC Index ...............................................................33
ON-VEHICLE REPAIR .................................34
IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) ................
34
Exploded View ..................................................... ....34
Removal and Installation .........................................34
POWER DISTRIBUTION SYSTEM
BASIC INSPECTION ....... ............................
35
DIAGNOSIS AND REPAIR WORKFLOW ........35
Work Flow ............................................................ ....35
FUNCTION DIAGNOSIS ..............................38
POWER DISTRIBUTION SYSTEM ...................38
System Description .............................................. ....38
Component Parts Location ......................................40
Component Description ..........................................40
DIAGNOSIS SYSTEM (BCM) ...........................41
COMMON ITEM ..................................................... ....41
COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................
41
INTELLIGENT KEY ................................................ ....42
