NISSAN TEANA 2008 Service Manual SEC-160 < ECU DIAGNOSIS >[INTELLIGENT KEY SYSTEM] BCM (BODY CONTROL MODULE) 107 (R/W)GroundCombination switch INPUT 1InputCombination switch (Wiper intermit- tent dial 4)All switch OFF 1.4 V Turn si

Page 4170 of 5121

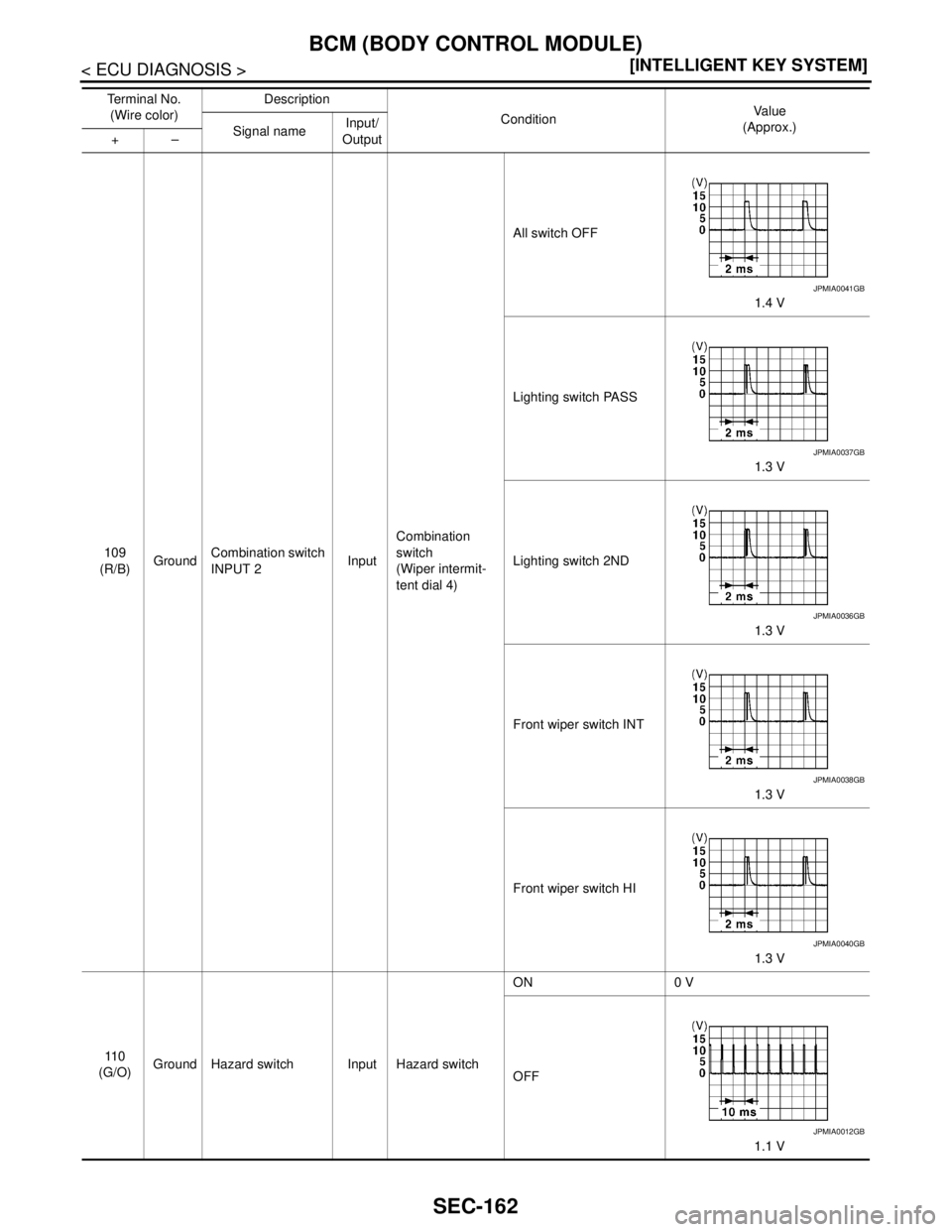

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) SEC-161 < ECU DIAGNOSIS >[INTELLIGENT KEY SYSTEM] C D E F G H I J L MA B SEC N O P 108 (P/B)GroundCombination switch INPUT 4InputCombination switchAll switch OFF (Wiper int

Page 4171 of 5121

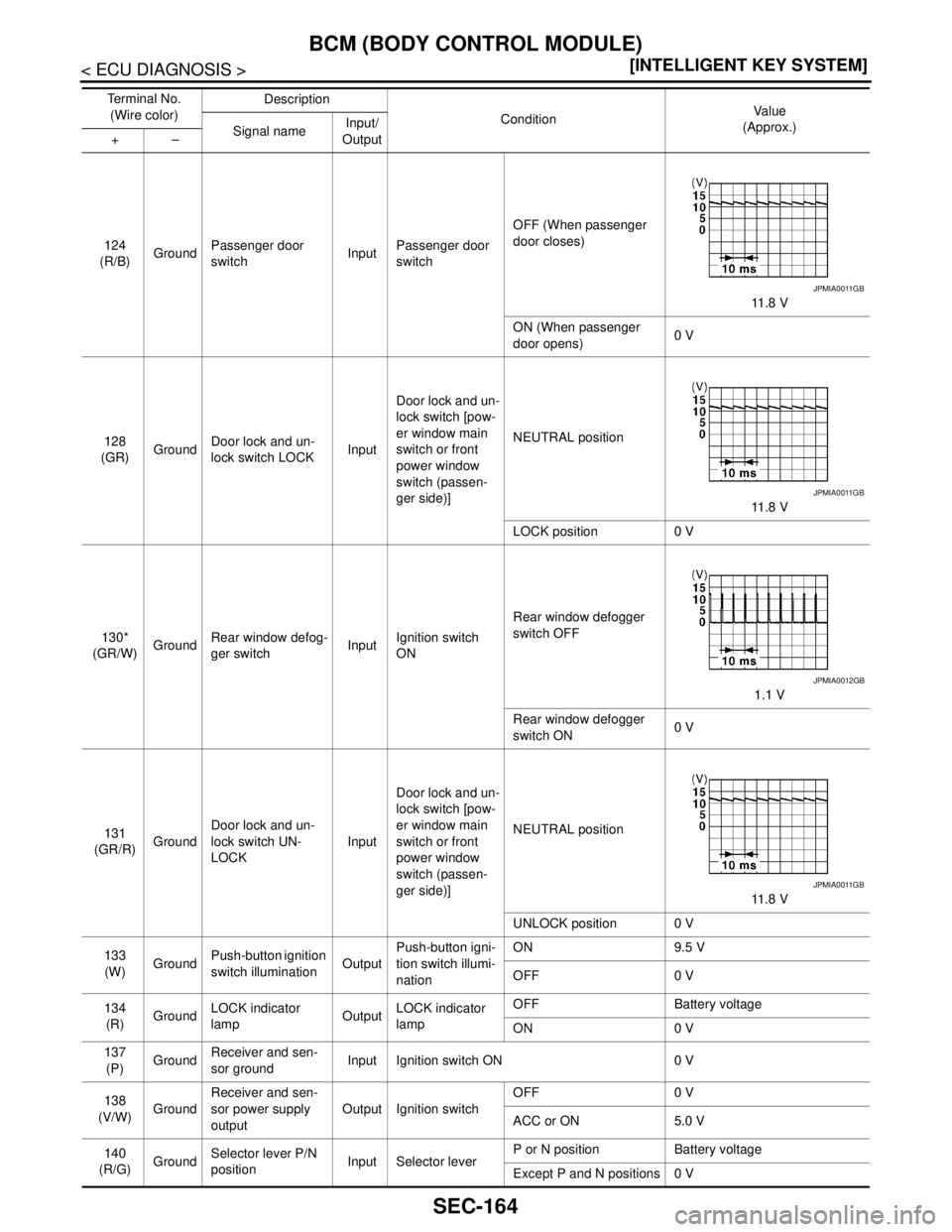

NISSAN TEANA 2008 Service Manual SEC-162 < ECU DIAGNOSIS >[INTELLIGENT KEY SYSTEM] BCM (BODY CONTROL MODULE) 109 (R/B)GroundCombination switch INPUT 2InputCombination switch (Wiper intermit- tent dial 4)All switch OFF 1.4 V Lightin

Page 4172 of 5121

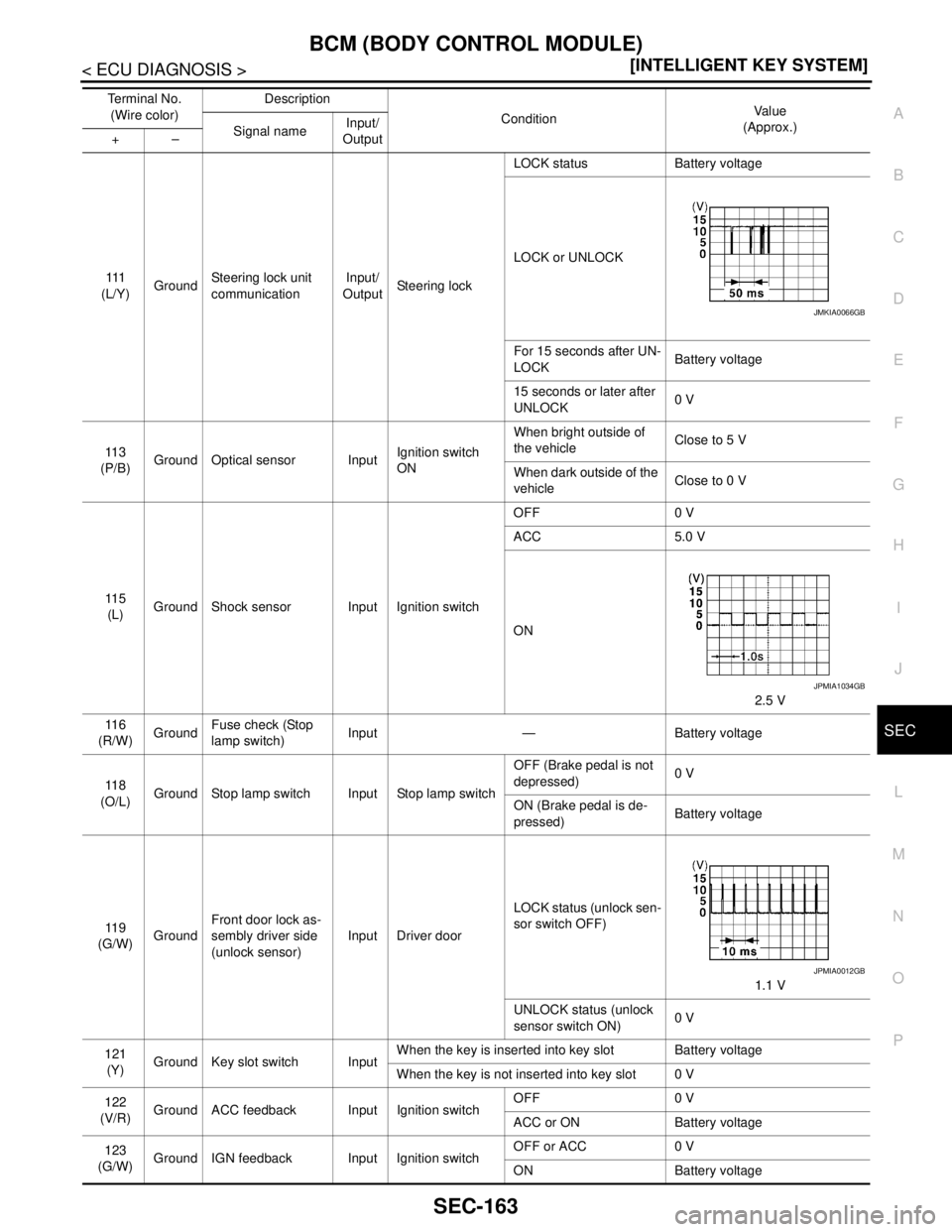

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) SEC-163 < ECU DIAGNOSIS >[INTELLIGENT KEY SYSTEM] C D E F G H I J L MA B SEC N O P 111 (L/Y)GroundSteering lock unit communicationInput/ OutputSteering lockLOCK status Batte

Page 4173 of 5121

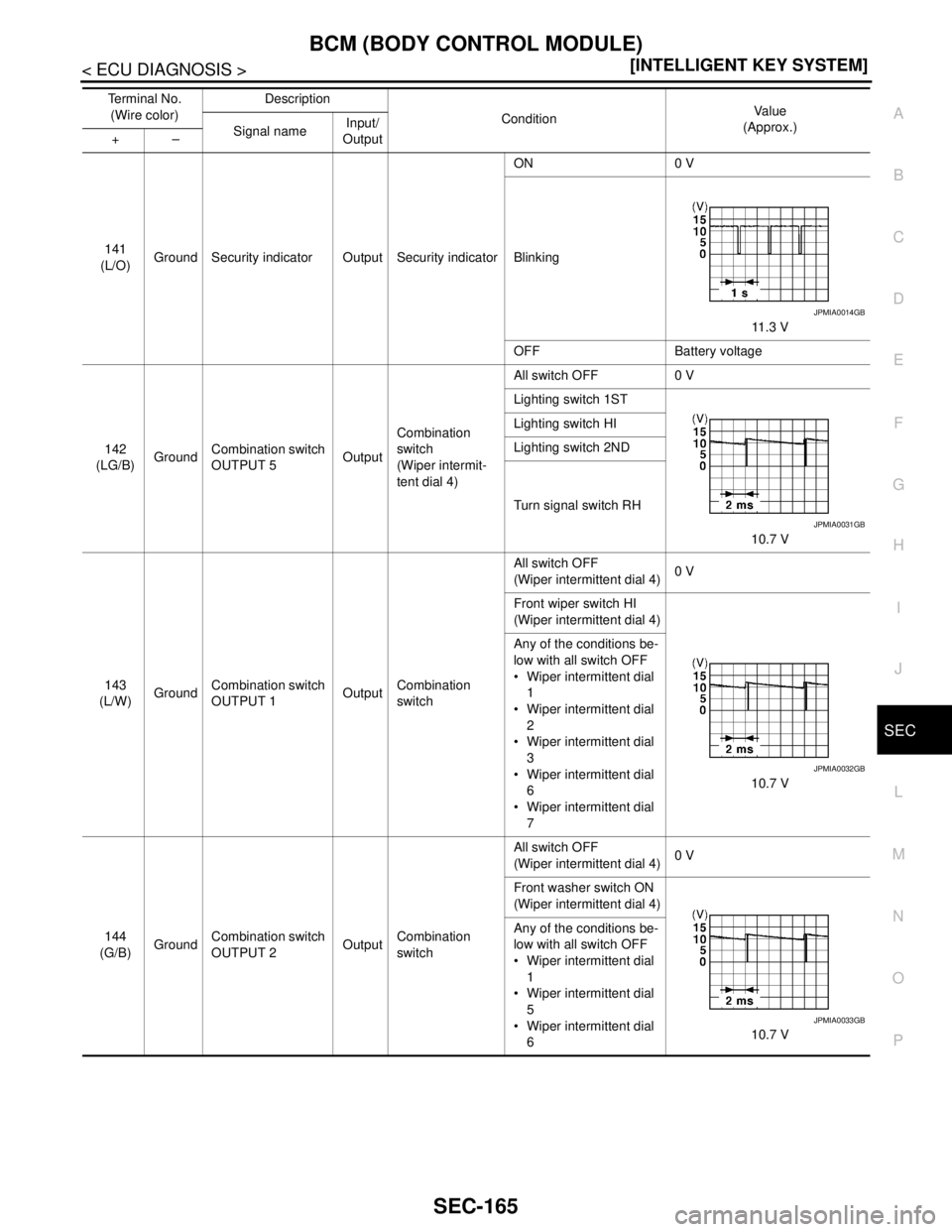

NISSAN TEANA 2008 Service Manual SEC-164 < ECU DIAGNOSIS >[INTELLIGENT KEY SYSTEM] BCM (BODY CONTROL MODULE) 124 (R/B)GroundPassenger door switchInputPassenger door switchOFF (When passenger door closes) 11 . 8 V ON (When passeng

Page 4174 of 5121

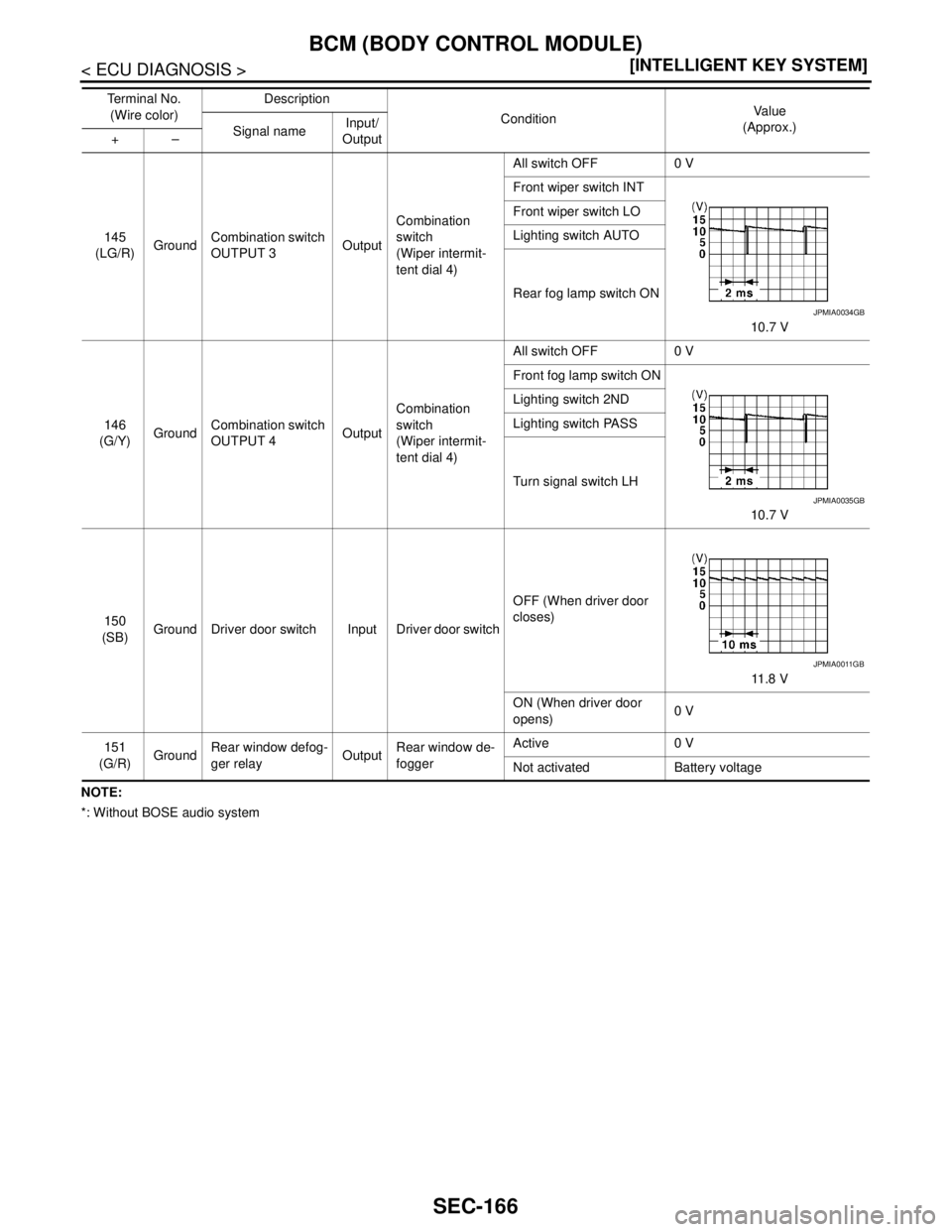

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) SEC-165 < ECU DIAGNOSIS >[INTELLIGENT KEY SYSTEM] C D E F G H I J L MA B SEC N O P 141 (L/O)Ground Security indicator Output Security indicatorON 0 V Blinking 11.3 V OFF Batt

Page 4175 of 5121

NISSAN TEANA 2008 Service Manual SEC-166 < ECU DIAGNOSIS >[INTELLIGENT KEY SYSTEM] BCM (BODY CONTROL MODULE) NOTE: *: Without BOSE audio system145 (LG/R)GroundCombination switch OUTPUT 3OutputCombination switch (Wiper intermit- ten

Page 4176 of 5121

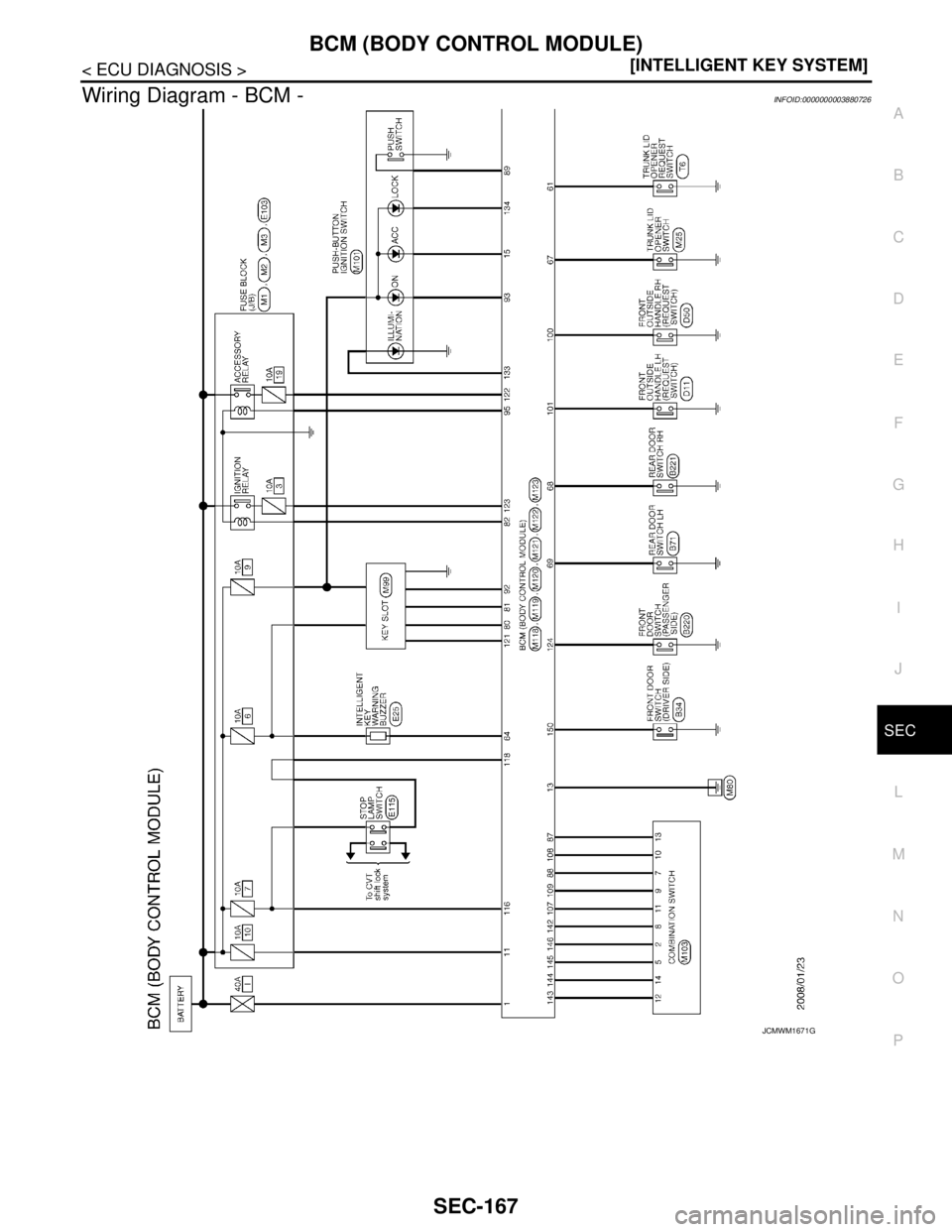

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) SEC-167 < ECU DIAGNOSIS >[INTELLIGENT KEY SYSTEM] C D E F G H I J L MA B SEC N O P Wiring Diagram - BCM -INFOID:0000000003880726 JCMWM1671GB
