Page 2305 of 5121

NISSAN TEANA 2008 Service Manual EXL-276
< COMPONENT DIAGNOSIS >[HALOGEN TYPE]
BACK-UP LAMP
JCLWM1471GB

Page 2306 of 5121

NISSAN TEANA 2008 Service Manual REAR FOG LAMP SYSTEM
EXL-277
< COMPONENT DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
REAR FOG LAMP SYSTEM

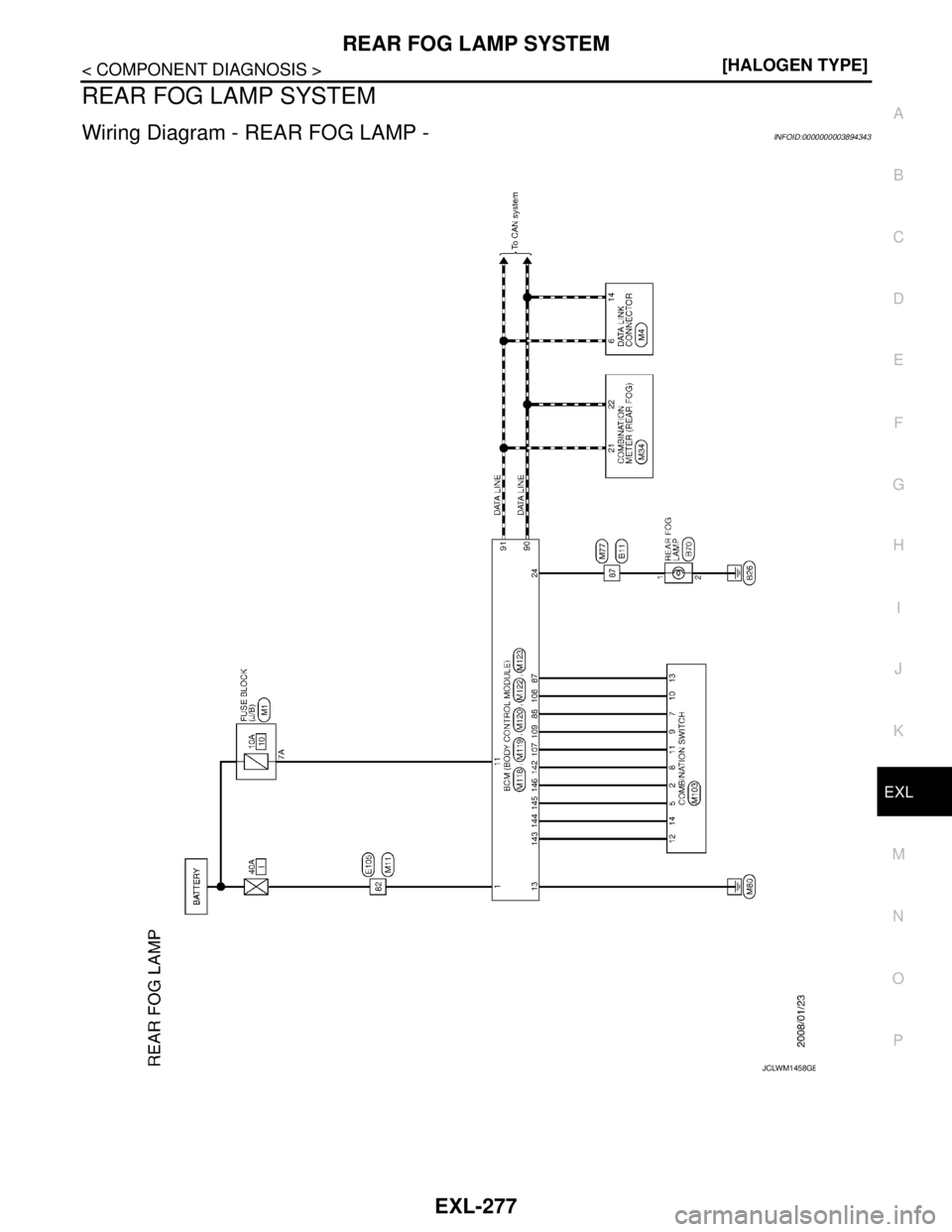

Wiring Diagram - REAR FOG LAMP -INFOID:0000000003894343
JCLWM1458GB

Page 2307 of 5121

NISSAN TEANA 2008 Service Manual EXL-278
< COMPONENT DIAGNOSIS >[HALOGEN TYPE]
REAR FOG LAMP SYSTEM

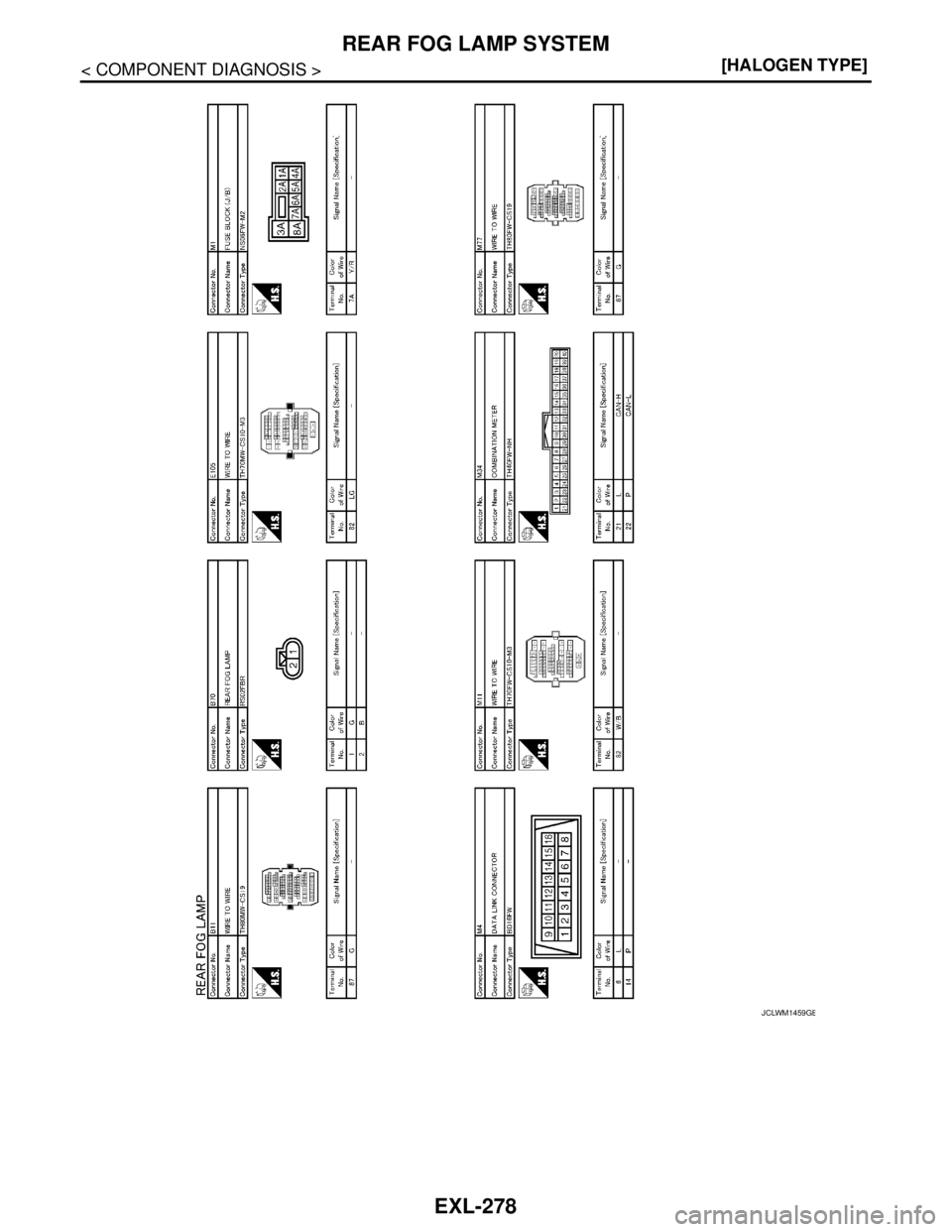

JCLWM1459GB

Page 2308 of 5121

NISSAN TEANA 2008 Service Manual REAR FOG LAMP SYSTEM
EXL-279
< COMPONENT DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P

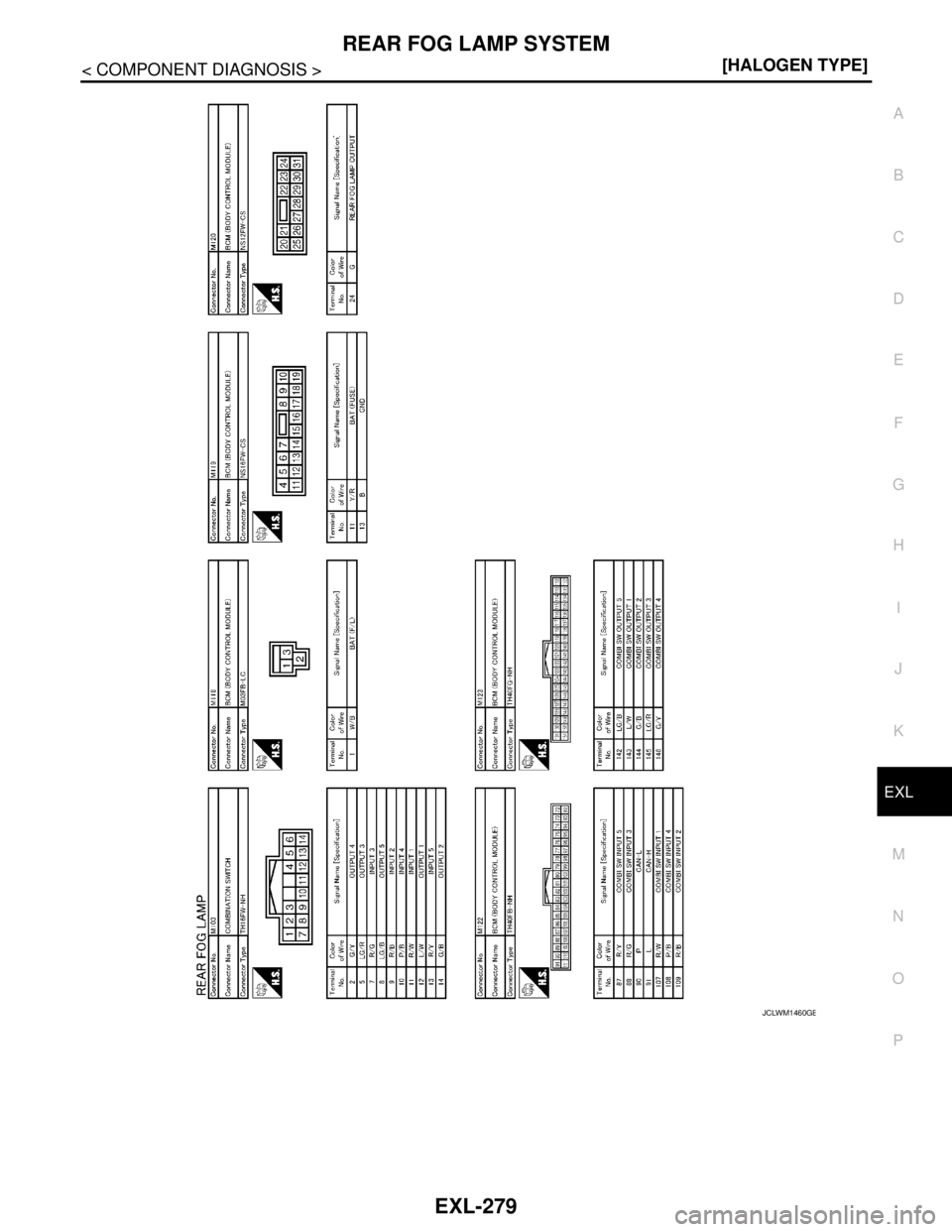

JCLWM1460GB

Page 2309 of 5121

NISSAN TEANA 2008 Service Manual EXL-280
< ECU DIAGNOSIS >[HALOGEN TYPE]
BCM (BODY CONTROL MODULE)
ECU DIAGNOSIS
BCM (BODY CONTROL MODULE)
Reference ValueINFOID:0000000003959696
VALUES ON THE DIAGNOSIS TOOL
CONSULT-III MONITOR ITEM
M

Page 2310 of 5121

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE)
EXL-281
< ECU DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
DOOR SW-RLRear LH door closed Off
Rear LH door opened On
DOOR SW-BKNOTE:
The item is indicated, but n

Page 2311 of 5121

NISSAN TEANA 2008 Service Manual EXL-282
< ECU DIAGNOSIS >[HALOGEN TYPE]
BCM (BODY CONTROL MODULE)
REQ SW -RRNOTE:
The item is indicated, but not monitored. Off
REQ SW -RRNOTE:
The item is indicated, but not monitored. Off
REQ SW -BD

Page 2312 of 5121

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE)
EXL-283
< ECU DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
S/L UNLK-IPDMSteering is unlocked Off
Steering is locked On
S/L RELAY-REQIgnition switch in OFF or AC

BCM (BODY CONTROL MODULE)
EXL-283
< ECU DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
S/L UNLK-IPDMSteering is unlocked Off
Steering is locked On
S/L RELAY-REQIgnition switch in OFF or ACC position Off
Ignition switch in ON position On
VEH SPEED 1 While driving Equivalent to speedometer reading
VEH SPEED 2 While driving Equivalent to speedometer reading
DOOR STAT-DRDriver door is locked LOCK
Wait with selective UNLOCK operation (5 seconds) READY
Driver door is unlocked UNLOCK
DOOR STAT-ASPassenger door is locked LOCK
Wait with selective UNLOCK operation (5 seconds) READY
Passenger door is unlocked UNLOCK
ID OK FLAGIgnition switch in ACC or ON position Reset
Ignition switch in OFF position Set
PRMT ENG STRTThe engine start is prohibited Reset
The engine start is permitted Set
PRMT RKE STRTNOTE:
The item is indicated, but not monitored. Reset
KEY SW -SLOTThe key is not inserted into key slot Off
The key is inserted into key slot On
RKE OPE COUN1 During the operation of the key Operation frequency of the key
RKE OPE COUN2NOTE:
The item is indicated, but not monitored. —
CONFRM ID ALLThe key ID that the key slot receives does not accord with any key
ID registered to BCM.Ye t
The key ID that the key slot receives accords with any key ID regis-
tered to BCM.Done
CONFIRM ID4The key ID that the key slot receives does not accord with the fourth
key ID registered to BCM.Ye t
The key ID that the key slot receives accords with the fourth key ID
registered to BCM.Done
CONFIRM ID3The key ID that the key slot receives does not accord with the third
key ID registered to BCM.Ye t
The key ID that the key slot receives accords with the third key ID
registered to BCM.Done
CONFIRM ID2The key ID that the key slot receives does not accord with the sec-
ond key ID registered to BCM.Ye t
The key ID that the key slot receives accords with the second key
ID registered to BCM.Done
CONFIRM ID1The key ID that the key slot receives does not accord with the first
key ID registered to BCM.Ye t
The key ID that the key slot receives accords with the first key ID
registered to BCM.Done
TP 4The ID of fourth key is not registered to BCM Yet
The ID of fourth key is registered to BCM Done
TP 3The ID of third key is not registered to BCM Yet
The ID of third key is registered to BCM Done Monitor Item Condition Value/Status
