REAR DOOR
DLK-209
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
Check door hinge rotating part for poor lubrication. If necessary, apply body grease.
After installation, perform the fitting adjustment. Refer to DLK-209, "
DOOR ASSEMBLY : Adjust-
ment".
After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
DOOR ASSEMBLY : AdjustmentINFOID:0000000003813405
Check the clearance and surface height between rear door and each part by visually and touching.
If the clearance and surface height are out of specification, adjust them according to the procedures shown
below.
Unit: mm (in)
1. Remove center pillar lower garnish. Refer to INT-39, "Removal and Installation".
2. Loosen door hinge mounting nuts on door side.
3. Adjust the surface height of rear door according to the fitting standard dimension.
4. Temporarily tighten door hinge mounting nuts on door side.
5. Loosen door hinge mounting nuts and bolts on body side.
6. Raise rear door at rear end to adjust clearance of the rear door according to the fitting standard dimen-
sion.
7. After adjustment, tighten bolts and nuts to the specified torque.
8. Install center pillar lower garnish. Refer to INT-39, "
Removal and Installation".
DOOR STRIKER ADJUSTMENT
Adjust door striker so that it becomes parallel with door lock insertion direction.
DOOR STRIKER
DOOR STRIKER : Exploded ViewINFOID:0000000003819605
Portion Clearance Surface height
Front door – Rear door B – B 3.6 – 5.6 (0.142 – 0.220) -1.0 – 1.0 (-0.039 – 0.039)
Rear door – Body side outer C – C 2.6 – 4.6 (0.102 – 0.181) -1.0 – 1.0 (-0.039 – 0.039)
JMKIA2385ZZ
Page 1426 of 5121
![NISSAN TEANA 2008 Service Manual DLK-210
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
REAR DOOR
DOOR STRIKER : Removal and Installation
INFOID:0000000003813407
REMOVAL
Remove TORX bolts, and then remove door striker.
INSTALLATI NISSAN TEANA 2008 Service Manual DLK-210
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
REAR DOOR
DOOR STRIKER : Removal and Installation
INFOID:0000000003813407
REMOVAL
Remove TORX bolts, and then remove door striker.
INSTALLATI](/manual-img/5/57391/w960_57391-1425.png)
DLK-210
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
REAR DOOR
DOOR STRIKER : Removal and Installation
INFOID:0000000003813407
REMOVAL
Remove TORX bolts, and then remove door striker.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Check rear door open/close, lock/unlock operation after installation.
After installation, perform the fitting adjustment. Refer to DLK-209, "
DOOR ASSEMBLY : Adjust-
ment".
DOOR HINGE
DOOR HINGE : Exploded ViewINFOID:0000000003819608
DOOR HINGE : Removal and InstallationINFOID:0000000003813409
REMOVAL
1. Remove center pillar lower garnish. Refer to INT-39, "Removal and Installation".
2. Remove rear door assembly. Refer to DLK-208, "
DOOR ASSEMBLY : Removal and Installation".
1. Rear door panel 2. Grommet 3. Door striker
4. TORX bolt 5. Bumper rubber 6. Door check link
7. Door hinge (lower) 8. Door hinge (upper)
Refer to GI-4, "
Components" for symbols in the figure.
1. Rear door panel 2. Grommet 3. Door striker
4. TORX bolt 5. Bumper rubber 6. Door check link
7. Door hinge (lower) 8. Door hinge (upper)
Refer to GI-4, "
Components" for symbols in the figure.
JMKIA2385ZZ
Page 1427 of 5121
![NISSAN TEANA 2008 Service Manual REAR DOOR
DLK-211
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
3. Remove rear door hinge mounting bolts and nuts (body side), and then remove door hinge.
INSTALL NISSAN TEANA 2008 Service Manual REAR DOOR
DLK-211
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
3. Remove rear door hinge mounting bolts and nuts (body side), and then remove door hinge.
INSTALL](/manual-img/5/57391/w960_57391-1426.png)
REAR DOOR
DLK-211
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
3. Remove rear door hinge mounting bolts and nuts (body side), and then remove door hinge.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Check rear door open/close, lock/unlock operation after installation.
Check door hinge rotating part for poor lubrication. If necessary, apply body grease.
After installation, rear door assembly, perform the fitting adjustment. Refer to DLK-209, "
DOOR
ASSEMBLY : Adjustment".
After installing, apply the touch-up paint (the body color) onto the head of door hinge mounting nuts.
DOOR CHECK LINK
DOOR CHECK LINK : Exploded ViewINFOID:0000000003819609
DOOR CHECK LINK : Removal and InstallationINFOID:0000000003813411
REMOVAL
1. Remove rear door finisher. Refer to INT-36, "Removal and Installation".
2. Fully close the rear door window.
3. Remove rear door speaker.
4. Remove mounting bolts of the door link on the vehicle.
5. Remove mounting bolts of the door link on door panel.
6. Take door check link out from the hole of door panel.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
1. Rear door panel 2. Grommet 3. Door striker
4. TORX bolt 5. Bumper rubber 6. Door check link
7. Door hinge (lower) 8. Door hinge (upper)
Refer to GI-4, "
Components" for symbols in the figure.
JMKIA2385ZZ
Page 1428 of 5121
DLK-212
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
REAR DOOR
Check rear door open/close operation after installation.
Page 1429 of 5121
TRUNK LID
DLK-213
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
TRUNK LID
TRUNK LID ASSEMBLY
TRUNK LID ASSEMBLY : Exploded ViewINFOID:0000000003813412
REMOVAL
ADJUSTMENT

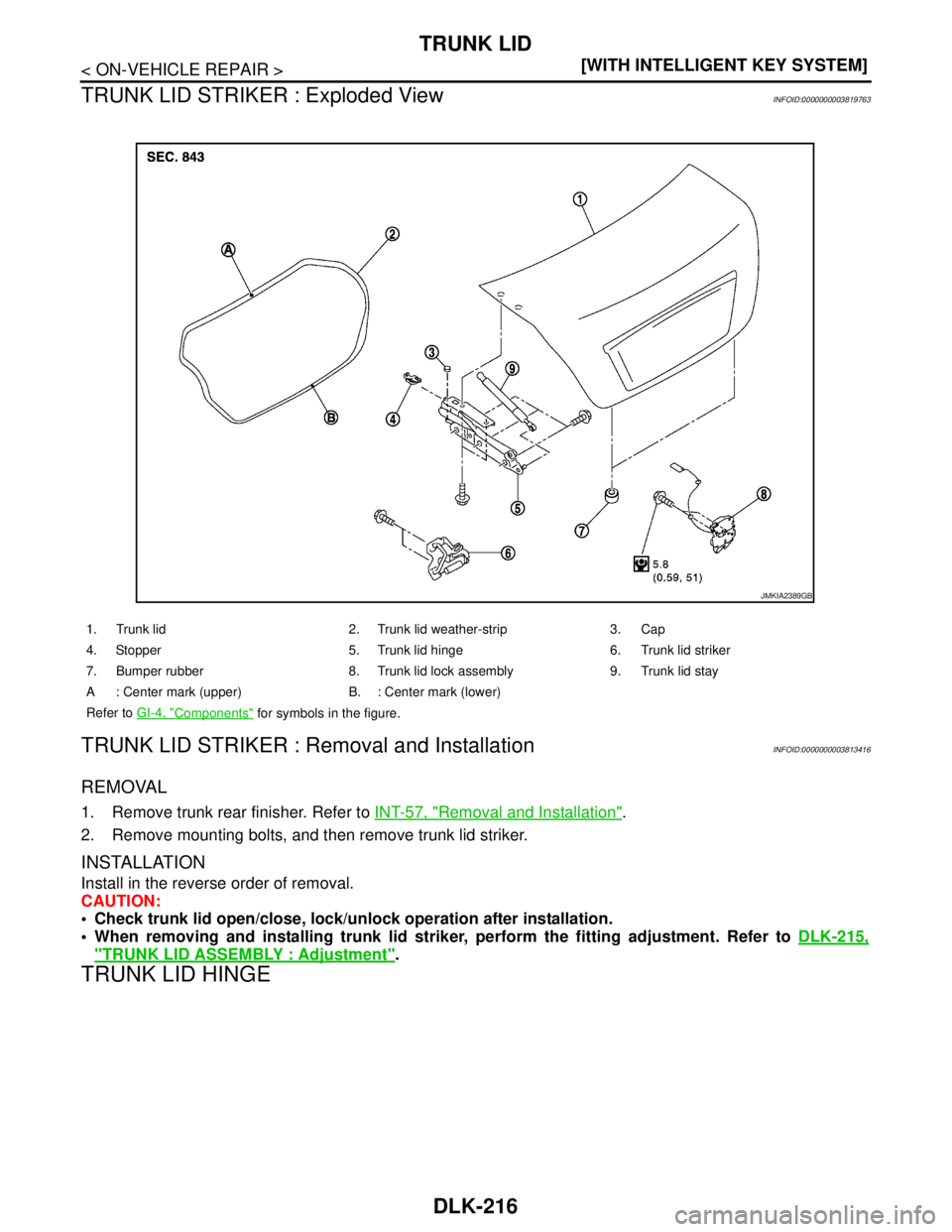

1. Trunk lid 2. Trunk lid weather-strip 3. Cap
4. Stopper 5. Trunk lid hinge 6. Trunk lid striker
7. Bumper rubber 8. Trunk lid lock assembly 9. Trunk lid stay
A : Center mark (upper) B. : Center mark (lower)
Refer to GI-4, "
Components" for symbols in the figure.
JMKIA2389GB
Page 1430 of 5121
![NISSAN TEANA 2008 Service Manual DLK-214
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
TRUNK LID
TRUNK LID ASSEMBLY : Removal and Installation
INFOID:0000000003813413
CAUTION:
Operate with two workers, because of its heavy weigh NISSAN TEANA 2008 Service Manual DLK-214
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
TRUNK LID
TRUNK LID ASSEMBLY : Removal and Installation
INFOID:0000000003813413
CAUTION:
Operate with two workers, because of its heavy weigh](/manual-img/5/57391/w960_57391-1429.png)
DLK-214
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
TRUNK LID
TRUNK LID ASSEMBLY : Removal and Installation
INFOID:0000000003813413
CAUTION:
Operate with two workers, because of its heavy weight.
REMOVAL
1. Remove the trunk lid finisher inner. Refer to INT-59, "Removal and Installation"
2. Disconnect the connectors in the trunk lid, and remove the harness clamps to pull the harness out of the
trunk lid.
3. Remove trunk lid stay at trunk lid side. Refer to DLK-218, "
TRUNK LID STAY : Removal and Installation".
4. Remove the trunk lid hinge mounting bolts on trunk lid side and remove the trunk lid assembly.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
After installing, apply touch-up paint (the body color) onto the head of the hinge mounting bolts.
Check trunk lid open/close, lock/unlock operation after installation.
After installation, perform fitting adjustment. Refer to DLK-215, "
TRUNK LID ASSEMBLY : Adjust-
ment".

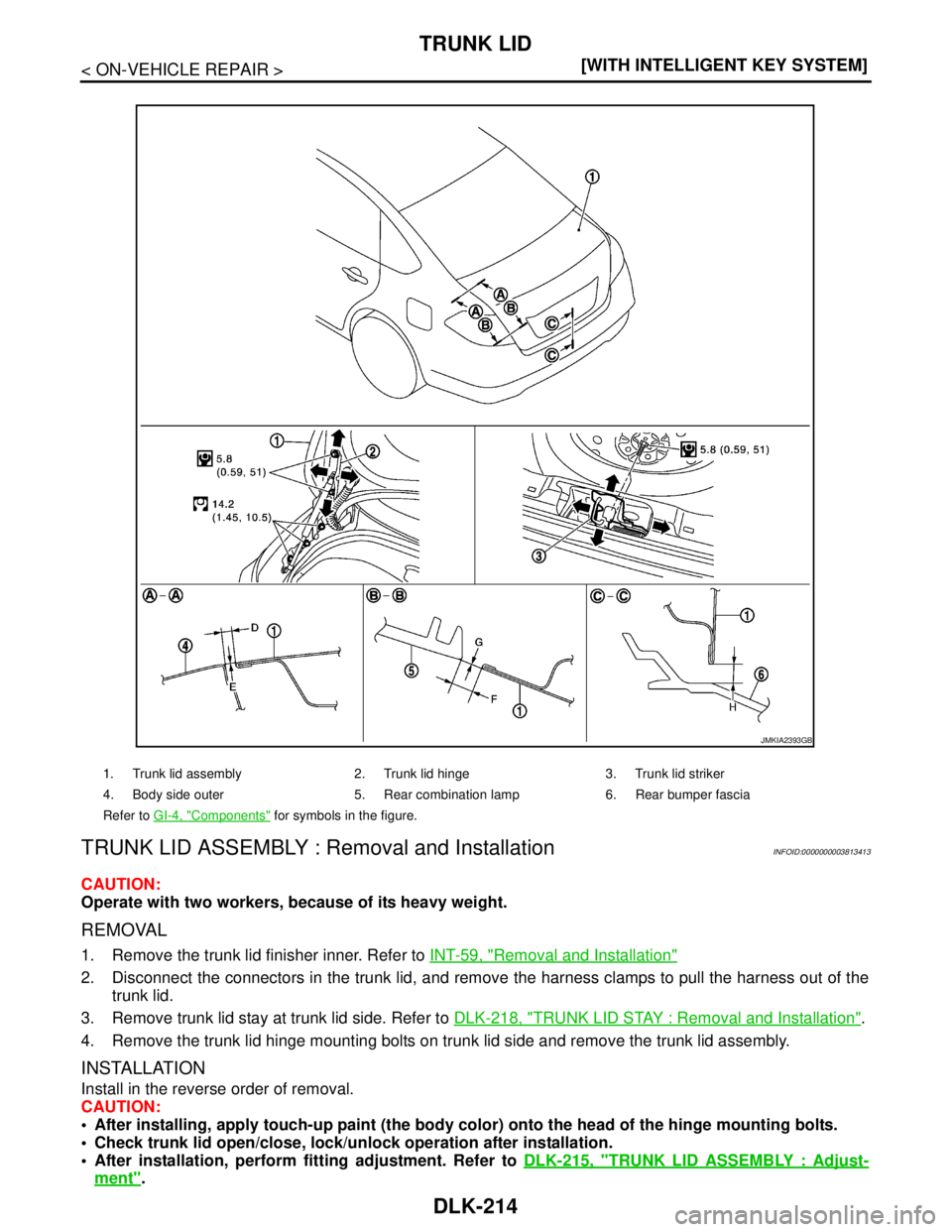

1. Trunk lid assembly 2. Trunk lid hinge 3. Trunk lid striker
