Page 3769 of 5121

NISSAN TEANA 2008 Service Manual RF-38 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) 109 (R/B)GroundCombination switch INPUT 2InputCombination switch (Wiper intermit- tent dial 4)All switch OFF 1.4 V Lighting switch PASS 1.3 V Lighti

Page 3770 of 5121

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) RF-39 < ECU DIAGNOSIS > C D E F G H I J L MA B RF N O P 111 (L/Y)GroundSteering lock unit communicationInput/ OutputSteering lockLOCK status Battery voltage LOCK or UNLOCK F

Page 3771 of 5121

NISSAN TEANA 2008 Service Manual RF-40 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) 124 (R/B)GroundPassenger door switchInputPassenger door switchOFF (When passenger door closes) 11 . 8 V ON (When passenger door opens)0 V 128 (GR

Page 3772 of 5121

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) RF-41 < ECU DIAGNOSIS > C D E F G H I J L MA B RF N O P 141 (L/O)Ground Security indicator Output Security indicatorON 0 V Blinking 11.3 V OFF Battery voltage 142 (LG/B)Groun

Page 3773 of 5121

NISSAN TEANA 2008 Service Manual RF-42 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) NOTE: *: Without BOSE audio system145 (LG/R)GroundCombination switch OUTPUT 3OutputCombination switch (Wiper intermit- tent dial 4)All switch OFF 0

Page 3774 of 5121

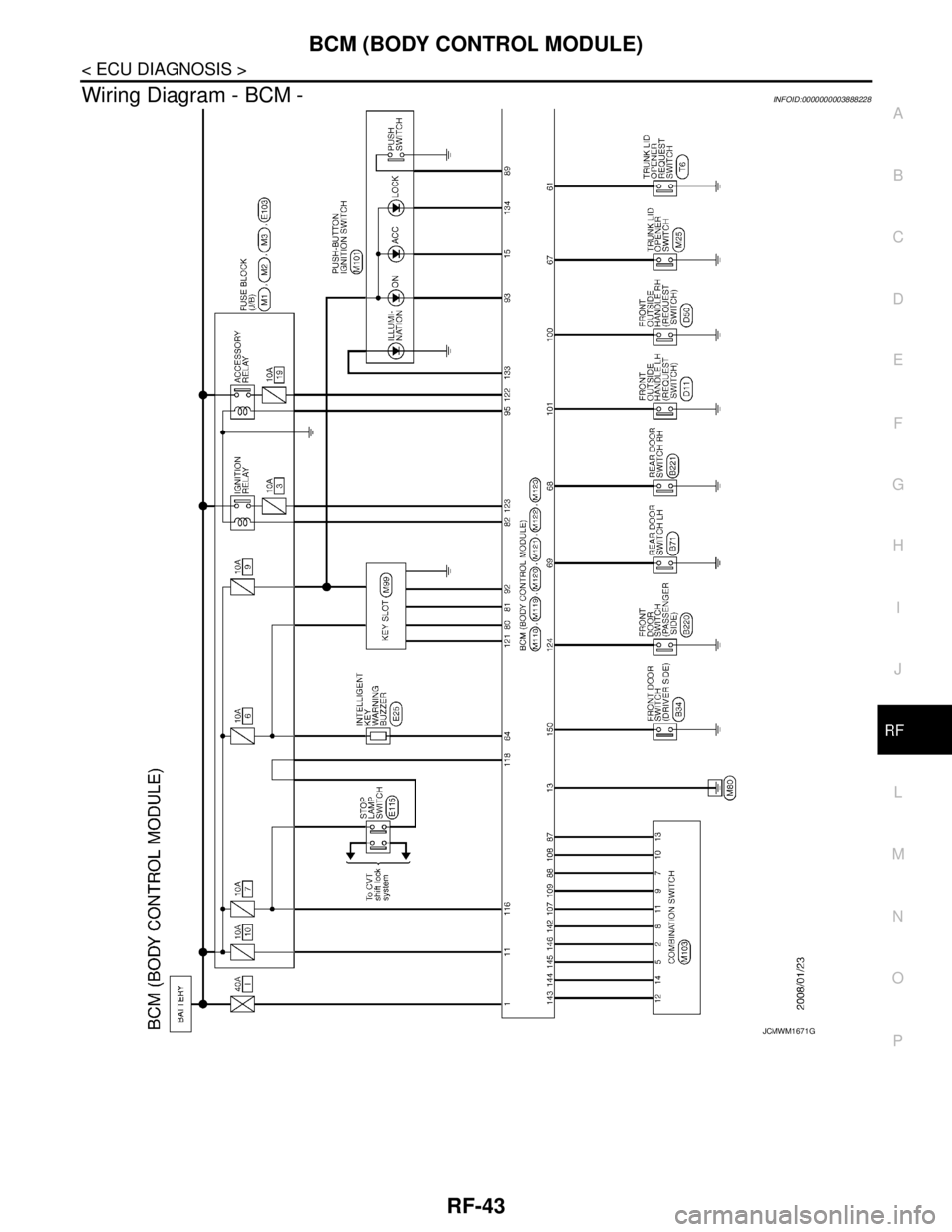

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) RF-43 < ECU DIAGNOSIS > C D E F G H I J L MA B RF N O P Wiring Diagram - BCM -INFOID:0000000003888228 JCMWM1671GB

Page 3775 of 5121

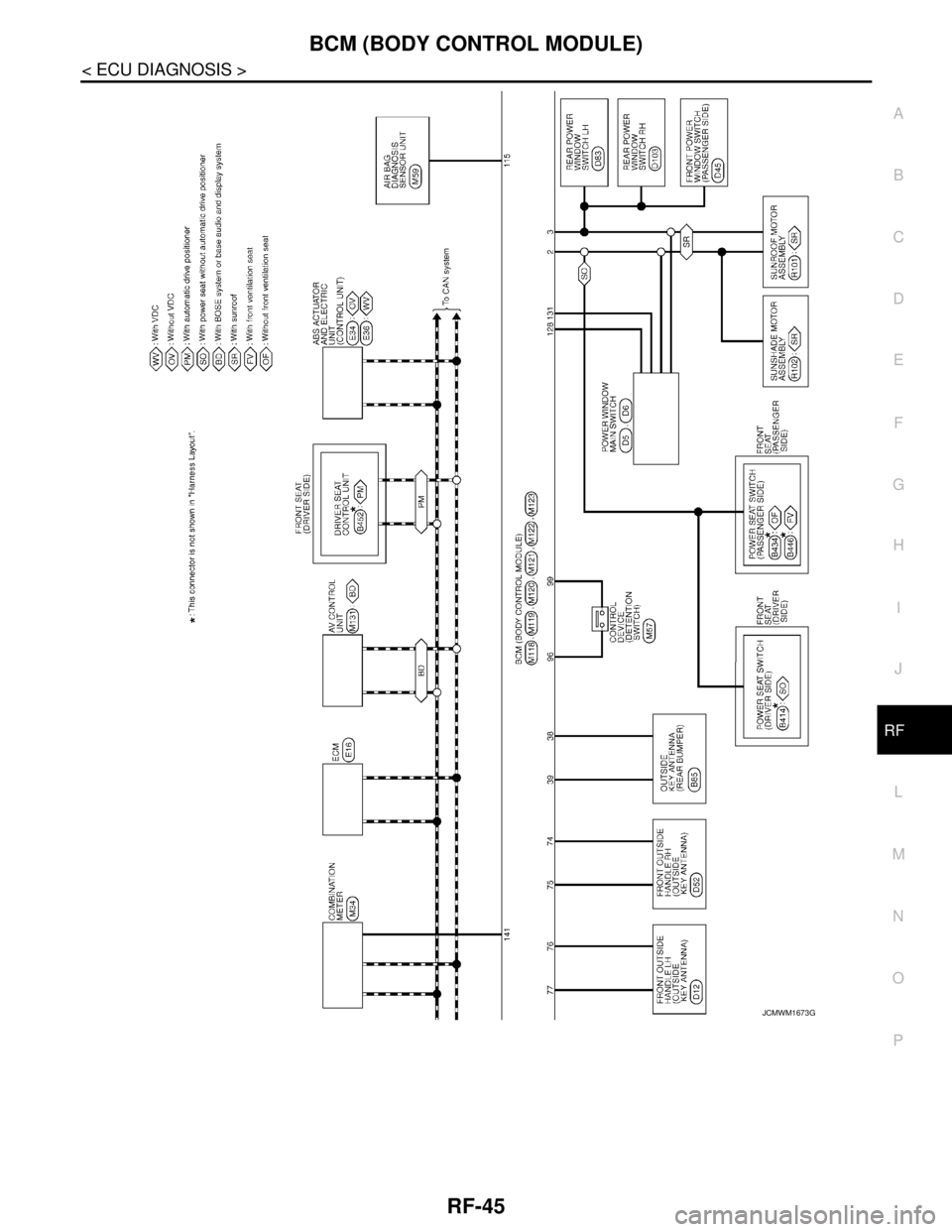

NISSAN TEANA 2008 Service Manual RF-44 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) JCMWM1672GB

Page 3776 of 5121

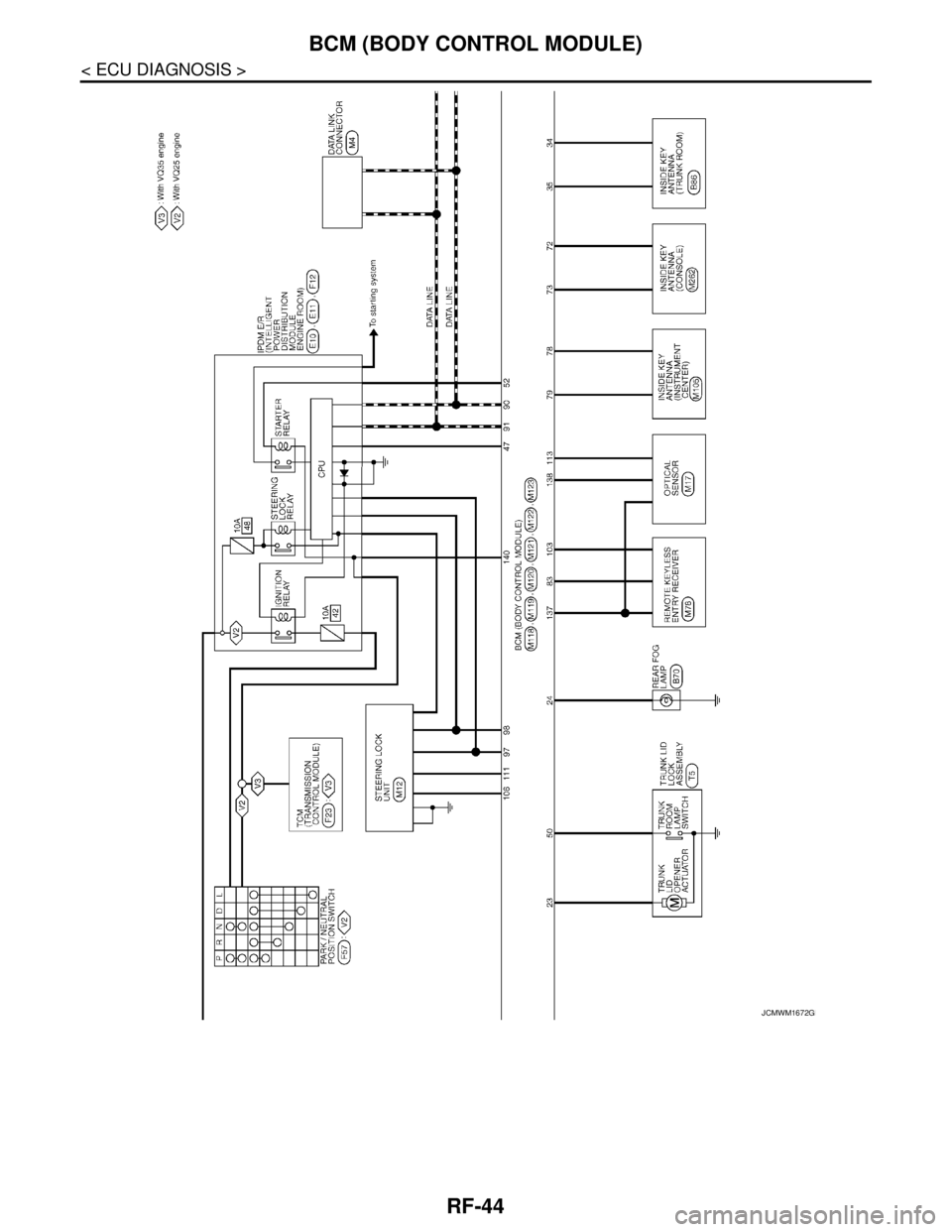

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) RF-45 < ECU DIAGNOSIS > C D E F G H I J L MA B RF N O P JCMWM1673GB
