VTL-54
< ON-VEHICLE REPAIR >[WITHOUT 7 INCH DISPLAY]
DUCT AND GRILLE
REAR VENTILATOR DUCT 2 : Exploded View
INFOID:0000000003774703
REAR VENTILATOR DUCT 2 : Removal and InstallationINFOID:0000000003774704
REMOVAL
1. Remove center console assembly. Refer to IP-22, "Exploded View".
2. Remove screws (A), and then remove rear ventilator duct 2 (1).
INSTALLATION
Installation is basically the reverse order of removal.
REAR FOOT DUCT 1
1. Heater & cooling unit assembly 2. Rear foot duct 1 (left) 3. Rear foot duct 2 (left)
4. Rear foot duct 3 (left) 5. Rear ventilator duct 2 6. Console rear cover (Rear
ventilator grille)
7. Rear foot duct 3 (right) 8. Rear foot duct 2 (right) 9. Rear foot duct 1 (right)
10. Rear ventilator duct 1
JPIIA0935ZZ
JPIIA0937ZZ
Page 4866 of 5121
DUCT AND GRILLE
VTL-55
< ON-VEHICLE REPAIR >[WITHOUT 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
REAR FOOT DUCT 1 : Exploded ViewINFOID:0000000003774709
REAR FOOT DUCT 1 : Removal and InstallationINFOID:0000000003774710
REMOVAL
Driver side
1. Remove instrument lower cover LH. Refer to IP-11, "Exploded View".
2. Remove rear foot duct 1 (left) (1).
Passenger side
1. Remove instrument lower cover RH. Refer to IP-11, "Exploded View".
1. Heater & cooling unit assembly 2. Rear foot duct 1 (left) 3. Rear foot duct 2 (left)
4. Rear foot duct 3 (left) 5. Rear ventilator duct 2 6. Console rear cover (Rear
ventilator grille)
7. Rear foot duct 3 (right) 8. Rear foot duct 2 (right) 9. Rear foot duct 1 (right)
10. Rear ventilator duct 1
JPIIA0935ZZ
JPIIA0938ZZ
Page 4867 of 5121
VTL-56
< ON-VEHICLE REPAIR >[WITHOUT 7 INCH DISPLAY]
DUCT AND GRILLE
2. Remove the rear foot duct 1 (right) (1).
INSTALLATION
Installation is basically the reverse order of removal.
REAR FOOT DUCT 2
REAR FOOT DUCT 2 : Exploded ViewINFOID:0000000003774711
REAR FOOT DUCT 2 : Removal and InstallationINFOID:0000000003774712
REMOVAL
Driver side
JPIIA0939ZZ
1. Heater & cooling unit assembly 2. Rear foot duct 1 (left) 3. Rear foot duct 2 (left)
4. Rear foot duct 3 (left) 5. Rear ventilator duct 2 6. Console rear cover (Rear
ventilator grille)
7. Rear foot duct 3 (right) 8. Rear foot duct 2 (right) 9. Rear foot duct 1 (right)
10. Rear ventilator duct 1
JPIIA0935ZZ
Page 4868 of 5121
DUCT AND GRILLE
VTL-57
< ON-VEHICLE REPAIR >[WITHOUT 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
1. Remove rear foot duct 1 (left). Refer to VTL-55, "REAR FOOT DUCT 1 : Exploded View".
2. Pull up driver side floor carpet. Refer to INT-47, "
Exploded View".
3. Remove mounting clip (A), and then remove rear foot duct 2
(left) (1).
Passenger side
1. Remove the rear foot duct 1 (right). Refer to VTL-55, "REAR FOOT DUCT 1 : Exploded View".
2. Pull up passenger side floor carpet. Refer to INT-47, "
Exploded View".
3. Remove mounting clip (A), and then remove rear foot duct 2
(right) (1).
INSTALLATION
Installation is basically the reverse order of removal.
REAR FOOT DUCT 3
JPIIA0940ZZ
JPIIA0941ZZ
Page 4869 of 5121
VTL-58
< ON-VEHICLE REPAIR >[WITHOUT 7 INCH DISPLAY]
DUCT AND GRILLE
REAR FOOT DUCT 3 : Exploded View
INFOID:0000000003774713
REAR FOOT DUCT 3 : Removal and InstallationINFOID:0000000003774714
REMOVAL
Driver side
1. Pull up driver side floor carpet. Refer to INT-47, "Exploded View".
2. Remove mounting clip (A) and harness clip (B), and then
remove rear foot duct 3 (left) (1).
Passenger side
1. Pull up passenger side floor carpet. Refer to INT-47, "Exploded View".
1. Heater & cooling unit assembly 2. Rear foot duct 1 (left) 3. Rear foot duct 2 (left)
4. Rear foot duct 3 (left) 5. Rear ventilator duct 2 6. Console rear cover (Rear
ventilator grille)
7. Rear foot duct 3 (right) 8. Rear foot duct 2 (right) 9. Rear foot duct 1 (right)
10. Rear ventilator duct 1
JPIIA0935ZZ
JPIIA0942ZZ
Page 4870 of 5121
DUCT AND GRILLE
VTL-59
< ON-VEHICLE REPAIR >[WITHOUT 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
2. Remove mounting clip (A) and harness clip (B), and then
remove rear foot duct 3 (right) (1).
INSTALLATION
Installation is basically the reverse order of removal.
FOOT DUCT
FOOT DUCT : Exploded ViewINFOID:0000000003821492
JPIIA0943ZZ
JPIIA0906GB
Page 4871 of 5121
![NISSAN TEANA 2008 Service Manual VTL-60
< ON-VEHICLE REPAIR >[WITHOUT 7 INCH DISPLAY]
DUCT AND GRILLE
FOOT DUCT : Removal and Installation
INFOID:0000000003774716
REMOVAL
Driver side
1. Remove instrument driver lower panel. Refer to NISSAN TEANA 2008 Service Manual VTL-60
< ON-VEHICLE REPAIR >[WITHOUT 7 INCH DISPLAY]
DUCT AND GRILLE
FOOT DUCT : Removal and Installation
INFOID:0000000003774716
REMOVAL
Driver side
1. Remove instrument driver lower panel. Refer to](/manual-img/5/57391/w960_57391-4870.png)
VTL-60
< ON-VEHICLE REPAIR >[WITHOUT 7 INCH DISPLAY]
DUCT AND GRILLE
FOOT DUCT : Removal and Installation
INFOID:0000000003774716
REMOVAL
Driver side
1. Remove instrument driver lower panel. Refer to IP-11, "Exploded View".
2. Remove mounting screws (A), and then remove foot duct (left)
(1).
Passenger side
1. Remove blower unit assembly. Refer to VTL-29, "Exploded View".
2. Remove mounting screws (A) and harness clip, and then
remove foot duct (right) (1).
INSTALLATION
Installation is basically the reverse order of removal.

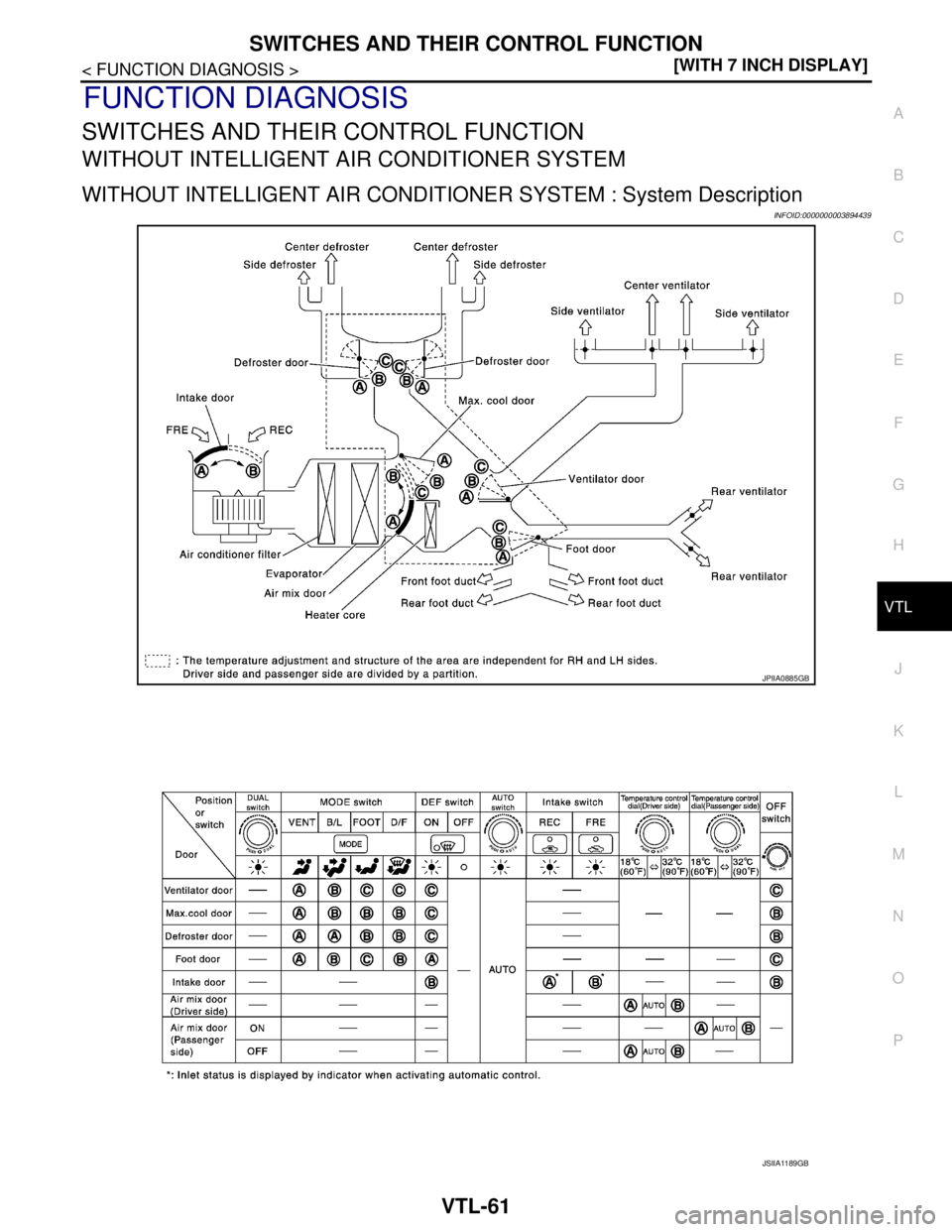

1. Ventilator seal 2. Defroster seal 3. Distributor upper case
4. Center case 5. Heater & cooling unit case cover 6. Foot duct 1 (right)
7. Foot duct 2 (right) 8. Air mix door motor (passenger side) 9. Evaporator pipe assembly
10. Expansion valve 11. O-ring 12. Evaporator
13. Filter cover 14. Air conditioner filter 15. Case packing
16. Heater & cooling unit case (right) 17. Cooler pipe grommet 18. Grommet
19. Heater pipe grommet 20. Heater pipe support 21. Drain hose
22. Heater & cooling unit case (left) 23. Air mix door motor (driver side) 24. Heater core
25. Heater pipe cover 26. Foot duct 2 (left) 27. Foot duct 1 (left)
28. Aspirator hose 29. Aspirator 30. Mode door motor
31. Main link 32. Rod link 33. Ventilator door link
34. Mode door lever 35. Ventilator door lever 36. Max. cool door link
37. Defroster door link 38. Foot door link 39. Max. cool door lever
40. Foot door lever 41. Defroster door lever 42. Adapter case
43. Distributor lower case 44. Ventilator door 45. Intake sensor
46. Intake sensor bracket 47. Foot door 48. Max. cool door
49. Defroster door 50. Air mix door (Slide door)
Refer to GI-4, "
Components" for symbols in the figure.
JPIIA0944ZZ
JPIIA0945ZZ
