INT-40
< ON-VEHICLE REPAIR >
BODY SIDE TRIM
2. Remove front pillar garnish mounting clip and metal clip with a
remover tool (A), and then remove front pillar garnish (1).
DASH SIDE FINISHER
1. Remove front kicking plate inner.
2. Remove dash side finisher mounting clips and metal clip with a
remover tool (A), and then remove dash side finisher (1).
FRONT KICKING PLATE OUTER
Remove front kicking plate outer mounting pawls with a remover tool
(A), and then remove kicking plate outer (1).
FRONT KICKING PLATE INNER
1. With a remover tool (A), disengage the metal clips and pawls located in the front, then pull up front kicking
plate inner (1) to remove as shown by the figure below.
REAR KICKING PLATE OUTER
: Clip
: Metal clip
JMJIA1771ZZ
: Clip
: Metal clip
JMJIA1773ZZ
: Pawl
JMJIA1779ZZ
: Pawl
: Metal clip
JMJIA1772ZZ
Page 3018 of 5121

BODY SIDE TRIM
INT-41
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
K
L
MA
B
INT
N
O
P
Remove rear kicking plate outer mounting pawls with a remover tool
(A), and then remove kicking plate outer (1).
REAR KICKING PLATE INNER
1. Pull up rear kicking plate inner, and disconnect the clip and
pawls with remover tool (A).
2. Remove rear kicking plate inner (1).
CENTER PILLAR LOWER GARNISH
1. Remove front and rear kicking plate inner.
2. Remove center pillar lower garnish mounting clips with a
remover tool (A), and then remove center pillar lower garnish
(1).
FRONT BODY SIDE WELT
1. Remove front kicking plate inner.
2. Remove front body side welt.
REAR BODY SIDE WELT
1. Remove rear kicking plate inner.
2. Remove rear body side welt.
CENTER PILLAR UPPER GARNISH
1. Remove center pillar lower garnish.
2. Remove front seat belt pre-tension fixing anchor bolt. Refer to SB-5, "
SEAT BELT RETRACTOR :
Removal and Installation".
3. Remove partially front and rear body side welt.
: Pawl
JMJIA1777ZZ
: Clip
: Pawl
JMJIA1778ZZ
: Clip
JMJIA1775ZZ
Page 3019 of 5121

INT-42
< ON-VEHICLE REPAIR >
BODY SIDE TRIM
4. Remove center pillar upper garnish mounting clip and metal clip
with a remover tool (A).
5. Pull center pillar upper garnish from inside passenger room, disengage the clip by following the steps
shown in the figure below to remove the garnish from the vehicle.
REAR PILLAR FINISHER
1. Remove rear seat cushion and rear seatback. Refer to SE-99, "Removal and Installation".
2. Remove rear seat belt pre-tensioner anchor bolt. Refer to SB-10, "
SEAT BELT RETRACTOR : Removal
and Installation".
3. Remove rear kicking plate inner.
4. Remove rear body side welt.
5. Remove pillar finisher mounting clips and metal clips with a
remover tool (A), and then remove pillar finisher (1).
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Check that clips are securely fitted in panel holes on body when installing, and then press them in.
: Clip
: Metal clip
JMJIA1776ZZ
1. Center pillar upper garnish 2. Center pillar panel
JMJIA1176ZZ
: Clip
: Pawl
: Metal clip
JMJIA1774ZZ
Page 3020 of 5121
REAR PARCEL SHELF FINISHER
INT-43
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
K
L
MA
B
INT
N
O
P
REAR PARCEL SHELF FINISHER
Exploded ViewINFOID:0000000003819224
Removal and InstallationINFOID:0000000003819225
REMOVAL
1. Remove rear seatback and rear seat cushion. Refer to SE-99, "Removal and Installation".
2. Remove rear seat belt pre-tensioner anchor bolt. Refer to SB-10, "
SEAT BELT RETRACTOR : Removal
and Installation".
3. Disengage child anchor cover (1) fixing pawls with a remover
tool (A) and then remove it.
4. Remove rear pillar finisher (LH/RH). Refer to INT-39, "
Removal and Installation".
1. Rear sunshade 2. Child anchor cover 3. Rear parcel shelf finisher
: Clip
JMJIA1802ZZ
: Pawl
JMJIA1780ZZ
Page 3021 of 5121
INT-44
< ON-VEHICLE REPAIR >
REAR PARCEL SHELF FINISHER
5. From the trunk room, disconnect left side speaker harness connector located behind sunshade control
unit (1) and the right side rear tweeter harness connector (LH/RH) as shown in the figure below.
6. Hold from both sides the rear parcel shelf (1), pull it upward to
disengage the clips and then disconnect high-mounted stop
lamp harness connector (A) located on the left side only.
7. Pull rear parcel shelf finisher to remove it.
8. Remove the following parts after removing the rear parcel shelf.
Rear tweeter. Refer to AV-654, "
Removal and Installation".
High-mounted stop lamp. Refer to EXL-193, "
Removal and Installation".
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Check that clips are securely fitted in panel holes on body when installing, and then press them in.
JMJIA1781ZZ
JMJIA1782ZZ
Page 3022 of 5121
REAR SUNSHADE
INT-45
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
K
L
MA
B
INT
N
O
P
REAR SUNSHADE
Exploded ViewINFOID:0000000003826196
Removal and InstallationINFOID:0000000003826197
REMOVAL
1. Remove the rear parcel shelf finisher. Refer to INT-43, "Removal and Installation".
2. Remove the rear sunshade (1) fixing bolts (LH/RH).
1. Rear sunshade 2. Child anchor cover 3. Rear parcel shelf finisher
: Clip
JMJIA1802ZZ
: Bolt
JMJIA1783ZZ
Page 3023 of 5121
INT-46
< ON-VEHICLE REPAIR >
REAR SUNSHADE
3. From the trunk room, disconnect the rear sunshade harness
connector (A) located between the left speaker (1) and the
speaker amp. (2).
4. Remove the rear sunshade assembly.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Check that clips are securely fitted in panel holes on body when installing, and then press them in.
: Harness connector
JMJIA1784ZZ
Page 3024 of 5121
FLOOR TRIM
INT-47
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
K
L
MA
B
INT
N
O
P
FLOOR TRIM
Exploded ViewINFOID:0000000003819226
Removal and InstallationINFOID:0000000003819227
REMOVAL
1. Remove front seat assembly (LH/RH). Refer to SE-92, "Removal and Installation".
2. Remove rear seat cushion. Refer to SE-99, "
Removal and Installation".
3. Disengage clip of floor hook (1) with remover tool (A).
4. Remove front seat belt per-tensioner anchor bolt (LH/RH). Refer to SB-5, "
SEAT BELT RETRACTOR :
Removal and Installation".
5. Remove center console assembly. Refer to IP-22, "
Removal and Installation".

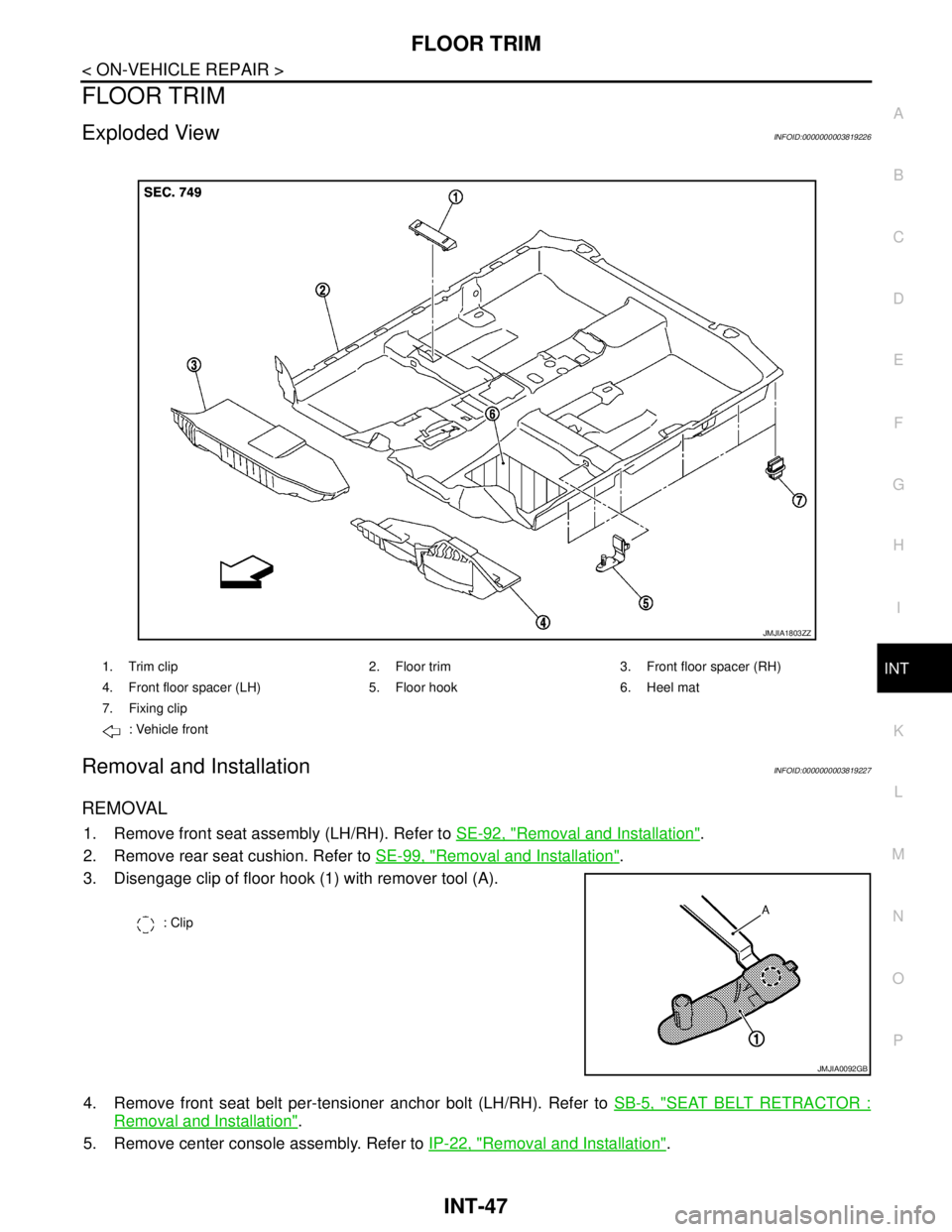

1. Trim clip 2. Floor trim 3. Front floor spacer (RH)
4. Front floor spacer (LH) 5. Floor hook 6. Heel mat
7. Fixing clip
: Vehicle front
JMJIA1803ZZ
: Clip
JMJIA0092GB
