Page 2769 of 5121
AUTOMATIC AIR CONDITIONER SYSTEM
HAC-141
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Component Description
INFOID:0000000003885179
Component Description
Refrigerant pressure sensorEC-348, "
Description"
Gas sensorHAC-175, "WITH INTELLIGENT AIR CONDITIONER SYSTEM :
Description"
CompressorHAC-197, "Description"
Ambient sensorHAC-166, "Description"
Intake door motorHAC-188, "Description"
Air mix door motor (driver side)HAC-181, "Description"
Air mix door motor (passenger side)HAC-183, "Description"
Mode door motorHAC-185, "Description"
Sunload sensorHAC-178, "Description"
In-vehicle sensorHAC-169, "Description"
A/C auto amp. HAC-192, "Description"
Intake sensorHAC-172, "Description"
Blower motorHAC-193, "Description"
Page 2770 of 5121
![NISSAN TEANA 2008 Service Manual HAC-142
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
PLASMACLUSTER SYSTEM
PLASMACLUSTER SYSTEM
WITH INTELLIGENT AIR CONDITIONER SYSTEM
WITH INTELLIGENT AIR CONDITIONER SYSTEM : System DiagramINFOID:000 NISSAN TEANA 2008 Service Manual HAC-142
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
PLASMACLUSTER SYSTEM
PLASMACLUSTER SYSTEM
WITH INTELLIGENT AIR CONDITIONER SYSTEM
WITH INTELLIGENT AIR CONDITIONER SYSTEM : System DiagramINFOID:000](/manual-img/5/57391/w960_57391-2769.png)
HAC-142
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
PLASMACLUSTER SYSTEM
PLASMACLUSTER SYSTEM
WITH INTELLIGENT AIR CONDITIONER SYSTEM
WITH INTELLIGENT AIR CONDITIONER SYSTEM : System DiagramINFOID:0000000003884708
WITH INTELLIGENT AIR CONDITIONER SYSTEM : System DescriptionINFOID:0000000003884709
Plasmacluster™ ion generation function, which generates ions inactivating bacteria and supplies to the pas-
senger compartment through air blown from air conditioner, has been adopted.
Airborne mold and bacteria in the passenger compartment are inactivated by the effect of Plasmacluster
™
ion.
Plasmacluster
™ ion generation function is switched between 2 operation modes (clean mode and ion control
mode) automatically, and maintain the ion balance in the passenger compartment close to that in nature.
The operating condition is displayed in the “ION” indicator in the display.
NOTE:
Plasmacluster
™ ion technology developed by Sharp Corporation is installed in this item.
Plasmacluster
™ is a trademark of Sharp Corporation.
OPERATION DESCRIPTION
The Plasmacluster™ ion generation function operates synchronized with the blower motor. The Plasmaclus-
ter
™ ion generation function operates when the blower motor operates.
2 ion generation modes (clean mode and ion control mode) are switched every 15 minutes while blower
motor turns ON with ignition switch ON.
When the clean switch is turned ON, Plasmacluster
™ ion generation function extends the operation time of
the clean mode to approximately 30 minutes for deactivating impurities more actively.
NOTE:
When the clean switch is not ON
Ignition switch: OFF
Blower motor: OFF
Mode position: Defroster (DEF)
Ambient temperature: At about 0°C (32°F) or below [Reactivate at about 2°C (36°F) or above]
When the gas sensor is malfunctioning
When the blower motor is stopped, the Plasmacluster
™ ion generation function also stops operating
(“CLEAN” and “ION” indicators are OFF).
JPIIA1004GB
Condition Clean mode Ion control mode
Clean switch: OFF 15 minutes 15 minutes
Clean switch: ON 30 minutes 15 minutes
Page 2771 of 5121
![NISSAN TEANA 2008 Service Manual PLASMACLUSTER SYSTEM
HAC-143
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
1. Clean mode operation
Ion indicator (blue) (1) in the display is turns ON as per the fol-
lo NISSAN TEANA 2008 Service Manual PLASMACLUSTER SYSTEM
HAC-143
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
1. Clean mode operation
Ion indicator (blue) (1) in the display is turns ON as per the fol-
lo](/manual-img/5/57391/w960_57391-2770.png)
PLASMACLUSTER SYSTEM
HAC-143
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
1. Clean mode operation
Ion indicator (blue) (1) in the display is turns ON as per the fol-
lowings.
Approximately 15 minutes after starting the blower motor.
Approximately 30 minutes after the clean switch is turned ON
while the blower motor is operating.
Clean mode is switched to operate, 15 minutes after ion con-
trol mode in operation.
2. Ion control mode operation
Ion indicator (green) in the display is turns ON as per the follow-
ings.
Ion control mode is switched to operate, 15 minutes after
clean mode in operation.
After approximately 30 seconds of clean mode operation time has passed while the clean switch is ON.

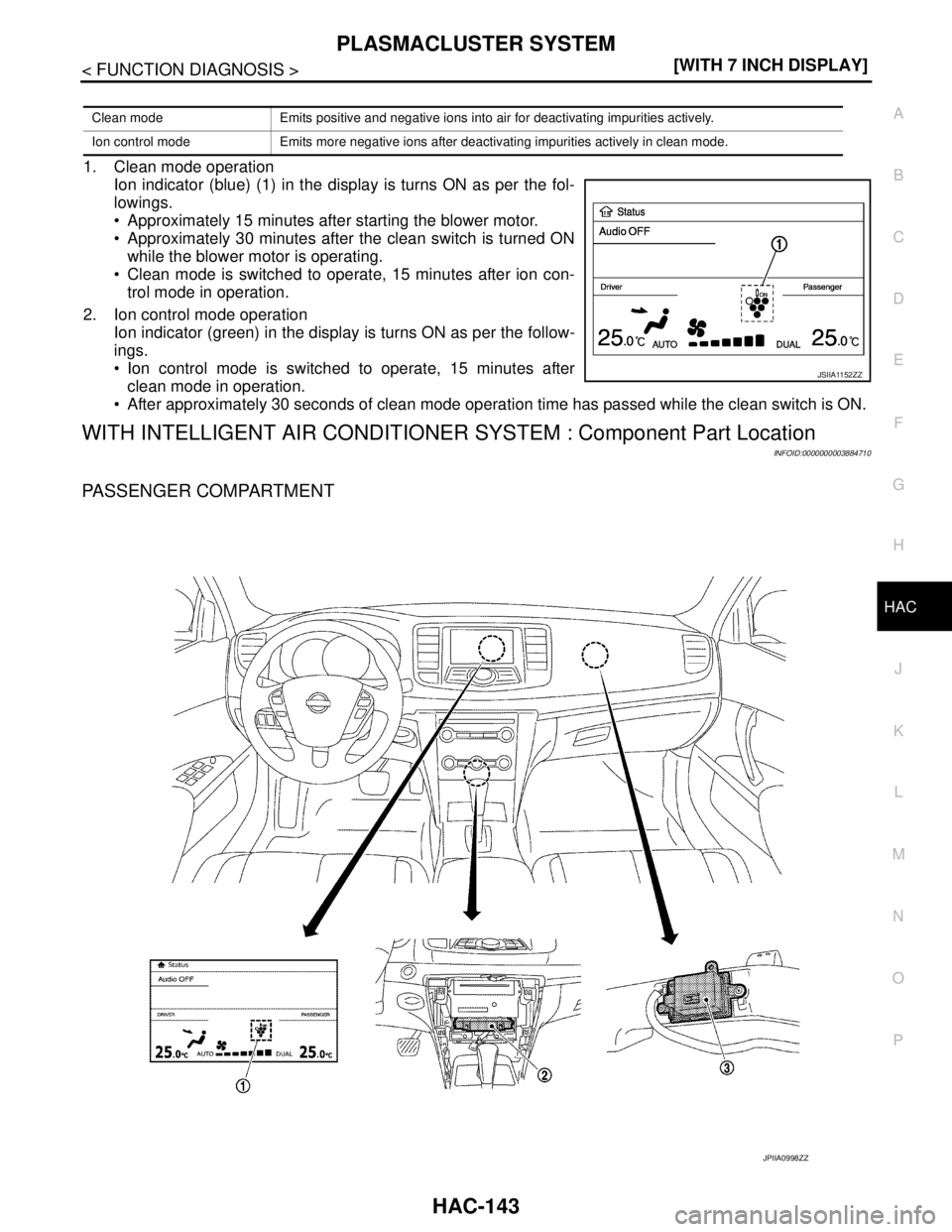

WITH INTELLIGENT AIR CONDITIONER SYSTEM : Component Part Location
INFOID:0000000003884710
PASSENGER COMPARTMENT
Clean mode Emits positive and negative ions into air for deactivating impurities actively.
Ion control mode Emits more negative ions after deactivating impurities actively in clean mode.
JSIIA1152ZZ
JPIIA0998ZZ
Page 2772 of 5121
HAC-144
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
PLASMACLUSTER SYSTEM
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Component Description
INFOID:0000000003884711
1. Ion indicator 2. A/C auto amp. 3. Ionizer
Component Description
A/C auto amp. The A/C auto amp. controls ionizer ON/OFF and shifts an ion gen-
eration function.
Ion indicatorPlasmacluster ion generation function operating condition is dis-
played in the ion indicator in the display.
IonizerHAC-199, "
WITH INTELLIGENT AIR CONDITIONER SYSTEM :
Description"
Page 2773 of 5121
![NISSAN TEANA 2008 Service Manual MODE DOOR CONTROL SYSTEM
HAC-145
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
MODE DOOR CONTROL SYSTEM
System DiagramINFOID:0000000003884714
System DescriptionINFOID:00 NISSAN TEANA 2008 Service Manual MODE DOOR CONTROL SYSTEM
HAC-145
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
MODE DOOR CONTROL SYSTEM
System DiagramINFOID:0000000003884714
System DescriptionINFOID:00](/manual-img/5/57391/w960_57391-2772.png)
MODE DOOR CONTROL SYSTEM
HAC-145
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
MODE DOOR CONTROL SYSTEM
System DiagramINFOID:0000000003884714
System DescriptionINFOID:0000000003884715
The mode door is automatically controlled by the temperature setting, ambient temperature, in-vehicle temper-
ature, intake temperature and amount of sunload.
SYSTEM OPERATION
The A/C auto amp. receives data from each of the sensors.
The A/C auto amp. sends the air mix door, the mode door and the intake door opening angle data to the air
mix door motor LCUs, the mode door motor LCU and the intake door motor LCU.
The air mix door motors, the mode door motor and the intake door motor read their respective signals
according to the address signal. Opening angle indication signals received from the A/C auto amp. and each
of the motor position sensors are compared by the LCUs in each door motor with the existing decision and
opening angles.
Next, HOT/COLD, DEF/VENT, OPEN/SHUT or FRE/REC operations is selected. The newly selected data is
returned to the A/C auto amp.
Door Motor Circuit
Mode Door Control Specification
JPIIA0494GB
JSIIA1133GB
Page 2774 of 5121
HAC-146
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
MODE DOOR CONTROL SYSTEM
Mode position can be selected manually by pressing the MODE
switch or the DEF switch on the A/C control. This the setting of a
mode position. Pressing the AUTO switch allows automatic control
by the A/C auto amp. During the automatic control of a mode posi-
tion, a mode door position (VENT, B/L, FOOT, or D/F) is selected
based on a target the air mix door opening angle and sunload
depending on the temperature calculated by the A/C auto amp. In
addition, the D/F is selected to prevent windshield fogging only when
ambient temperature is extremely low with mode position the FOOT.
JPIIA0767GB
Page 2775 of 5121
![NISSAN TEANA 2008 Service Manual AIR MIX DOOR CONTROL SYSTEM
HAC-147
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
AIR MIX DOOR CONTROL SYSTEM
System DiagramINFOID:0000000003884718
System DescriptionINF NISSAN TEANA 2008 Service Manual AIR MIX DOOR CONTROL SYSTEM
HAC-147
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
AIR MIX DOOR CONTROL SYSTEM
System DiagramINFOID:0000000003884718
System DescriptionINF](/manual-img/5/57391/w960_57391-2774.png)
AIR MIX DOOR CONTROL SYSTEM
HAC-147
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
AIR MIX DOOR CONTROL SYSTEM
System DiagramINFOID:0000000003884718
System DescriptionINFOID:0000000003884719
The air mix doors are automatically controlled so that in-vehicle temperature is maintained at a predetermined
value by the temperature setting, ambient temperature, intake temperature and amount of sunload.
SYSTEM OPERATION
The A/C auto amp. receives data from each of the sensors.
The A/C auto amp. sends air mix door, the mode door and the intake door opening angle data to the air mix
door motor LCUs, the mode door motor LCU and the intake door motor LCU.
The air mix door motors, the mode door motor and the intake door motor read their respective signals
according to the address signal. Opening angle indication signals received from the A/C auto amp. and each
of the motor position sensors are compared by the LCUs in each door motor with the existing decision and
opening angles.
Next, HOT/COLD, DEF/VENT, OPEN/SHUT or FRE/REC operation is selected. The newly selected data is
returned to the A/C auto amp.
Door Motor Circuit
Air Mix Door Control Specification
JPIIA0499GB
JSIIA1133GB
Page 2776 of 5121
HAC-148
< FUNCTION DIAGNOSIS >[WITH 7 INCH DISPLAY]
AIR MIX DOOR CONTROL SYSTEM
When ignition switch is ON, the A/C auto amp. continuously and
automatically controls temperatures regardless of air conditioner
operational condition. When setting a target temperature with the
temperature control dial, the A/C auto amp. corrects the set temper-
ature and decides a target air mix door opening angle. The A/C auto
amp. controls air mix door according to the target air mix door open-
ing angle and current air mix door opening angle, keeping an opti-
mum air mix door opening angle. When the temperature is set at
18°C (60°F), air mix door is set on full cold, and when the tempera-
ture is set at 32°C (90°F), it is set to full hot.
JPIIA0633GB
