EXL-204
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
FRONT FOG LAMP SYSTEM
FRONT FOG LAMP SYSTEM
System DiagramINFOID:0000000003894285
System DescriptionINFOID:0000000003894286
OUTLINE
Front fog lamp is controlled by combination switch reading function and front fog lamp control function of BCM,
and relay control function of IPDM E/R.
FRONT FOG LAMP OPERATION
BCM detects the combination switch condition by the combination switch reading function.
BCM transmits the front fog light request signal to IPDM E/R with CAN communication according to the front
fog lamp ON condition.
Front fog lamp ON condition
- Front fog lamp switch ON
- Lighting switch 1ST, 2ND or AUTO (auto light function ON judgment)
IPDM E/R turns the integrated front fog lamp relay ON, and turns the front fog lamp ON according to the
front fog light request signal.
Combination meter turns the front fog lamp indicator lamp ON according to the front fog light request signal.
JPLIA1083GB
Page 2234 of 5121
![NISSAN TEANA 2008 Service Manual FRONT FOG LAMP SYSTEM
EXL-205
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
Component Parts LocationINFOID:0000000003894287
Component DescriptionINFOID:0000000003894288
1. Fron NISSAN TEANA 2008 Service Manual FRONT FOG LAMP SYSTEM
EXL-205
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
Component Parts LocationINFOID:0000000003894287
Component DescriptionINFOID:0000000003894288
1. Fron](/manual-img/5/57391/w960_57391-2233.png)
FRONT FOG LAMP SYSTEM
EXL-205
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
Component Parts LocationINFOID:0000000003894287
Component DescriptionINFOID:0000000003894288

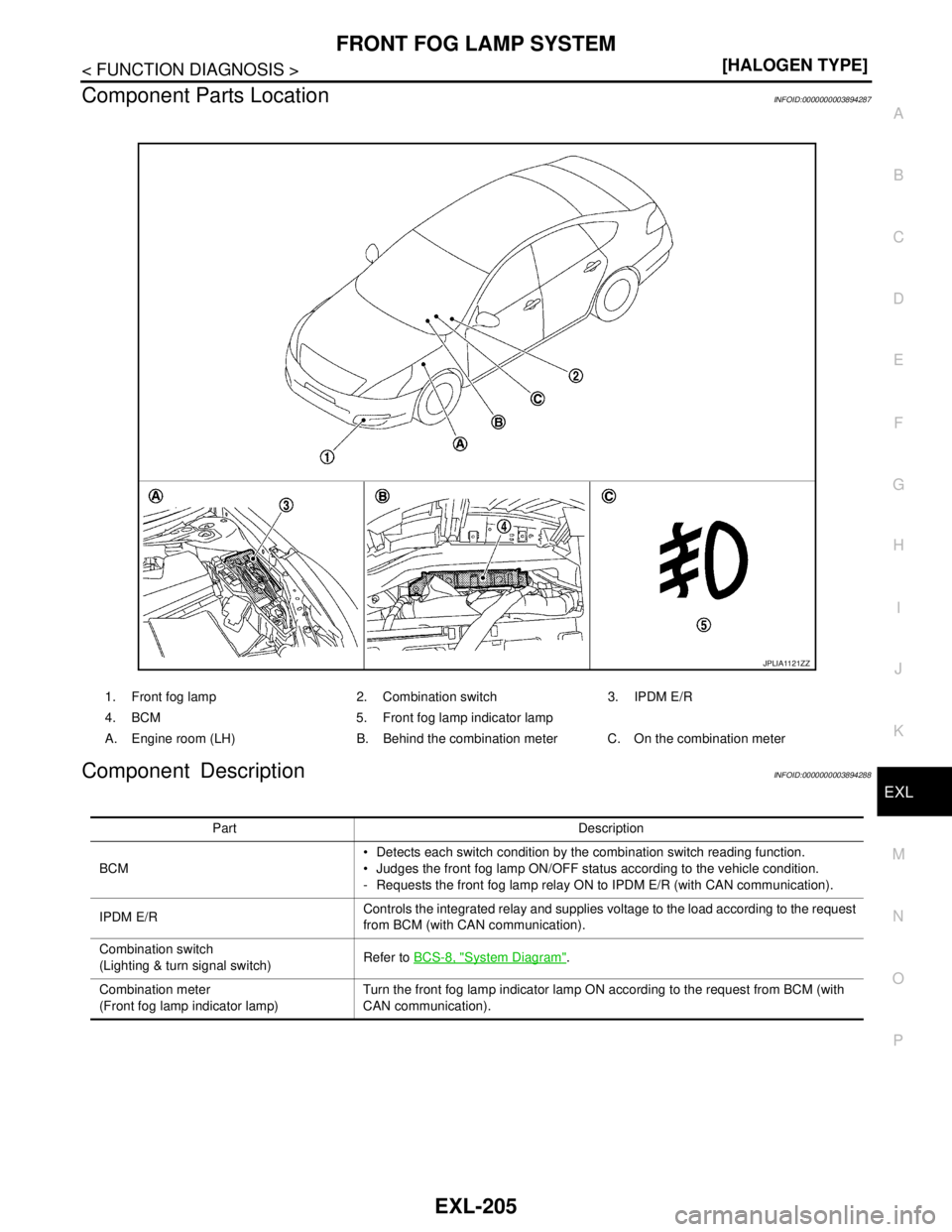

1. Front fog lamp 2. Combination switch 3. IPDM E/R
4. BCM 5. Front fog lamp indicator lamp
A. Engine room (LH) B. Behind the combination meter C. On the combination meter
JPLIA1121ZZ
Part Description
BCM Detects each switch condition by the combination switch reading function.
Judges the front fog lamp ON/OFF status according to the vehicle condition.
- Requests the front fog lamp relay ON to IPDM E/R (with CAN communication).
IPDM E/RControls the integrated relay and supplies voltage to the load according to the request
from BCM (with CAN communication).
Combination switch
(Lighting & turn signal switch)Refer to BCS-8, "
System Diagram".
Combination meter
(Front fog lamp indicator lamp)Turn the front fog lamp indicator lamp ON according to the request from BCM (with
CAN communication).
Page 2235 of 5121
![NISSAN TEANA 2008 Service Manual EXL-206
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM
TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM
System DiagramINFOID:0000000003894289
System DescriptionINFOID:000000 NISSAN TEANA 2008 Service Manual EXL-206
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM
TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM
System DiagramINFOID:0000000003894289
System DescriptionINFOID:000000](/manual-img/5/57391/w960_57391-2234.png)
EXL-206
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM
TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM
System DiagramINFOID:0000000003894289
System DescriptionINFOID:0000000003894290
OUTLINE
Turn signal lamp and the hazard warning lamp is controlled by combination switch reading function and the
flasher control function of BCM.
TURN SIGNAL LAMP OPERATION
BCM detects the combination switch condition by the combination switch reading function.
BCM supplies voltage to the right (left) turn signal lamp circuit when the ignition switch is turned ON and the
turn signal switch is in the right (left) position. BCM blinks the turn signal lamp.
HAZARD WARNING LAMP OPERATION
BCM supplies voltage to both turn signal lamp circuit when the hazard switch is turned ON. BCM blinks the
hazard warning lamp.
TURN SIGNAL INDICATOR LAMP AND TURN SIGNAL SOUND OPERATION
BCM transmits the turn indicator signal to the combination meter with CAN communication while the turn sig-
nal lamp and the hazard warning lamp are operating.
Combination meter outputs the turn signal sound with the integrated buzzer while blinking the turn signal
indicator lamp according to the turn indicator signal.
HIGH FLASHER OPERATION (FAIL-SAFE)
BCM detects the turn signal lamp circuit status by the terminal current value.
BCM increases the turn signal lamp blinking speed if the bulb or harness open is detected with the turn sig-
nal lamp operating.
NOTE:
The blinking speed is normal while operating the hazard warning lamp.
JPLIA0180GB
Page 2236 of 5121
![NISSAN TEANA 2008 Service Manual TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM
EXL-207
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
Component Parts LocationINFOID:0000000003894291
Component DescriptionINFOID:000 NISSAN TEANA 2008 Service Manual TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM
EXL-207
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
Component Parts LocationINFOID:0000000003894291
Component DescriptionINFOID:000](/manual-img/5/57391/w960_57391-2235.png)
TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM
EXL-207
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
Component Parts LocationINFOID:0000000003894291
Component DescriptionINFOID:0000000003894292
1. Hazard switch 2. Front turn signal lamp 3. Combination switch
4. Side turn signal lamp 5. Rear turn signal lamp 6. BCM
7. Turn signal indicator lamp
A. Behind the combination meter B. On the combination meter
JPLIA1122ZZ
Part Description
BCM Detects each switch condition by the combination switch reading function.
Judges the blinks of the turn signal lamp and the hazard warning lamp from each
switch status. The applicable turn signal lamp blinks.
Requests the turn signal indicator lamp blink to the combination meter (with CAN
communication).
Combination switch
(Lighting & turn signal switch)Refer to BCS-8, "
System Diagram".
Hazard switch Inputs the hazard switch ON/OFF signal to BCM.
Combination meter
(Turn signal indicator lamp & buzzer)Blinks the turn signal indicator lamp and outputs the turn signal operating sound with
integrated buzzer according to the request from BCM (with CAN communication).
Page 2237 of 5121
![NISSAN TEANA 2008 Service Manual EXL-208
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM
PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM
System DiagramINFOID:0000000003894293
System DescriptionINFOID:00 NISSAN TEANA 2008 Service Manual EXL-208
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM
PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM
System DiagramINFOID:0000000003894293
System DescriptionINFOID:00](/manual-img/5/57391/w960_57391-2236.png)
EXL-208
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM
PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM
System DiagramINFOID:0000000003894293
System DescriptionINFOID:0000000003894294
OUTLINE

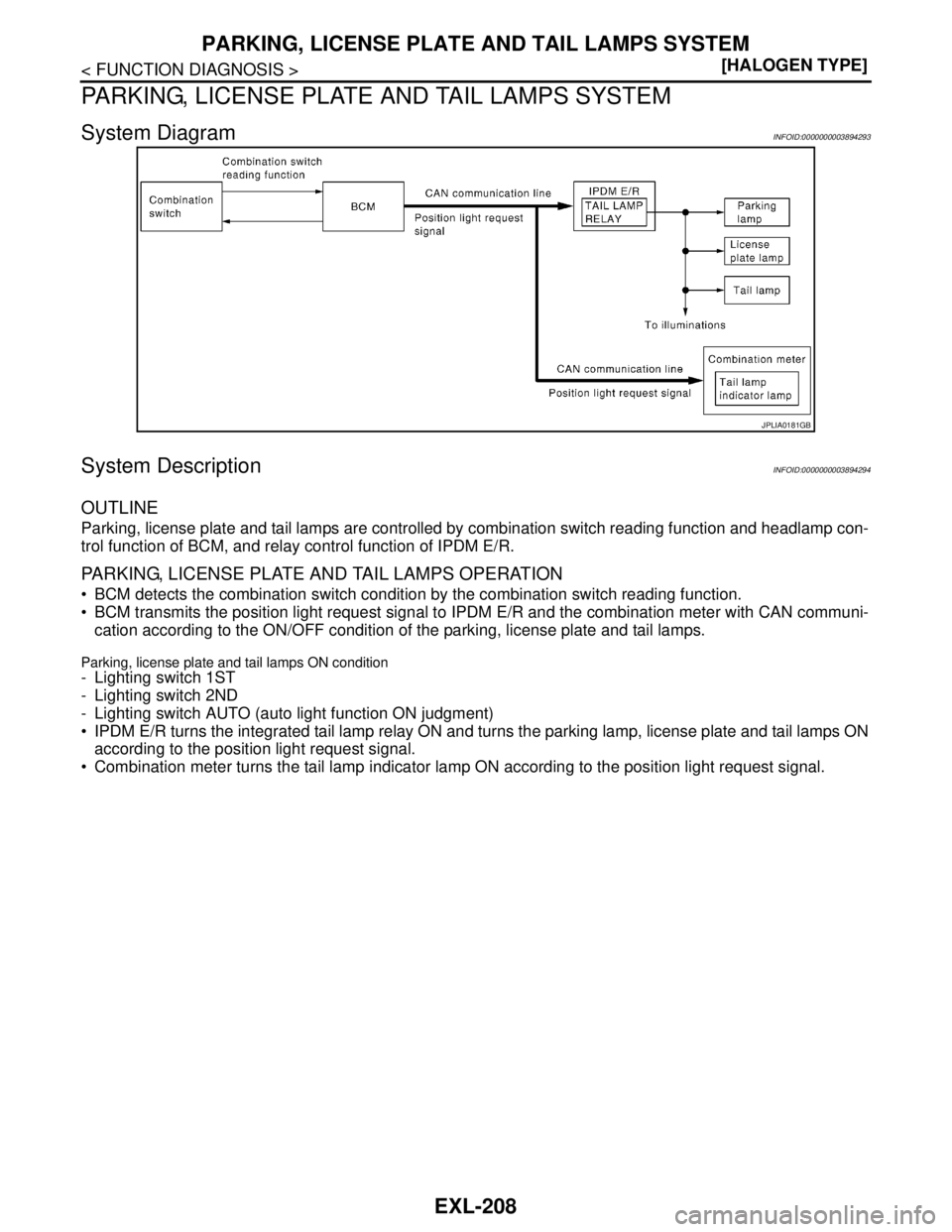

Parking, license plate and tail lamps are controlled by combination switch reading function and headlamp con-
trol function of BCM, and relay control function of IPDM E/R.
PARKING, LICENSE PLATE AND TAIL LAMPS OPERATION
BCM detects the combination switch condition by the combination switch reading function.
BCM transmits the position light request signal to IPDM E/R and the combination meter with CAN communi-
cation according to the ON/OFF condition of the parking, license plate and tail lamps.
Parking, license plate and tail lamps ON condition
- Lighting switch 1ST
- Lighting switch 2ND
- Lighting switch AUTO (auto light function ON judgment)
IPDM E/R turns the integrated tail lamp relay ON and turns the parking lamp, license plate and tail lamps ON
according to the position light request signal.
Combination meter turns the tail lamp indicator lamp ON according to the position light request signal.
JPLIA0181GB
Page 2238 of 5121
![NISSAN TEANA 2008 Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM
EXL-209
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
Component Parts LocationINFOID:0000000003894295
Component DescriptionINFOID:0 NISSAN TEANA 2008 Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM
EXL-209
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
Component Parts LocationINFOID:0000000003894295
Component DescriptionINFOID:0](/manual-img/5/57391/w960_57391-2237.png)
PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM
EXL-209
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
Component Parts LocationINFOID:0000000003894295
Component DescriptionINFOID:0000000003894296

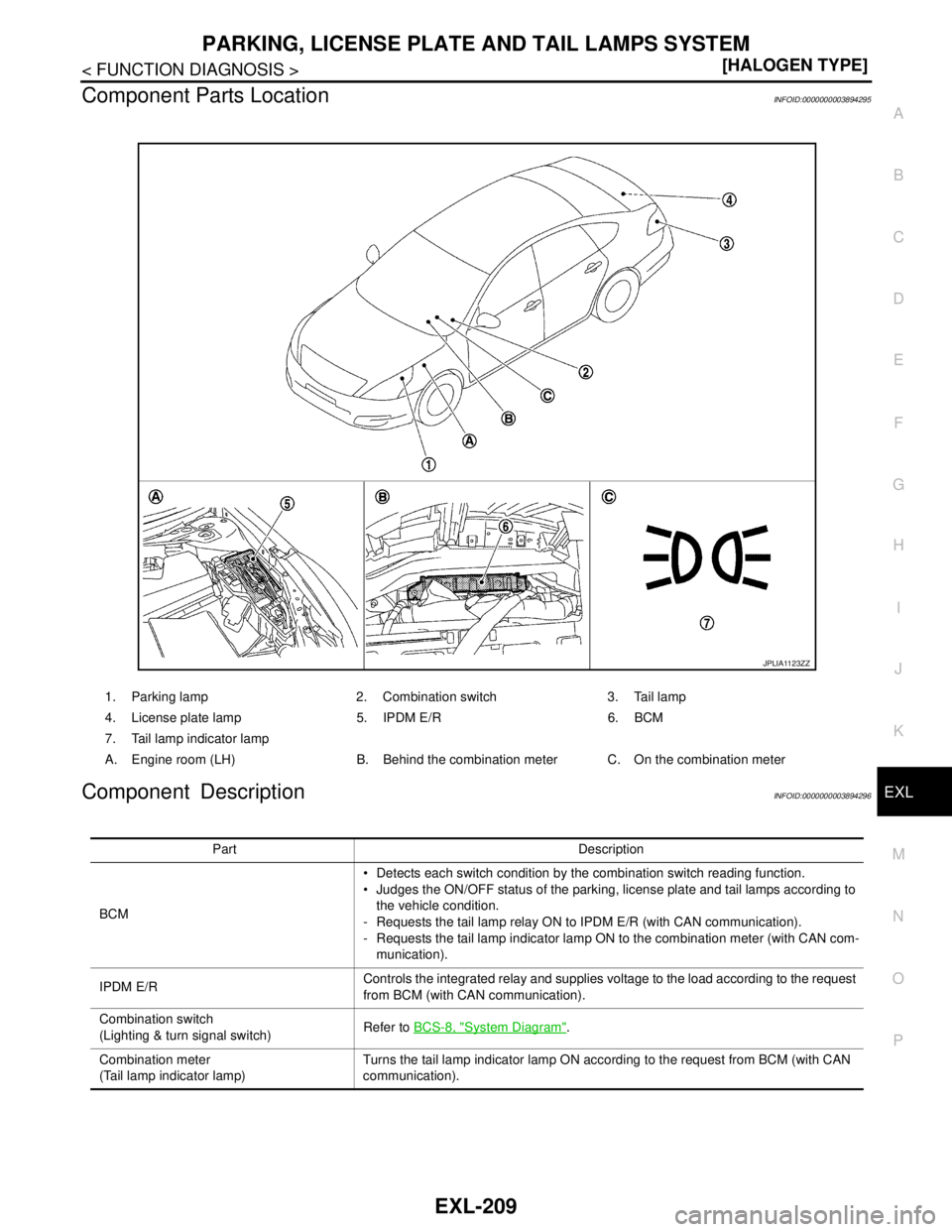

1. Parking lamp 2. Combination switch 3. Tail lamp
4. License plate lamp 5. IPDM E/R 6. BCM
7. Tail lamp indicator lamp
A. Engine room (LH) B. Behind the combination meter C. On the combination meter
JPLIA1123ZZ
Part Description
BCM Detects each switch condition by the combination switch reading function.
Judges the ON/OFF status of the parking, license plate and tail lamps according to
the vehicle condition.
- Requests the tail lamp relay ON to IPDM E/R (with CAN communication).
- Requests the tail lamp indicator lamp ON to the combination meter (with CAN com-
munication).
IPDM E/RControls the integrated relay and supplies voltage to the load according to the request
from BCM (with CAN communication).
Combination switch
(Lighting & turn signal switch)Refer to BCS-8, "
System Diagram".
Combination meter
(Tail lamp indicator lamp)Turns the tail lamp indicator lamp ON according to the request from BCM (with CAN
communication).
Page 2239 of 5121
EXL-210
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
REAR FOG LAMP SYSTEM
REAR FOG LAMP SYSTEM
System DiagramINFOID:0000000003894297
System DescriptionINFOID:0000000003894298
OUTLINE

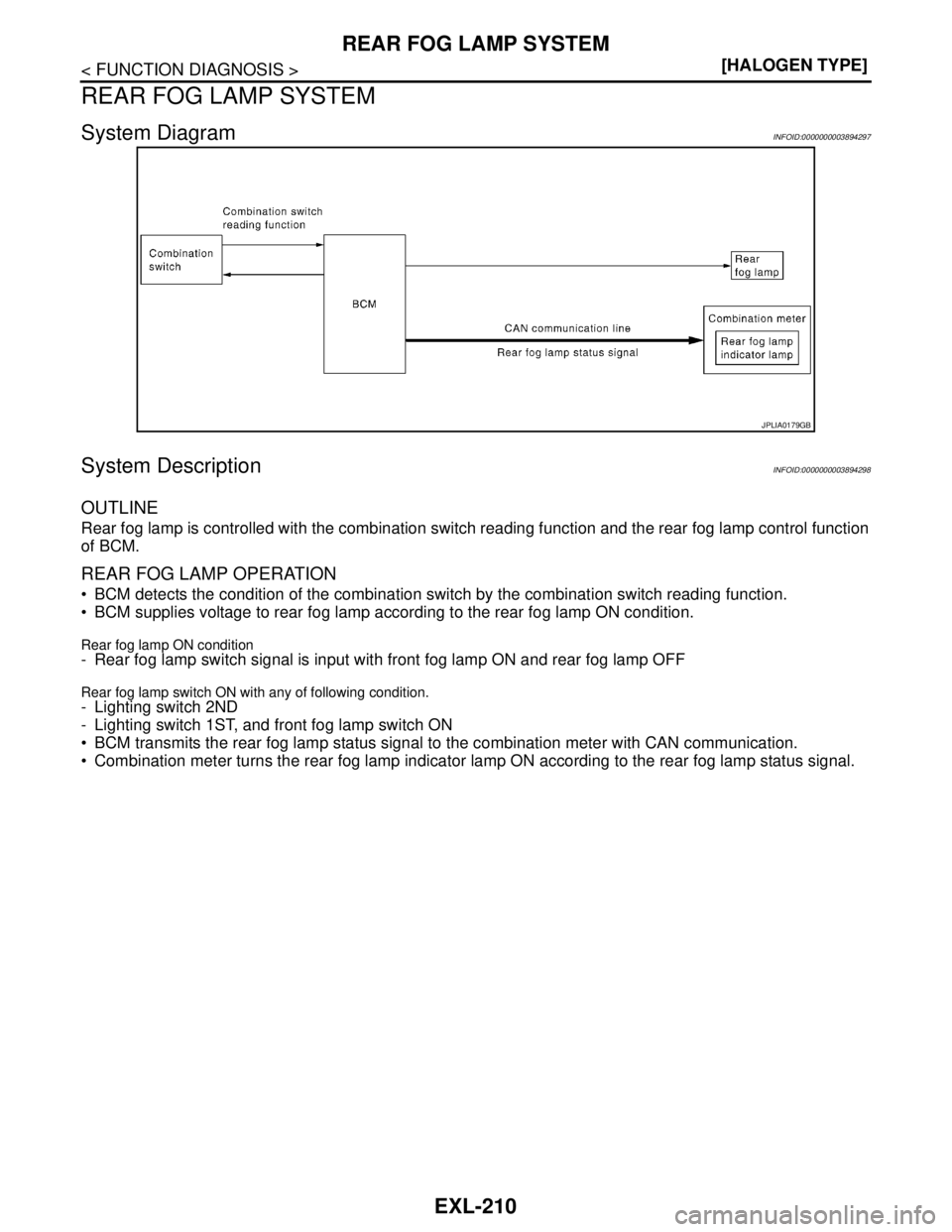

Rear fog lamp is controlled with the combination switch reading function and the rear fog lamp control function
of BCM.
REAR FOG LAMP OPERATION
BCM detects the condition of the combination switch by the combination switch reading function.
BCM supplies voltage to rear fog lamp according to the rear fog lamp ON condition.
Rear fog lamp ON condition- Rear fog lamp switch signal is input with front fog lamp ON and rear fog lamp OFF
Rear fog lamp switch ON with any of following condition.- Lighting switch 2ND
- Lighting switch 1ST, and front fog lamp switch ON
BCM transmits the rear fog lamp status signal to the combination meter with CAN communication.
Combination meter turns the rear fog lamp indicator lamp ON according to the rear fog lamp status signal.
JPLIA0179GB
Page 2240 of 5121
REAR FOG LAMP SYSTEM
EXL-211
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
Component Parts LocationINFOID:0000000003894299
Component DescriptionINFOID:0000000003894300

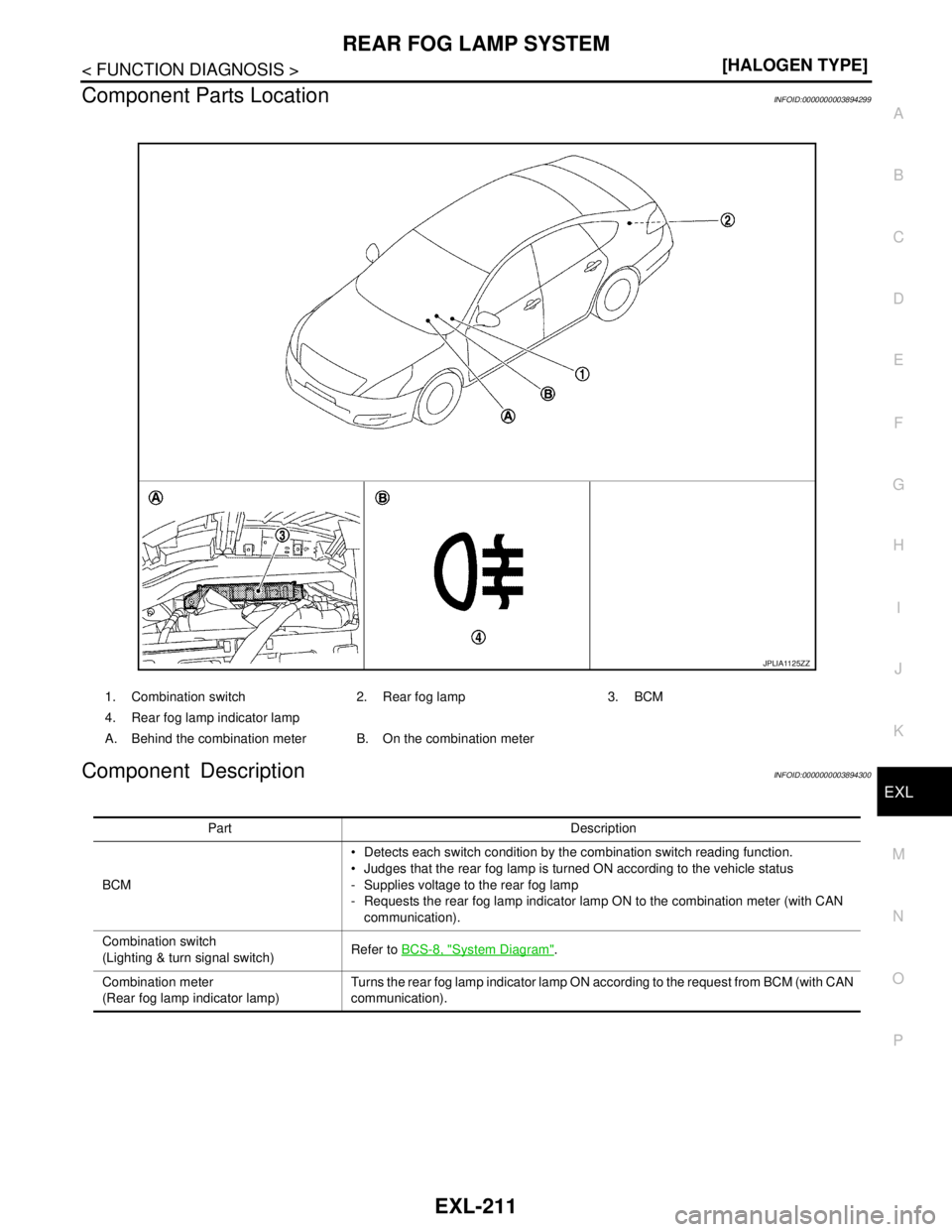

1. Combination switch 2. Rear fog lamp 3. BCM
