NISSAN TEANA 2008 Service Manual PCS-34
< ON-VEHICLE REPAIR >[IPDM E/R]
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
ON-VEHICLE REPAIR
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)
Exploded ViewINFOID:0

Page 3426 of 5121

NISSAN TEANA 2008 Service Manual PCS
DIAGNOSIS AND REPAIR WORKFLOW
PCS-35
< BASIC INSPECTION >[POWER DISTRIBUTION SYSTEM]
C
D
E
F
G
H
I
J
K
L B A
O
P N
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW

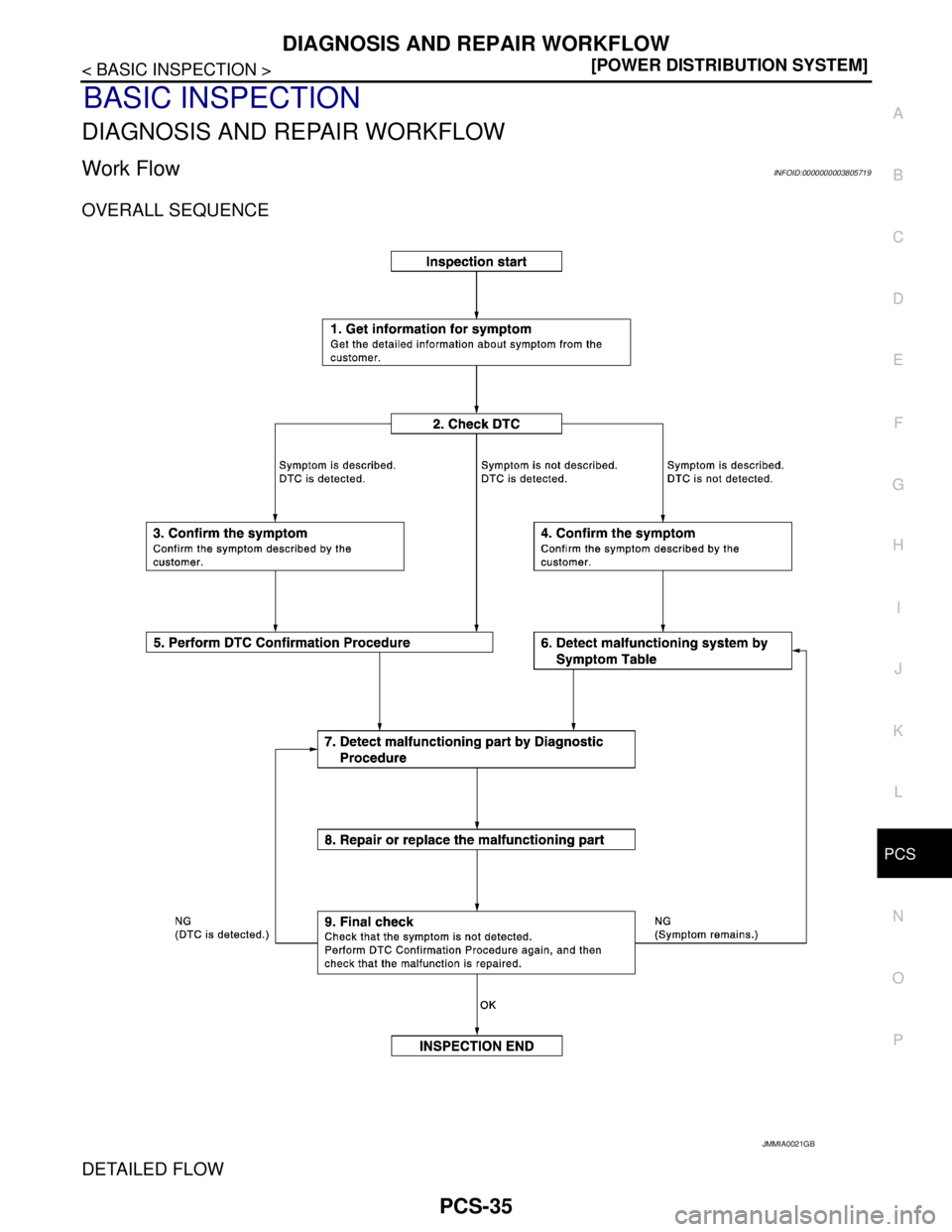

Work FlowINFOID:0000000003805719
O

Page 3427 of 5121

NISSAN TEANA 2008 Service Manual PCS-36
< BASIC INSPECTION >[POWER DISTRIBUTION SYSTEM]
DIAGNOSIS AND REPAIR WORKFLOW
1.GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom (the condition and t

PCS-36
< BASIC INSPECTION >[POWER DISTRIBUTION SYSTEM]
DIAGNOSIS AND REPAIR WORKFLOW
1.GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred).
>> GO TO 2.
2.CHECK DTC
1. Check DTC for BCM and IPDM E/R.
2. Perform the following procedure if DTC is detected.
- Record DTC and freeze frame data (Print them out with CONSULT-III.)
- Erase DTC.
- Study the relationship between the cause detected by DTC and the symptom described by the customer.
3. Check related service bulletins for information.
Are any symptoms described and any DTC detected?
Symptom is described, DTC is detected>>GO TO 3.
Symptom is described, DTC is not detected>>GO TO 4.
Symptom is not described, DTC is detected>>GO TO 5.
3.CONFIRM THE SYMPTOM
Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in “DATA MONITOR” mode and check real time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 5.
4.CONFIRM THE SYMPTOM
Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in “DATA MONITOR ” mode and check real time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 6.
5.PERFORM DTC CONFIRMATION PROCEDURE
Perform DTC Confirmation Procedure for the detected DTC, and then check that DTC is detected again.
At this time, always connect CONSULT-III to the vehicle, and check diagnostic results in real time.
If two or more DTCs are detected, refer to PCS-104, "
DTCInspectionPriorityChart", and determine trouble
diagnosis order.
NOTE:
Perform Component Function Check if DTC Confirmation Procedure is not included in Service Manual. This
simplified check procedure is an effective alternative though DTC cannot be detected during this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC Confirmation
Procedure.
Is DTC detected?
YES >> GO TO 7.
NO >> Refer to GI-35, "
Intermittent Incident".
6.DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE
Detect malfunctioning system according to PCS-122, "
Symptom Table" based on the confirmed symptom in
step 4, and determine the trouble diagnosis order based on possible causes and symptom.
>> GO TO 7.
7.DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE
Inspect according to Diagnostic Procedure of the system.
NOTE:
The Diagnostic Procedure described is based on open circuit inspection. A short circuit inspection is also
required for the circuit check in the Diagnostic Procedure.

Page 3428 of 5121

NISSAN TEANA 2008 Service Manual PCS
DIAGNOSIS AND REPAIR WORKFLOW
PCS-37
< BASIC INSPECTION >[POWER DISTRIBUTION SYSTEM]
C
D
E
F
G
H
I
J
K
L B A
O
P N
Is malfunctioning part detected?
YES >> GO TO 8.
NO >> Check voltage of related B

Page 3429 of 5121

NISSAN TEANA 2008 Service Manual PCS-38
< FUNCTION DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
POWER DISTRIBUTION SYSTEM
FUNCTION DIAGNOSIS
POWER DISTRIBUTION SYSTEM
System DescriptionINFOID:0000000003805720
PDS (POWER DISTRIBUTION SYST

PCS-38
< FUNCTION DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
POWER DISTRIBUTION SYSTEM
FUNCTION DIAGNOSIS
POWER DISTRIBUTION SYSTEM
System DescriptionINFOID:0000000003805720
PDS (POWER DISTRIBUTION SYSTEM) is the system that BCM controls with the operation of the push-
button ignition switch and performs the power distribution to each power circuit. This system is used instead
of the mechanical power supply changing mechanism with the operation of the conventional key cylinder.
The push-button ignition switch can be operated when Intelligent Key is in the following condition. Refer to
Engine Start Function for details.
- Intelligent Key is in the detection area of the inside key antenna
- Insert Intelligent Key into the key slot
- Insert key fob into the key slot
The push-button ignition switch operation is input to BCM as a signal. BCM changes the power supply posi-
tion according to the status and operates the following relays to supply power to each power circuit.
- Ignition relay (built into IPDM E/R)
- Ignition relay (inserted into fuse block)
- ACC relay
- Blower fan relay
NOTE:
The engine switch operation changes due to the conditions of brake pedal, selector lever and vehicle speed.
The power supply position can be confirmed with the illuminating of the indicators around the push-button
ignition switch.
BATTERY SAVER SYSTEM
When all of the following conditions are met for 60 minutes, the battery saver system will cut off the power sup-
ply to prevent battery discharge.
The ignition switch is in the ACC position
All doors are closed
Selector lever is in the P position
Reset Condition of Battery Saver System
In order to prevent the battery from discharging, the battery saver system will cut off the power supply when all
doors are closed, the selector lever is in the P position and the ignition switch is left in the ACC position for 60
minutes. If any of the following conditions are met the battery saver system is released and the steering will
change automatically to the LOCK position from the OFF position.
Opening any door
Operating with door key cylinder on door lock
Operating with request switch on door lock
Operating with Intelligent Key on door lock
Press push-button ignition switch and ignition switch will change to the ACC position from the OFF position.
STEERING LOCK OPERATION
Steering is locked by steering lock unit when ignition switch is in the OFF position, selector lever is in the P
position and any of the following conditions are met.
Opening door
Closing door
Door is locked with request switch
Door is locked with Intelligent Key
PUSH-BUTTON IGNITION SWITCH OPERATION PROCEDURE
The power supply position changing operation can be performed with the following operations.
Operation Enable Condition
When an Intelligent Key is within the detection area of inside key antenna and when it is inserted into the key
slot, the operation is as per the following.
When starting the engine, the BCM monitors the following engine start conditions,
- Brake pedal operating condition
- Selector lever position
- Vehicle speed
Unless each start condition is fulfilled, the engine will not respond regardless of how many times the engine
switch is pressed. At that time, illumination repeats the position in the order of LOCK→ACC→ON→OFF.

Page 3430 of 5121

NISSAN TEANA 2008 Service Manual PCS
POWER DISTRIBUTION SYSTEM
PCS-39
< FUNCTION DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
C
D
E
F
G
H
I
J
K
L B A
O
P N Operation Condition
*1: When the selector lever position is in the N position, the

Page 3431 of 5121

NISSAN TEANA 2008 Service Manual PCS-40
< FUNCTION DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
POWER DISTRIBUTION SYSTEM

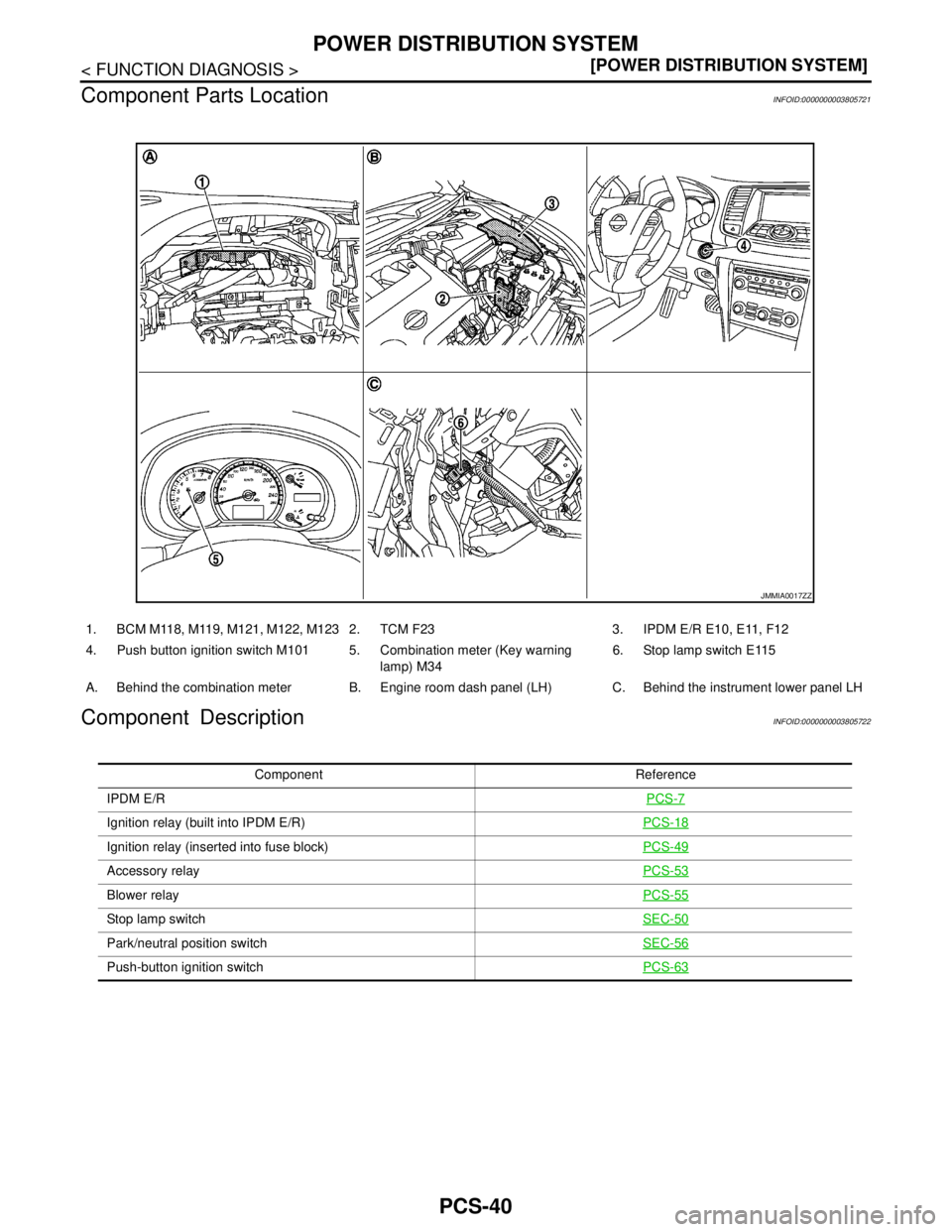

Component Parts Location
INFOID:0000000003805721
Component DescriptionINFOID:0000000003805722
JMMIA0017ZZ
1. BCM M118

Page 3432 of 5121

NISSAN TEANA 2008 Service Manual PCS
DIAGNOSIS SYSTEM (BCM)
PCS-41
< FUNCTION DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
C
D
E
F
G
H
I
J
K
L B A
O
P N
DIAGNOSIS SYSTEM (BCM)
COMMON ITEM
COMMON ITEM : CONSULT-III Function (BCM - COMMON IT
