TM-272
< COMPONENT DIAGNOSIS >[CVT: RE0F10A]
SPORT MODE SWITCH
SPORT MODE SWITCH
DescriptionINFOID:0000000003847160
The sport mode switch is installed to the selector lever knob.
When pushing the sport mode switch (SPORT indicator lamp turns ON), the driving condition becomes sport
mode. When pushing again the sport mode switch (SPORT indicator lamp turns OFF), the driving condition
changes to D range.
Component Function CheckINFOID:0000000003847161
1.CHECK SPORT MODE SWITCH SIGNAL
1. Turn ignition switch ON.
2. Select “Data Monitor” mode for “TRANSMISSION”.
3. Check the ON/OFF operations of monitor item.
Is the inspection result normal?
YES >> INSPECTION END.
NO >> Go to TM-272, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000003847162
1. CHECK CAN COMMUNICATION CIRCUIT
Perform “Self Diagnostic Results” mode for “TRANSMISSION”.
Is
“U1000 CAN COMM CIRCUIT” indicated?
YES >> Check CAN communication line. Refer to TM-208, "Description".
NO >> GO TO 2.
2.CHECK COMBINATION METER
Perform “Self Diagnostic Results” mode for “METER/M&A”.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Check DTC detected item. Refer to MWI-67, "
DTC Index".
3.CHECK SPORT MODE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect control device connector.
3. Turn ignition switch ON.
4. Check voltage between control device vehicle side harness connector terminals.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 6.
4.CHECK SPORT MODE SWITCH
Check continuity between control device connector terminals.
Monitor item Condition Status
SPORT MODE SWWhile pushing sport mode switch On
Other conditions Off
Control device vehicle side harness connector
Voltage (Approx.)
ConnectorTe r m i n a l
(+) (−)
M57 1 4 5 V
Page 4746 of 5121
![NISSAN TEANA 2008 Service Manual SPORT MODE SWITCH
TM-273
< COMPONENT DIAGNOSIS >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace damaged parts.
5.CHECK MALFUNCTI NISSAN TEANA 2008 Service Manual SPORT MODE SWITCH
TM-273
< COMPONENT DIAGNOSIS >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace damaged parts.
5.CHECK MALFUNCTI](/manual-img/5/57391/w960_57391-4745.png)
SPORT MODE SWITCH
TM-273
< COMPONENT DIAGNOSIS >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace damaged parts.
5.CHECK MALFUNCTIONING ITEM
Check control device connector pin terminals for damage or loose connection with harness connector.
Is the inspection result normal?
YES >> GO TO 10.
NO >> Repair or replace damaged parts.
6.CHECK GROUND CIRCUIT
Check continuity between control device vehicle side harness connector terminal and ground.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Repair or replace damaged parts.
7.CHECK HARNESS BETWEEN CONTROL DEVICE AND COMBINATION METER (PART 1)
1. Turn ignition switch OFF.
2. Disconnect combination meter connector.
3. Check continuity between control device vehicle side harness connector terminal and combination meter
vehicle side harness connector terminal.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Repair or replace damaged parts.
8.CHECK HARNESS BETWEEN CONTROL DEVICE AND COMBINATION METER (PART 2)
Check continuity between control device vehicle side harness connector terminal and ground.
Is the inspection result normal?
YES >> GO TO 9.
NO >> Repair or replace damaged parts.
9.DETECT MALFUNCTIONING ITEMS
Check combination meter connector pin terminals for damage or loose connection with harness connector.
Is the inspection result normal?
YES >> GO TO 10.
NO >> Repair or replace damaged parts.
Control device connector
Condition Continuity
Connector Terminal
M57 1 4While pushing sport mode switch Existed
Other condition Not existed
Control device vehicle side harness connector
GroundContinuity
Connector Terminal
M57 4 Existed
Control device vehicle side harness connector Combination meter vehicle side harness connector
Continuity
Connector Terminal Connector Terminal
M57 1 M34 32 Existed
Control device vehicle side harness connector
GroundContinuity
Connector Terminal
M57 1 Not existed
Page 4747 of 5121
TM-274
< COMPONENT DIAGNOSIS >[CVT: RE0F10A]
SPORT MODE SWITCH
10.CHECK COMBINATION METER
1. Reconnect all the connectors.
2. Turn ignition switch ON.
3. Select “O/D OFF SW” on “Data Monitor” mode for “METER/M&A”, and check the ON/OFF operations of
monitor item. Refer to MWI-53, "
Reference Value".
Is the inspection result normal?
YES >> GO TO 11.
NO >> Replace combination meter. Refer to MWI-126, "
Exploded View".
11 .DETECT MALFUNCTIONING ITEMS
Check TCM connector pin terminals for damage or loose connection with harness connector.
Is the inspection result normal?
YES >> Replace TCM. Refer to TM-315, "Exploded View".
NO >> Repair or replace damaged parts.
Page 4748 of 5121
![NISSAN TEANA 2008 Service Manual TCM
TM-275
< ECU DIAGNOSIS >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
ECU DIAGNOSIS
TCM
Reference ValueINFOID:0000000003806487
VALUES ON THE DIAGNOSIS TOOL
Item name Condition Display value (App NISSAN TEANA 2008 Service Manual TCM
TM-275
< ECU DIAGNOSIS >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
ECU DIAGNOSIS
TCM
Reference ValueINFOID:0000000003806487
VALUES ON THE DIAGNOSIS TOOL
Item name Condition Display value (App](/manual-img/5/57391/w960_57391-4747.png)
TCM
TM-275
< ECU DIAGNOSIS >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
ECU DIAGNOSIS
TCM
Reference ValueINFOID:0000000003806487
VALUES ON THE DIAGNOSIS TOOL
Item name Condition Display value (Approx.)
VSP SENSOR During drivingApproximately matches the speedometer
reading.
ESTM VSP SIG During drivingApproximately matches the speedometer
reading.
PRI SPEED SEN During driving (lock-up ON) Approximately matches the engine speed.
ENG SPEED SIG Engine running Closely matches the tachometer reading.
SEC HYDR SEN “N” position idle 1.0 V
PRI HYDR SEN “N” position idle 0.7 – 3.5 V
ATF TEMP SEN*When CVT fluid temperature is 20°C (68°F) 2.0 V
When CVT fluid temperature is 80°C (176°F) 1.0 V
VIGN SEN Ignition switch: ON Battery voltage
VEHICLE SPEED During drivingApproximately matches the speedometer
reading.
PRI SPEED During driving (lock-up ON) Approximately matches the engine speed.
SEC SPEED During driving45 X Approximately matches the speedom-
eter reading.
ENG SPEED Engine running Closely matches the tachometer reading.
GEAR RATIO During driving 2.34 – 0.39
ACC PEDAL OPENReleased accelerator pedal - Fully depressed acceler-
ator pedal0.0/8 – 8.0/8
SEC PRESS “N” position idle 1.3 MPa
STM STEP During driving−20 step – 190 step
ISOLT1Lock-up “OFF” 0.0 A
Lock-up “ON” 0.7 A
ISOLT2Release foot from the accelerator pedal. 0.8 A
Press the accelerator pedal all the way down. 0.0 A
ISOLT3 Secondary pressure low - Secondary pressure high 0.8 – 0.0 A
SOLMON1Lock-up “OFF” 0.0 A
Lock-up “ON” 0.7 A
SOLMON2“N” position idle 0.8 A
When stalled 0.3 – 0.6 A
SOLMON3“N” position idle 0.6 – 0.7 A
When stalled 0.4 – 0.6 A
P POSITION SWSelector lever in “P” position On
Other than the above position. Off
R POSITION SWSelector lever in “R” position On
Other than the above position. Off
N POSITION SWSelector lever in “N“ position On
Other than the above position. Off
Page 4749 of 5121
![NISSAN TEANA 2008 Service Manual TM-276
< ECU DIAGNOSIS >[CVT: RE0F10A]
TCM
*Means CVT fluid temperature. Convert numerical values for actual fluid temperature °C (°F). Refer to TM-301, "ATFTEMP COUNT
Conversion Table".
TERMINAL LA NISSAN TEANA 2008 Service Manual TM-276
< ECU DIAGNOSIS >[CVT: RE0F10A]
TCM
*Means CVT fluid temperature. Convert numerical values for actual fluid temperature °C (°F). Refer to TM-301, "ATFTEMP COUNT
Conversion Table".
TERMINAL LA](/manual-img/5/57391/w960_57391-4748.png)
TM-276
< ECU DIAGNOSIS >[CVT: RE0F10A]
TCM
*Means CVT fluid temperature. Convert numerical values for actual fluid temperature °C (°F). Refer to TM-301, "ATFTEMP COUNT
Conversion Table".
TERMINAL LAYOUT
D POSITION SWSelector lever in “D” position On
Other than the above position. Off
L POSITION SWSelector lever in “L” position On
Other than the above position. Off
BRAKE SWDepressed brake pedal On
Released brake pedal Off
FULL SWFully depressed accelerator pedal On
Released accelerator pedal Off
IDLE SWReleased accelerator pedal On
Fully depressed accelerator pedal Off
SPORT MODE SWWhile pushing sport mode switch On
Other conditions Off
INDLRNGSelector lever in “L” position On
When setting selector lever to other positions. Off
INDDRNGSelector lever in “D” position On
When setting selector lever to other positions. Off
INDNRNGSelector lever in “N“ position On
When setting selector lever to other positions. Off
INDRRNGSelector lever in “R” position On
When setting selector lever to other positions. Off
INDPRNGSelector lever in “P” position On
When setting selector lever to other positions. Off
SPORT MODE INDWhen sport mode On
Other conditions Off
SMCOIL A During driving Changes On ⇔ Off.
SMCOIL B During driving Changes On ⇔ Off.
SMCOIL C During driving Changes On ⇔ Off.
SMCOIL D During driving Changes On ⇔ Off.
LUSEL SOL OUTSelector lever in “P” and “N” positions On
Wait at least for 5 seconds with the selector lever in “R”
and “D” positionsOff
LUSEL SOL MONSelector lever in “P” and “N” positions On
Wait at least for 5 seconds with the selector lever in “R”
and “D” positionsOff
ABS ONABS operate On
Other conditions Off
RANGESelector lever in “N” and “P” position N·P
Selector lever in “R” position R
Selector lever in “D” position D
Selector lever in “L” position L Item name Condition Display value (Approx.)
Page 4750 of 5121
![NISSAN TEANA 2008 Service Manual TCM
TM-277
< ECU DIAGNOSIS >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
PPHYSICAL VALUES
SCIA6679J
Te r m i n a l N o .
(wire color)Description
ConditionVa l u e
(Approx.)
+−Signal name Input/Ou NISSAN TEANA 2008 Service Manual TCM
TM-277
< ECU DIAGNOSIS >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
PPHYSICAL VALUES
SCIA6679J
Te r m i n a l N o .
(wire color)Description
ConditionVa l u e
(Approx.)
+−Signal name Input/Ou](/manual-img/5/57391/w960_57391-4749.png)
TCM
TM-277
< ECU DIAGNOSIS >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
PPHYSICAL VALUES
SCIA6679J
Te r m i n a l N o .
(wire color)Description
ConditionVa l u e
(Approx.)
+−Signal name Input/Output
1
(P/B)Ground R RANGE SW Input
Ignition switch ONSelector lever in “R” positionBattery
voltage
Other than the above position 0 V
2
(P/L)Ground N RANGE SW InputSelector lever in “N” positionBattery
voltage
Other than the above position 0 V
3
(G/O)Ground D RANGE SW InputSelector lever in “D” positionsBattery
voltage
Other than the above position 0 V
4
(GR)Ground L RANGE SW InputSelector lever in “L” positionBattery
voltage
Other than the above position 0 V
5
(B)Ground Ground Output Always 0 V
6
(O)Ground K-LINE Input/Output — —
7
(W)Ground Sensor ground Input Always 0 V
8
(G/W)— CLOCK (SEL2) — — —
9
(L/R)— CHIP SELECT (SEL1) — — —
10
(BR/R)— DATA I/O (SEL3) — — —
11
(BR/W)Ground P RANGE SW Input Ignition switch ONSelector lever in “P” positionBattery
voltage
Other than the above position 0 V
13
(V)GroundCVT fluid temperature sen-
sor Input Ignition switch ONWhen CVT fluid temperature is
20°C (68°F)2.0 V
When CVT fluid temperature is
80°C (176°F)1.0 V
15
(V/W)GroundTransmission fluid pres-
sure sensor A (Secondary
pressure sensor)Input “N” position idle 1.0 V
25
(W/R)Ground Sensor ground Input Always 0 V
Page 4751 of 5121
![NISSAN TEANA 2008 Service Manual TM-278
< ECU DIAGNOSIS >[CVT: RE0F10A]
TCM
*: A circuit tester cannot be used to test this item.26
(L/O)Ground Sensor power OutputIgnition switch ON 5.0 V
Ignition switch OFF 0 V
27
(R/G)Ground Step m NISSAN TEANA 2008 Service Manual TM-278
< ECU DIAGNOSIS >[CVT: RE0F10A]
TCM
*: A circuit tester cannot be used to test this item.26
(L/O)Ground Sensor power OutputIgnition switch ON 5.0 V
Ignition switch OFF 0 V
27
(R/G)Ground Step m](/manual-img/5/57391/w960_57391-4750.png)
TM-278
< ECU DIAGNOSIS >[CVT: RE0F10A]
TCM
*: A circuit tester cannot be used to test this item.26
(L/O)Ground Sensor power OutputIgnition switch ON 5.0 V
Ignition switch OFF 0 V
27
(R/G)Ground Step motor D Output
Within 2 seconds after ignition switch ON, measure the
time using the pulse width measurement function (Hi
level) of CONSULT-III.*
CAUTION:
Connect the diagnosis data link cable to the vehicle
diagnosis connector.10.0
msec
28
(R)Ground Step motor C Output30.0
msec
29
(O/B)Ground Step motor B Output10.0
msec
30
(G/R)Ground Step motor A Output30.0
msec
31
(P)— CAN-L Input/Output — —
32
(L)— CAN-H Input/Output — —
33
(SB)GroundInput speed sensor (Prima-
ry speed sensor)Input When driving [“L” position, 20 km/h (12 MPH)] 950 Hz
34
(LG/R)GroundOutput speed sensor (Sec-
ondary speed sensor)Input When driving [“D” position, 20 km/h (12 MPH)] 490 Hz
37
(V/R)GroundLock-up select solenoid
valveOutput Ignition switch ONSelector lever in “P” or “N” posi-
tions Battery
voltage
Wait at least for 5 seconds with
the selector lever in “R” or “D”
positions.0 V
38
(L/W)GroundTorque converter clutch so-
lenoid valveOutputWhen vehicle cruis-
es in “D” positionWhen CVT performs lock-up 6.0 V
When CVT does not perform
lock-up1.5 V
39
(W/B)GroundPressure control solenoid
valve B (Secondary pres-
sure solenoid valve)Output
“P” or “N” position
idle Release your foot from the ac-
celerator pedal.5.0 – 7.0
V
Press the accelerator pedal all
the way down.3.0 – 4.0
V
40
(R/Y)GroundPressure control solenoid
valve A (Line pressure so-
lenoid valve)Output Release your foot from the ac-
celerator pedal.5.0 – 7.0
V
Press the accelerator pedal all
the way down.1.0 V
42
(B)Ground Ground Output Always 0 V
45
(L/R)GroundPower supply
(memory back-up)Input AlwaysBattery
voltage
46
(Y)Ground Power supply InputIgnition switch ONBattery
voltage
Ignition switch OFF 0 V
47
(L/R)GroundPower supply
(memory back-up)Input AlwaysBattery
voltage
48
(Y)Ground Power supply InputIgnition switch ONBattery
voltage
Ignition switch OFF 0 V Te r m i n a l N o .
(wire color)Description
ConditionVa l u e
(Approx.)
+−Signal name Input/Output
Page 4752 of 5121
TCM
TM-279
< ECU DIAGNOSIS >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

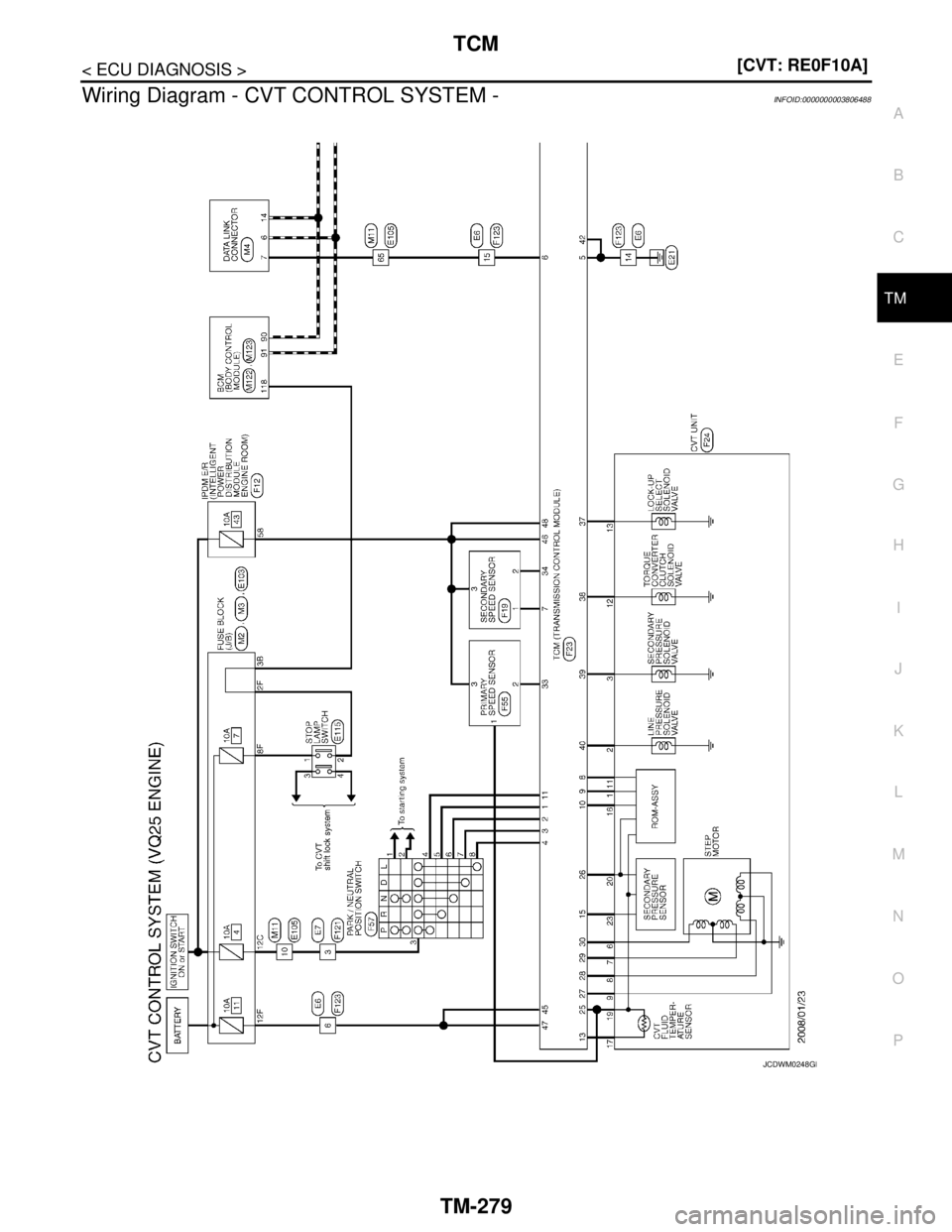

Wiring Diagram - CVT CONTROL SYSTEM -INFOID:0000000003806488
JCDWM0248GB
