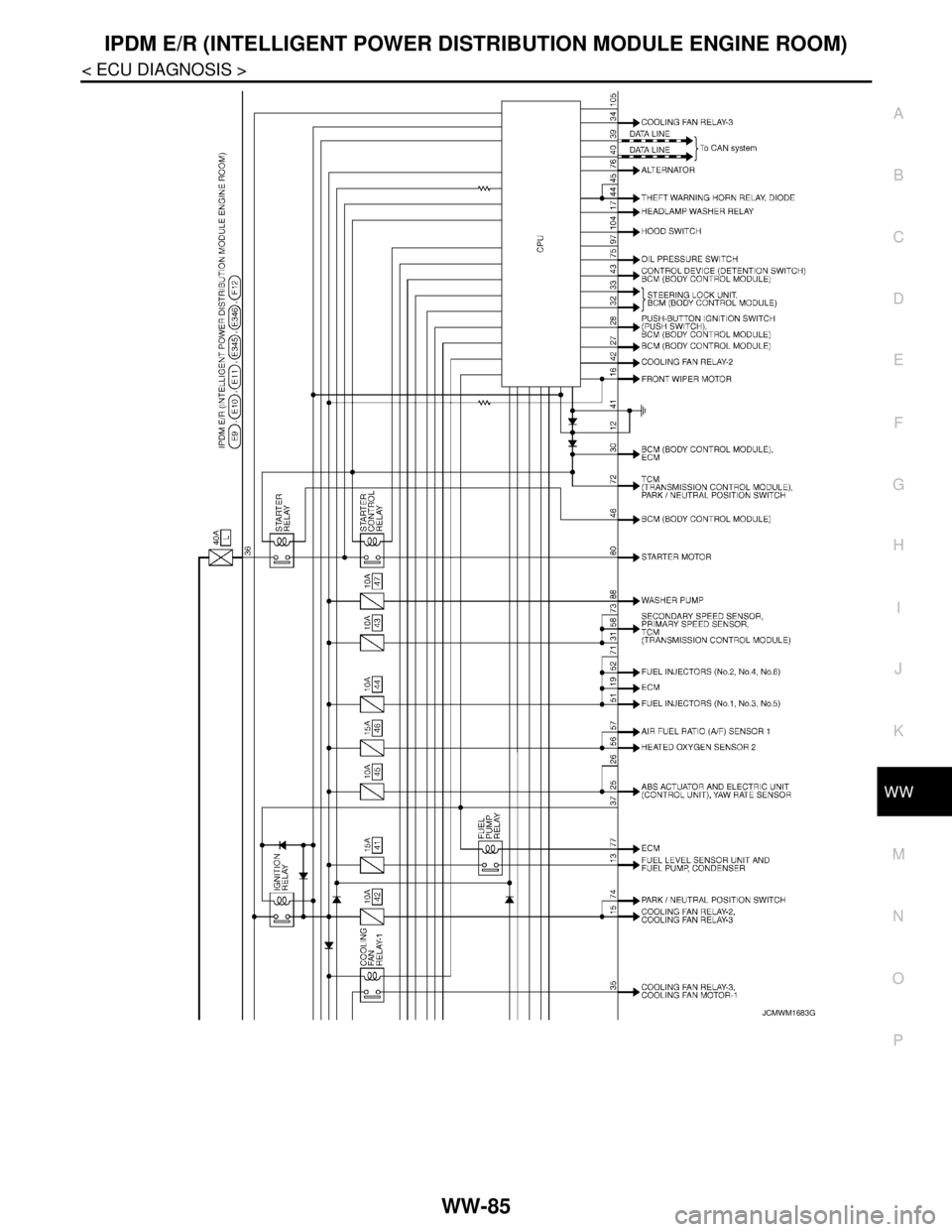

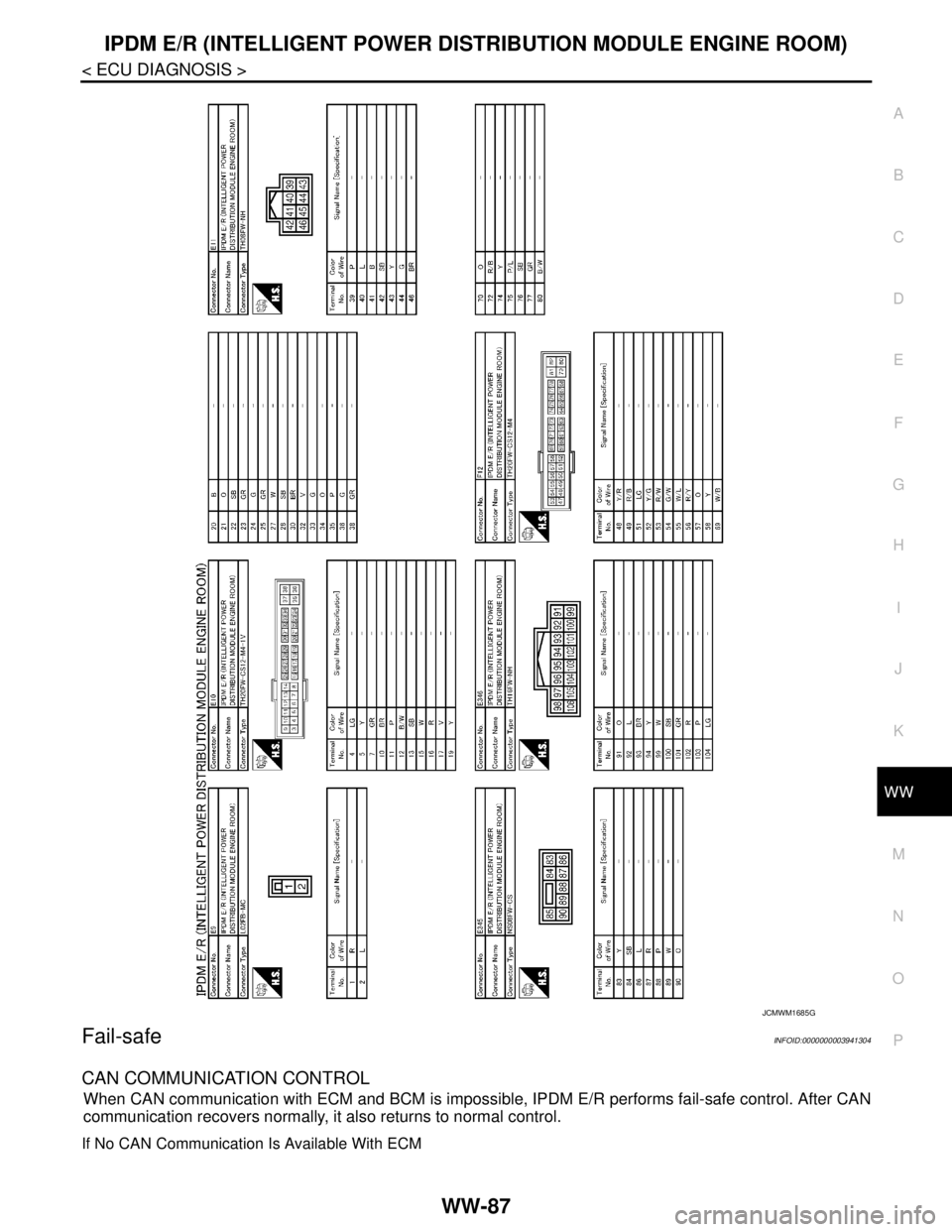

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
WW-85
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P
JCMWM1683GB
Page 5098 of 5121
WW-86
< ECU DIAGNOSIS >
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
JCMWM1684GB
Page 5099 of 5121
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
WW-87
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P
Fail-safeINFOID:0000000003941304
CAN COMMUNICATION CONTROL
When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN
communication recovers normally, it also returns to normal control.
If No CAN Communication Is Available With ECM
JCMWM1685GB
Page 5100 of 5121

WW-88
< ECU DIAGNOSIS >
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
If No CAN Communication Is Available With BCM
IGNITION RELAY MALFUNCTION DETECTION FUNCTION
IPDM E/R monitors the voltage at the contact circuit and excitation coil circuit of the ignition relay inside it.
IPDM E/R judges the ignition relay error if the voltage differs between the contact circuit and the excitation
coil circuit.
If the ignition relay cannot turn OFF due to contact seizure, it activates the tail lamp relay for 10 minutes to
alert the user to the ignition relay malfunction when the ignition switch is turned OFF.
FRONT WIPER CONTROL
IPDM E/R detects front wiper stop position by a front wiper auto stop signal.
When a front wiper auto stop signal is in the conditions listed below, IPDM E/R stops power supply to wiper
after repeating a front wiper 10 seconds activation and 20 seconds stop five times.
Control part Fail-safe operation
Cooling fan Turns ON the cooling fan relay-2 and the cooling fan relay-3 when ignition switch is
turned ON (Cooling fan operates at HI)
Turns OFF the cooling fan relay-1, the cooling fan relay-2 and the cooling fan relay-3
when the ignition switch is turned OFF (Cooling fan does not operate)
A/C compressor A/C relay OFF
Alternator Outputs the power generation command signal (PWM signal) 0%
Control part Fail-safe operation
Headlamp Turns ON the headlamp low relay when the ignition switch is turned ON
Turns OFF the headlamp low relay when the ignition switch is turned OFF
Headlamp high relay OFF
Parking lamps
License plate lamps
Illuminations
Tail lamps Turns ON the tail lamp relay when the ignition switch is turned ON
Turns OFF the tail lamp relay when the ignition switch is turned OFF
Front wiper The status just before activation of fail-safe control is maintained until the ignition
switch is turned OFF while the front wiper is operating at LO or HI speed.
The wiper is operated at LO speed until the ignition switch is turned OFF if the fail-
safe control is activated while the front wiper is set in the INT mode and the front wiper
motor is operating.
Front fog lamps Front fog lamp relay OFF
Horn Horn OFF
Ignition relay The status just before activation of fail-safe is maintained.
Starter motor Starter control relay OFF
Steering lock unit Steering lock relay OFF
Headlamp washer relay Headlamp washer relay OFF
Voltage judgment
IPDM E/R judgment Operation
Ignition relay contact sideIgnition relay excitation coil
side
ON ON Ignition relay ON normal —
OFF OFF Ignition relay OFF normal —
ON OFF Ignition relay ON stuck Detects DTC “B2098: IGN RELAY ON”
Turns ON the tail lamp relay for 10 min-
utes
OFF ON Ignition relay OFF stuck Detects DTC “B2099: IGN RELAY OFF”
Page 5101 of 5121

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
WW-89
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P
NOTE:
This operation status can be confirmed on the IPDM E/R “Data Monitor” that displays “BLOCK” for the item
“WIP PROT” while the wiper is stopped.
STARTER MOTOR PROTECTION FUNCTION
IPDM E/R turns OFF the starter control relay to protect the starter motor when the starter control relay remains
active for 90 seconds.
DTC IndexINFOID:0000000003941305
NOTE:
The details of time display are as follows.
- CRNT: A malfunction is detected now
- PAST: A malfunction was detected in the past.
IGN counter is displayed on FFD (Freeze Frame data).
- The number is 0 when is detected now
- The number increases like 1 → 2 ··· 38 → 39 after returning to the normal condition whenever IGN OFF →
ON.
- The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.
×: Applicable
Ignition switch Front wiper switch Front wiper auto stop signal
ONOFFThe front wiper auto stop signal (stop posi-
tion) cannot be input for 10 seconds.
ONThe front wiper auto stop signal does not
change for 10 seconds.
CONSULT display Fail-safe Refer to
No DTC is detected.
further testing
may be required.——
U1000: CAN COMM CIRCUIT×PCS-16
B2098: IGN RELAY ON×PCS-17
B2099: IGN RELAY OFF —PCS-18
B2108: STRG LCK RELAY ON —SEC-96
B2109: STRG LCK RELAY OFF —SEC-97
B210A: STRG LCK STATE SW —SEC-98
B210B: START CONT RLY ON —SEC-102
B210C: START CONT RLY OFF —SEC-103
B210D: STARTER RELAY ON —SEC-104
B210E: STARTER RELAY OFF —SEC-105
B210F: INTRLCK/PNP SW ON —SEC-107
B2110: INTRLCK/PNP SW OFF —SEC-109
Page 5102 of 5121

WW-90
< SYMPTOM DIAGNOSIS >
FRONT WIPER AND WASHER SYSTEM SYMPTOMS
SYMPTOM DIAGNOSIS
FRONT WIPER AND WASHER SYSTEM SYMPTOMS
Symptom TableINFOID:0000000003774629
CAUTION:
Perform the self-diagnosis with CONSULT-III before performing the diagnosis by symptom. Perform
the diagnosis by DTC if DTC is detected.
Symptom Probable malfunction location Inspection item
Front wiper does not
operate.HI only Combination switch
Harness between combination switch and BCM
BCMCombination switch
Refer to BCS-76, "
Symptom
Ta b l e".
IPDM E/R
Harness between IPDM E/R and front wiper
motor
Front wiper motorFront wiper motor (HI) circuit
Refer to WW-25, "
Compo-
nent Function Check".
Front wiper request signal
BCM
IPDM E/RIPDM E/R DATA MONITOR
“FR WIP REQ”
LO and INT Combination switch
Harness between combination switch and BCM
BCMCombination switch
Refer to BCS-76, "
Symptom
Ta b l e".
IPDM E/R
Harness between IPDM E/R and front wiper
motor
Front wiper motorFront wiper motor (LO) circuit
Refer to WW-23, "
Compo-
nent Function Check".
Front wiper request signal
BCM
IPDM E/RIPDM E/R DATA MONITOR
“FR WIP REQ”
INT only Combination switch
Harness between combination switch and BCM
BCMCombination switch
Refer to BCS-76, "
Symptom
Ta b l e".
Front wiper request signal
BCM
IPDM E/RIPDM E/R DATA MONITOR
“FR WIP REQ”
HI, LO and INTSYMPTOM DIAGNOSIS
“FRONT WIPER DOES NOT OPERATE”
Refer to WW-93, "
Diagnosis Procedure".
Page 5103 of 5121

FRONT WIPER AND WASHER SYSTEM SYMPTOMS
WW-91
< SYMPTOM DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P
Front wiper does not
stop.HI only Combination switch
BCMCombination switch
Refer to BCS-76, "
Symptom
Ta b l e".
Front wiper request signal
BCM
IPDM E/RIPDM E/R DATA MONITOR
“FR WIP REQ”
IPDM E/R —
LO only Combination switch
BCMCombination switch
Refer to BCS-76, "
Symptom
Ta b l e".
Front wiper request signal
BCM
IPDM E/RIPDM E/R DATA MONITOR
“FR WIP REQ”
IPDM E/R —
INT only Combination switch
BCMCombination switch
Refer to BCS-76, "
Symptom
Ta b l e".
Front wiper request signal
BCM
IPDM E/RIPDM E/R DATA MONITOR
“FR WIP REQ”
Front wiper does not
operate normally.Intermittent adjustment
cannot be performed. Combination switch
Harness between combination switch and BCM
BCMCombination switch
Refer to BCS-76, "
Symptom
Ta b l e".
BCM —
Intermittent control
linked with vehicle
speed cannot be per-
formed.Check the vehicle speed detection wiper setting.
Refer to WW-13, "
WIPER : CONSULT-III Function (BCM - WIPER)".
NOTE:
Factory setting of the front wiper intermittent operation is the operation without ve-
hicle speed.
Wiper is not linked to
the washer operation. Combination switch
Harness between combination switch and BCM
BCMCombination switch
Refer to BCS-76, "
Symptom
Ta b l e".
BCM —
Does not return to stop
position [Repeatedly
operates for 10 sec-
onds and then stops
for 20 seconds. After
that, it stops the opera-
tion. (Fail-safe)] IPDM E/R
Harness between IPDM E/R and front wiper
motor
Front wiper motorFront wiper auto stop signal
circuit
Refer to WW-27, "
Compo-
nent Function Check".
Headlamp washer
does not operate.Headlamp washer
does not operate with
the front washer when
headlamps are turned
ON. Combination switch
Harness between combination switch and BCM
BCM
Headlamp washer pumpCombination switch
Refer to BCS-76, "
Symptom
Ta b l e".
Fusible link
Harness between fusible link and headlamp
washer relay
Headlamp washer relay
Harness between headlamp washer relay and
IPDM E/R
IPDM E/R
Harness between headlamp washer relay and
headlamp washer pump
Harness between headlamp washer pump and
ground
Headlamp washer pumpHeadlamp washer circuit
Refer to WW-32, "
Compo-
nent Function Check".
BCM — Symptom Probable malfunction location Inspection item
Page 5104 of 5121
WW-92
< SYMPTOM DIAGNOSIS >
NORMAL OPERATING CONDITION
NORMAL OPERATING CONDITION
DescriptionINFOID:0000000003761617
FRONT WIPER MOTOR PROTECTION FUNCTION
IPDM E/R may stop the front wiper to protect the front wiper motor if any obstruction (operation resistance)
such as a large amount of snow is detected during the front wiper operation.
At that time turn OFF the front wiper and remove the foreign object. Then wait for approximately 20 seconds
or more and reactivate the front wiper. The wiper will operate normally.
