Page 4057 of 5121

NISSAN TEANA 2008 Service Manual SEC-48
< COMPONENT DIAGNOSIS >[INTELLIGENT KEY SYSTEM]
B2014 CHAIN OF STRG-IMMU
Is the inspection normal?
YES >> Replace BCM. Refer to BCS-78, "Removal and Installation".
NO >> Repair or replace harne

Page 4058 of 5121

NISSAN TEANA 2008 Service Manual B2014 CHAIN OF STRG-IMMU
SEC-49
< COMPONENT DIAGNOSIS >[INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
SEC
N
O
P
4. Check continuity between steering lock unit harness connector and ground.
Is the ins

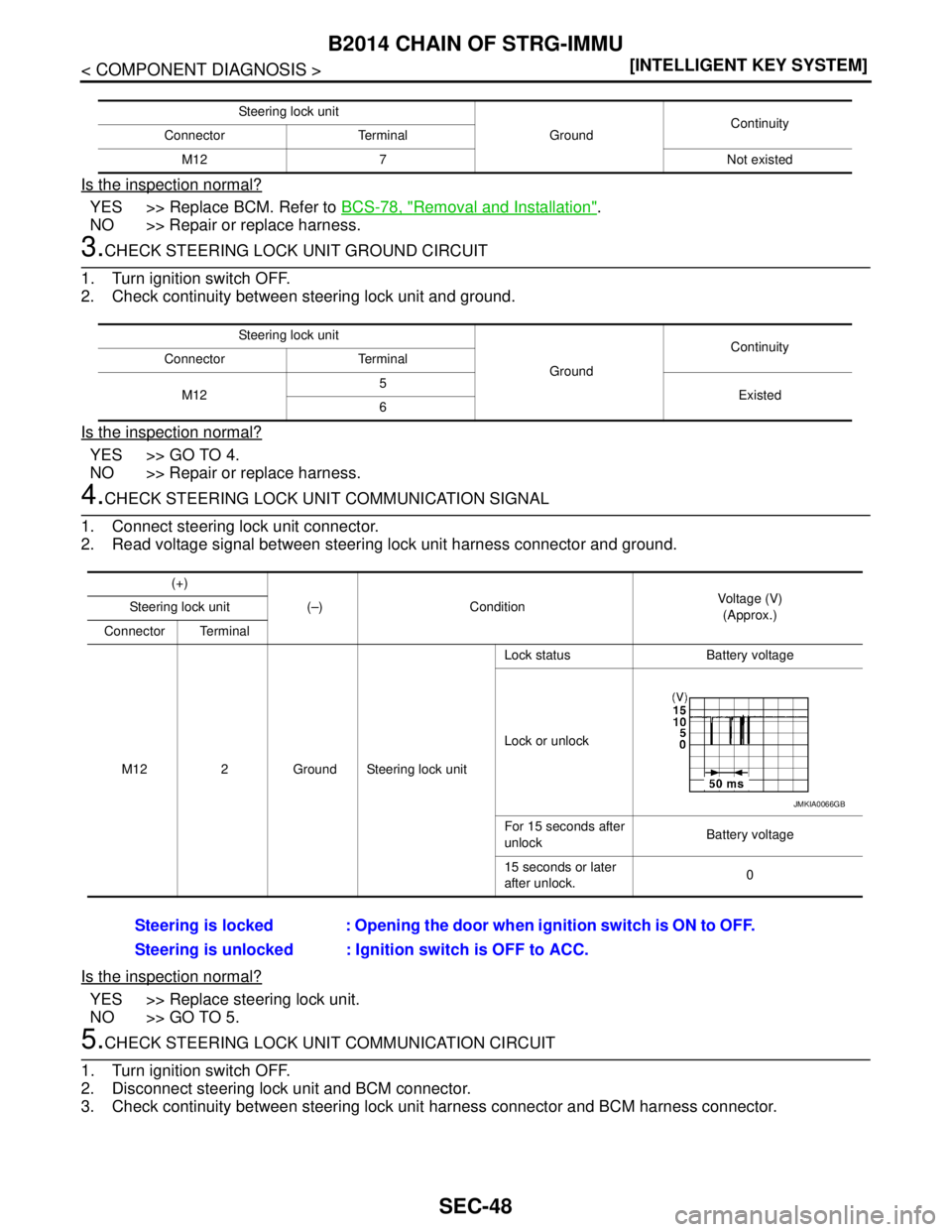

Page 4059 of 5121

NISSAN TEANA 2008 Service Manual SEC-50
< COMPONENT DIAGNOSIS >[INTELLIGENT KEY SYSTEM]
B2555 STOP LAMP
B2555 STOP LAMP
DescriptionINFOID:0000000003814960
BCM detects the stop lamp status and confirms the stop lamp switch ON/OFF stat

Page 4060 of 5121

NISSAN TEANA 2008 Service Manual B2555 STOP LAMP
SEC-51
< COMPONENT DIAGNOSIS >[INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
SEC
N
O
P
3.CHECK STOP LAMP SWITCH CIRCUIT
1. Check continuity between stop lamp switch harness connector

Page 4061 of 5121

NISSAN TEANA 2008 Service Manual SEC-52
< COMPONENT DIAGNOSIS >[INTELLIGENT KEY SYSTEM]
B2556 PUSH-BUTTON IGNITION SWITCH
B2556 PUSH-BUTTON IGNITION SWITCH
DescriptionINFOID:0000000003814964
The switch that changes the power supply p

Page 4062 of 5121

NISSAN TEANA 2008 Service Manual B2556 PUSH-BUTTON IGNITION SWITCH
SEC-53
< COMPONENT DIAGNOSIS >[INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
SEC
N
O
P
YES >> Replace BCM. Refer to BCS-78, "Removal and Installation".
NO >> Repair

Page 4063 of 5121

NISSAN TEANA 2008 Service Manual SEC-54
< COMPONENT DIAGNOSIS >[INTELLIGENT KEY SYSTEM]
B2557 VEHICLE SPEED
B2557 VEHICLE SPEED
DescriptionINFOID:0000000003814968
BCM receives the 2 vehicle speed signals via CAN communication. 1 sign

SEC-54
< COMPONENT DIAGNOSIS >[INTELLIGENT KEY SYSTEM]
B2557 VEHICLE SPEED
B2557 VEHICLE SPEED
DescriptionINFOID:0000000003814968
BCM receives the 2 vehicle speed signals via CAN communication. 1 signal is transmitted by the “combination
meter” Another signal is transmitted by “ABS actuator and electric unit (control unit).” BCM compares both sig-
nals to detect the vehicle speed.
DTC LogicINFOID:0000000003814969
DTC DETECTION LOGIC
NOTE:
If DTC B2557 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
SEC-28, "
BCM : DTC Logic".
If DTC B2557 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to
SEC-30, "
BCM : DTC Logic".
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Drive the vehicle at the vehicle speed of 10 km/h (6.2 MPH) or more and wait for at least 10 seconds.
2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?
YES >> Go to SEC-54, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000003814970
1.CHECK DTC WITH “ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)”
Check “Self diagnostic result” with CONSULT-III. Refer to BRC-48, "
DTC No. Index".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace the malfunctioning parts.
2.CHECK DTC WITH “COMBINATION METER”
Check “Self diagnostic result” with CONSULT-III. Refer to MWI-67, "
DTC Index".
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace the malfunctioning parts.
3.CHECK INTERMITTENT INCIDENT
Refer to GI-35, "
Intermittent Incident".
>> INSPECTION END
DTC Self-diagnosis name DTC detecting condition Possible causes
B2557 VEHICLE SPEEDBCM detects the following difference between the vehicle
speed from “combination meter” and the one from “ABS ac-
tuator and electric unit” for 10 seconds continuously.
One is 10 km/h (6.2 MPH) or more and the other is 4 km/
h (2.5 MPH) or less. Wheel sensor
Combination meter
ABS actuator and electric
unit (control unit)

Page 4064 of 5121

NISSAN TEANA 2008 Service Manual B2560 STARTER CONTROL RELAY
SEC-55
< COMPONENT DIAGNOSIS >[INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
SEC
N
O
P
B2560 STARTER CONTROL RELAY
DescriptionINFOID:0000000003814971
Starter control relay

Load next 8 pages
