Page 2425 of 5121

NISSAN TEANA 2008 Service Manual EXT-36
< ON-VEHICLE REPAIR >

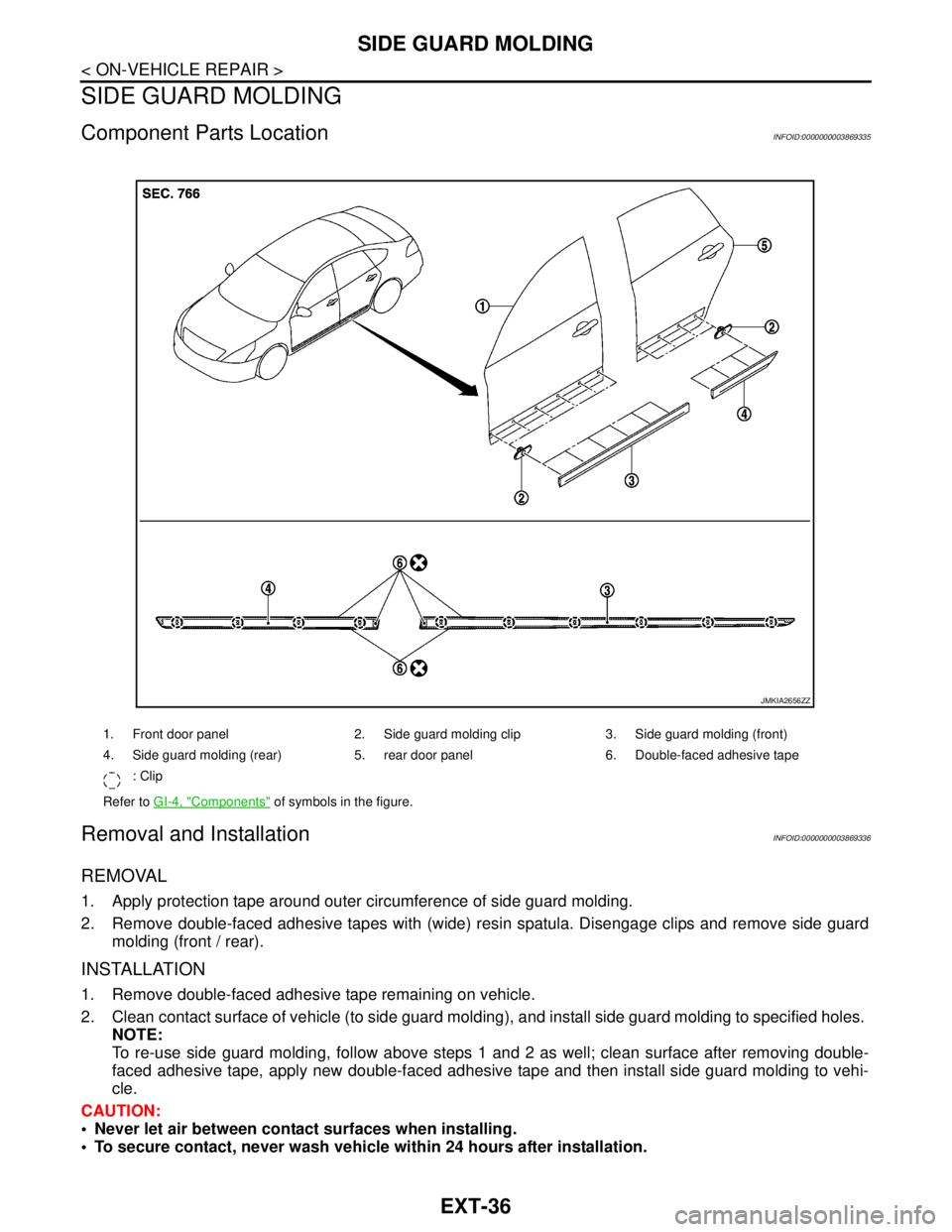

SIDE GUARD MOLDING
SIDE GUARD MOLDING
Component Parts LocationINFOID:0000000003869335
Removal and InstallationINFOID:0000000003869336
REMOVAL
1. Apply protection tape arou

Page 2426 of 5121

NISSAN TEANA 2008 Service Manual SIDE GUARD MOLDING
EXT-37
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
L
MA
B
EXT
N
O
P
When installing, visually check the side guard molding and the clips, then replace them with new
parts if they are da

Page 2427 of 5121

NISSAN TEANA 2008 Service Manual EXT-38
< ON-VEHICLE REPAIR >

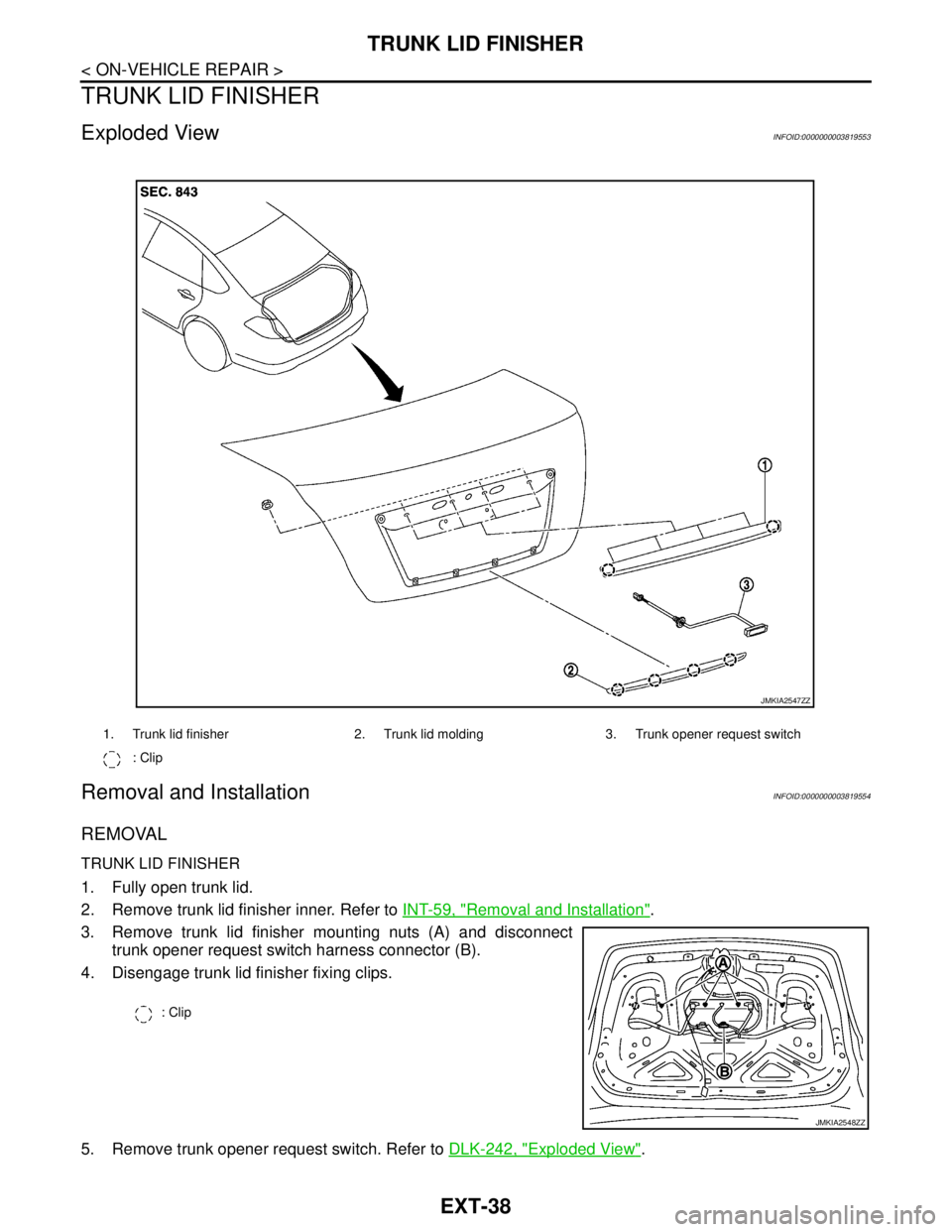

TRUNK LID FINISHER
TRUNK LID FINISHER
Exploded ViewINFOID:0000000003819553
Removal and InstallationINFOID:0000000003819554
REMOVAL
TRUNK LID FINISHER
1. Fully open trunk l

Page 2428 of 5121

NISSAN TEANA 2008 Service Manual TRUNK LID FINISHER
EXT-39
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
L
MA
B
EXT
N
O
P TRUNK LID MOLDING
1. Fully open trunk lid.
2. Remove trunk lid molding (1) fixing clips, using remover tool (A
and B).

Page 2429 of 5121

NISSAN TEANA 2008 Service Manual FAX-1
TRANSMISSION & DRIVELINE
CEF
G H
I
J
K L
M
SECTION FA X
A
B
FA X
N
O P
CONTENTS
FRONT AXLE
SYMPTOM DIAGNOSIS ..... ..........................2
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOT

FAX-1
TRANSMISSION & DRIVELINE
CEF
G H
I
J
K L
M
SECTION FA X
A
B
FA X
N
O P
CONTENTS
FRONT AXLE
SYMPTOM DIAGNOSIS ..... ..........................2
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING ........................ .....
2
NVH Troubleshooting Chart ................................ ......2
PRECAUTION ...............................................3
PRECAUTIONS .............................................. .....3
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
3
Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect .....................................
3
Precautions for Drive Shaft .......................................3
PREPARATION ............................................5
PREPARATION .............................................. .....5
Special Service Tool ........................................... ......5
ON-VEHICLE MAINTENANCE .....................6
FRONT WHEEL HUB AND KNUCKLE ......... .....6
Inspection ............................................................ ......6
FRONT DRIVE SHAFT ........................................7
Inspection ............................................................ ......7
ON-VEHICLE REPAIR ..................................8
FRONT WHEEL HUB AND KNUCKLE ......... .....8
Exploded View .................................................... ......8
Removal and Installation ...........................................8
Inspection ..................................................................9
FRONT DRIVE SHAFT BOOT ..........................10
Exploded View ..................................................... ....10
WHEEL SIDE ......................................................... ....12
WHEEL SIDE : Removal and Installation ................12
TRANSAXLE SIDE ................................................ ....15
TRANSAXLE SIDE : Removal and Installation .......15
Inspection ............................................................ ....15
FRONT DRIVE SHAFT .....................................16
Exploded View .........................................................16
LEFT SIDE ............................................................. ....18
LEFT SIDE : Removal and Installation ....................18
RIGHT SIDE ........................................................... ....19
RIGHT SIDE : Removal and Installation ..................19
WHEEL SIDE ......................................................... ....20
WHEEL SIDE : Disassembly and Assembly ...........20
TRANSAXLE SIDE ................................................ ....22
TRANSAXLE SIDE : Disassembly and Assembly ....22
Inspection ............................................................ ....33
SERVICE DATA AND SPECIFICATIONS
(SDS) ............... .............................................
35
SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................
35
Wheel Bearing ..................................................... ....35
Drive Shaft ...............................................................35

Page 2430 of 5121

NISSAN TEANA 2008 Service Manual FAX-2
< SYMPTOM DIAGNOSIS >
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
SYMPTOM DIAGNOSIS
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
NVH Troubleshooting ChartINFOID:0000000003811068

Page 2431 of 5121

NISSAN TEANA 2008 Service Manual PRECAUTIONS
FAX-3
< PRECAUTION >
C
E
F
G
H
I
J
K
L
MA
B
FA X
N
O
P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:00000000038

PRECAUTIONS
FAX-3
< PRECAUTION >
C
E
F
G
H
I
J
K
L
MA
B
FA X
N
O
P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000003890158
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIRBAG” and
“SEAT BELT” of this Service Manual.
WARNING:
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.
Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-
vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.
Precaution Necessary for Steering Wheel Rotation after Battery Disconnect
INFOID:0000000003890159
NOTE:
Before removing and installing any control units, first turn the push-button ignition switch to the LOCK posi-
tion, then disconnect both battery cables.
After finishing work, confirm that all control unit connectors are connected properly, then re-connect both
battery cables.
Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.
If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.
This vehicle is equipped with a push-button ignition switch and a steering lock unit.
If the battery is disconnected or discharged, the steering wheel will lock and cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the procedure
below before starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Turn the push-button ignition switch to ACC position.
(At this time, the steering lock will be released.)
3. Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.
4. Perform the necessary repair operation.
5. When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the push-button ignition switch from ACC position to ON position, then to LOCK position. (The steering
wheel will lock when the push-button ignition switch is turned to LOCK position.)
6. Perform self-diagnosis check of all control units using CONSULT-III.
Precautions for Drive ShaftINFOID:0000000003811071
CAUTION:
Note the following precautions when disassembling and assembling drive shaft.
Never disassemble joint sub-assembly because it is non-overhaul parts.
Perform work in a dust-free location.
Before disassembling and assembling, clean the parts.
Prevent the entry of foreign objects during disassembly of the service location.

Page 2432 of 5121

NISSAN TEANA 2008 Service Manual FAX-4
< PRECAUTION >
PRECAUTIONS
Disassembled parts must be carefully reassembled in the correct order. If work is interrupted, a
clean cover must be placed over parts.
Paper waste must be used. N
