NISSAN TEANA 2008 Service Manual A/C AUTO AMP.
HAC-221
< ECU DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P

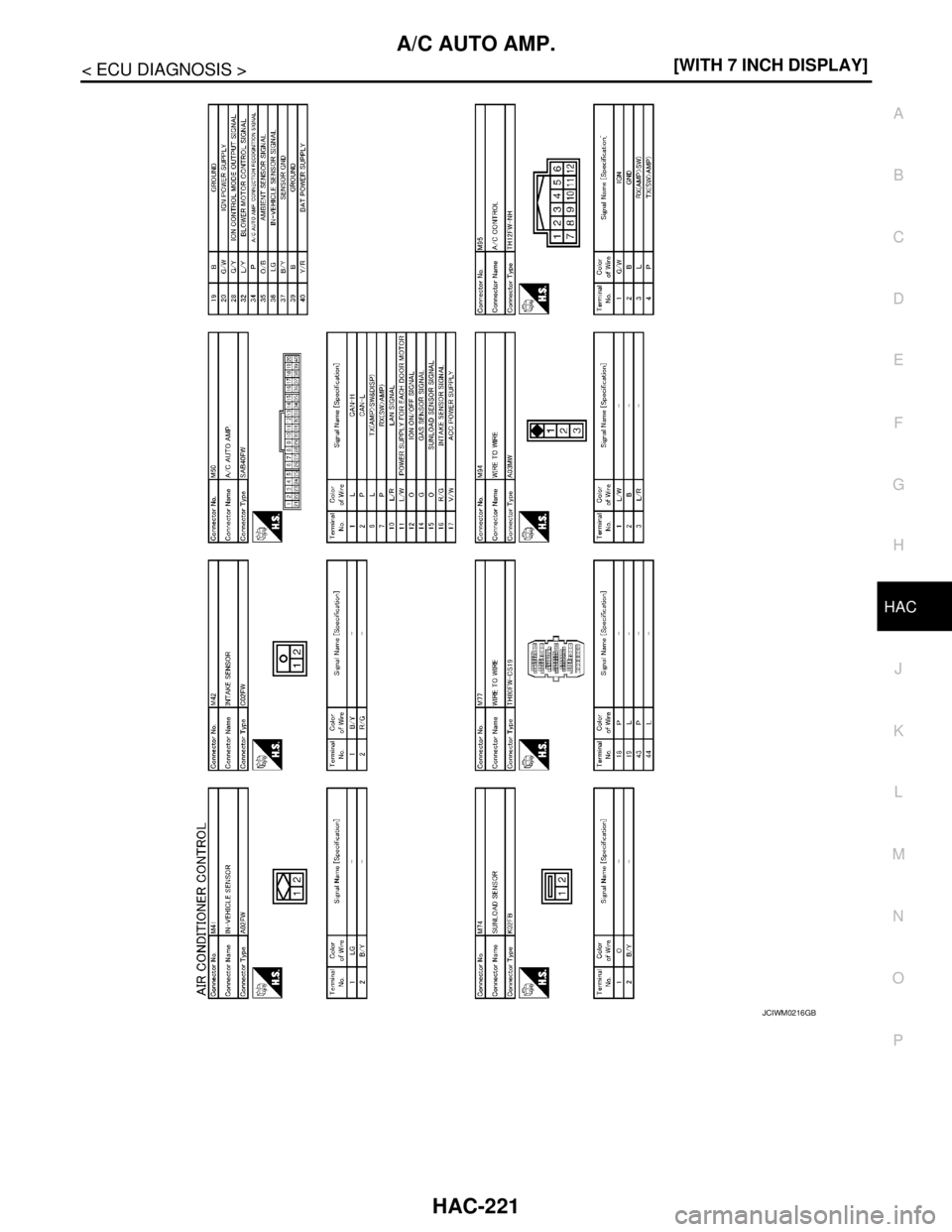

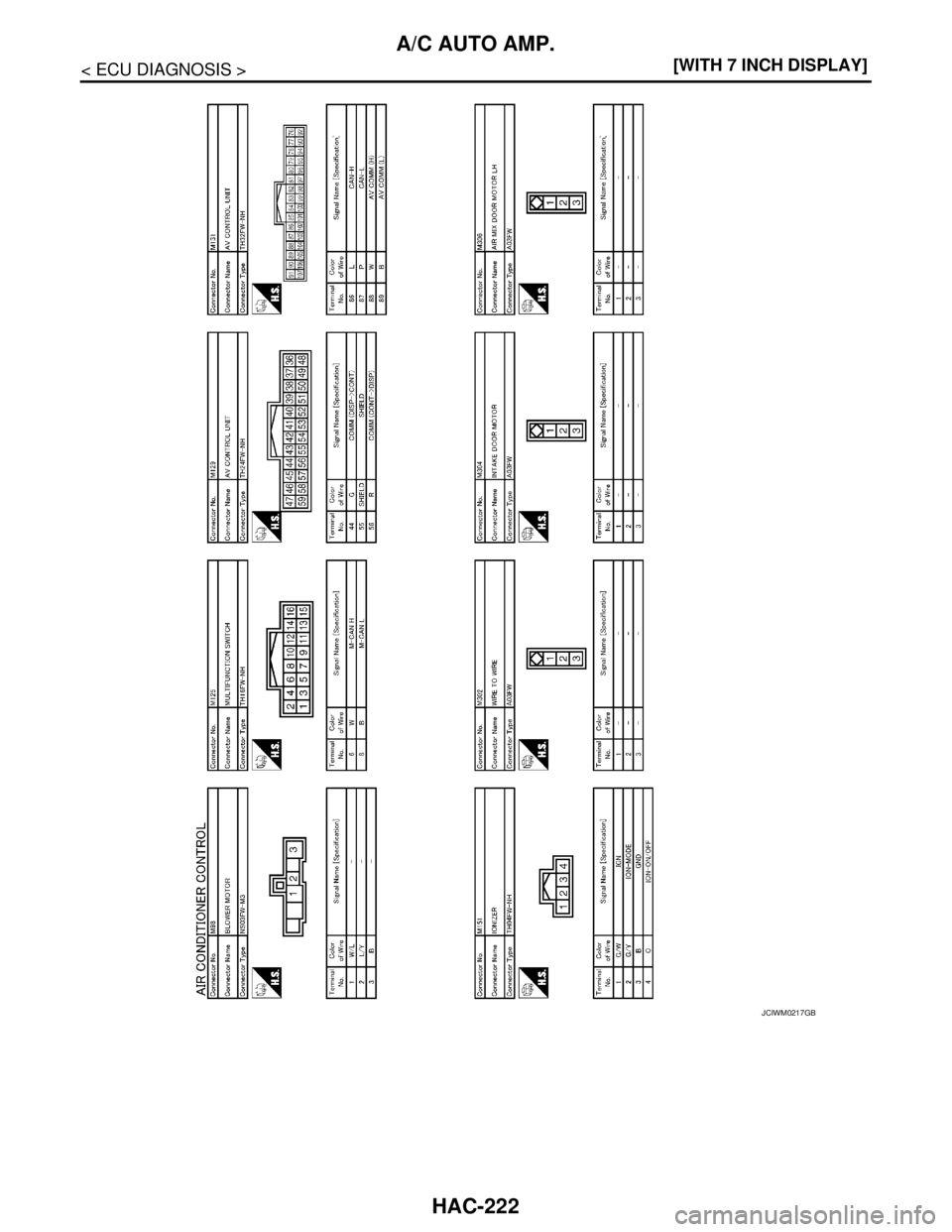

JCIWM0216GB

Page 2850 of 5121

NISSAN TEANA 2008 Service Manual HAC-222
< ECU DIAGNOSIS >[WITH 7 INCH DISPLAY]
A/C AUTO AMP.

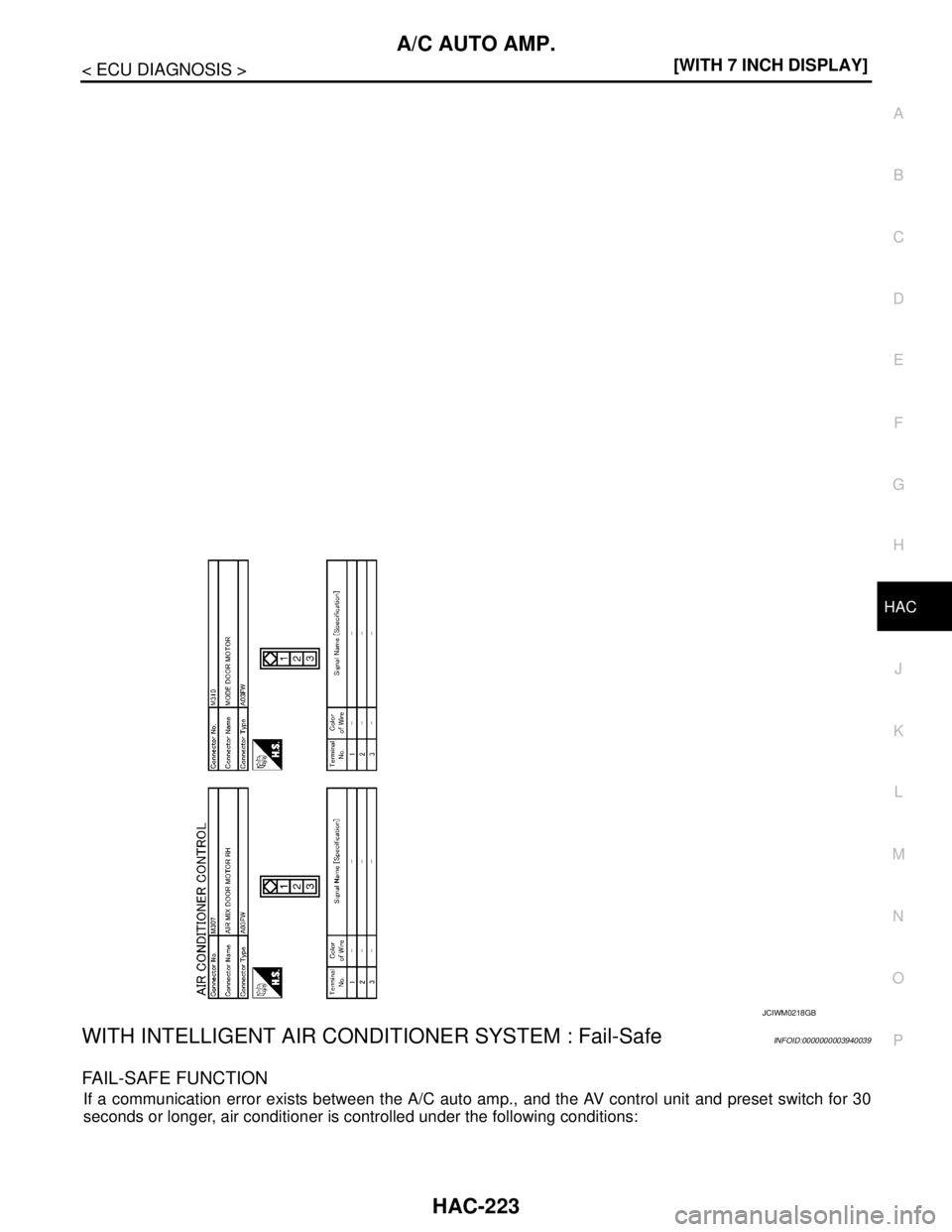

JCIWM0217GB

Page 2851 of 5121

NISSAN TEANA 2008 Service Manual A/C AUTO AMP.
HAC-223
< ECU DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Fail-SafeINFOID:0000000003940039
FAIL-SAFE FUNCTION
If a communi

Page 2852 of 5121

NISSAN TEANA 2008 Service Manual HAC-224
< ECU DIAGNOSIS >[WITH 7 INCH DISPLAY]
A/C AUTO AMP.
WITH INTELLIGENT AIR CONDITIONER SYSTEM : DTC Inspection Priority Chart
INFOID:0000000003884796
If some DTCs are displayed at the same time

Page 2853 of 5121

NISSAN TEANA 2008 Service Manual A/C AUTO AMP.
HAC-225
< ECU DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
*: Perform self-diagnosis under sunshine. When performing indoors, aim a light (more than 60 W) at sunload

Page 2854 of 5121

NISSAN TEANA 2008 Service Manual HAC-226
< SYMPTOM DIAGNOSIS >[WITH 7 INCH DISPLAY]
AIR CONDITIONER CONTROL
SYMPTOM DIAGNOSIS
AIR CONDITIONER CONTROL
Diagnosis Chart By SymptomINFOID:0000000003884798
*:WITH INTELLIGENT AIR CONDITIONE

HAC-226
< SYMPTOM DIAGNOSIS >[WITH 7 INCH DISPLAY]
AIR CONDITIONER CONTROL
SYMPTOM DIAGNOSIS
AIR CONDITIONER CONTROL
Diagnosis Chart By SymptomINFOID:0000000003884798
*:WITH INTELLIGENT AIR CONDITIONER SYSTEM
Symptom Reference
A/C system does not activate.Go to Trouble Diagnosis Procedure for Power Supply And
Ground Circuit.HAC-191, "
A/C AUTO AMP. :
Diagnosis Procedure"
A/C system cannot be controlled.Go to Trouble Diagnosis Procedure for Preset Switch Sys-
tem.AV- 1 6 4 , "
Symptom Table"
(DISPLAY AND AUDIO SYS-
TEM), AV- 3 7 2 , "
Symptom Ta-
ble" (BOSE AUDIO WITHOUT
NAVIGATION) or AV-640,
"Symptom Table" (BOSE AU-
DIO WITH NAVIGATION).
Air outlet does not change.
Go to Trouble Diagnosis Procedure for Mode Door Motor.
(LAN)HAC-186, "
Diagnosis Proce-
dure"Mode door motor does not operate
normally.
Discharge air temperature does not
change.
Go to Trouble Diagnosis Procedure for Air Mix Door Motor.
(LAN)HAC-182, "
Diagnosis Proce-
dure" (driver side) or HAC-184,
"Diagnosis Procedure" (pas-
senger side) Air mix door motor does not operate
normally.
Intake door does not change.
Go to Trouble Diagnosis Procedure for Intake Door Motor.
(LAN)HAC-189, "
Diagnosis Proce-
dure"Intake door motor does not operate
normally.
Blower motor operation is malfunc-
tioning.Go to Trouble Diagnosis Procedure for Blower Motor.HAC-193, "
Diagnosis Proce-
dure"
Magnet clutch does not engage. Go to Trouble Diagnosis Procedure for Magnet Clutch.HAC-197, "Diagnosis Proce-
dure"
Insufficient cooling
Go to Trouble Diagnosis Procedure for Insufficient Cooling.HAC-228, "Inspection proce-
dure"No cool air comes out.
(Air flow volume is normal.)
Insufficient heating
Go to Trouble Diagnosis Procedure for Insufficient Heating.HAC-231, "
Inspection proce-
dure"No warm air comes out.
(Air flow volume is normal.)
Noise Go to Trouble Diagnosis Procedure for Noise.HAC-234, "
Inspection proce-
dure"
Memory function does not operate. Go to Trouble Diagnosis Procedure for Memory Function.HAC-236, "Inspection proce-
dure"
Plasmacluster system does not op-
erate.*Go to Trouble Diagnosis Procedure for Plasmacluster sys-
tem.HAC-227, "
WITH INTELLI-
GENT AIR CONDITIONER
SYSTEM : Inspection proce-
dure"

Page 2855 of 5121

NISSAN TEANA 2008 Service Manual PLASMACLUSTER SYSTEM DOES NOT OPERATE
HAC-227
< SYMPTOM DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
PLASMACLUSTER SYSTEM DOES NOT OPERATE
WITH INTELLIGENT AIR CONDITIONER SYSTEM

PLASMACLUSTER SYSTEM DOES NOT OPERATE
HAC-227
< SYMPTOM DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
PLASMACLUSTER SYSTEM DOES NOT OPERATE
WITH INTELLIGENT AIR CONDITIONER SYSTEM
WITH INTELLIGENT AIR CONDITIONER SYSTEM : DescriptionINFOID:0000000003884799
Symptom Intelligent air conditioner does not operate.
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Inspection procedure
INFOID:0000000003884800
FUNCTION CONFIRMATION PROCEDURE
Check the plasmacluster operation in the function inspection.
1.CHECK PLASMACLUSTER ION CONTROL FUNCTION
1. Start the engine.
2. Turn fan control dial clockwise.
3. Ion indicator is turned ON.
4. Press OFF switch.
5. Ion indicator is turned OFF.
Is the inspection result normal?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK ION CONTROL MODE
1. Turn ignition switch OFF and restart the engine.
2. Turn fan control dial clockwise.
3. Ion indicator (blue) is turned ON.
4. Ion indicator (blue) changes to ion indicator (green) after approximately 15 minutes.
5. Ion indicator (green) changes to ion indicator (blue) after approximately 15 minutes.
6. Press CLEAN switch.
7. Ion indicator (blue) changes to ion indicator (green) after approximately 30 minutes.
8. Ion indicator (green) changes to ion indicator (blue) after approximately 15 minutes.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Replace A/C auto amp.
3.CHECK WITH ACTIVE TEST OF CONSULT-III
Using CONSULT-III, perform “HVAC TEST” “ACTIVE TEST” of HVAC to check each output device. Refer to
HAC-159, "
WITH INTELLIGENT AIR CONDITIONER SYSTEM : CONSULT-III Function".
NOTE:
Perform the inspection of each output device after starting the engine because the compressor is operated.
When choosing to “MODE 7”, error message is displayed but it is not malfunction.
Does plasmacluster system change according to each code No.?
YES >> END.
NO-1 >> Ionizer operation is malfunctioning. Refer to HAC-199, "
WITH INTELLIGENT AIR CONDITIONER
SYSTEM : Component Function Check".
NO-2 >> Ion indicator does not change. Replace A/C auto amp.
NO-3 >> Ion indicator does not illuminate. Refer to AV-640, "
Symptom Table".
Code No. MODE 1 MODE 2 MODE 3 MODE 4 MODE 5 MODE 6 MODE 7
Ionizer ON ON ON ON ON OFF -
Ion mode ION ION CLEAN CLEAN ION - -

Page 2856 of 5121

NISSAN TEANA 2008 Service Manual HAC-228
< SYMPTOM DIAGNOSIS >[WITH 7 INCH DISPLAY]
INSUFFICIENT COOLING
INSUFFICIENT COOLING
DescriptionINFOID:0000000003884801
Symptom
Insufficient cooling
No cool air comes out. (Air flow volume

HAC-228
< SYMPTOM DIAGNOSIS >[WITH 7 INCH DISPLAY]
INSUFFICIENT COOLING
INSUFFICIENT COOLING
DescriptionINFOID:0000000003884801
Symptom
Insufficient cooling
No cool air comes out. (Air flow volume is normal.)
Inspection procedureINFOID:0000000003884802
1.CHECK WITH A GAUGE OF RECOVERY/RECYCLING RECHARGING EQUIPMENT
Connect the recovery/recycling recharging equipment to the vehicle and perform the pressure inspection with
the gauge.
Is there refrigerant?
YES >> GO TO 2.
NO-1 >> Check for refrigerant leakages with the refrigerant leakage detecting fluorescent leak detector.
Refer to HA-32, "
Inspection".
NO-2 >> GO TO 2 after repairing or replacing the parts according to the inspection results.
2.CHECK CHARGED REFRIGERANT AMOUNT
1. Connect recovery/recycling recharging equipment to the vehicle and discharge the refrigerant.
2. Recharge with the proper amount of refrigerant and perform the inspection with the refrigerant leakage
detecting fluorescent leak detector. Refer to HA-32, "
Inspection".
Is the inspection result normal?
YES >> GO TO 3.
NO >> Refill the refrigerant and repair or replace the parts according to the inspection results.
3.CHECK REFRIGERANT CYCLE PRESSURE
Connect recovery/recycling recharging equipment to the vehicle and perform the performance test. Refer to
HA-30, "
Performance Chart".
Is the inspection result normal?
YES >> GO TO 4.
NO >> Perform the diagnosis with the gauge pressure. Refer to HA-8, "
Trouble Diagnosis For Unusual
Pressure".
4.CHECK SETTING OF TEMPERATURE SETTING TRIMMER
Using CONSULT-III, check the setting of “TEMP SET CORRECT” on “WORK SUPPORT” of HVAC. Refer to
HAC-110, "
WITHOUT INTELLIGENT AIR CONDITIONER SYSTEM : Temperature Setting Trimmer" (WITH-
OUT INTELLIGENT AIR CONDITIONER SYSTEM) or HAC-114, "
WITH INTELLIGENT AIR CONDITIONER
SYSTEM : Temperature Setting Trimmer" (WITH INTELLIGENT AIR CONDITIONER SYSTEM).
1. Check that the temperature setting trimmer is set to “+ direction”.
NOTE:
The control temperature can be set with the setting of the temperature setting trimmer.
2. Set temperature control dial to “0”.
Are the malfunction solved?
YES >> Perform the setting separately if necessary. END.
NO >> GO TO 5.
5.CHECK WITH SELF-DIAGNOSIS FUNCTION OF CONSULT-III
1. Using CONSULT-III, perform “SELF-DIAGNOSIS RESULTS” of HVAC.
2. Check if any DTC is displayed in the trouble diagnosis results.
NOTE:
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to
HAC-164, "
DTC Logic" or HAC-165, "DTC Logic".
Is any DTC displayed?
YES >> Perform the diagnosis that is applicable to the sensor and the door motor. Refer to HAC-212,
"WITHOUT INTELLIGENT AIR CONDITIONER SYSTEM : DTC Index" (WITHOUT INTELLI-
