Page 4929 of 5121

NISSAN TEANA 2008 Service Manual VTL-118
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
DUCT AND GRILLE
FOOT DUCT : Removal and Installation
INFOID:0000000003894550
REMOVAL
Driver side
1. Remove instrument driver lower panel. Refer to IP

Page 4930 of 5121

NISSAN TEANA 2008 Service Manual IONIZER
VTL-119
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
IONIZER
WITH INTELLIGENT AIR CONDITIONER SYSTEM

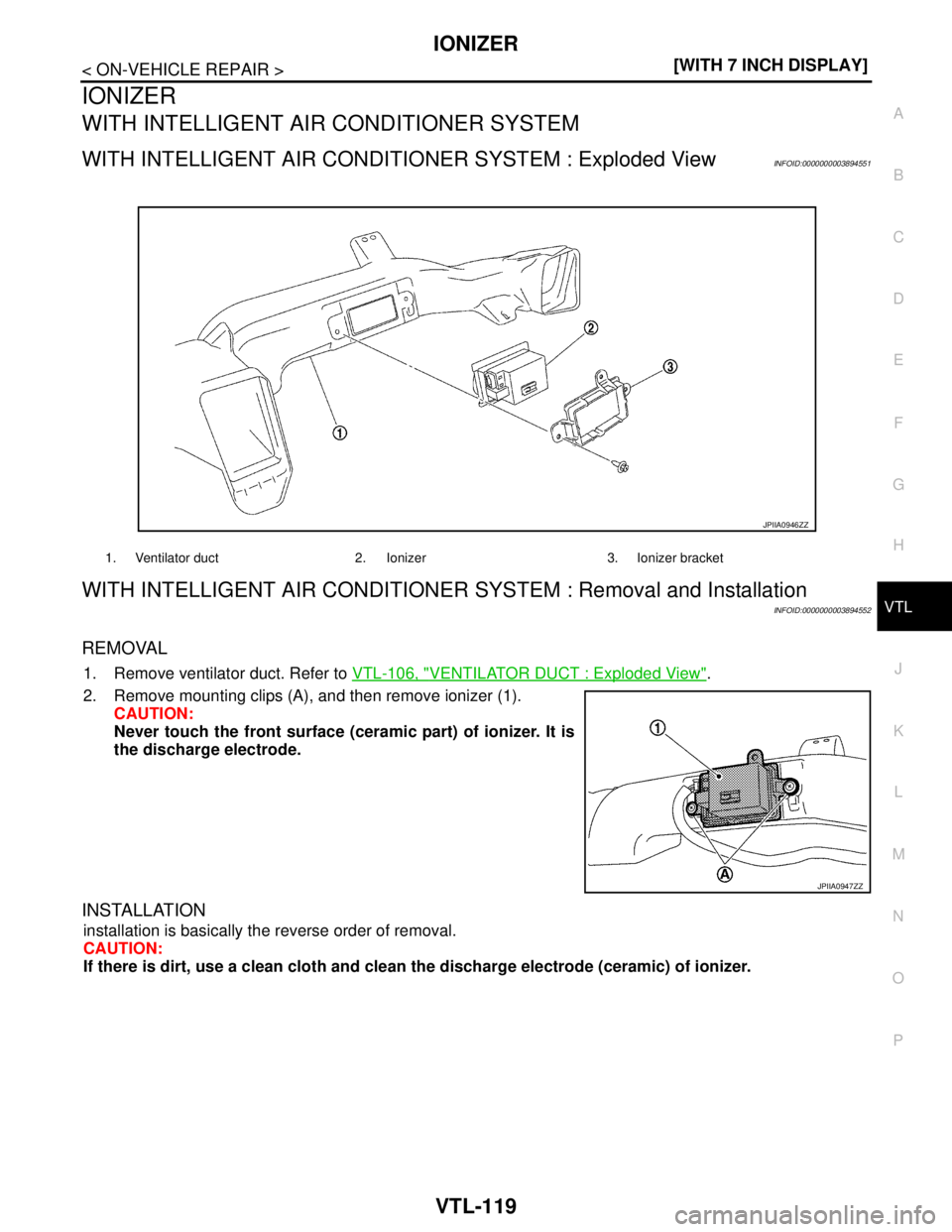

WITH INTELLIGENT AIR CONDITIONER SYSTEM : Exploded ViewINFOI

Page 4931 of 5121

NISSAN TEANA 2008 Service Manual WCS
WCS-1
DRIVER INFORMATION & MULTIMEDIA
C
DE
F
G H
I
J
K L
M B
SECTION WCS
A
O P
CONTENTS
WARNING CHIME SYSTEM
BASIC INSPECTION ....... .............................3
DIAGNOSIS AND REPAIR WORKFLOW

WCS
WCS-1
DRIVER INFORMATION & MULTIMEDIA
C
DE
F
G H
I
J
K L
M B
SECTION WCS
A
O P
CONTENTS
WARNING CHIME SYSTEM
BASIC INSPECTION ....... .............................3
DIAGNOSIS AND REPAIR WORKFLOW ..... .....3
Work Flow ........................................................... ......3
FUNCTION DIAGNOSIS ...............................5
WARNING CHIME SYSTEM .......................... .....5
WARNING CHIME SYSTEM .......................................5
WARNING CHIME SYSTEM : System Diagram . ......5
WARNING CHIME SYSTEM : System Description
......
5
WARNING CHIME SYSTEM : Component Parts
Location ............................................................... ......
6
WARNING CHIME SYSTEM : Component De-
scription .....................................................................
6
LIGHT REMINDER WARNING CHIME ................. ......6
LIGHT REMINDER WARNING CHIME : System
Diagram .....................................................................
7
LIGHT REMINDER WARNING CHIME : System
Description ................................................................
7
LIGHT REMINDER WARNING CHIME : Compo-
nent Parts Location ...................................................
8
LIGHT REMINDER WARNING CHIME : Compo-
nent Description ........................................................
8
PARKING BRAKE RELEASE WARNING CHIME ......8
PARKING BRAKE RELEASE WARNING CHIME
: System Diagram ......................................................
9
PARKING BRAKE RELEASE WARNING CHIME
: System Description .................................................
9
PARKING BRAKE RELEASE WARNING CHIME
: Component Parts Location ....................................
10
PARKING BRAKE RELEASE WARNING CHIME
: Component Description .........................................
10
DIAGNOSIS SYSTEM (METER) ........................11
Diagnosis Description ......................................... ....11
CONSULT-III Function (METER/M&A) ...................12
DIAGNOSIS SYSTEM (BCM) ...........................16
COMMON ITEM ..................................................... ....16
COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................
16
BUZZER ................................................................. ....17
BUZZER : CONSULT-III Function (BCM - BUZZ-
ER) ..........................................................................
17
COMPONENT DIAGNOSIS .........................19
POWER SUPPLY AND GROUND CIRCUIT ....19
COMBINATION METER ........................................ ....19
COMBINATION METER : Diagnosis Procedure .....19
BCM (BODY CONTROL MODULE) ...................... ....19
BCM (BODY CONTROL MODULE) : Diagnosis
Procedure ............................................................ ....
19
METER BUZZER CIRCUIT ...............................21
Description ...............................................................21
Component Function Check ....................................21
Diagnosis Procedure ..............................................21
WARNING CHIME SYSTEM .............................22
Wiring Diagram - WARNING CHIME - ....................22
ECU DIAGNOSIS .........................................26
COMBINATION METER ...................................26
Reference Value .................................................. ....26
Wiring Diagram - METER - ......................................32
Fail-Safe ..................................................................39
DTC Index ...............................................................40
BCM (BODY CONTROL MODULE) .................41
Reference Value ......................................................41
Wiring Diagram - BCM - ..........................................64
Fail-safe ...................................................................70
DTC Inspection Priority Chart ...............................72
DTC Index ...............................................................73

Page 4932 of 5121

NISSAN TEANA 2008 Service Manual WCS-2
SYMPTOM DIAGNOSIS .............................75
THE PARKING BRAKE RELEASE WARNING
CONTINUES SOUNDING, OR DOES NOT
SOUND ..............................................................
75
Des

Page 4933 of 5121

NISSAN TEANA 2008 Service Manual WCS
DIAGNOSIS AND REPAIR WORKFLOW
WCS-3
< BASIC INSPECTION >
C
D
E
F
G
H
I
J
K
L
MB A
O
P

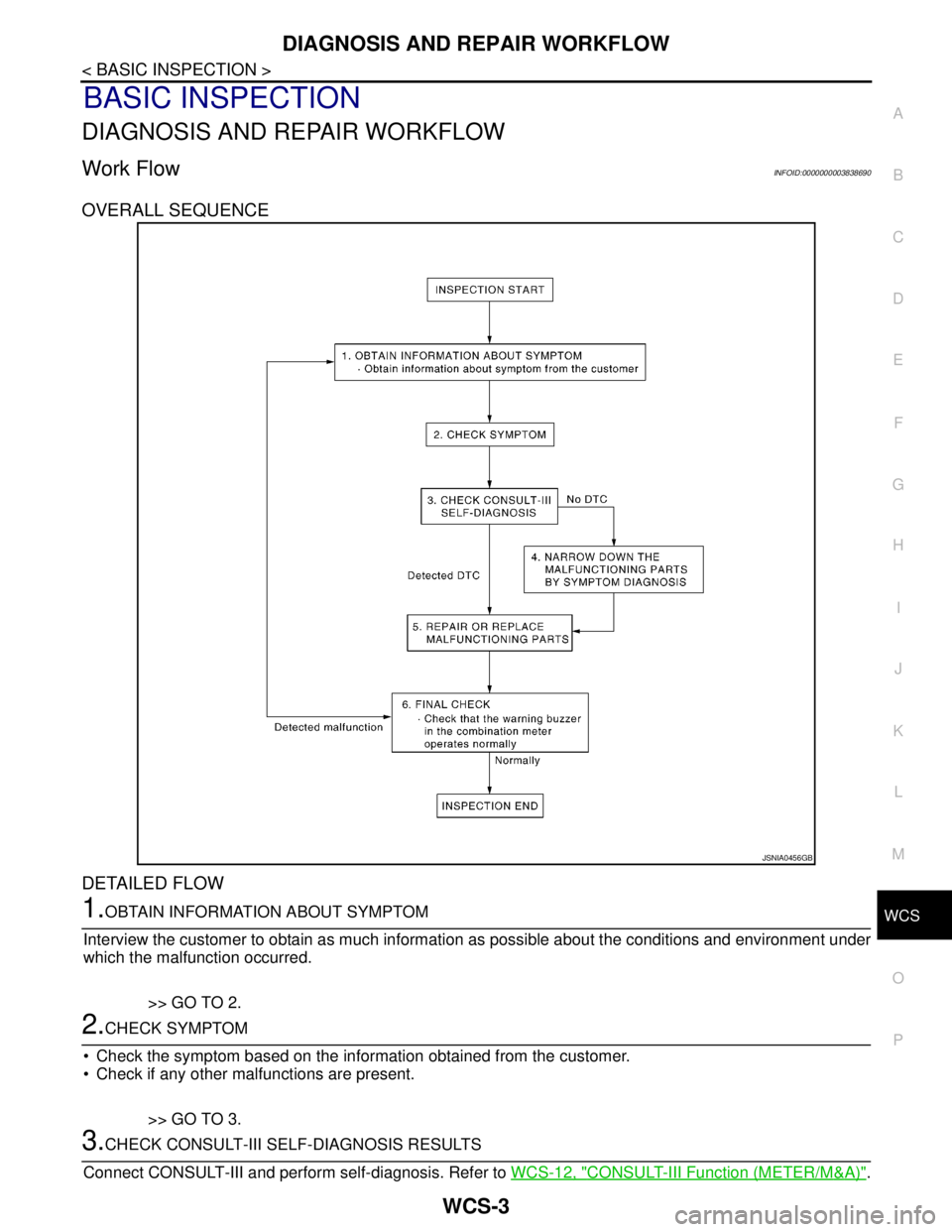

BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000003838690
OVERALL SEQUENCE
DETAILED FLOW

Page 4934 of 5121

NISSAN TEANA 2008 Service Manual WCS-4
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORKFLOW
Are self-diagnosis results normal?
YES >> GO TO 4.
NO >> GO TO 5.
4.NARROW DOWN MALFUNCTIONING PARTS BY SYMPTOM DIAGNOSIS
Perform symptom diagn

Page 4935 of 5121

NISSAN TEANA 2008 Service Manual WCS
WARNING CHIME SYSTEM
WCS-5
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
FUNCTION DIAGNOSIS
WARNING CHIME SYSTEM
WARNING CHIME SYSTEM

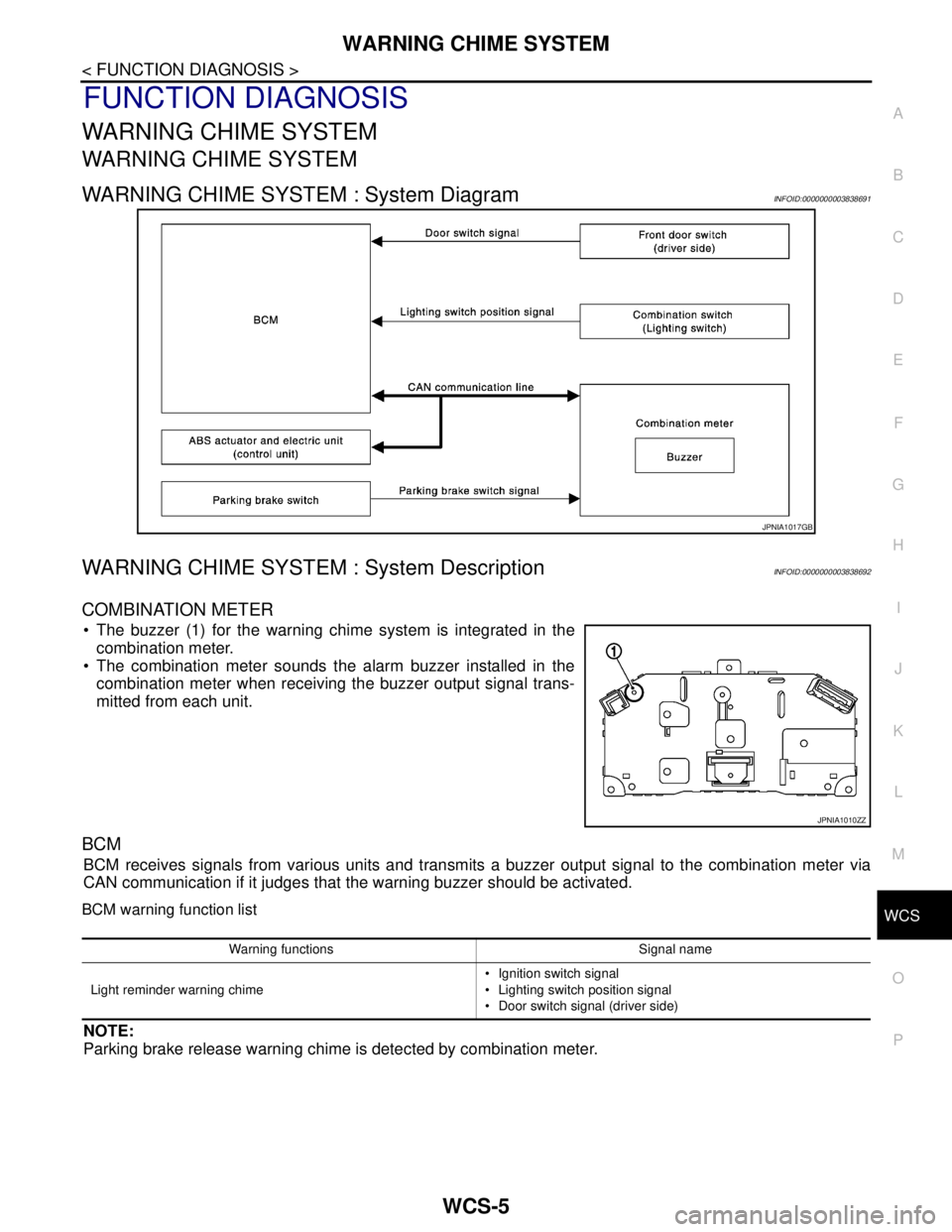

WARNING CHIME SYSTEM : System DiagramINFOID:000000000383

Page 4936 of 5121

NISSAN TEANA 2008 Service Manual WCS-6
< FUNCTION DIAGNOSIS >
WARNING CHIME SYSTEM

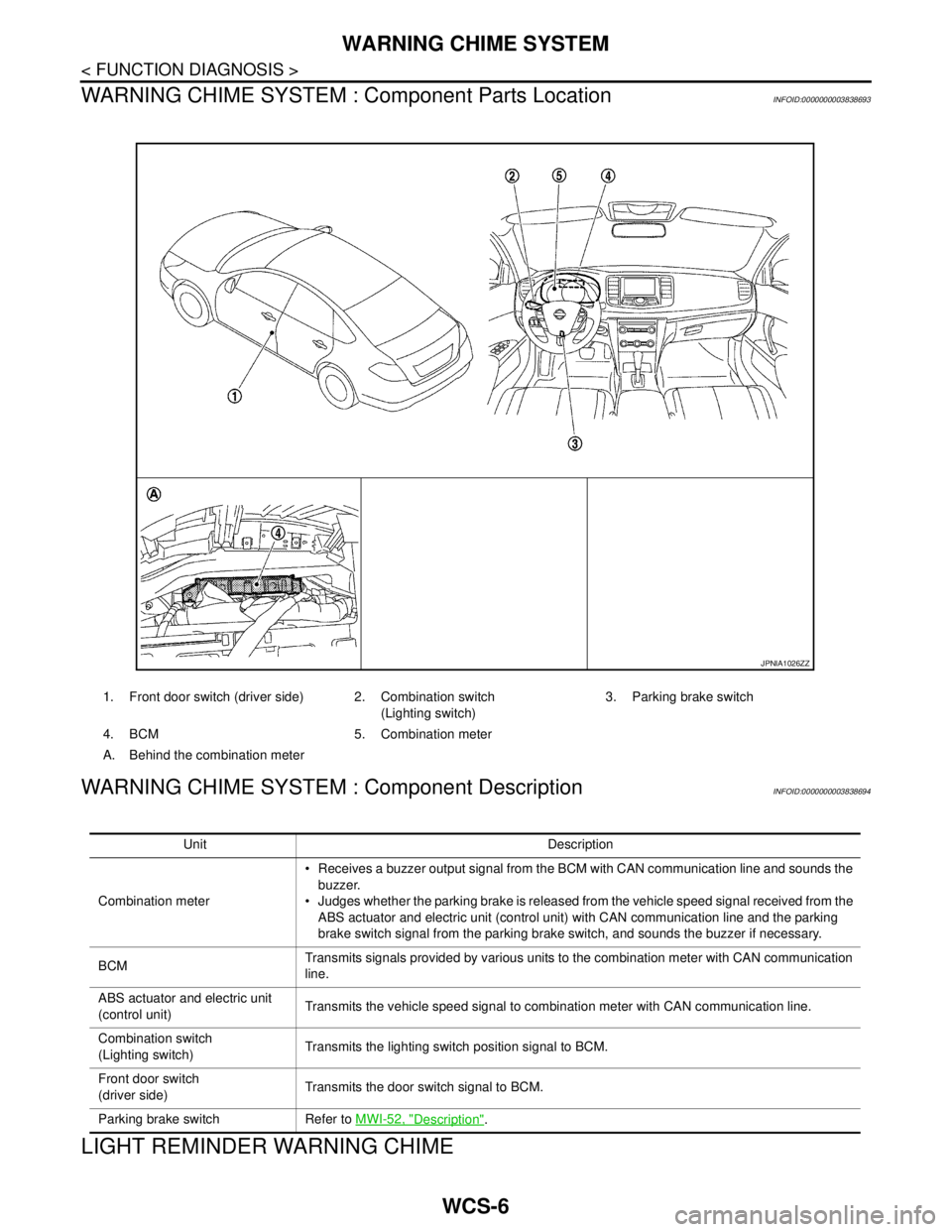

WARNING CHIME SYSTEM : Component Parts Location
INFOID:0000000003838693
WARNING CHIME SYSTEM : Component DescriptionINFOID:0000000003838694
LIGHT REMI
