Page 2185 of 5121

NISSAN TEANA 2008 Service Manual EXL-156
< ECU DIAGNOSIS >[XENON TYPE]
AUTO LEVELIZER CONTROL UNIT
AUTO LEVELIZER CONTROL UNIT
Reference ValueINFOID:0000000003805622
VALUES ON THE DIAGNOSIS TOOL
TERMINAL LAYOUT
PHYSICAL VALUES
Monito

Page 2186 of 5121

NISSAN TEANA 2008 Service Manual AUTO LEVELIZER CONTROL UNIT
EXL-157
< ECU DIAGNOSIS >[XENON TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
*: Auto levelizer control unit always outputs the voltage to detect the DTC.5
(O)Ground K-LINE — �

Page 2187 of 5121

NISSAN TEANA 2008 Service Manual EXL-158
< ECU DIAGNOSIS >[XENON TYPE]
AUTO LEVELIZER CONTROL UNIT

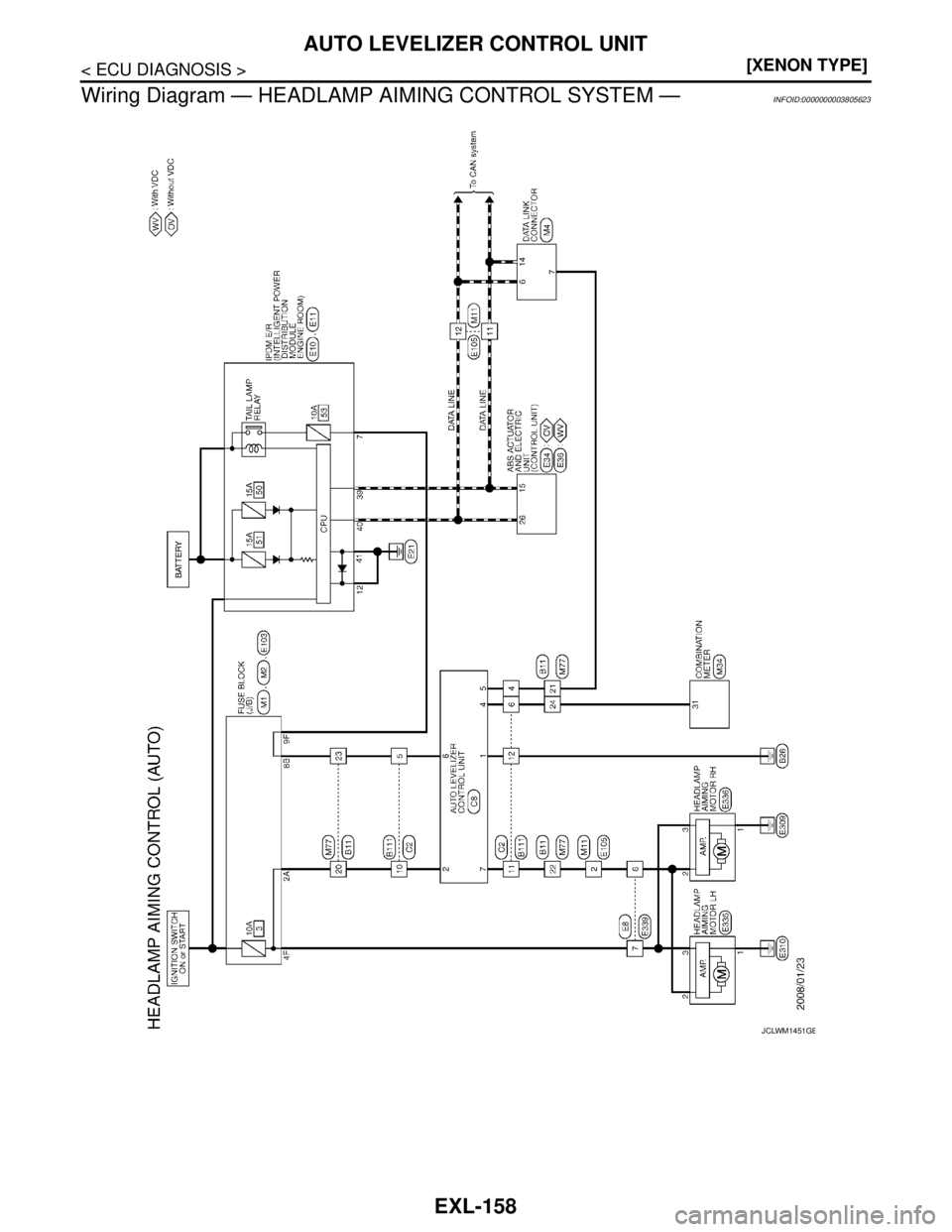

Wiring Diagram — HEADLAMP AIMING CONTROL SYSTEM —
INFOID:0000000003805623
JCLWM1451GB

Page 2188 of 5121

NISSAN TEANA 2008 Service Manual AUTO LEVELIZER CONTROL UNIT
EXL-159
< ECU DIAGNOSIS >[XENON TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
JCLWM1452GB

Page 2189 of 5121

NISSAN TEANA 2008 Service Manual EXL-160
< ECU DIAGNOSIS >[XENON TYPE]
AUTO LEVELIZER CONTROL UNIT

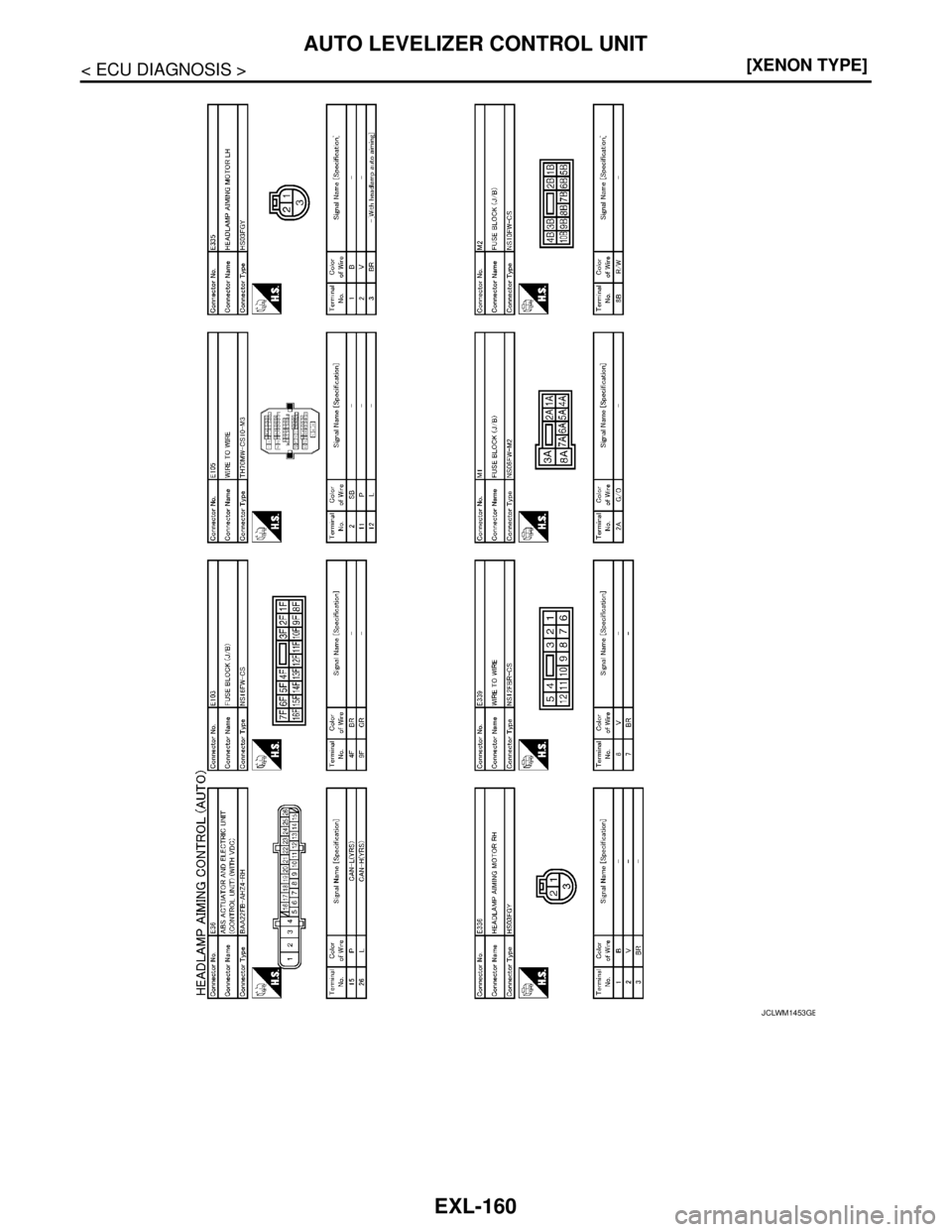

JCLWM1453GB

Page 2190 of 5121

NISSAN TEANA 2008 Service Manual AUTO LEVELIZER CONTROL UNIT
EXL-161
< ECU DIAGNOSIS >[XENON TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
Fail-safeINFOID:0000000003805624
JCLWM1454GB
DTC Fail-safe Cancellation
B2080: ECU TROUBLE Fix aiming

Page 2191 of 5121

NISSAN TEANA 2008 Service Manual EXL-162
< ECU DIAGNOSIS >[XENON TYPE]
AUTO LEVELIZER CONTROL UNIT
DTC Inspection Priority Chart
INFOID:0000000003805625
If some DTCs are displayed at the same time, perform inspections one by one base

EXL-162
< ECU DIAGNOSIS >[XENON TYPE]
AUTO LEVELIZER CONTROL UNIT
DTC Inspection Priority Chart
INFOID:0000000003805625
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
B2082: SENSOR OUT OF
RANGEAfter engine start
[Less than 5 seconds after ig-
nition switch ON and vehicle
speed less than 4 km/h (2.5
MPH)]Fix with the light axis facing
downward
When sensor signal returns to
normal range
While driving
[5 seconds or more after igni-
tion switch ON or vehicle
speed 4 km/h (2.5 MPH) or
more]Maintain the light axis at the
time of DTC detection
B2083: SEN SIG NOT PLAU-
SIBLE Maintain the aiming motor drive signal output at the time of
DTC detection
Maintain the light axis at the time of DTC detectionIgnition switch OFF
B2084: VOLTAGE UNDER
LIMITAfter engine start
[Less than 5 seconds after ig-
nition switch ON and vehicle
speed less than 4 km/h (2.5
MPH)]Fix with the light axis facing
downward
Ignition switch OFF
While driving
[5 seconds or more after igni-
tion switch ON or vehicle
speed 4 km/h (2.5 MPH) or
more]Maintain the light axis at the
time of DTC detection
B2085: LOWBEAM SIG
OPEN LINEAfter engine start
[Less than 5 seconds after ig-
nition switch ON and vehicle
speed less than 4 km/h (2.5
MPH)]Fix with the light axis facing
downward
Ignition switch OFF
While driving
[5 seconds or more after igni-
tion switch ON or vehicle
speed 4 km/h (2.5 MPH) or
more]Maintain the light axis at the
time of DTC detection
B2086: FRQ. OVER LIMITAfter engine start
[Less than 5 seconds after ig-
nition switch ON and vehicle
speed less than 4 km/h (2.5
MPH)]Fix with the light axis facing
downward
Ignition switch OFF
While driving
[5 seconds or more after igni-
tion switch ON or vehicle
speed 4 km/h (2.5 MPH) or
more]Maintain the light axis at the
time of DTC detection
B2087: SHORT TO GROUND Maintain the light axis at the time of DTC detection Ignition switch OFF
B2088: SHORT TO BATTERY Maintain the light axis at the time of DTC detection Ignition switch OFF
B208A: PARA NOT PROG Fix aiming motor drive signal output to approximately 0 VWrite configuration is complet-
ed DTC Fail-safe Cancellation
Priority DTC
1 B2080: ECU TROUBLE
B208A: PARA NOT PROG

Page 2192 of 5121

NISSAN TEANA 2008 Service Manual AUTO LEVELIZER CONTROL UNIT
EXL-163
< ECU DIAGNOSIS >[XENON TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
DTC IndexINFOID:0000000003805626
2 B2081: INITIAL NOT DONE
3 B2082: SENSOR OUT OF RANGE
B2083: S
