Page 1689 of 5121

NISSAN TEANA 2008 Service Manual EC-228
< COMPONENT DIAGNOSIS >[VQ25DE, VQ35DE]
P0420, P0430 THREE WAY CATALYST FUNCTION
Diagnosis Procedure
INFOID:0000000003856633
1.CHECK EXHAUST SYSTEM
Visually check exhaust tubes and muffler for

Page 1690 of 5121

NISSAN TEANA 2008 Service Manual P0420, P0430 THREE WAY CATALYST FUNCTION
EC-229
< COMPONENT DIAGNOSIS >[VQ25DE, VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
6.CHECK FUNCTION OF IGNITION COIL-I
CAUTION:
Perform the following procedure in

P0420, P0430 THREE WAY CATALYST FUNCTION
EC-229
< COMPONENT DIAGNOSIS >[VQ25DE, VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
6.CHECK FUNCTION OF IGNITION COIL-I
CAUTION:
Perform the following procedure in a place with no combustible objects and good ventilation.
1. Turn ignition switch OFF.
2. Remove fuel pump fuse in IPDM E/R to release fuel pressure.
NOTE:
Do not use CONSULT-III to release fuel pressure, or fuel pressure applies again during the following pro-
cedure.
3. Start engine.
4. After engine stalls, crank it 2 or 3 times to release all fuel pressure.
5. Turn ignition switch OFF.
6. Remove all ignition coil harness connectors to avoid the electrical discharge from the ignition coils.
7. Remove ignition coil and spark plug of the cylinder to be checked.
8. Crank engine for 5 seconds or more to remove combustion gas in the cylinder.
9. Connect spark plug and harness connector to ignition coil.

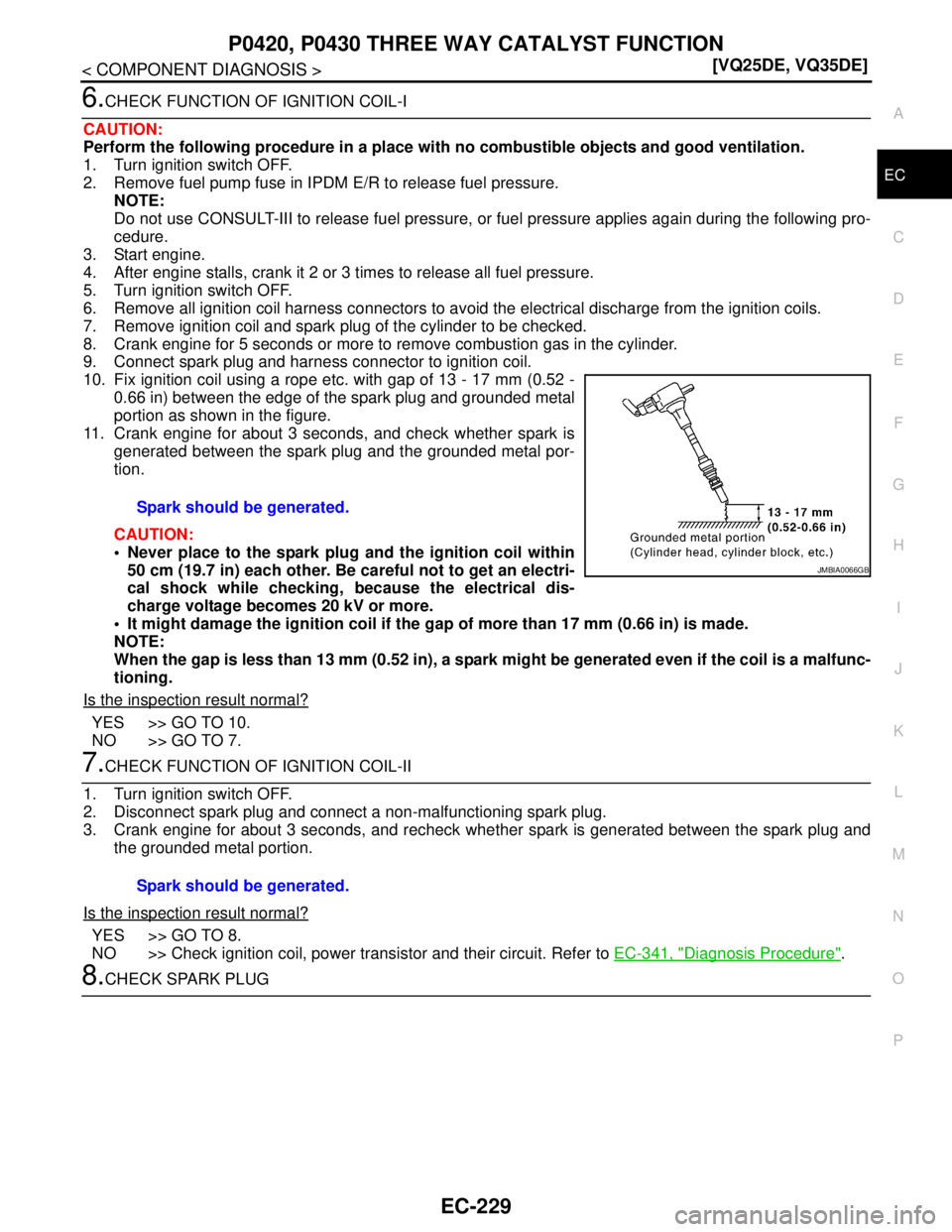

10. Fix ignition coil using a rope etc. with gap of 13 - 17 mm (0.52 -
0.66 in) between the edge of the spark plug and grounded metal
portion as shown in the figure.
11. Crank engine for about 3 seconds, and check whether spark is
generated between the spark plug and the grounded metal por-
tion.
CAUTION:
Never place to the spark plug and the ignition coil within
50 cm (19.7 in) each other. Be careful not to get an electri-
cal shock while checking, because the electrical dis-
charge voltage becomes 20 kV or more.
It might damage the ignition coil if the gap of more than 17 mm (0.66 in) is made.
NOTE:
When the gap is less than 13 mm (0.52 in), a spark might be generated even if the coil is a malfunc-
tioning.
Is the inspection result normal?
YES >> GO TO 10.
NO >> GO TO 7.
7.CHECK FUNCTION OF IGNITION COIL-II
1. Turn ignition switch OFF.
2. Disconnect spark plug and connect a non-malfunctioning spark plug.
3. Crank engine for about 3 seconds, and recheck whether spark is generated between the spark plug and
the grounded metal portion.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Check ignition coil, power transistor and their circuit. Refer to EC-341, "
Diagnosis Procedure".
8.CHECK SPARK PLUGSpark should be generated.
JMBIA0066GB
Spark should be generated.

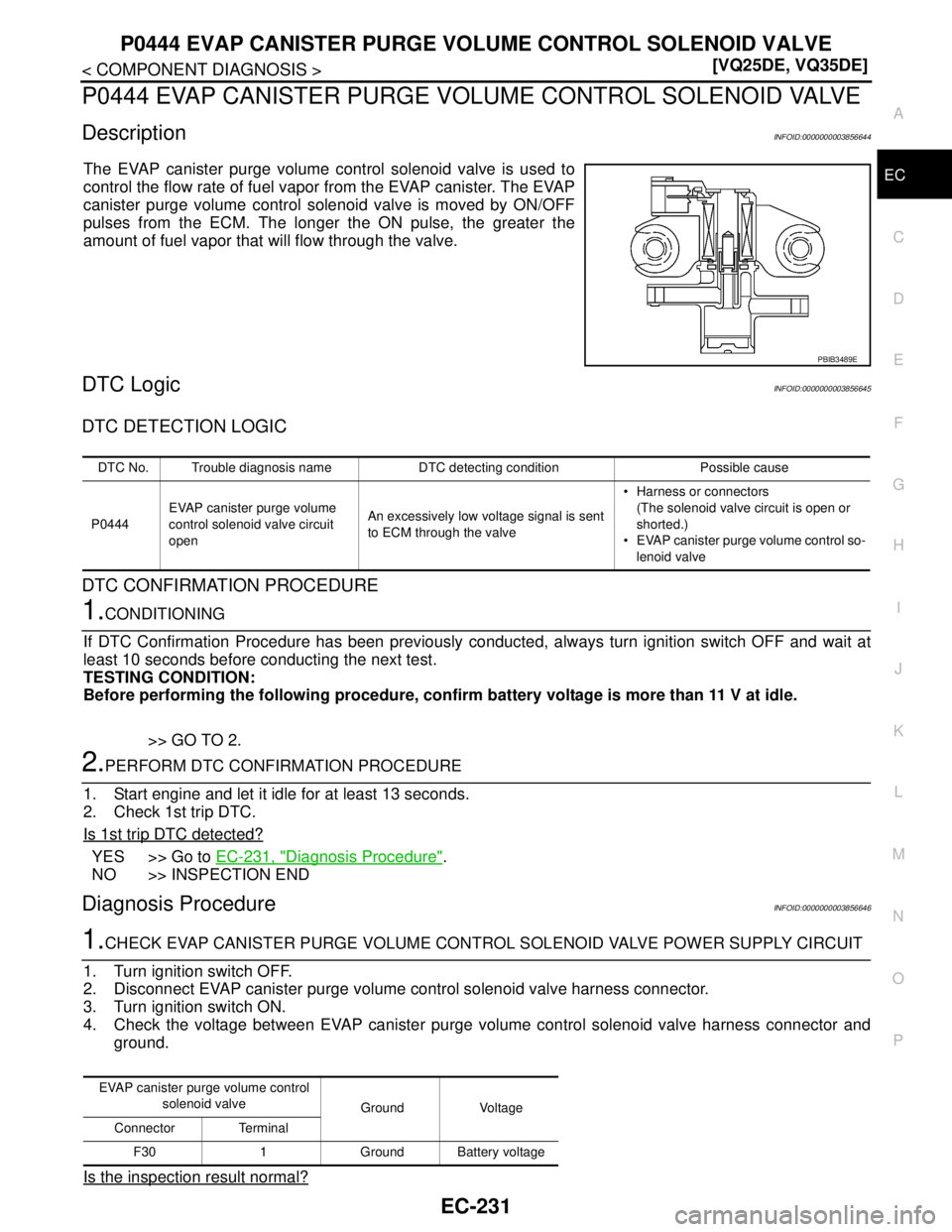

Page 1691 of 5121

NISSAN TEANA 2008 Service Manual EC-230
< COMPONENT DIAGNOSIS >[VQ25DE, VQ35DE]
P0420, P0430 THREE WAY CATALYST FUNCTION
Check the initial spark plug for fouling, etc.
Is the inspection result normal?
YES >> Replace spark plug(s) wit

Page 1692 of 5121

NISSAN TEANA 2008 Service Manual P0444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-231
< COMPONENT DIAGNOSIS >[VQ25DE, VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
P0444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Descript

Page 1693 of 5121

NISSAN TEANA 2008 Service Manual EC-232
< COMPONENT DIAGNOSIS >[VQ25DE, VQ35DE]
P0444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
YES >> GO TO 3.
NO >> GO TO 2.
2.DETECT MALFUNCTIONING PART
Check the following.
Harness connec

EC-232
< COMPONENT DIAGNOSIS >[VQ25DE, VQ35DE]
P0444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
YES >> GO TO 3.
NO >> GO TO 2.
2.DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F121, E7
Harness for open or short between EVAP canister purge volume control solenoid valve and IPDM E/R
Harness for open or short between EVAP canister purge volume control solenoid valve and ECM
>> Repair open circuit, short to ground or short to power in harness or connectors.
3.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT
FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between EVAP canister purge volume control solenoid valve harness connector and
ECM harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES-1 >> With CONSULT-III: GO TO 4.
YES-2 >> Without CONSULT-III: GO TO 5.
NO >> Repair open circuit, short to ground or short to power in harness or connectors.
4.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION
With CONSULT-III
1. Reconnect all harness connectors disconnected.
2. Start engine.
3. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode with CONSULT-III. Check that engine speed var-
ies according to the valve opening.
Does engine speed vary according to the valve opening?
YES >> GO TO 6.
NO >> GO TO 5.
5.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer to EC-232, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 6.
NO >> Replace EVAP canister purge volume control solenoid valve.
6.CHECK INTERMITTENT INCIDENT
Refer to GI-35, "
Intermittent Incident".
>> INSPECTION END
Component InspectionINFOID:0000000003856647

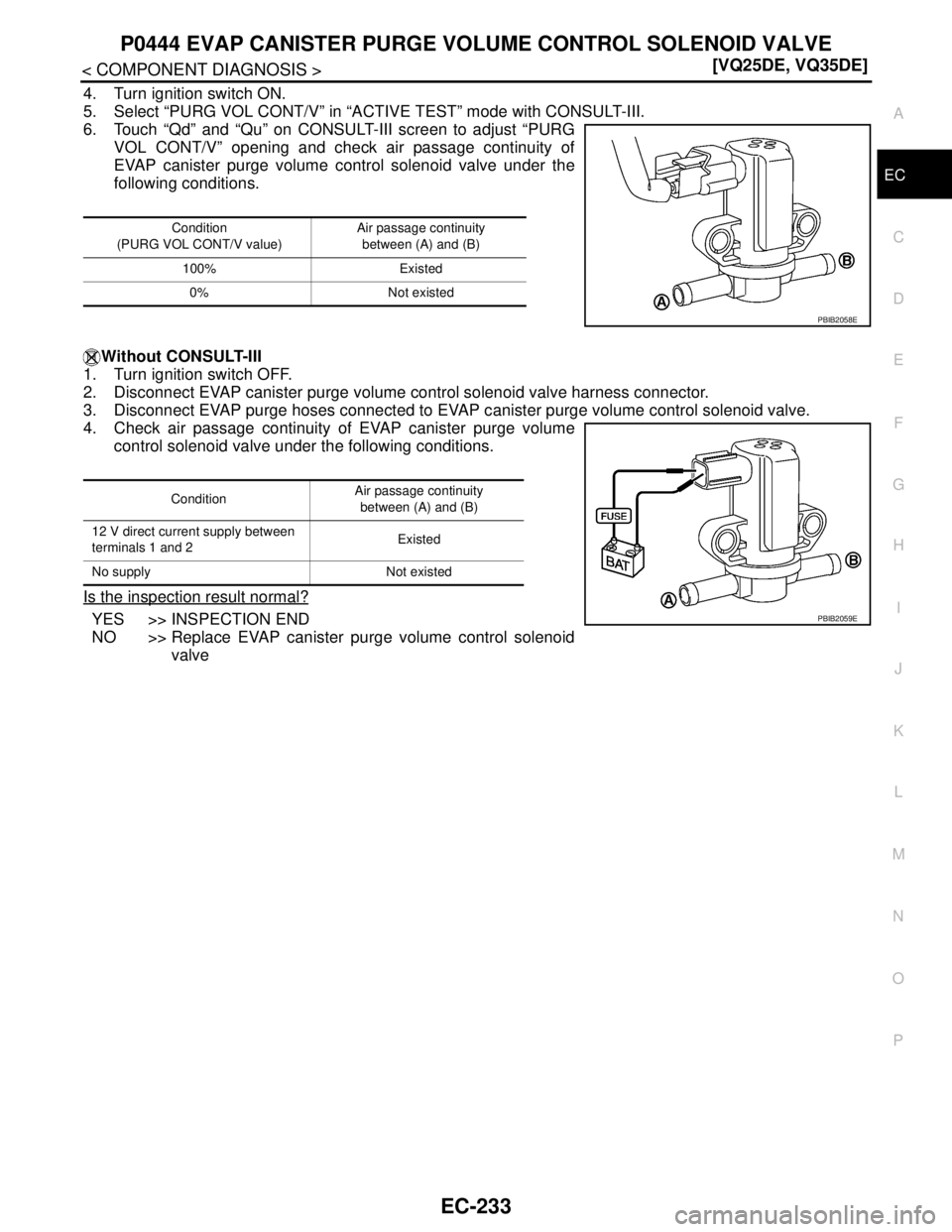

1.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
With CONSULT-III
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect EVAP purge hoses connected to EVAP canister purge volume control solenoid valve.
EVAP canister purge volume con-
trol solenoid valveECM
Continuity
Connector Terminal Connector Terminal
F30 2 F7 25 Existed

Page 1694 of 5121

NISSAN TEANA 2008 Service Manual P0444 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-233
< COMPONENT DIAGNOSIS >[VQ25DE, VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
4. Turn ignition switch ON.
5. Select “PURG VOL CONT/V” in �

Page 1695 of 5121

NISSAN TEANA 2008 Service Manual EC-234
< COMPONENT DIAGNOSIS >[VQ25DE, VQ35DE]
P0500 VSS
P0500 VSS
DescriptionINFOID:0000000003856685
The vehicle speed signal is sent to the combination meter from the “ABS actuator and electric un

EC-234
< COMPONENT DIAGNOSIS >[VQ25DE, VQ35DE]
P0500 VSS
P0500 VSS
DescriptionINFOID:0000000003856685
The vehicle speed signal is sent to the combination meter from the “ABS actuator and electric unit (control
unit)” by CAN communication line. The combination meter then sends a signal to the ECM by CAN communi-
cation line.
DTC LogicINFOID:0000000003856686
DTC DETECTION LOGIC
NOTE:
If DTC P0500 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-135, "
DTC Logic".
If DTC P0500 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. Refer
to EC-242, "
DTC Logic".
DTC CONFIRMATION PROCEDURE
1.INSPECTION START
Will CONSULT-III be used?
Will CONSULT-III be used?
YES >> GO TO 2.
NO >> GO TO 5.
2.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
>> GO TO 3.
3.CHECK VEHICLE SPEED SIGNAL
NOTE:
This procedure may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
With CONSULT-III
1. Start engine (VDC switch OFF).
2. Read “VHCL SPEED SE” in “DATA MONITOR” mode with CONSULT-III. The vehicle speed on CON-
SULT-III should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Go to EC-235, "
Diagnosis Procedure".
4.PERFORM DTC CONFIRMATION PROCEDURE
1. Select “DATA MONITOR” mode with CONSULT-III.
2. Warm engine up to normal operating temperature.
3. Maintain the following conditions for at least 50 consecutive seconds.
CAUTION:
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0500 Vehicle speed sensorThe almost 0 km/h (0 MPH) signal from
vehicle speed signal is sent to ECM even
when vehicle is being driven. Harness or connectors
(The CAN communication line is open or short-
ed)
Harness or connectors
(The vehicle speed signal circuit is open or
shorted)
Wheel sensor
Combination meter
ABS actuator and electric unit (control unit)

Page 1696 of 5121

NISSAN TEANA 2008 Service Manual P0500 VSS
EC-235
< COMPONENT DIAGNOSIS >[VQ25DE, VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Always drive vehicle at a safe speed.
4. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-235, "Di
