Page 4889 of 5121
VTL-78
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
PRESET SWITCH
ON-VEHICLE REPAIR
PRESET SWITCH
Exploded ViewINFOID:0000000003894474
DISASSEMBLY
Removal and InstallationINFOID:0000000003894475
REMOVAL
Refer to AV-177, "Exploded View" (BASE AUDIO AND DISPLAY SYSTEM), AV-389, "Exploded View" (BOSE
AUDIO WITHOUT NAVIGATION) or AV-660, "
Exploded View" (BOSE AUDIO WITH NAVIGATION).
INSTALLATION
Installation is basically the reverse order of removal.
1. Preset switch 2. Cluster lid C
JPNIA1044ZZ
Page 4890 of 5121
REAR CONTROL SWITCH
VTL-79
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
REAR CONTROL SWITCH
Exploded ViewINFOID:0000000003894478
Removal and InstallationINFOID:0000000003894479
REMOVAL
1. Remove rear control switch (1), stretching pawls (A) of armrest
assembly.
2. Disconnect rear control switch connector.
INSTALLATION
Installation is basically the reverse order of removal.
1. Rear control switch
JSIIA1157ZZ
JSIIA1158ZZ
Page 4891 of 5121
VTL-80
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]

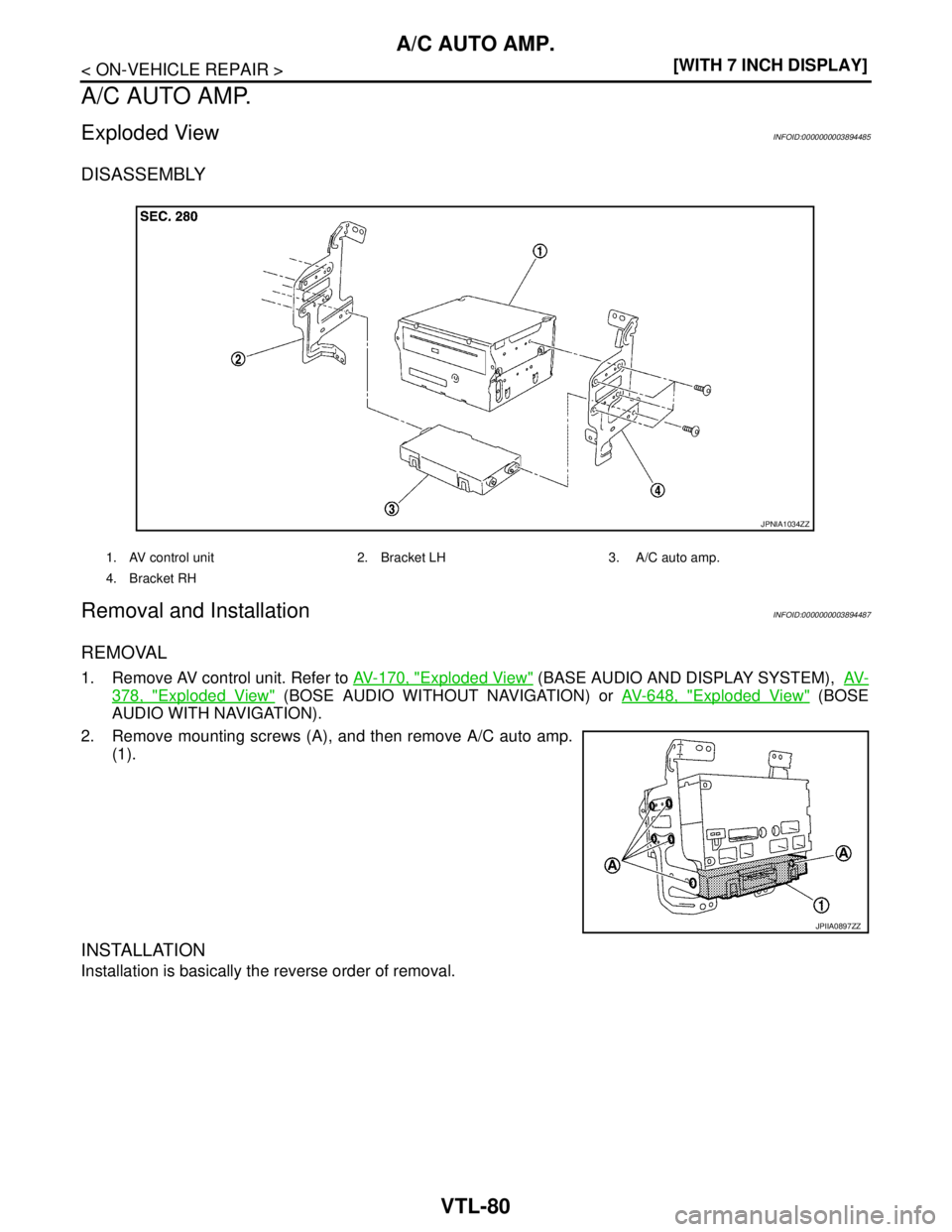

A/C AUTO AMP.
A/C AUTO AMP.
Exploded ViewINFOID:0000000003894485
DISASSEMBLY
Removal and InstallationINFOID:0000000003894487
REMOVAL
1. Remove AV control unit. Refer to AV-170, "Exploded View" (BASE AUDIO AND DISPLAY SYSTEM), AV-
378, "Exploded View" (BOSE AUDIO WITHOUT NAVIGATION) or AV-648, "Exploded View" (BOSE
AUDIO WITH NAVIGATION).
2. Remove mounting screws (A), and then remove A/C auto amp.
(1).
INSTALLATION
Installation is basically the reverse order of removal.
1. AV control unit 2. Bracket LH 3. A/C auto amp.
4. Bracket RH
JPNIA1034ZZ
JPIIA0897ZZ
Page 4892 of 5121
AMBIENT SENSOR
VTL-81
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
AMBIENT SENSOR
Exploded ViewINFOID:0000000003894488
Removal and InstallationINFOID:0000000003943129
REMOVAL
1. Remove engine under cover. Refer to EXT-28, "Exploded View".
2. Disconnect ambient sensor connector (A), and then remove
ambient sensor (1).
INSTALLATION
Installation is basically the reverse order of removal.
1. Ambient sensor
JPIIA0898ZZ
JPIIA0899ZZ
Page 4893 of 5121
VTL-82
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
GAS SENSOR
GAS SENSOR
WITH INTELLIGENT AIR CONDITIONER SYSTEM
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Exploded ViewINFOID:0000000003894490
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Removal and Installation
INFOID:0000000003894491
REMOVAL
1. Remove mounting bolt (A), and then remove gas sensor (1).
2. Disconnect gas sensor connector (B).
INSTALLATION
Installation is basically the reverse order of removal.
1. Gas sensor
JPIIA0900ZZ
JPIIA0901ZZ
Page 4894 of 5121
IN-VEHICLE SENSOR
VTL-83
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
IN-VEHICLE SENSOR
Exploded ViewINFOID:0000000003894492
Removal and InstallationINFOID:0000000003894493
REMOVAL
1. Remove instrument lower panel LH. Refer to IP-11, "Exploded View".
2. Remove mounting screw (A), and then remove in-vehicle sensor
(1).
INSTALLATION
Installation is basically the reverse order of removal.
1. In-vehicle sensor 2. Instrument lower panel LH
JPIIA0902ZZ
JPIIA0903ZZ
Page 4895 of 5121
VTL-84
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
SUNLOAD SENSOR
SUNLOAD SENSOR
Exploded ViewINFOID:0000000003894494
Removal and InstallationINFOID:0000000003894495
REMOVAL
1. Disconnect sunload sensor connector, and then remove sunload
sensor (1).
INSTALLATION
Installation is basically the reverse order of removal.
1. Sunload sensor
JPIIA0904ZZ
JPIIA0905ZZ
Page 4896 of 5121
INTAKE SENSOR
VTL-85
< ON-VEHICLE REPAIR >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
INTAKE SENSOR
Exploded ViewINFOID:0000000003894496
1. Ventilator seal 2. Defroster seal 3. Distributor upper case
4. Center case 5. Heater & cooling unit case cover 6. Foot duct 1 (right)
7. Foot duct 2 (right) 8. Air mix door motor (passenger side) 9. Evaporator pipe assembly
10. Expansion valve 11. O-ring 12. Evaporator
13. Filter cover 14. Air conditioner filter 15. Case packing
16. Heater & cooling unit case (right) 17. Cooler pipe grommet 18. Grommet
19. Heater pipe grommet 20. Heater pipe support 21. Drain hose
22. Heater & cooling unit case (left) 23. Air mix door motor (driver side) 24. Heater core
25. Heater pipe cover 26. Foot duct 2 (left) 27. Foot duct 1 (left)
28. Aspirator hose 29. Aspirator 30. Mode door motor
31. Main link 32. Rod link 33. Ventilator door link
34. Mode door lever 35. Ventilator door lever 36. Max. cool door link
JPIIA0906GB
