NISSAN TEANA 2008 Service Manual MWI
METER SYSTEM
MWI-27
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
METER ILLUMINATION CONTROL : Component DescriptionINFOID:0000000003796391
INFORMATION DISPLAY

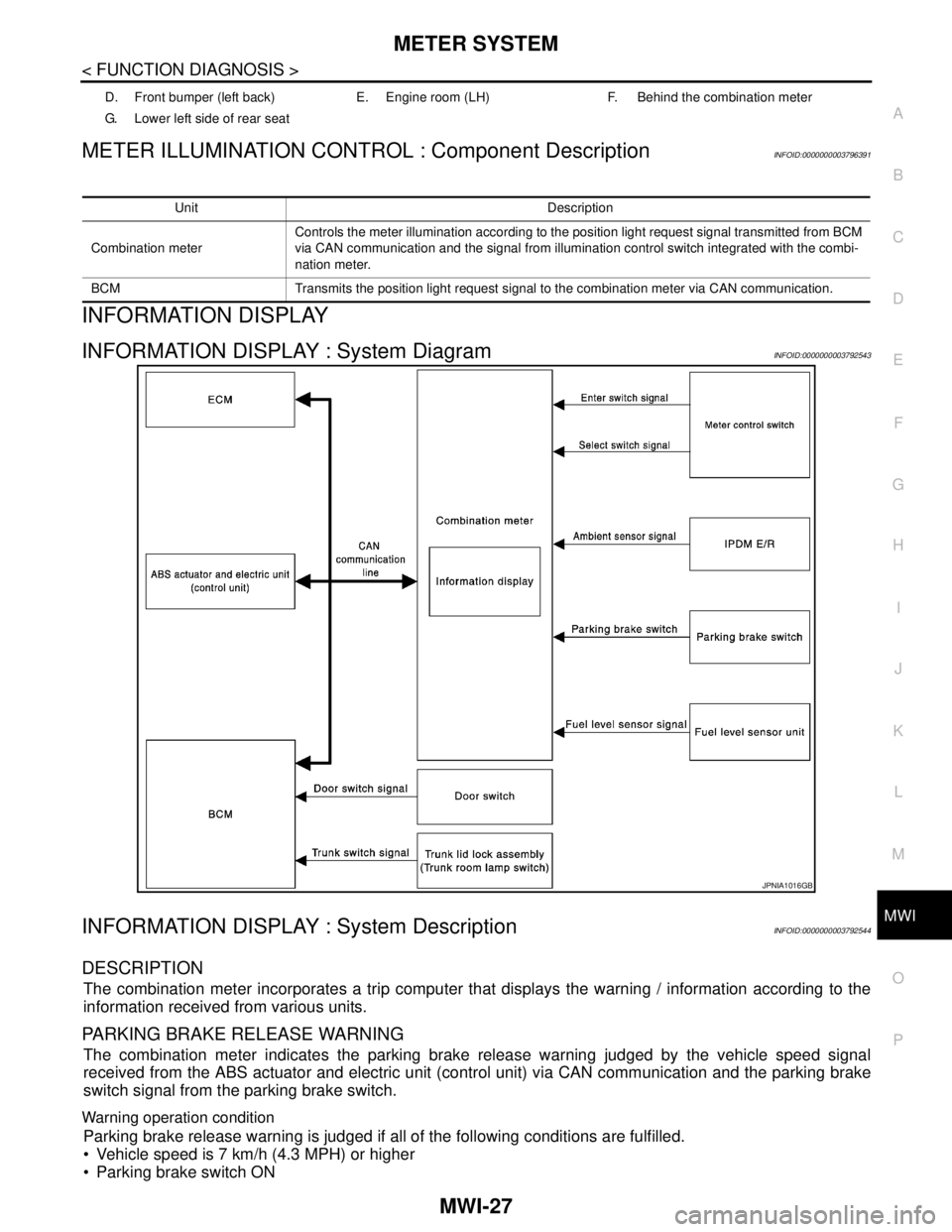

INFORMATION DISPLAY : System D

Page 3282 of 5121

NISSAN TEANA 2008 Service Manual MWI-28
< FUNCTION DIAGNOSIS >
METER SYSTEM
LOW FUEL WARNING
The combination meter indicates the low fuel warning judged by the fuel level sensor signal received from the
fuel level sensor unit.
Warnin

MWI-28
< FUNCTION DIAGNOSIS >
METER SYSTEM
LOW FUEL WARNING
The combination meter indicates the low fuel warning judged by the fuel level sensor signal received from the
fuel level sensor unit.
Warning operation condition
Fuel level: Approx. 11 (2 - 2/5 Imp gal) or less
DOOR/TRUNK OPEN WARNING
The combination meter indicates the door open warning judged by each door switch signal received from the
BCM via CAN communication line.
The combination meter indicates the trunk open warning judged by trunk switch signal received from the
BCM via CAN communication line.
INSTANTANEOUS FUEL CONSUMPTION
The combination meter receives the fuel consumption monitor signal from the ECM and the vehicle speed
signal from the ABS actuator and electric unit (control unit) via CAN communication.
The combination meter calculates instantaneous fuel consumption according to the fuel consumption moni-
tor signal and the vehicle speed signal received via CAN communication.
AVERAGE FUEL CONSUMPTION
The combination meter receives the fuel consumption monitor signal from the ECM and the vehicle speed
signal from the ABS actuator and electric unit (control unit) via CAN communication.
The combination meter calculates the average fuel consumption according to the fuel consumption monitor
signal and the vehicle speed signal received via CAN communication.
The average fuel consumption displayed on the information display is uploaded in approximately 30-second
intervals.
NOTE:
When turning ON the ignition switch after triggering a reset or removing/installing the battery, “−−−−” is indi-
cated until 30 seconds/500 m (0.31 miles) of driving.
AVERAGE VEHICLE SPEED
The combination meter receives the vehicle speed signal from the ABS actuator and electric unit (control
unit) via CAN communication.
Measures the time while the ignition switch is ON through the combination meter.
The combination meter the average vehicle speed according to the above signals.
The average vehicle speed displayed on the information display is uploaded in approximately 30-second
intervals.
NOTE:
When turning ON the ignition switch after triggering a reset or removing/installing the battery, “−−−−” is indi-
cated until 30 seconds/500 m (0.31 miles) of driving.
TRAVEL TIME
Measures the time while the ignition switch is ON through the combination meter.
TRAVEL DISTANCE
The combination meter receives the vehicle speed signal from the ABS actuator and electric unit (control
unit) via CAN communication.
The combination meter calculates the vehicle distance according to the vehicle speed signal. The vehicle
distance is displayed.
POSSIBLE DRIVING DISTANCE
The combination meter calculates possible driving distance according to the vehicle speed signal and fuel
consumption monitor signal transmitted via CAN communication and the fuel level sensor signal transmitted
from the fuel level sensor.
NOTE:
When turning ON the ignition switch after removing/installing the battery, “−−−−” is indicated until 30 sec-
onds.
The indicated values may not match each other when refueling with the ignition switch ON. Refer to MWI-
124, "INFORMATION DISPLAY : Description".
AMBIENT AIR TEMPERATURE
The combination meter receives the ambient sensor signal from the ambient sensor.
The combination meter calculates the ambient temperature according to the ambient sensor signal.
The indicated temperature does not increase if the vehicle speed is less than 20 km/h (12 MPH).

Page 3283 of 5121

NISSAN TEANA 2008 Service Manual MWI
METER SYSTEM
MWI-29
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
NOTE:
The ambient sensor input value that is displayed on “Data Monitor” of CONSULT-III is the value before the
correc

Page 3284 of 5121

NISSAN TEANA 2008 Service Manual MWI-30
< FUNCTION DIAGNOSIS >
METER SYSTEM
INFORMATION DISPLAY : Component Parts Location
INFOID:0000000003879664
1. ABS actuator and electric unit (con-
trol unit)2. ECM 3. TCM
4. Oil pressure switch

Page 3285 of 5121

NISSAN TEANA 2008 Service Manual MWI
METER SYSTEM
MWI-31
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
INFORMATION DISPLAY : Component DescriptionINFOID:0000000003792546
D. Front bumper (left back) E. Engine room (LH) F. Behind

Page 3286 of 5121

NISSAN TEANA 2008 Service Manual MWI-32
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (METER)
DIAGNOSIS SYSTEM (METER)
Diagnosis DescriptionINFOID:0000000003792550
SELF-DIAGNOSIS MODE
Information display LCD segment operation can be chec

Page 3287 of 5121

NISSAN TEANA 2008 Service Manual MWI
DIAGNOSIS SYSTEM (METER)
MWI-33
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
7. Each meter activates by pressing the trip reset switch.
NOTE:
If any of the meters or gauges are not activate

Page 3288 of 5121

NISSAN TEANA 2008 Service Manual MWI-34
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (METER)
W TEMP METER
[°C] XValue of engine coolant temperature signal is received from ECM via CAN com-
munication.
NOTE:
215 is displayed when the mal

MWI-34
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (METER)
W TEMP METER
[°C] XValue of engine coolant temperature signal is received from ECM via CAN com-
munication.
NOTE:
215 is displayed when the malfunction signal is input.
ABS W/L
[On/Off]Status of ABS warning lamp detected from ABS warning lamp signal is received
from ABS actuator and electric unit (control unit) via CAN communication.
VDC/TCS IND
[On/Off]Status of VDC OFF indicator lamp detected from VDC OFF indicator lamp signal
is received from ABS actuator and electric unit (control unit) via CAN communica-
tion.
SLIP IND
[On/Off]Status of SLIP indicator lamp detected from slip indicator lamp signal received
from ABS actuator and electric unit (control unit) via CAN communication.
BRAKE W/L
[On/Off]Status of brake warning lamp detected from brake warning lamp signal is received
from ABS actuator and electric unit (control unit) via CAN communication.
NOTE:
Displays “Off” if the brake warning lamp is illuminated when the valve check starts,
the parking brake switch is turned ON or the brake fluid level switch is turned ON.
DOOR W/L
[On/Off]Status of door warning detected from door switch signal received from BCM via
CAN communication.
TRUNK/GLAS-H
[On/Off]Status of trunk warning detected from trunk switch signal received from BCM via
CAN communication.
HI-BEAM IND
[On/Off]Status of high beam indicator lamp detected from high beam request signal is re-
ceived from BCM via CAN communication.
TURN IND
[On/Off]Status of turn indicator lamp detected from turn indicator signal is received from
BCM via CAN communication.
FR FOG IND
[On/Off]Status of front fog light indicator lamp detected from front fog light request signal
is received from BCM via CAN communication.
RR FOG IND
[On/Off]Status of rear fog light indicator lamp detected from rear fog light request signal is
received from BCM via CAN communication.
LIGHT IND
[On/Off]Status of light indicator lamp detected from position light request signal is received
from BCM via CAN communication.
OIL W/L
[On/Off]Status of oil pressure warning lamp detected from oil pressure switch signal is re-
ceived from BCM via CAN communication.
MIL
[On/Off] Status of malfunction indicator lamp detected from malfunctioning indicator lamp
signal is received from ECM via CAN communication.
CRUISE IND
[On/Off]Status of CRUISE indicator detected from ASCD status signal is received from
ECM via CAN communication.
SPORT IND
[On/Off]Status of SPORT indicator detected from sport mode switch signal is received
from control device.
4WD W/L
[On/Off]This item is displayed, but cannot be monitored.
4WD LOCK IND
[On/Off]This item is displayed, but cannot be monitored.
FUEL W/L
[On/Off]Low-fuel warning lamp status detected by the identified fuel level.
WASHER W/L
[On/Off]This item is displayed, but cannot be monitored.
KEY G/Y W/L
[On/Off]Status of key warning lamp (G/Y) detected from key warning signal is received
from BCM via CAN communication.
AFS OFF IND
[On/Off]This item is displayed, but cannot be monitored.
LCD
[B&P N, B&P I, ID NG, ROTAT, SFT
P, INSRT, BATT, NO KY,OUTKY, LK
WN]Displays status of Intelligent Key system warning detected from meter display sig-
nal is received from BCM via CAN communication. Display item [Unit]MAIN
SIGNALSDescription
