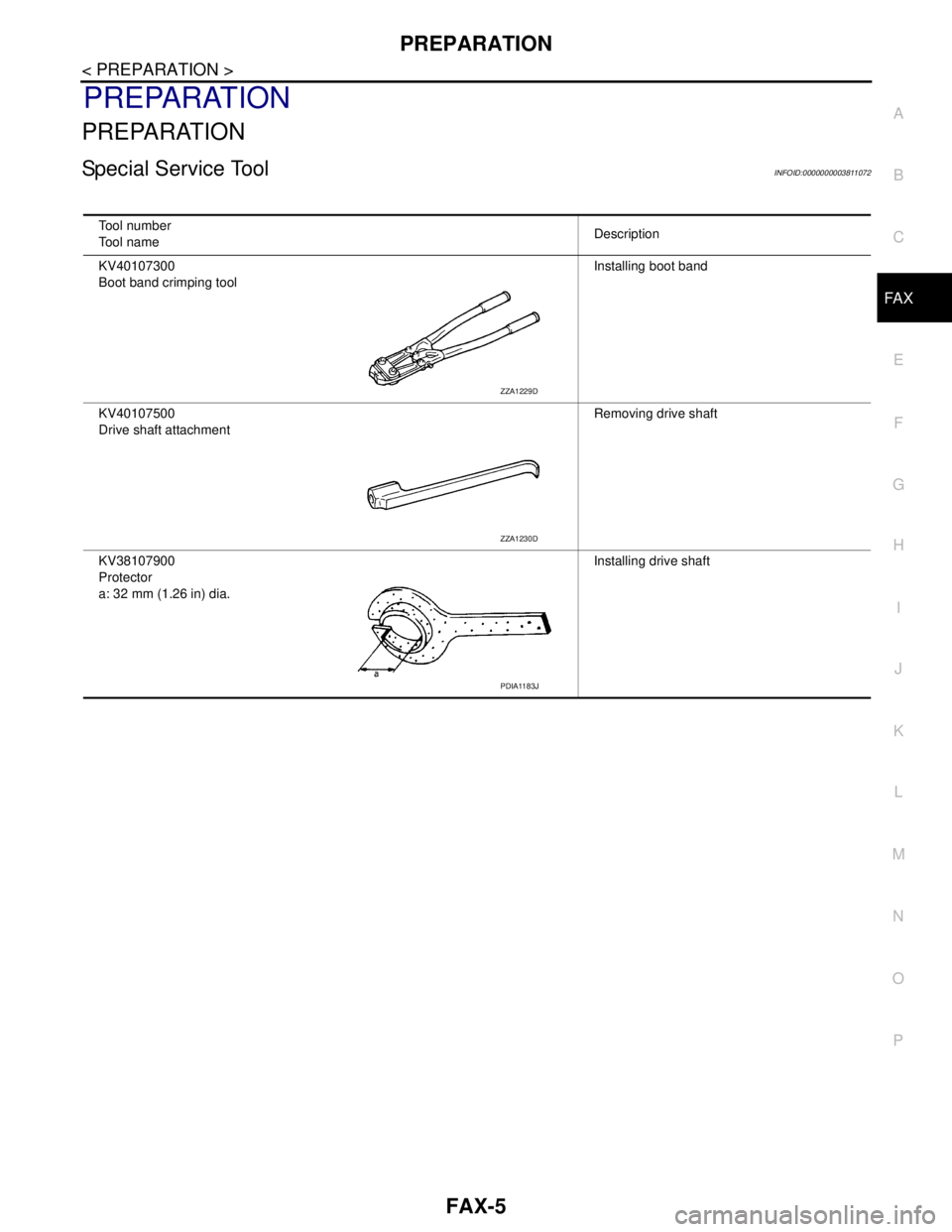

NISSAN TEANA 2008 Service Manual PREPARATION
FAX-5
< PREPARATION >
C
E
F
G
H
I
J
K
L
MA
B
FA X
N
O
P
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000003811072
Tool number
Tool nameDescription
KV40107300
Boot band crimping

Page 2434 of 5121

NISSAN TEANA 2008 Service Manual FAX-6
< ON-VEHICLE MAINTENANCE >
FRONT WHEEL HUB AND KNUCKLE
ON-VEHICLE MAINTENANCE
FRONT WHEEL HUB AND KNUCKLE
InspectionINFOID:0000000003811074
MOUNTING INSPECTION
Make sure that the mounting condit

Page 2435 of 5121

NISSAN TEANA 2008 Service Manual FRONT DRIVE SHAFT
FAX-7
< ON-VEHICLE MAINTENANCE >
C
E
F
G
H
I
J
K
L
MA
B
FA X
N
O
P
FRONT DRIVE SHAFT
InspectionINFOID:0000000003811075
Check drive shaft mounting point and joint for looseness and

Page 2436 of 5121

NISSAN TEANA 2008 Service Manual FAX-8
< ON-VEHICLE REPAIR >
FRONT WHEEL HUB AND KNUCKLE
ON-VEHICLE REPAIR
FRONT WHEEL HUB AND KNUCKLE
Exploded ViewINFOID:0000000003811076
Removal and InstallationINFOID:0000000003811077
REMOVAL
1. Re

Page 2437 of 5121

NISSAN TEANA 2008 Service Manual FRONT WHEEL HUB AND KNUCKLE
FAX-9
< ON-VEHICLE REPAIR >
C
E
F
G
H
I
J
K
L
MA
B
FA X
N
O
P
11. Temporarily tighten strut assembly and steering knuckle.
12. Remove wheel hub and bearing assembly, and th

Page 2438 of 5121

NISSAN TEANA 2008 Service Manual FAX-10
< ON-VEHICLE REPAIR >
FRONT DRIVE SHAFT BOOT
FRONT DRIVE SHAFT BOOT
Exploded ViewINFOID:0000000003811079
LEFT SIDE
VQ25DE
VQ35DE
JPDIF0193ZZ
1. Circular clip 2. Dust shield 3. Housing
4. Snap r

Page 2439 of 5121

NISSAN TEANA 2008 Service Manual FRONT DRIVE SHAFT BOOT
FAX-11
< ON-VEHICLE REPAIR >
C
E
F
G
H
I
J
K
L
MA
B
FA X
N
O
P
RIGHT SIDE
VQ25DE
VQ35DE
: Fill NISSAN Genuine grease or equivalent.
Refer to GI-4, "
Components" for symbols not

Page 2440 of 5121

NISSAN TEANA 2008 Service Manual FAX-12
< ON-VEHICLE REPAIR >
FRONT DRIVE SHAFT BOOT
WHEEL SIDE
WHEEL SIDE : Removal and InstallationINFOID:0000000003811080
REMOVAL
1. Remove tires.
2. Remove wheel sensor and sensor harness. Refer to

FAX-12
< ON-VEHICLE REPAIR >
FRONT DRIVE SHAFT BOOT
WHEEL SIDE
WHEEL SIDE : Removal and InstallationINFOID:0000000003811080
REMOVAL
1. Remove tires.
2. Remove wheel sensor and sensor harness. Refer to BRC-57, "
FRONT WHEEL SENSOR : Exploded
View" (without VDC), BRC-151, "FRONT WHEEL SENSOR : Exploded View" (with VDC).
3. Remove lock plate of brake hose from strut assembly. Refer to BR-19, "
FRONT : Exploded View".
4. Remove caliper assembly. Hang caliper assembly not to interfere with work. Refer to BR-34, "
BRAKE
CALIPER ASSEMBLY : Exploded View".
5. Remove disc rotor. Refer to BR-35, "
BRAKE CALIPER ASSEMBLY : Removal and Installation".
6. Remove cotter pin, and then loosen wheel hub lock nut. Refer to FA X - 8 , "
Exploded View".
7. Patch wheel hub lock nut with a piece of wood. Hammer the
wood to disengage drive shaft from wheel hub and bearing
assembly.
CAUTION:
Never place drive shaft joint at an extreme angle. Also be
careful not to overextend slide joint.
Never allow drive shaft to hang down without support for
joint sub-assembly and the other parts.
NOTE:
Use suitable puller, if wheel hub and bearing assembly and drive
shaft cannot be separated even after performing the above pro-
cedure.
8. Remove wheel hub lock nut.
9. Remove steering knuckle from strut assembly. Refer to FSU-9, "
Exploded View".
10. Remove drive shaft from wheel hub and bearing assembly.
11. Remove boot bands, and then remove boot from joint sub-assembly.
12. Screw drive shaft puller (A) into joint sub-assembly screw part to
a length of 30 mm (1.18 in) or more. Support drive shaft with one
hand and pull out joint sub-assembly with a sliding hammer (B)
from shaft (VQ25DE) or housing assembly (VQ35DE).
CAUTION:
Align a sliding hammer and drive shaft and remove them
by pulling firmly and uniformly.
If joint sub-assembly cannot be pulled out, try after
removing drive shaft from vehicle.
13. Remove circular clip (1) from shaft (VQ25DE) or housing
assembly (VQ35DE).
14. Remove boot from shaft (VQ25DE) or housing assembly
(VQ35DE).
: Wheel side
: Fill NISSAN Genuine grease or equivalent.
Refer to GI-4, "
Components" for symbols not described on the above.
JPDIG0070ZZ
JPDIF0022ZZ
JPDIF0007ZZ
