Commercial Service ToolINFOID:0000000003812883
Tool nameDescription
Engine earLocating the noise
Remover tool Removes the clips, pawls and metal clips
SIIA0995E
PIIB7923J
Page 3810 of 5121
GLASS LID
RF-79
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
L
MA
B
RF
N
O
P
ON-VEHICLE REPAIR
GLASS LID
Exploded ViewINFOID:0000000003812884

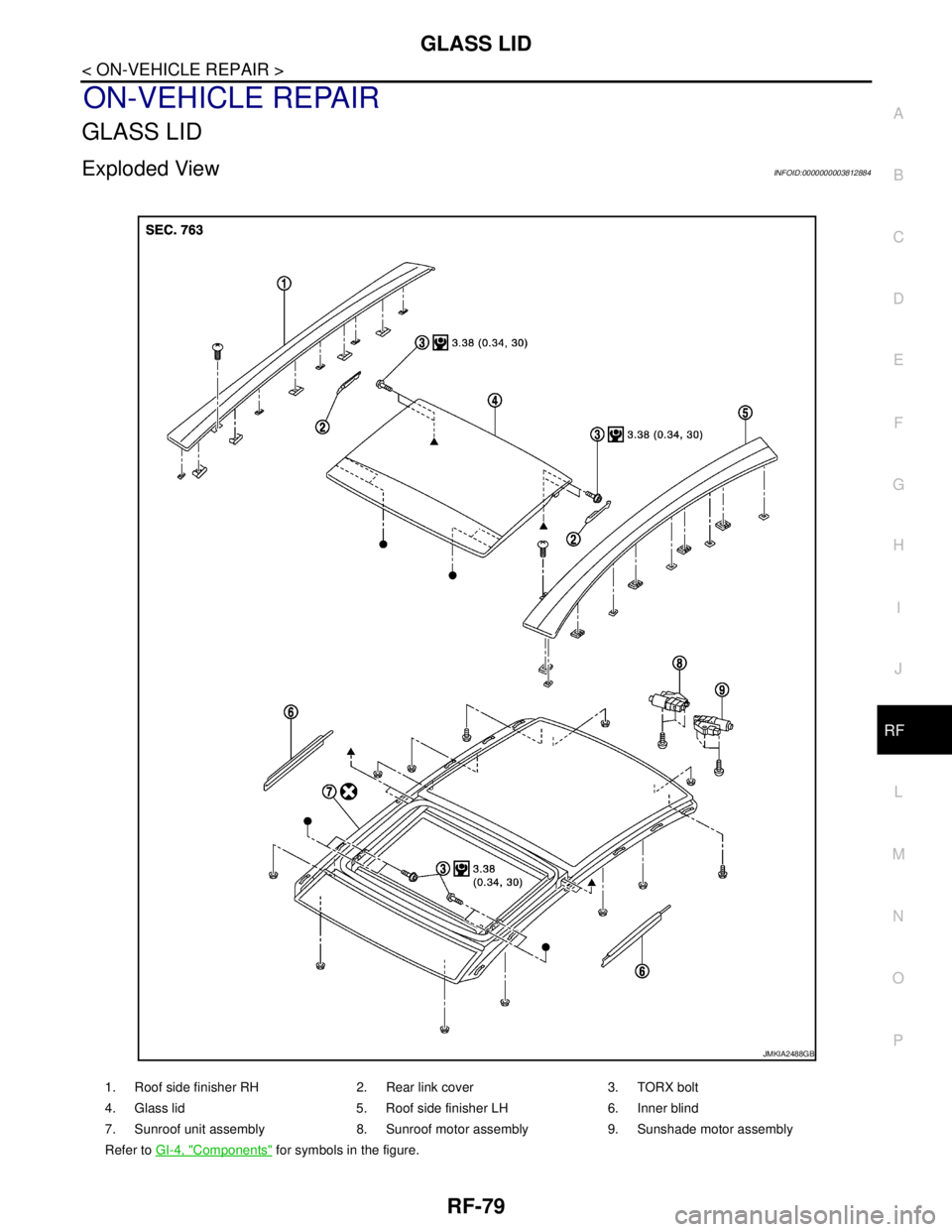

1. Roof side finisher RH 2. Rear link cover 3. TORX bolt
4. Glass lid 5. Roof side finisher LH 6. Inner blind
7. Sunroof unit assembly 8. Sunroof motor assembly 9. Sunshade motor assembly
Refer to GI-4, "
Components" for symbols in the figure.
JMKIA2488GB
Page 3811 of 5121
RF-80
< ON-VEHICLE REPAIR >
GLASS LID
Removal and Installation
INFOID:0000000003812885
REMOVAL
CAUTION:
Always work with a helper.
1. Remove the roof side finisher.
Remove the mounting bolt.
Remove the clips, and then pull out roof side finisher.
2. Half open the glass lid.
3. Remove the TORX bolts from inner side.
Remove the inner blind.
Remove the TORX bolts (A).
4. Remove the TORX bolts from outer side.
Remove the pawls, and then pull down rear link cover (1).
Remove the TORX bolts (B).
: Clip
JMKIA2513ZZ
JMKIA2491ZZ
: Pawl
JMKIA2490ZZ
JMKIA1907ZZ
Page 3812 of 5121

GLASS LID
RF-81
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
L
MA
B
RF
N
O
P
5. Remove the glass lid from the vehicle.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
After installing the glass lid, perform the leak test and check that there is no malfunction.
NOTE:
After installation, carry out fitting adjustment. Refer to RF-81, "
Adjustment".
AdjustmentINFOID:0000000003812886
WEATHER-STRIP OVERLAP ADJUSTMENT AND SURFACE MISMATCH ADJUSTMENT
1. Tilt up glass lid, and then remove inner blind and rear link cover.
2. After loosening glass lid from TORX bolts (left and right), tilt down glass lid.

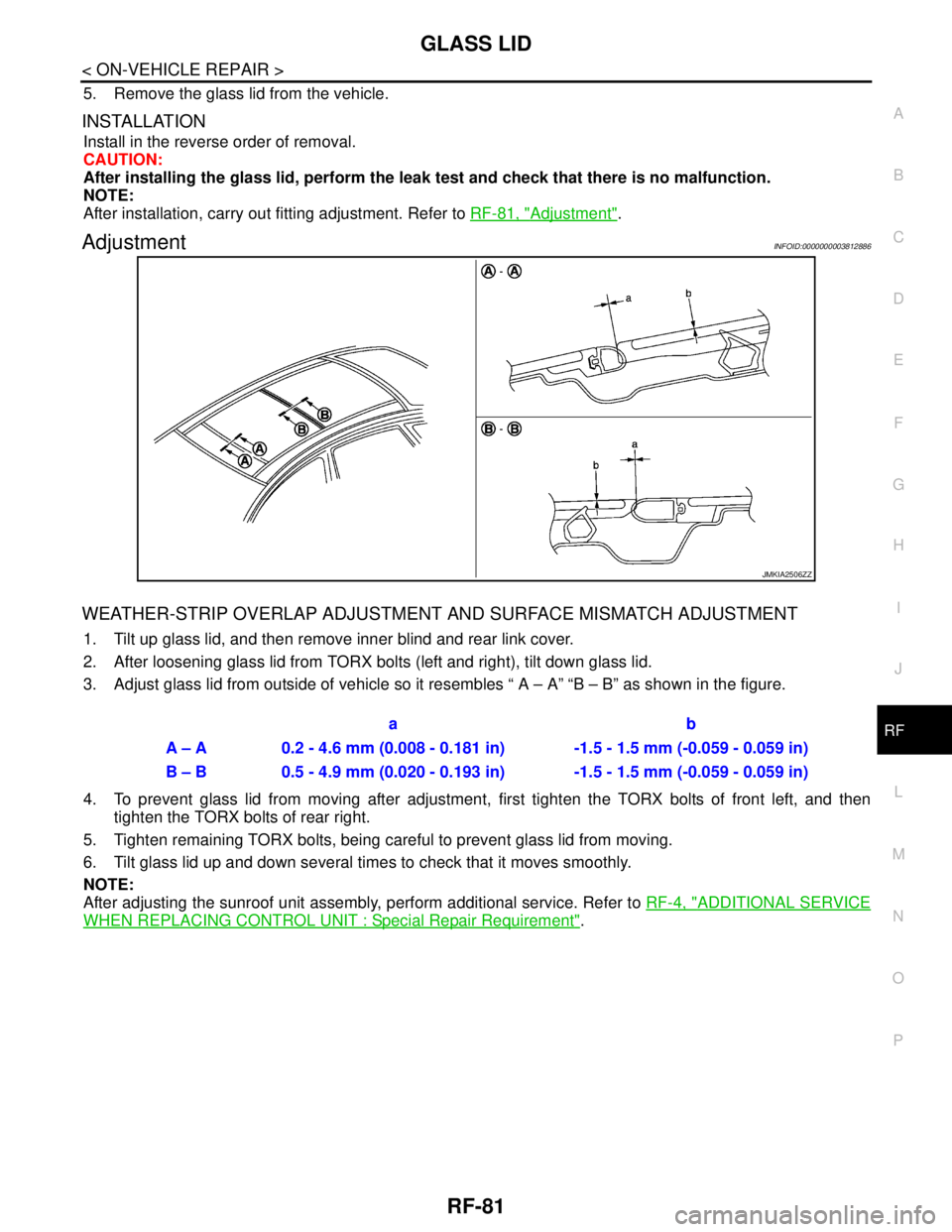

3. Adjust glass lid from outside of vehicle so it resembles “ A – A” “B – B” as shown in the figure.
4. To prevent glass lid from moving after adjustment, first tighten the TORX bolts of front left, and then
tighten the TORX bolts of rear right.
5. Tighten remaining TORX bolts, being careful to prevent glass lid from moving.
6. Tilt glass lid up and down several times to check that it moves smoothly.
NOTE:
After adjusting the sunroof unit assembly, perform additional service. Refer to RF-4, "
ADDITIONAL SERVICE
WHEN REPLACING CONTROL UNIT : Special Repair Requirement".
JMKIA2506ZZ
ab
A – A 0.2 - 4.6 mm (0.008 - 0.181 in) -1.5 - 1.5 mm (-0.059 - 0.059 in)
B – B 0.5 - 4.9 mm (0.020 - 0.193 in) -1.5 - 1.5 mm (-0.059 - 0.059 in)
Page 3813 of 5121
RF-82
< ON-VEHICLE REPAIR >
SUNROOF MOTOR ASSEMBLY
SUNROOF MOTOR ASSEMBLY
Exploded ViewINFOID:0000000003812887

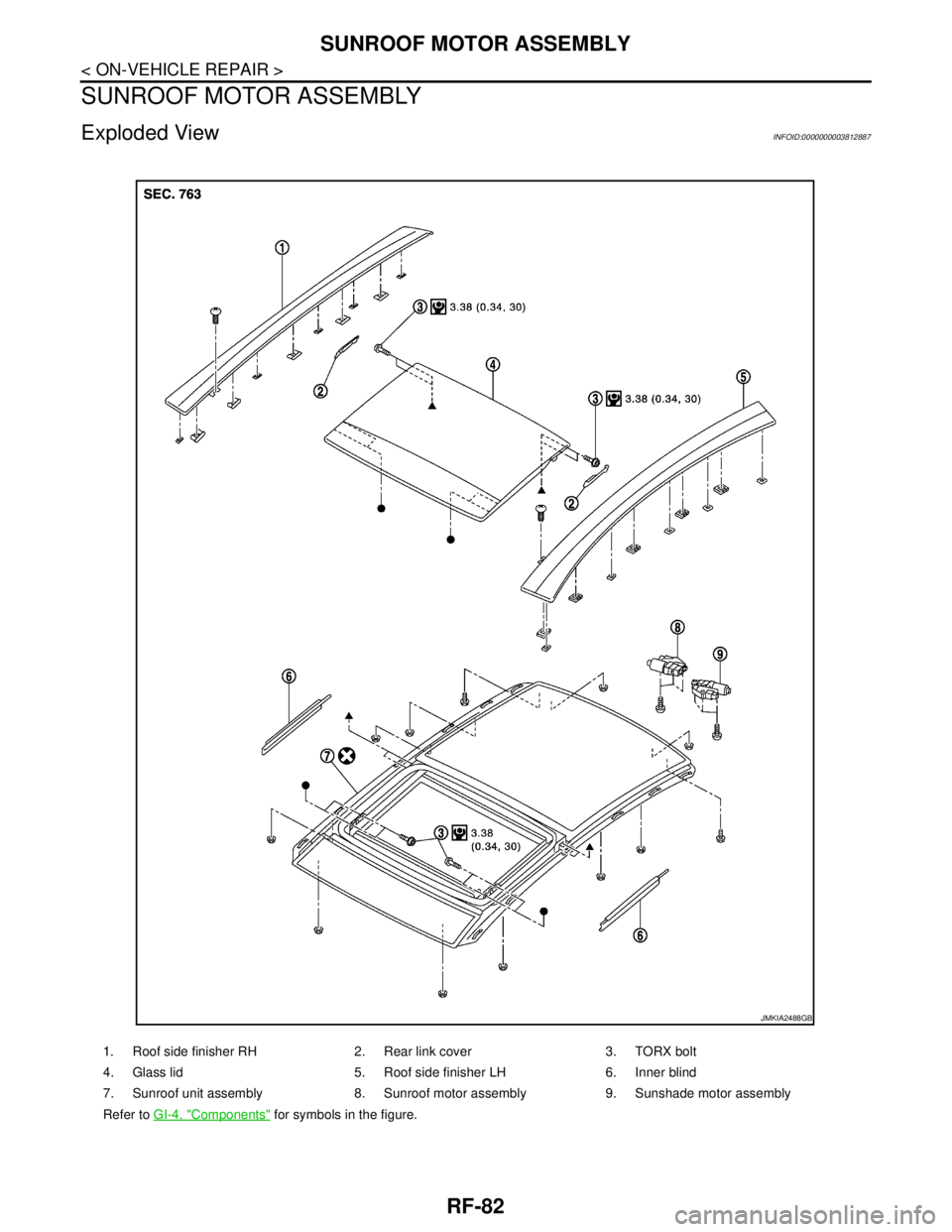

1. Roof side finisher RH 2. Rear link cover 3. TORX bolt
4. Glass lid 5. Roof side finisher LH 6. Inner blind
7. Sunroof unit assembly 8. Sunroof motor assembly 9. Sunshade motor assembly
Refer to GI-4, "
Components" for symbols in the figure.
JMKIA2488GB
Page 3814 of 5121

SUNROOF MOTOR ASSEMBLY
RF-83
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
L
MA
B
RF
N
O
P
Removal and InstallationINFOID:0000000003812888
REMOVAL
CAUTION:
Before removing sunroof motor, check that glass lid is fully closed.
After removing sunroof motor, never attempt to rotate sunroof motor assembly as a single unit.
1. Remove the headlining. Refer to INT-54, "
SUNROOF : Removal and Installation".
2. Remove th sunroof motor assembly.
Disconnect connector (A) from sunroof motor assembly (1).
Remove sunroof motor assembly mounting screws (B), and
then remove sunroof motor assembly (1).
INSTALLATION
CAUTION:
Before installing the sunroof motor assembly, always place the link and wire assembly in the symmet-
rical and fully closed position.
1. Move the sunroof motor assembly laterally a little so that the gear is completely engaged into the wire on
the sunroof unit assembly and mounting surface becomes parallel. Then secure the sunroof motor
assembly with screws.
2. Install the headlining. Refer to INT-54, "
SUNROOF : Removal and Installation".
JMKIA2492ZZ
Page 3815 of 5121
RF-84
< ON-VEHICLE REPAIR >
SUNSHADE MOTOR ASSEMBLY
SUNSHADE MOTOR ASSEMBLY
Exploded ViewINFOID:0000000003812889

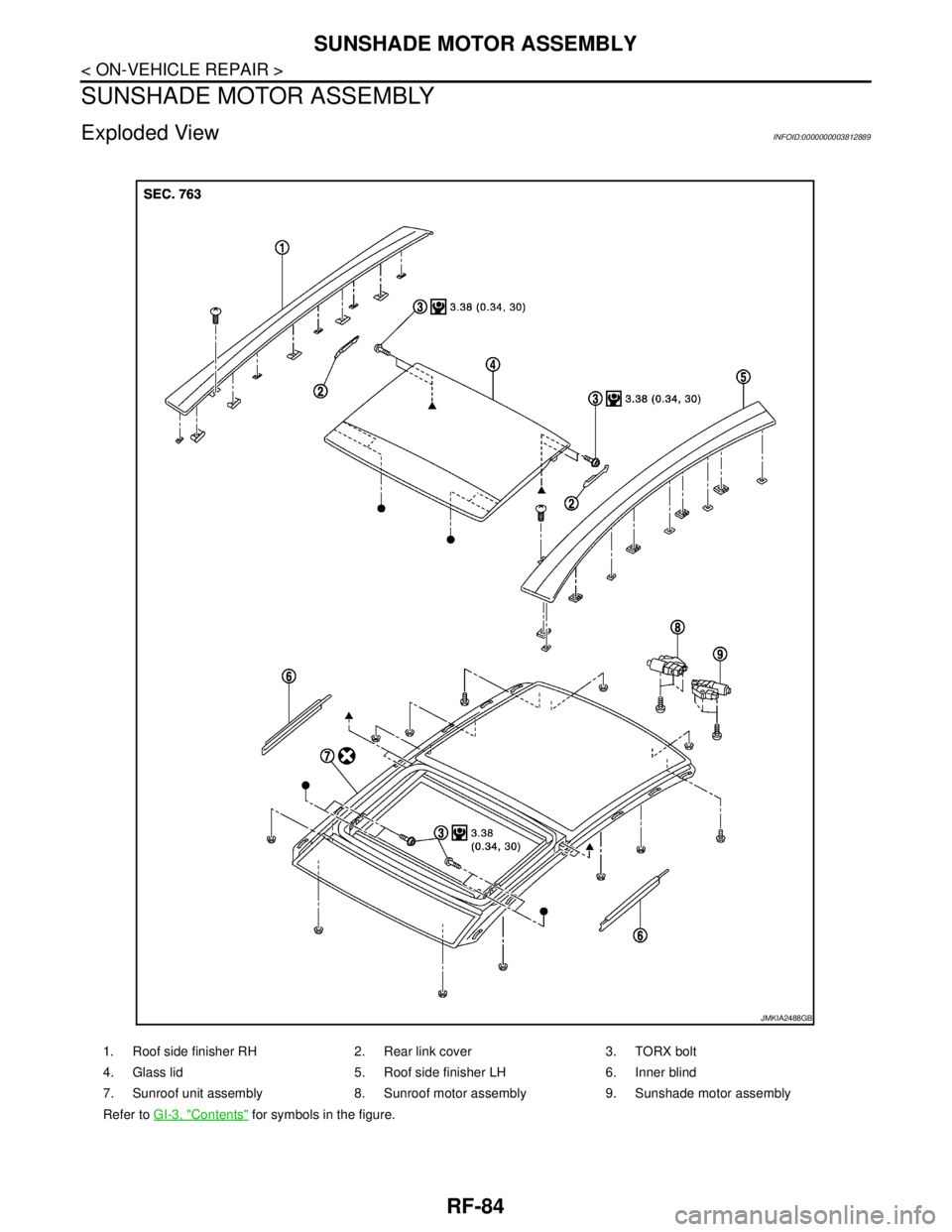

1. Roof side finisher RH 2. Rear link cover 3. TORX bolt
4. Glass lid 5. Roof side finisher LH 6. Inner blind
7. Sunroof unit assembly 8. Sunroof motor assembly 9. Sunshade motor assembly
Refer to GI-3, "
Contents" for symbols in the figure.
JMKIA2488GB
Page 3816 of 5121

SUNSHADE MOTOR ASSEMBLY
RF-85
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
L
MA
B
RF
N
O
P
Removal and InstallationINFOID:0000000003812890
REMOVAL
CAUTION:
Before removing sunshade motor, check that glass lid is fully closed.
After removing sunshade motor, never attempt to rotate sunshade motor assembly as a single unit.
1. Remove the headlining. Refer to INT-54, "
SUNROOF : Removal and Installation".
2. Remove the sunroof motor assembly.
Disconnect connector (A) from sunshade motor assembly (1).
Remove sunshade motor assembly mounting screws (B), and
then remove sunshade motor assembly (1).
INSTALLATION
CAUTION:
Before installing the sunshade motor assembly, always place the link and wire assembly in the sym-
metrical and fully closed position.
1. Move the sunshade motor assembly laterally a little so that the gear is completely engaged into the wire
on the sunroof unit assembly and mounting surface becomes parallel. Then secure the sunshade motor
assembly with screws.
2. Install the headlining. Refer to INT-54, "
SUNROOF : Removal and Installation".
