Page 3497 of 5121

NISSAN TEANA 2008 Service Manual PCS-106
< ECU DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
BCM (BODY CONTROL MODULE)
B2192: ID DISCORD BCM-ECM×——SEC-43
B2193: CHAIN OF BCM-ECM×——SEC-45
B2553: IGNITION RELAY —×—PCS-49
B2555:

Page 3498 of 5121

NISSAN TEANA 2008 Service Manual PCS
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PCS-107
< ECU DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
C
D
E
F
G
H
I
J
K
L B A
O
P N
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGI

Page 3499 of 5121

NISSAN TEANA 2008 Service Manual PCS-108
< ECU DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
ST/INHI RLYIgnition switch ON Off
At engine cranking INHI → ST
The status of starte

Page 3500 of 5121

NISSAN TEANA 2008 Service Manual PCS
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PCS-109
< ECU DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
C
D
E
F
G
H
I
J
K
L B A
O
P N

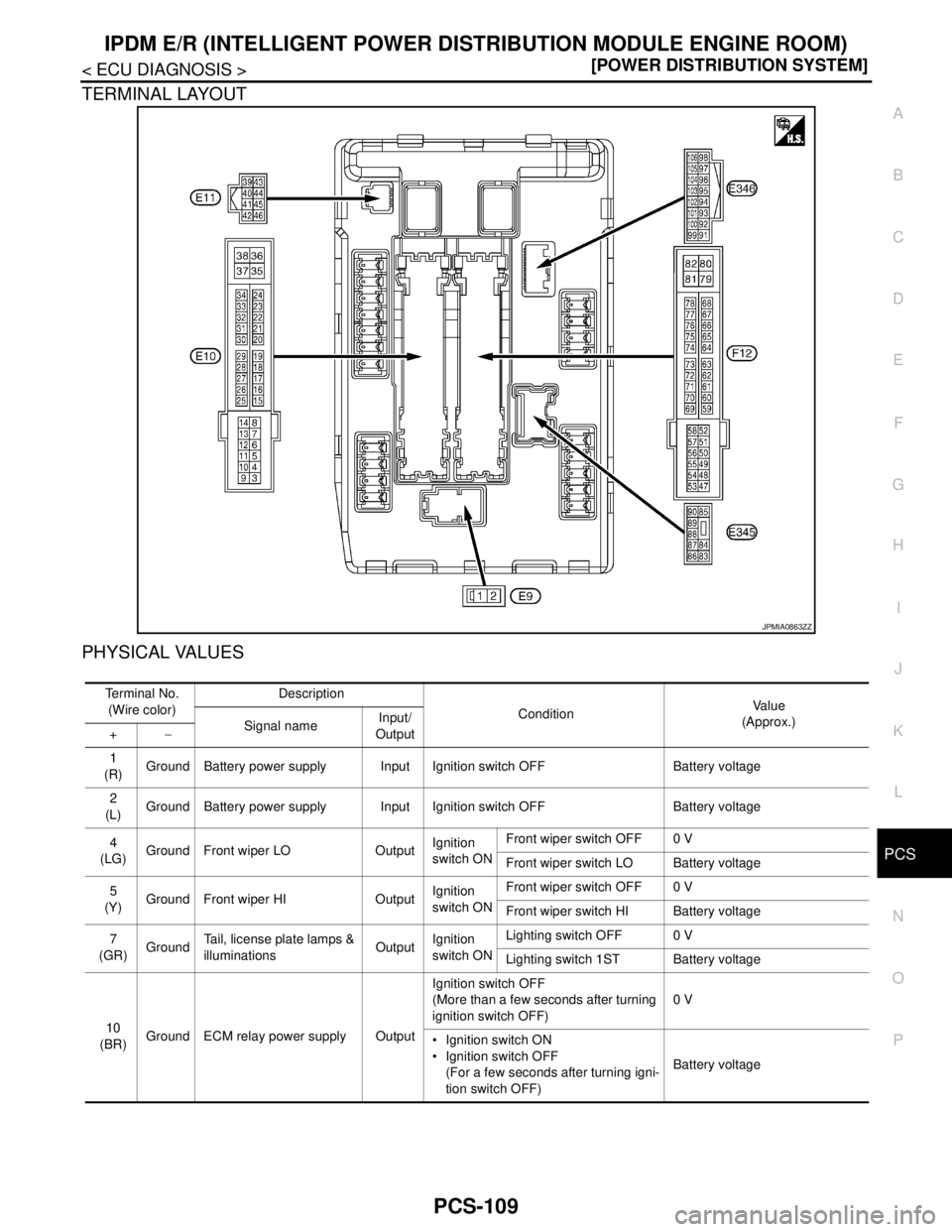

TERMINAL LAYOUT
PHYSICAL VALUES
JPMIA0863ZZ
Te r m i

Page 3501 of 5121

NISSAN TEANA 2008 Service Manual PCS-110
< ECU DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
11
(P)GroundSteering lock unit power
supplyOutputIgnition
switch
OFFA few seconds a

PCS-110
< ECU DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
11
(P)GroundSteering lock unit power
supplyOutputIgnition
switch
OFFA few seconds after open-
ing the driver doorBattery voltage
Ignition
switch
LOCKPress the push-button ig-
nition switchBattery voltage
Ignition switch ACC or ON 0 V
12
(B/W)Ground Ground — Ignition switch ON 0 V
13
(SB)Ground Fuel pump power supply OutputApproximately 1 second or more after
turning the ignition switch ON0 V
Approximately 1 second after turning
the ignition switch ON
Engine runningBattery voltage
15
(W)Ground Ignition relay power supply OutputIgnition switch OFF 0 V
Ignition switch ON Battery voltage
16
(R)Ground Front wiper auto stop InputIgnition
switch ONFront wiper stop position 0 V
Any position other than
front wiper stop positionBattery voltage
17
(V)GroundHeadlamp washer relay
controlInputIgnition
switch ONHeadlamp washer deacti-
vatedBattery voltage
Headlamp washer activat-
ed0 V
19
(Y)Ground Ignition relay power supply OutputIgnition switch OFF 0 V
Ignition switch ON Battery voltage
20
(B)Ground Ambient sensor ground Output Ignition switch ON 0 V
21
(O)Ground Ambient sensor InputIgnition switch ON
NOTE:
Changes depending to ambient tem-
perature
22
(SB)GroundRefrigerant pressure sen-
sor groundOutputEngine
running Warm-up condition
Idle speed0 V
23
(GR)GroundRefrigerant pressure sen-
sorOutputEngine
running Warm-up condition
Both A/C switch and
blower fan motor switch
ON
(Compressor operates)1.0 - 4.0 V
24
(G)GroundRefrigerant pressure sen-
sor power supplyInputIgnition switch OFF 0 V
Ignition switch ON 5.0 V
25
(GR)Ground Ignition relay power supply OutputIgnition switch OFF 0 V
Ignition switch ON Battery voltage
27
(W)Ground Ignition relay monitor InputIgnition switch OFF or ACC Battery voltage
Ignition switch ON 0 V Te r m i n a l N o .
(Wire color)Description
ConditionVa l u e
(Approx.)
Signal nameInput/
Output +−
JSNIA0014GB

Page 3502 of 5121

NISSAN TEANA 2008 Service Manual PCS
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PCS-111
< ECU DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
C
D
E
F
G
H
I
J
K
L B A
O
P N
28
(SB)GroundPush-button ignition
switchInputPress

PCS
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PCS-111
< ECU DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
C
D
E
F
G
H
I
J
K
L B A
O
P N
28
(SB)GroundPush-button ignition
switchInputPress the push-button ignition switch 0 V
Release the push-button ignition switch Battery voltage
30
(BR)Ground Starter relay control InputIgnition
switch ONSelector lever in any posi-
tion other than P or N0 V
Selector lever P or N Battery voltage
32
(V)GroundSteering lock unit condi-
tion-1InputSteering lock is activated 0 V
Steering lock is deactivated Battery voltage
33
(G)GroundSteering lock unit condi-
tion-2InputSteering lock is activated Battery voltage
Steering lock is deactivated 0 V
34
(O)Ground Cooling fan relay-3 control InputCooling fan stopped Battery voltage
Cooling fan at HI operation 0 V
35
(P)GroundCooling fan relay-1 power
supplyInputCooling fan stopped Battery voltage
Cooling fan at LO operation 6.0 V
36
(G)Ground Battery power supply Input Ignition switch OFF Battery voltage
38
(GR)GroundCooling fan relay-1 power
supplyOutputCooling fan not operating 0 V
Cooling fan at LO operation 6.0 V
39
(P)—CAN-LInput/
Output——
40
(L)—CAN-HInput/
Output——
41
(B)Ground Ground — Ignition switch ON 0 V
42
(SB)Ground Cooling fan relay-2 control InputCooling fan stopped Battery voltage
Cooling fan MID operating
Cooling fan HI operating0 V
43
(Y)GroundControl device
(Detention switch)InputIgnition
switch ONPress the selector button
(selector lever P)Battery voltage
Selector lever in any po-
sition other than P
Release the selector
button (selector lever P)0 V
44
(G)Ground Horn relay control InputThe horn is deactivated Battery voltage
The horn is activated 0 V
45
(O)Ground Horn switch InputThe horn is deactivated Battery voltage
The horn is activated 0 V
46
(BR)Ground Starter relay control InputIgnition
switch ONSelector lever in any posi-
tion other than P or N0 V
Selector lever P or N Battery voltage
48
(Y/R)Ground A/C relay power supply OutputEngine
runningA/C switch OFF 0 V
A/C switch ON
(A/C compressor is oper-
ating)Battery voltage Te r m i n a l N o .
(Wire color)Description
ConditionVa l u e
(Approx.)
Signal nameInput/
Output +−

Page 3503 of 5121

NISSAN TEANA 2008 Service Manual PCS-112
< ECU DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
49
(R/B)Ground ECM relay power supply OutputIgnition switch OFF
(More than a few secon

PCS-112
< ECU DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
49
(R/B)Ground ECM relay power supply OutputIgnition switch OFF
(More than a few seconds after turning
ignition switch OFF)0 V
Ignition switch ON
Ignition switch OFF
(For a few seconds after turning igni-
tion switch OFF)Battery voltage
51
(LG)Ground Ignition relay power supply OutputIgnition switch OFF 0 V
Ignition switch ON Battery voltage
52
(Y/G)Ground Ignition relay power supply OutputIgnition switch OFF 0 V
Ignition switch ON Battery voltage
53
(R/W)Ground ECM relay power supply OutputIgnition switch OFF
(More than a few seconds after turning
ignition switch OFF)0 V
Ignition switch ON
Ignition switch OFF
(For a few seconds after turning igni-
tion switch OFF)Battery voltage
54
(G/W)GroundThrottle control motor re-
lay power supplyOutputIgnition switch OFF
(More than a few seconds after turning
ignition switch OFF)0 V
Ignition switch ON
Ignition switch OFF
(For a few seconds after turning igni-
tion switch OFF)Battery voltage
55
(W/L)Ground ECM power supply Output Ignition switch OFF Battery voltage
56
(R/Y)Ground Ignition relay power supply OutputIgnition switch OFF 0 V
Ignition switch ON Battery voltage
57
(O)Ground Ignition relay power supply OutputIgnition switch OFF 0 V
Ignition switch ON Battery voltage
58
(Y)Ground Ignition relay power supply OutputIgnition switch OFF 0 V
Ignition switch ON Battery voltage
69
(W/B)Ground ECM relay control OutputIgnition switch OFF
(More than a few seconds after turning
ignition switch OFF)Battery voltage
Ignition switch ON
Ignition switch OFF
(For a few seconds after turning igni-
tion switch OFF)0 - 1.5 V
70
(O)GroundThrottle control motor re-
lay controlOutputIgnition switch ON → OFF0 -1.0 V
↓
Battery voltage
↓
0 V
Ignition switch ON 0 - 1.0 V
72
(R/B)Ground Starter relay control InputIgnition
switch ONSelector lever in any posi-
tion other than P or N0 V
Selector lever P or N Battery voltage
74
(Y)Ground Ignition relay power supply Output
Ignition switch OFF 0 V
Ignition switch ON Battery voltage Te r m i n a l N o .
(Wire color)Description
ConditionVa l u e
(Approx.)
Signal nameInput/
Output +−

Page 3504 of 5121

NISSAN TEANA 2008 Service Manual PCS
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PCS-113
< ECU DIAGNOSIS >[POWER DISTRIBUTION SYSTEM]
C
D
E
F
G
H
I
J
K
L B A
O
P N
75
(P/L)Ground Oil pressure switch InputIgnition
sw
