Page 4233 of 5121
CRASH ZONE SENSOR
SR-19
< ON-VEHICLE REPAIR >
C
D
E
F
G
I
J
K
L
MA
B
SR
N
O
P
3. Disconnect crash zone sensor harness connector (A).
4. Remove the crash zone sensor (1) fixing nuts (B), and then
remove crash zone sensor.
CAUTION:
Never impact the crash zone sensor.
Replace the crash zone sensor if it has been dropped or sus-
tained an impact.
Replace the crash zone sensor of deployed SRS driver air bag and deployed SRS front passenger air
bag.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Never use old fixing nuts after removal; replace with new nuts.
In the case that a malfunction is detected by the air bag warning lamp, after repair or replacement of
the malfunctioning parts, reset the memory by self-diagnosis or by CONSULT-III.
After the work is completed, check that no system malfunction is detected by air bag warning lamp.
Refer to SRC-10, "
Diagnosis Description".
JMHIA0625ZZ
JMHIA0009ZZ
Page 4234 of 5121
SR-20
< ON-VEHICLE REPAIR >
SIDE AIR BAG (SATELLITE) SENSOR
SIDE AIR BAG (SATELLITE) SENSOR
Exploded ViewINFOID:0000000003838675
Removal and InstallationINFOID:0000000003838676
WARNING:
Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3
minutes.
Never use air tools or electric tools for servicing.
REMOVAL
1. Remove the pre-tensioner seat belt retractor. Refer to SB-5, "SEAT BELT RETRACTOR : Removal and
Installation".
2. Remove the side air bag (satellite) sensor (1) fixing nuts (B).
3. Disconnect side air bag (satellite) sensor harness connector (A),
and then remove side air bag (satellite) sensor.
CAUTION:
1. Side air bag (satellite) sensor
: Vehicle front
Refer to GI-4, "
Components" for symbols in the figure.
JMHIA0626GB
JMHIA0627ZZ
Page 4235 of 5121
SIDE AIR BAG (SATELLITE) SENSOR
SR-21
< ON-VEHICLE REPAIR >
C
D
E
F
G
I
J
K
L
MA
B
SR
N
O
P
Never impact he side air bag (satellite) sensor.
Replace the side air bag (satellite) sensor if it has been
dropped or sustained an impact.
Replace the side air bag (satellite) sensor of deployed SRS front side air bag and deployed SRS side
curtain air bag.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Never use old fixing nuts after removal; replace with new nuts.
In the case that a malfunction is detected by the air bag warning lamp, after repair or replacement of
the malfunctioning parts, reset the memory by self-diagnosis or by CONSULT-III.
After the work is completed, check that no system malfunction is detected by air bag warning lamp.
Refer to SRC-10, "
Diagnosis Description".
JMHIA0009ZZ
Page 4236 of 5121
SR-22
< ON-VEHICLE REPAIR >
DIAGNOSIS SENSOR UNIT
DIAGNOSIS SENSOR UNIT
Exploded ViewINFOID:0000000003838677
Removal and InstallationINFOID:0000000003838678
WARNING:
Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3
minutes.
Before disconnecting the diagnosis sensor unit harness connector, be sure to disconnect each har-
ness connector of the air bag module and pre-tensioner seat belt to prevent air bag deployment by
static electricity and pre-tensioner seat belt operation.
Never use air tools or electric tools for servicing.
REMOVAL
1. Disconnect each connector of all air bag modules and pre-tensioner seat belts.
2. Remove the center console assembly. Refer to IP-22, "
Removal and Installation".
3. Remove the rear ventilator duct. Refer to VTL-53, "
REAR VENTILATOR DUCT 1 : Exploded View".
1. Bracket 2. Diagnosis sensor unit
: Vehicle front
Refer to GI-4, "
Components" for symbols in the figure.
JMHIA0628GB
Page 4237 of 5121

DIAGNOSIS SENSOR UNIT
SR-23
< ON-VEHICLE REPAIR >
C
D
E
F
G
I
J
K
L
MA
B
SR
N
O
P
4. Disconnect diagnosis sensor unit (1) harness connectors (A).
5. Remove harness clip (B).
6. Remove fixing bolts (C), and then remove diagnosis sensor unit.
CAUTION:
Never impact the diagnosis sensor unit.
Replace the diagnosis sensor unit if it has been dropped or
sustained an impact.
Replace the diagnosis sensor unit of deployed SRS air bag and deployed SRS front seat belt pre-ten-
sioner.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Never use old fixing bolts after removal; replace with new fixing bolts.
In the case that a malfunction is detected by the air bag warning lamp, after repair or replacement of
the malfunctioning parts, reset the memory by self-diagnosis or by CONSULT-III.
After the work is completed, check that no system malfunction is detected by air bag warning lamp.
Refer to SRC-10, "
Diagnosis Description".
ECU DISCRIMINATED NO.
After replacing the diagnosis sensor unit, confirm that the diagnosis sensor unit identification is correct for the
vehicle as equipped.
JMHIA0629ZZ
JMHIA0009ZZ
SpecificationECU DISCRIMINATED
No.
VQ25DE Driver and passenger air bag, front seat belt pre-tensioner and
front side air bag AE07
Driver and passenger air bag, front seat belt pre-tensioner, front
side air bag and side curtain air bag
AE09
VQ35DEDriver and passenger air bag, front seat belt pre-tensioner, front
side air bag and side curtain air bag
Page 4238 of 5121
SR-24
< ON-VEHICLE REPAIR >
FRONT SEAT BELT PRE-TENSIONER
FRONT SEAT BELT PRE-TENSIONER
Removal and InstallationINFOID:0000000003838679
For removal and installation procedures, refer to SB-5, "SEAT BELT RETRACTOR : Removal and Installa-
tion".
Page 4239 of 5121

DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
SR-25
< ON-VEHICLE REPAIR >
C
D
E
F
G
I
J
K
L
MA
B
SR
N
O
P

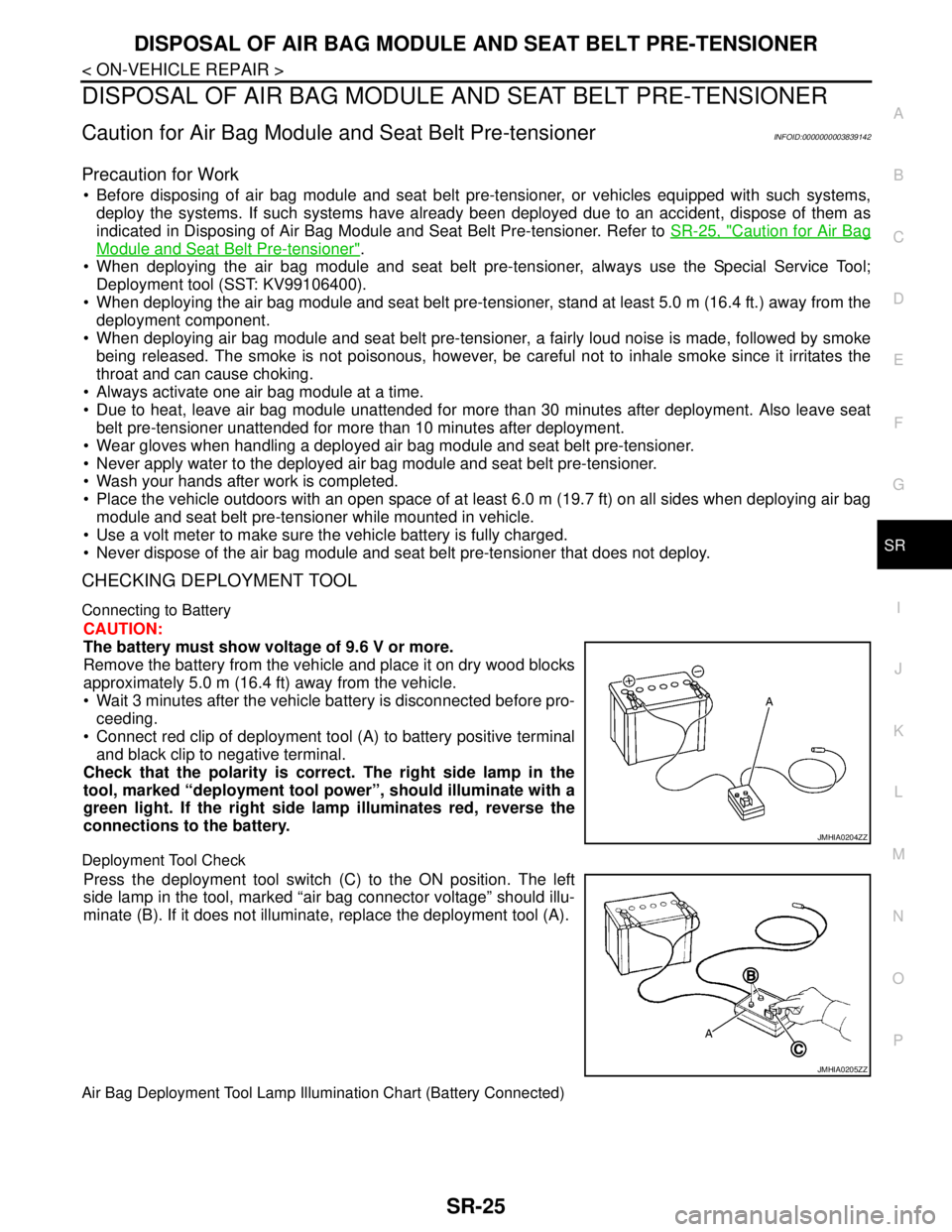

DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
Caution for Air Bag Module and Seat Belt Pre-tensionerINFOID:0000000003839142
Precaution for Work
Before disposing of air bag module and seat belt pre-tensioner, or vehicles equipped with such systems,
deploy the systems. If such systems have already been deployed due to an accident, dispose of them as
indicated in Disposing of Air Bag Module and Seat Belt Pre-tensioner. Refer to SR-25, "
Caution for Air Bag
Module and Seat Belt Pre-tensioner".
When deploying the air bag module and seat belt pre-tensioner, always use the Special Service Tool;
Deployment tool (SST: KV99106400).
When deploying the air bag module and seat belt pre-tensioner, stand at least 5.0 m (16.4 ft.) away from the
deployment component.
When deploying air bag module and seat belt pre-tensioner, a fairly loud noise is made, followed by smoke
being released. The smoke is not poisonous, however, be careful not to inhale smoke since it irritates the
throat and can cause choking.
Always activate one air bag module at a time.
Due to heat, leave air bag module unattended for more than 30 minutes after deployment. Also leave seat
belt pre-tensioner unattended for more than 10 minutes after deployment.
Wear gloves when handling a deployed air bag module and seat belt pre-tensioner.
Never apply water to the deployed air bag module and seat belt pre-tensioner.
Wash your hands after work is completed.
Place the vehicle outdoors with an open space of at least 6.0 m (19.7 ft) on all sides when deploying air bag
module and seat belt pre-tensioner while mounted in vehicle.
Use a volt meter to make sure the vehicle battery is fully charged.
Never dispose of the air bag module and seat belt pre-tensioner that does not deploy.
CHECKING DEPLOYMENT TOOL
Connecting to Battery
CAUTION:
The battery must show voltage of 9.6 V or more.
Remove the battery from the vehicle and place it on dry wood blocks
approximately 5.0 m (16.4 ft) away from the vehicle.
Wait 3 minutes after the vehicle battery is disconnected before pro-
ceeding.
Connect red clip of deployment tool (A) to battery positive terminal
and black clip to negative terminal.
Check that the polarity is correct. The right side lamp in the
tool, marked “deployment tool power”, should illuminate with a
green light. If the right side lamp illuminates red, reverse the
connections to the battery.
Deployment Tool Check
Press the deployment tool switch (C) to the ON position. The left
side lamp in the tool, marked “air bag connector voltage” should illu-
minate (B). If it does not illuminate, replace the deployment tool (A).
Air Bag Deployment Tool Lamp Illumination Chart (Battery Connected)
JMHIA0204ZZ
JMHIA0205ZZ
Page 4240 of 5121

SR-26
< ON-VEHICLE REPAIR >
DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
*: If this lamp glows red, the tool is connected to the battery incorrectly. Reverse the connections and check the lamp glows green.

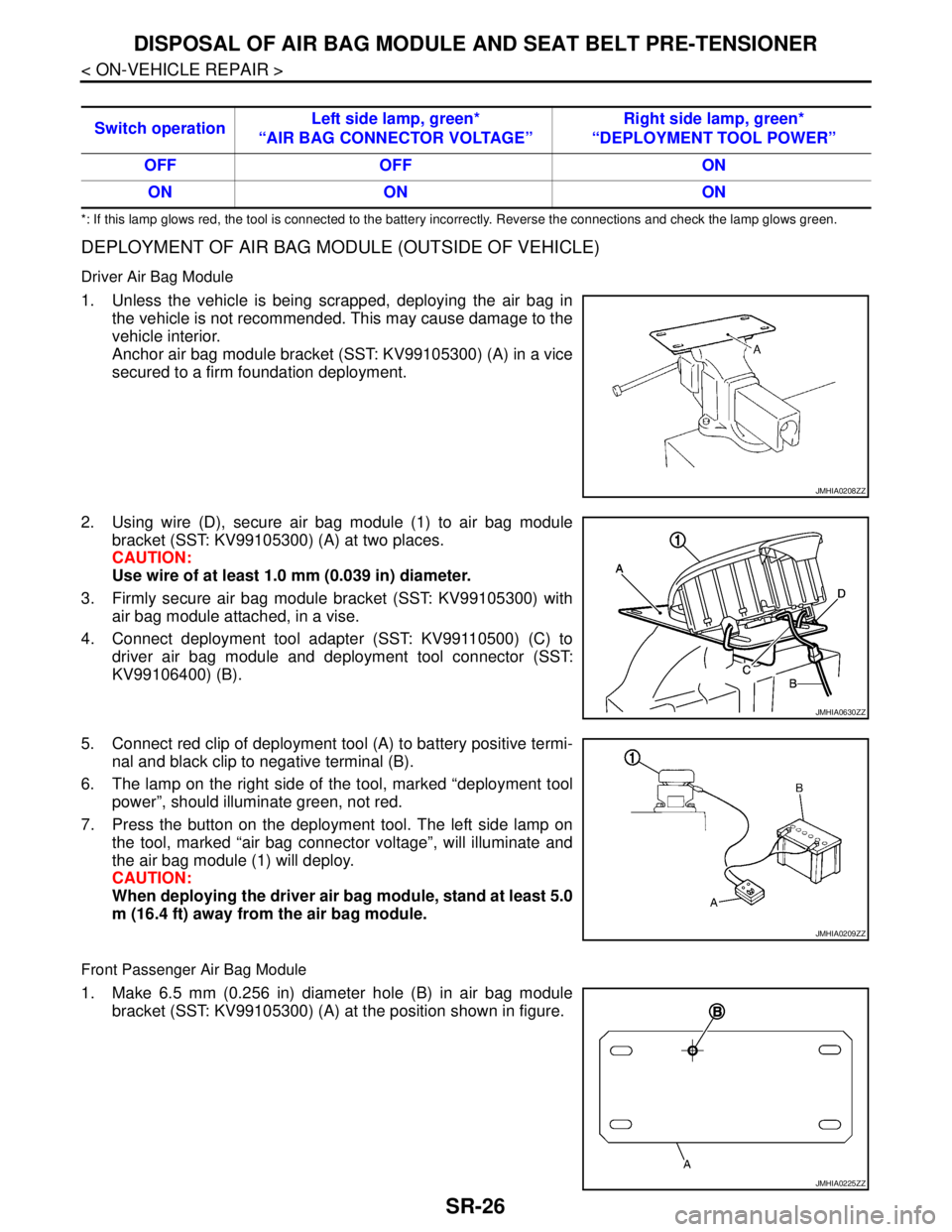

DEPLOYMENT OF AIR BAG MODULE (OUTSIDE OF VEHICLE)
Driver Air Bag Module
1. Unless the vehicle is being scrapped, deploying the air bag in
the vehicle is not recommended. This may cause damage to the
vehicle interior.
Anchor air bag module bracket (SST: KV99105300) (A) in a vice
secured to a firm foundation deployment.
2. Using wire (D), secure air bag module (1) to air bag module
bracket (SST: KV99105300) (A) at two places.
CAUTION:
Use wire of at least 1.0 mm (0.039 in) diameter.
3. Firmly secure air bag module bracket (SST: KV99105300) with
air bag module attached, in a vise.
4. Connect deployment tool adapter (SST: KV99110500) (C) to
driver air bag module and deployment tool connector (SST:
KV99106400) (B).
5. Connect red clip of deployment tool (A) to battery positive termi-
nal and black clip to negative terminal (B).
6. The lamp on the right side of the tool, marked “deployment tool
power”, should illuminate green, not red.
7. Press the button on the deployment tool. The left side lamp on
the tool, marked “air bag connector voltage”, will illuminate and
the air bag module (1) will deploy.
CAUTION:
When deploying the driver air bag module, stand at least 5.0
m (16.4 ft) away from the air bag module.
Front Passenger Air Bag Module
1. Make 6.5 mm (0.256 in) diameter hole (B) in air bag module
bracket (SST: KV99105300) (A) at the position shown in figure. Switch operationLeft side lamp, green*
“AIR BAG CONNECTOR VOLTAGE”Right side lamp, green*
“DEPLOYMENT TOOL POWER”
OFF OFF ON
ON ON ON
JMHIA0208ZZ
JMHIA0630ZZ
JMHIA0209ZZ
JMHIA0225ZZ
