NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) WW-61 < ECU DIAGNOSIS > C D E F G H I J K MA B WW N O P 111 (L/Y)GroundSteering lock unit communicationInput/ OutputSteering lockLOCK status Battery voltage LOCK or UNLOCK F

Page 5074 of 5121

NISSAN TEANA 2008 Service Manual WW-62 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) 124 (R/B)GroundPassenger door switchInputPassenger door switchOFF (When passenger door closes) 11 . 8 V ON (When passenger door opens)0 V 128 (GR

Page 5075 of 5121

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) WW-63 < ECU DIAGNOSIS > C D E F G H I J K MA B WW N O P 141 (L/O)Ground Security indicator Output Security indicatorON 0 V Blinking 11.3 V OFF Battery voltage 142 (LG/B)Groun

Page 5076 of 5121

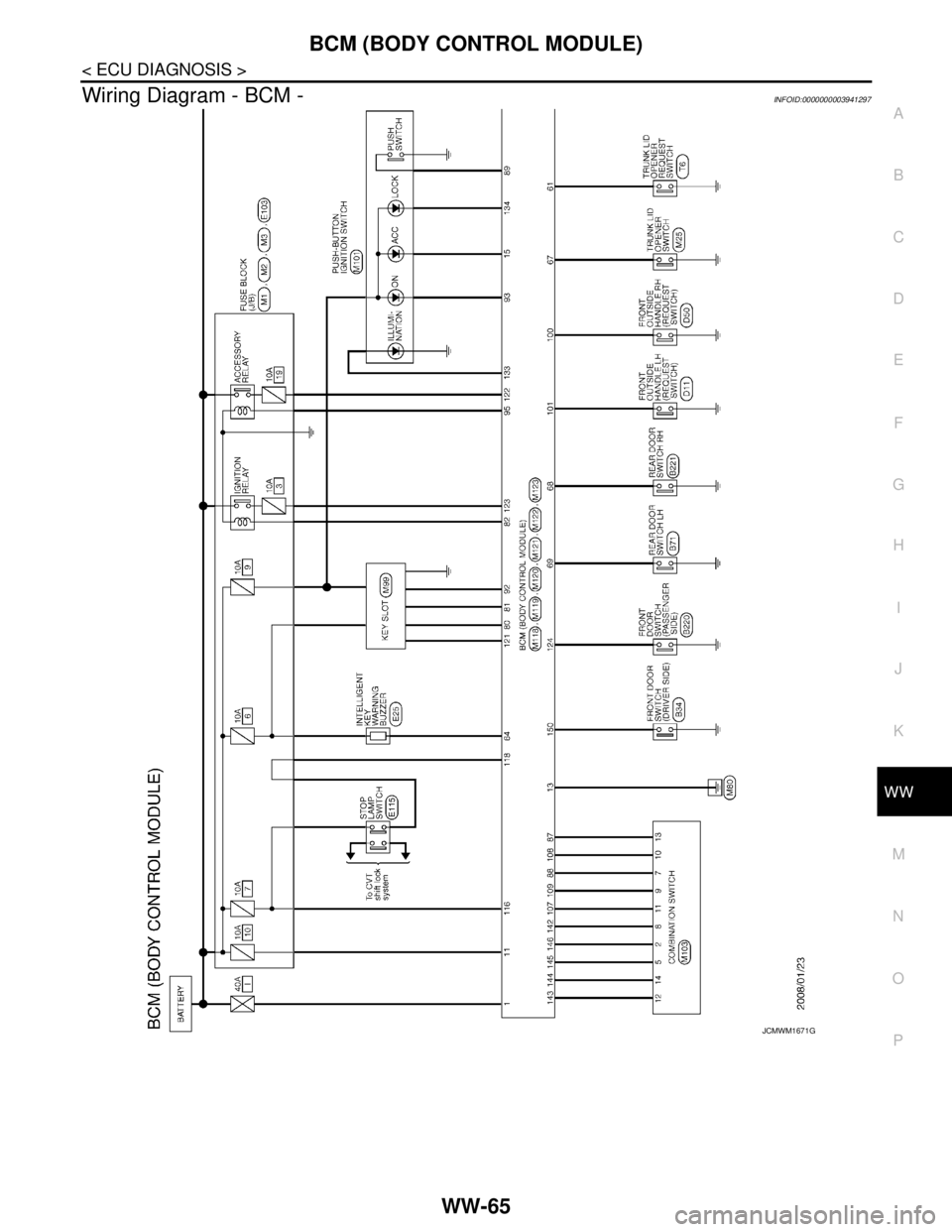

NISSAN TEANA 2008 Service Manual WW-64 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) NOTE: *: Without BOSE audio system145 (LG/R)GroundCombination switch OUTPUT 3OutputCombination switch (Wiper intermit- tent dial 4)All switch OFF 0

Page 5077 of 5121

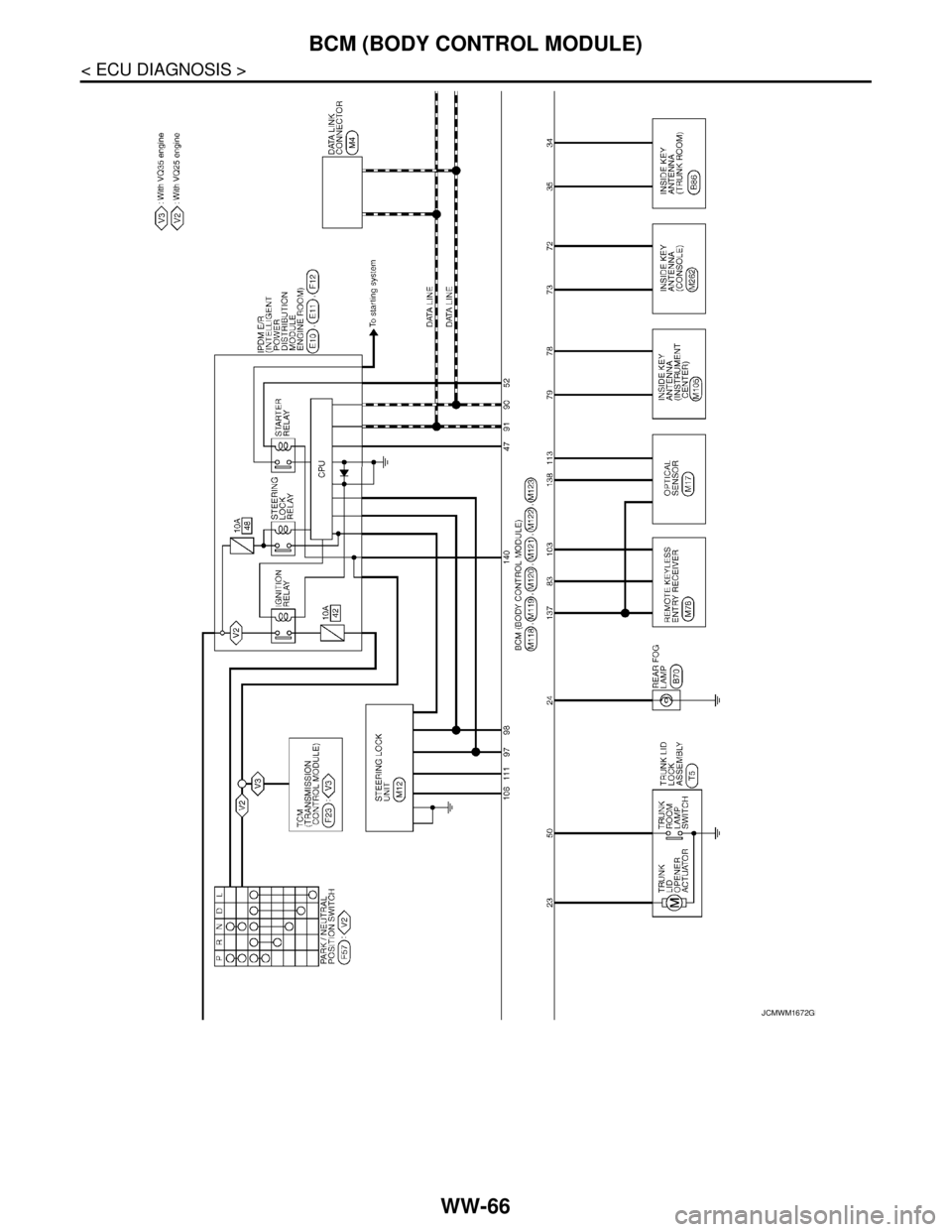

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) WW-65 < ECU DIAGNOSIS > C D E F G H I J K MA B WW N O P Wiring Diagram - BCM -INFOID:0000000003941297 JCMWM1671GB

Page 5078 of 5121

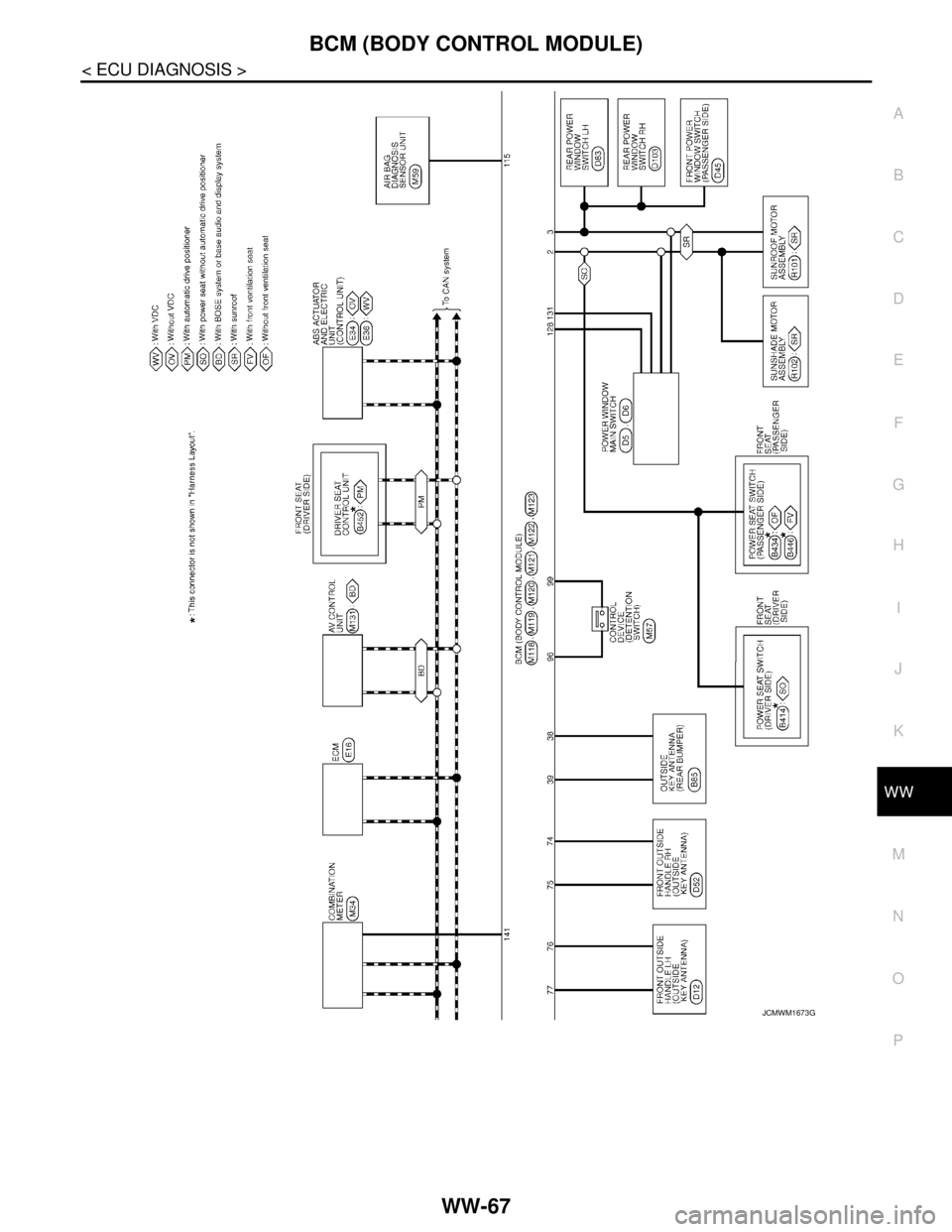

NISSAN TEANA 2008 Service Manual WW-66 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) JCMWM1672GB

Page 5079 of 5121

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) WW-67 < ECU DIAGNOSIS > C D E F G H I J K MA B WW N O P JCMWM1673GB

Page 5080 of 5121

NISSAN TEANA 2008 Service Manual WW-68 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) JCMWM1674GB
