Page 1441 of 5121
FRONT DOOR LOCK
DLK-225
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
5. Remove door side grommet, and loosen TORX bolt from grom-
met hole.
CAUTION:
Never remove TORX bolt forcibly.
6. Reach in to separate key rod (2) connection [on the door key
cylinder assembly (1)] (driver side).
7. While pulling outside handle, remove door key cylinder assem-
bly (driver side) or outside handle escutcheon (passenger side).
8. While pulling outside handle (1), slide toward rear of vehicle to
remove outside handle.
9. Remove front gasket and rear gasket.
: TORX bolt
JMKIA2094ZZ
JMKIA0553ZZ
JMKIA0560ZZ
JMKIA0524ZZ
Page 1442 of 5121
DLK-226
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
FRONT DOOR LOCK
10. While pulling outside handle bracket, slide toward rear of vehicle
to remove outside handle bracket.
11. Reach in to separate outside handle cable connection on outside handle bracket.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
When installing each rod, rotate rod holder until a click is felt.
Check door open/close, lock/unlock operation after installation.
JMKIA2303ZZ
Page 1443 of 5121
![NISSAN TEANA 2008 Service Manual REAR DOOR LOCK
DLK-227
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
REAR DOOR LOCK
DOOR LOCK
DOOR LOCK : Exploded ViewINFOID:0000000003813432
DOOR LOCK : Removal NISSAN TEANA 2008 Service Manual REAR DOOR LOCK
DLK-227
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
REAR DOOR LOCK
DOOR LOCK
DOOR LOCK : Exploded ViewINFOID:0000000003813432
DOOR LOCK : Removal](/manual-img/5/57391/w960_57391-1442.png)
REAR DOOR LOCK
DLK-227
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
REAR DOOR LOCK
DOOR LOCK
DOOR LOCK : Exploded ViewINFOID:0000000003813432
DOOR LOCK : Removal and InstallationINFOID:0000000003813433
REMOVAL
1. Remove outside handle. Refer to DLK-229, "OUTSIDE HANDLE : Removal and Installation".
2. Remove rear door finisher. Refer to INT-36, "
Removal and Installation".
3. Remove sealing screen. Refer to GW-23, "
Removal and Installation".
4. Remove corner piece assembly. Refer to GW-23, "
Exploded View".
5. Fully close the rear door glass.
6. Reach in to separate outside handle cable connection on outside handle bracket.
7. Remove door lock TORX bolts.
8. Remove door lock assembly.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Check door open/close, lock/unlock operation after installation.
INSIDE HANDLE
1. Outside handle 2. Outside handle escutcheon 3. Rear gasket
4. TORX bolt 5. Door lock assembly 6. Inside handle escutcheon
7. Inside handle 8. Seal 9. Outside handle bracket
10. Front gasket
: Vehicle front
Refer to GI-4, "
Components" for symbols in the figure.
JMKIA2387GB
Page 1444 of 5121
DLK-228
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
REAR DOOR LOCK
INSIDE HANDLE : Exploded View
INFOID:0000000003817719
INSIDE HANDLE : Removal and InstallationINFOID:0000000003813435
REMOVAL
1. Remove rear door finisher. Refer to INT-36, "Removal and Installation".
2. Disconnect inside handle cable.
3. Remove inside handle mounting screws, and then remove inside handle.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Check door open/close, lock/unlock operation after installation.
OUTSIDE HANDLE
1. Outside handle 2. Outside handle escutcheon 3. Rear gasket
4. TORX bolt 5. Door lock assembly 6. Inside handle escutcheon
7. Inside handle 8. Seal 9. Outside handle bracket
10. Front gasket
: Vehicle front
Refer to GI-4, "
Components" for symbols in the figure.
JMKIA2387GB
Page 1445 of 5121
REAR DOOR LOCK
DLK-229
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
OUTSIDE HANDLE : Exploded ViewINFOID:0000000003817720
OUTSIDE HANDLE : Removal and InstallationINFOID:0000000003813437
REMOVAL
1. Remove door side grommet, and loosen TORX bolt from grom-
met hole.
CAUTION:
Never remove TORX bolt forcibly.
1. Outside handle 2. Outside handle escutcheon 3. Rear gasket
4. TORX bolt 5. Door lock assembly 6. Inside handle escutcheon
7. Inside handle 8. Seal 9. Outside handle bracket
10. Front gasket
: Vehicle front
Refer to GI-4, "
Components" for symbols in the figure.
JMKIA2387GB
: TORX bolt
JMKIA1467ZZ
Page 1446 of 5121
DLK-230
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
REAR DOOR LOCK
2. While pulling outside handle, remove outside handle escutch-
eon.
3. While pulling outside handle (1), slide toward rear of vehicle to
remove outside handle.
4. Remove rear door finisher. Refer to INT-36, "
Removal and Installation".
5. Remove sealing screen. Refer to GW-23, "
Removal and Installation".
6. Fully close rear door glass.
7. Remove front gasket and rear gasket.
8. While pulling outside handle bracket, slide toward rear of vehicle
to remove outside handle bracket.
9. Reach in to separate outside handle cable connection on outside handle bracket.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Check door open/close, lock/unlock operation after installation.
JMKIA0560ZZ
JMKIA0524ZZ
JMKIA2303ZZ
Page 1447 of 5121
TRUNK LID LOCK
DLK-231
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
TRUNK LID LOCK
Exploded ViewINFOID:0000000003819768
Removal and InstallationINFOID:0000000003813439
REMOVAL
1. Remove trunk lid finisher inner. Refer to INT-59, "Removal and Installation".
2. Disconnect trunk lid opener cable.
3. Disconnect trunk lid lock assembly and trunk lid opener switch connectors.
4. Remove mounting bolts and remove trunk lid lock assembly.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Check trunk lid open/close, lock/unlock operation after installation.
1. Trunk lid 2. Trunk lid weather-strip 3. Cap
4. Stopper 5. Trunk lid hinge 6. Trunk lid striker
7. Bumper rubber 8. Trunk lid lock assembly 9. Trunk lid stay
A : Center mark (upper) B. : Center mark (lower)
Refer to GI-4, "
Components" for symbols in the figure.
JMKIA2389GB

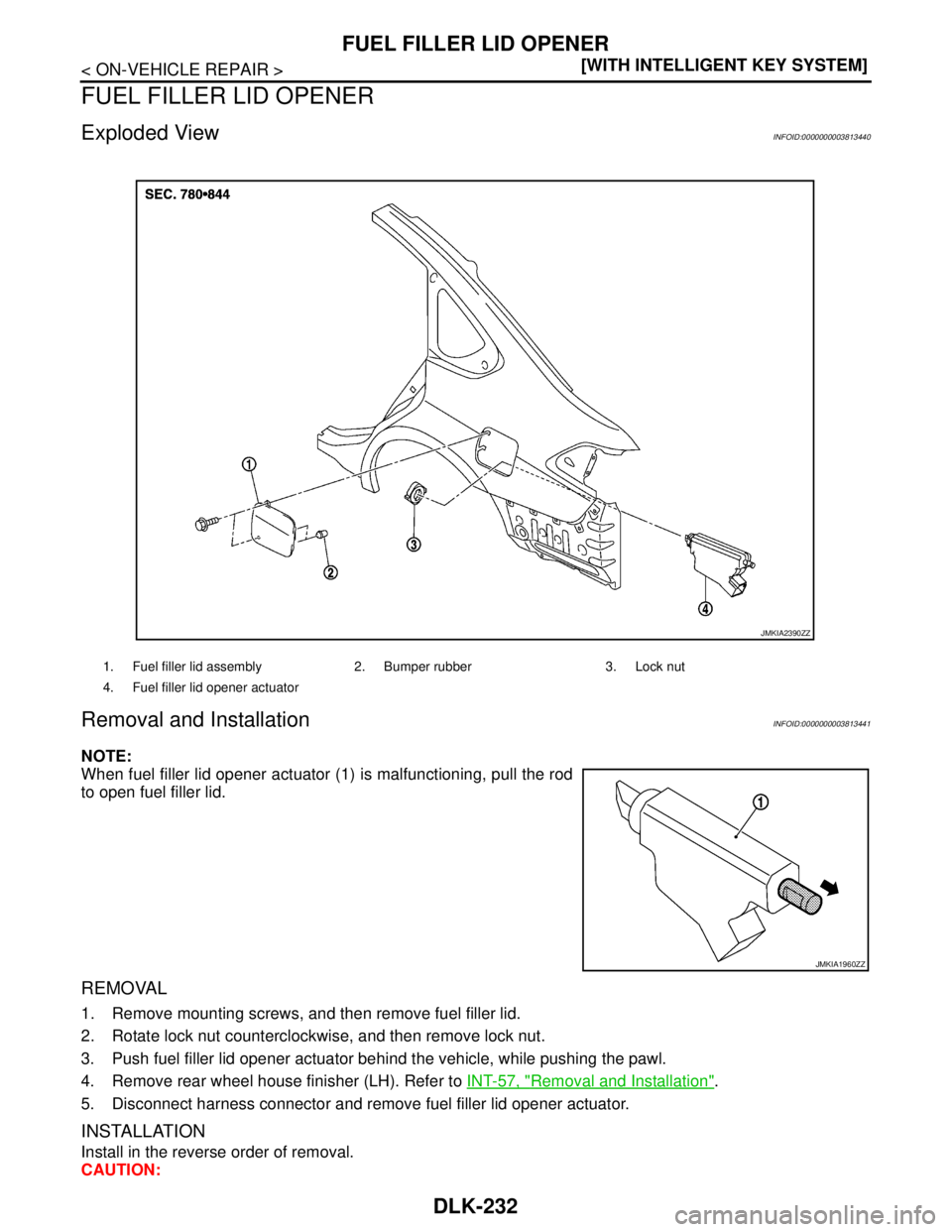

Page 1448 of 5121
DLK-232
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]
FUEL FILLER LID OPENER
FUEL FILLER LID OPENER
Exploded ViewINFOID:0000000003813440
Removal and InstallationINFOID:0000000003813441
NOTE:
When fuel filler lid opener actuator (1) is malfunctioning, pull the rod
to open fuel filler lid.
REMOVAL
1. Remove mounting screws, and then remove fuel filler lid.
2. Rotate lock nut counterclockwise, and then remove lock nut.
3. Push fuel filler lid opener actuator behind the vehicle, while pushing the pawl.
4. Remove rear wheel house finisher (LH). Refer to INT-57, "
Removal and Installation".
5. Disconnect harness connector and remove fuel filler lid opener actuator.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
1. Fuel filler lid assembly 2. Bumper rubber 3. Lock nut
4. Fuel filler lid opener actuator
JMKIA2390ZZ
JMKIA1960ZZ
