Page 4969 of 5121

NISSAN TEANA 2008 Service Manual WCS
COMBINATION METER
WCS-39
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
Fail-SafeINFOID:0000000003838732
FA I L - S A F E
The combination meter activates the fail-safe control if CAN communication

Page 4970 of 5121

NISSAN TEANA 2008 Service Manual WCS-40
< ECU DIAGNOSIS >
COMBINATION METER
DTC Index
INFOID:0000000003838733
Function Specifications
Speedometer
Reset to zero by suspending communication. Tachometer
Water temperature gauge
Illuminat

WCS-40
< ECU DIAGNOSIS >
COMBINATION METER
DTC Index
INFOID:0000000003838733
Function Specifications
Speedometer
Reset to zero by suspending communication. Tachometer
Water temperature gauge
Illumination controlWhen suspending communication, changes to nighttime
mode.
Information displayDoor open warning
The display turns off by suspending communication. Trunk open warning
Parking brake release warning
Instantaneous fuel warning When reception time of an abnormal signal is 2 seconds or
less, the last received datum is used for calculation to indi-
cate the result.
When reception time of an abnormal signal is more than two
seconds, the last result calculated during normal condition
is indicated. Average fuel consumption
Average vehicle speed
Travel distance
Buzzer The buzzer turns off by suspending communication.
Warning lamp/indicator
lampABS warning lamp
The lamp turns on by suspending communication. VDC OFF indicator lamp
SLIP indicator lamp
Brake warning lamp
High beam indicator lamp
The lamp turns off by suspending communication. Front fog light indicator lamp
Rear fog light indicator lamp
Turn signal indicator lamp
Light indicator lamp
Oil pressure warning lamp
Malfunction indicator lamp
CRUISE indicator lamp
SPORT indicator lamp
Key warning lamp
Display contents of CONSULT-III Diagnostic item is detected when ... Refer to
CAN COMM CIRCUIT
[U1000]When combination meter is not transmitting or receiving CAN communication signal
for 2 seconds or more.MWI-37,
"Diagnosis
Procedure"
CONTROL UNIT (CAN)
[U1010]When detecting error during the initial diagnosis of the CAN controller of combina-
tion meter.MWI-38, "Diagnosis
Procedure"
VEHICLE SPEED
[B2205]The abnormal vehicle speed signal is input from the ABS actuator and electric unit
(control unit) for 2 seconds or more.MWI-39, "Diagnosis
Procedure"
ENGINE SPEED
[B2267]If ECM continuously transmits abnormal engine speed signals for 2 seconds or
more.MWI-40, "Diagnosis
Procedure"
WATER TEMP
[B2268]If ECM continuously transmits abnormal engine coolant temperature signals for 60
seconds or more.MWI-41, "Diagnosis
Procedure"

Page 4971 of 5121

NISSAN TEANA 2008 Service Manual WCS
BCM (BODY CONTROL MODULE)
WCS-41
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
BCM (BODY CONTROL MODULE)
Reference ValueINFOID:0000000003900508
VALUES ON THE DIAGNOSIS TOOL
CONSULT-III MONITOR IT

Page 4972 of 5121

NISSAN TEANA 2008 Service Manual WCS-42
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)
DOOR SW-BKNOTE:
The item is indicated, but not monitored. Off
CDL LOCK SWOther than power door lock switch LOCK Off
Power door lock switch LOCK On
CD

Page 4973 of 5121

NISSAN TEANA 2008 Service Manual WCS
BCM (BODY CONTROL MODULE)
WCS-43
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
REQ SW -RRNOTE:
The item is indicated, but not monitored. Off
REQ SW -BD/TRTrunk lid opener request switch is not pr

Page 4974 of 5121

NISSAN TEANA 2008 Service Manual WCS-44
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)
S/L RELAY-REQIgnition switch in OFF or ACC position Off
Ignition switch in ON position On
VEH SPEED 1 While driving Equivalent to speedometer reading

WCS-44
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)
S/L RELAY-REQIgnition switch in OFF or ACC position Off
Ignition switch in ON position On
VEH SPEED 1 While driving Equivalent to speedometer reading
VEH SPEED 2 While driving Equivalent to speedometer reading
DOOR STAT-DRDriver door is locked LOCK
Wait with selective UNLOCK operation (5 seconds) READY
Driver door is unlocked UNLOCK
DOOR STAT-ASPassenger door is locked LOCK
Wait with selective UNLOCK operation (5 seconds) READY
Passenger door is unlocked UNLOCK
ID OK FLAGIgnition switch in ACC or ON position Reset
Ignition switch in OFF position Set
PRMT ENG STRTThe engine start is prohibited Reset
The engine start is permitted Set
PRMT RKE STRTNOTE:
The item is indicated, but not monitored. Reset
KEY SW -SLOTThe key is not inserted into key slot Off
The key is inserted into key slot On
RKE OPE COUN1 During the operation of the key Operation frequency of the key
RKE OPE COUN2NOTE:
The item is indicated, but not monitored. —
CONFRM ID ALLThe key ID that the key slot receives does not accord with any key
ID registered to BCM.Ye t
The key ID that the key slot receives accords with any key ID regis-
tered to BCM.Done
CONFIRM ID4The key ID that the key slot receives does not accord with the fourth
key ID registered to BCM.Ye t
The key ID that the key slot receives accords with the fourth key ID
registered to BCM.Done
CONFIRM ID3The key ID that the key slot receives does not accord with the third
key ID registered to BCM.Ye t
The key ID that the key slot receives accords with the third key ID
registered to BCM.Done
CONFIRM ID2The key ID that the key slot receives does not accord with the sec-
ond key ID registered to BCM.Ye t
The key ID that the key slot receives accords with the second key
ID registered to BCM.Done
CONFIRM ID1The key ID that the key slot receives does not accord with the first
key ID registered to BCM.Ye t
The key ID that the key slot receives accords with the first key ID
registered to BCM.Done
TP 4The ID of fourth key is not registered to BCM Yet
The ID of fourth key is registered to BCM Done
TP 3The ID of third key is not registered to BCM Yet
The ID of third key is registered to BCM Done
TP 2The ID of second key is not registered to BCM Yet
The ID of second key is registered to BCM Done Monitor Item Condition Value/Status

Page 4975 of 5121

NISSAN TEANA 2008 Service Manual WCS
BCM (BODY CONTROL MODULE)
WCS-45
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P

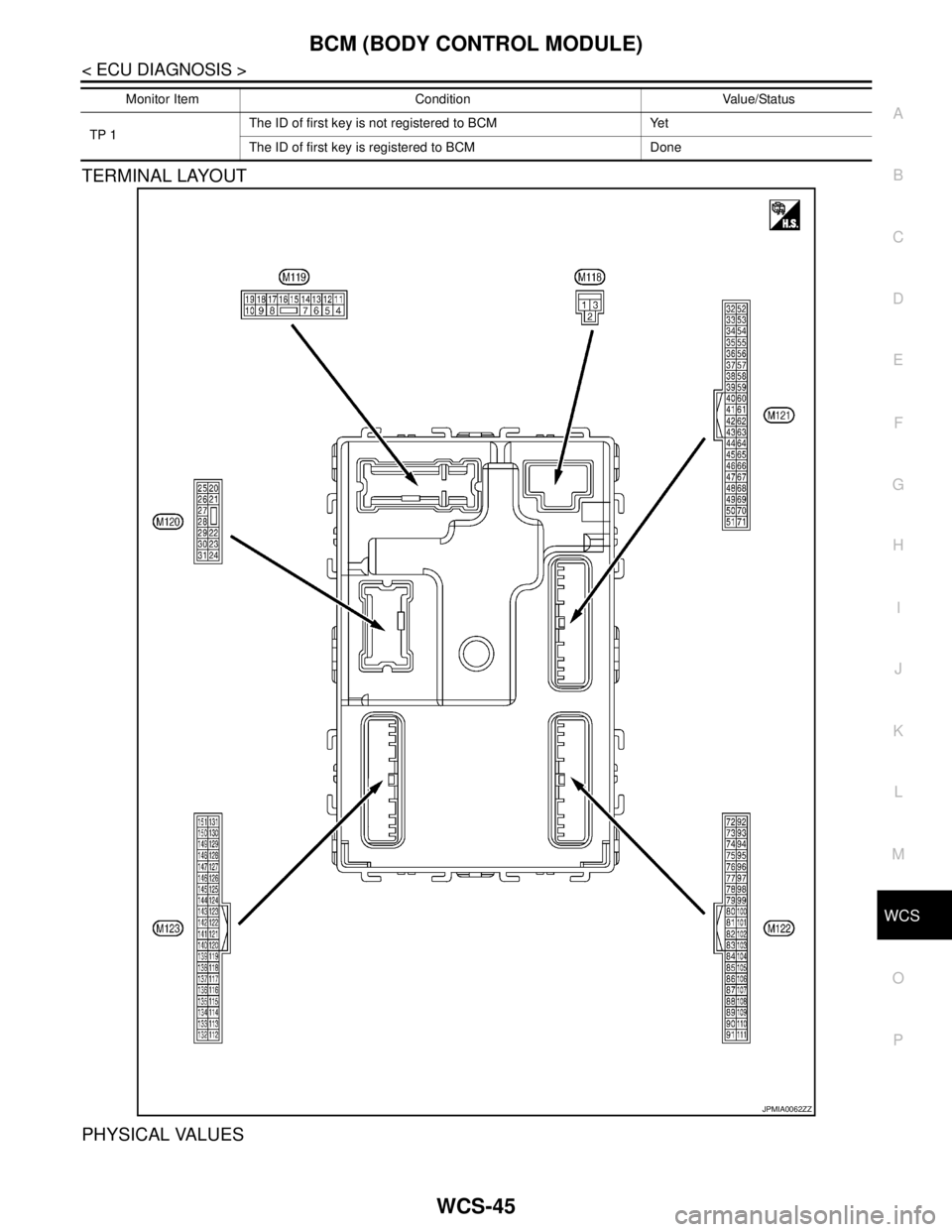

TERMINAL LAYOUT
PHYSICAL VALUES
TP 1The ID of first key is not registered to BCM Yet
The ID of first key is register

Page 4976 of 5121

NISSAN TEANA 2008 Service Manual WCS-46
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)
Te r m i n a l N o .
(Wire color)Description
ConditionVa l u e
(Approx.)
Signal nameInput/
Output +–
1
(W/B)GroundBattery power sup-
plyInput Ign
