WARNING CHIME
Revision: 2005 July 2005 FX
3. CHECK BCM INPUT SIGNAL
With CONSULT-ll
1. Select “BCM”.
2. With “DATA MONITOR” of “BUZZER”, confirm “KEY ON SW” when the key is operated.
Without CONSULT-ll
Check voltage between BCM harness connector M3 terminal 37 (B/
W) and ground.
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installa-
tion of BCM" .
NG >> GO TO 4.
4. CHECK KEY SWITCH POWER SUPPLY CIRCUIT
1. Disconnect key switch and ignition knob switch connector.
2. Check voltage between key switch and ignition knob switch har- ness connector M22 terminal 3 (L/R) and ground.
OK or NG
OK >> GO TO 5.
NG >> Check harness between key switch and ignition knob switch and fuse.
“KEY ON SW”
When key is inserted to ignition
key cylinder : ON
When key is removed from
ignition key cylinder : OFF
SKIA1960E
37 (B/W) – Ground
When key is inserted to ignition
key cylinder : Approx. 12 V
When key is removed from
ignition key cylinder : Approx. 0 V
SKIA5048E
3 (L/R) – Ground : Battery voltage
SKIA5063E
Page 1338 of 4731

WARNING CHIME DI-77
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX

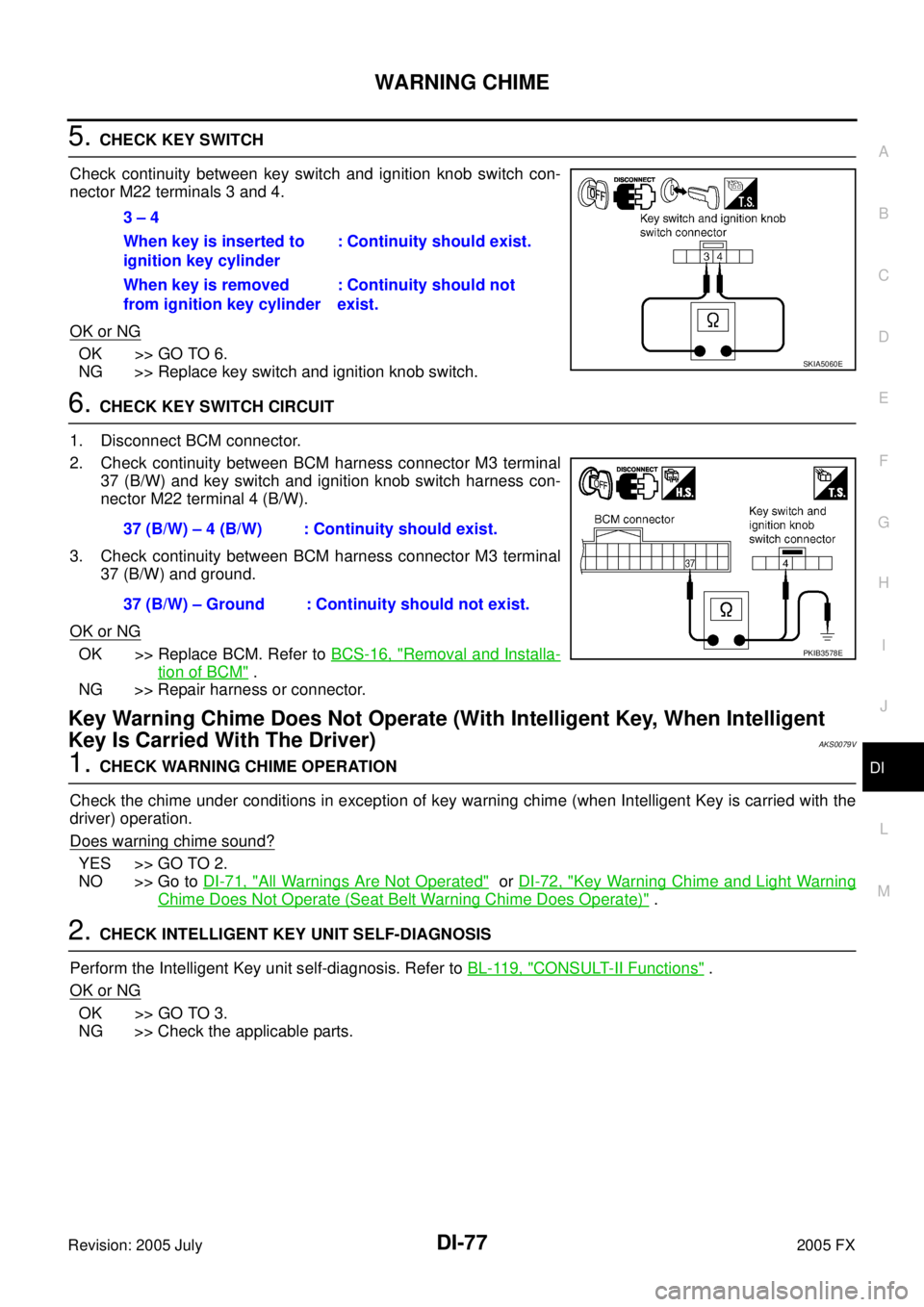

5. CHECK KEY SWITCH
Check continuity between key switch and ignition knob switch con-
nector M22 terminals 3 and 4.
OK or NG
OK >> GO TO 6.
NG >> Replace key switch and ignition knob switch.
6. CHECK KEY SWITCH CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM harness connector M3 terminal 37 (B/W) and key switch and ignition knob switch harness con-
nector M22 terminal 4 (B/W).
3. Check continuity between BCM harness connector M3 terminal 37 (B/W) and ground.
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installa-
tion of BCM" .
NG >> Repair harness or connector.
Key Warning Chime Does Not Operate (With Intelligent Key, When Intelligent
Key Is Carried With The Driver)
AKS0079V
1. CHECK WARNING CHIME OPERATION
Check the chime under conditions in exception of key warning chime (when Intelligent Key is carried with the
driver) operation.
Does warning chime sound?
YES >> GO TO 2.
NO >> Go to DI-71, "
All Warnings Are Not Operated" or DI-72, "Key Warning Chime and Light Warning
Chime Does Not Operate (Seat Belt Warning Chime Does Operate)" .
2. CHECK INTELLIGENT KEY UNIT SELF-DIAGNOSIS
Perform the Intelligent Key unit self-diagnosis. Refer to BL-119, "
CONSULT-II Functions" .
OK or NG
OK >> GO TO 3.
NG >> Check the applicable parts. 3 – 4
When key is inserted to
ignition key cylinder : Continuity should exist.
When key is removed
from ignition key cylinder : Continuity should not
exist.
SKIA5060E
37 (B/W) – 4 (B/W) : Continuity should exist.
37 (B/W) – Ground : Continuity should not exist.
PKIB3578E
Page 1339 of 4731

DI-78
WARNING CHIME
Revision: 2005 July 2005 FX

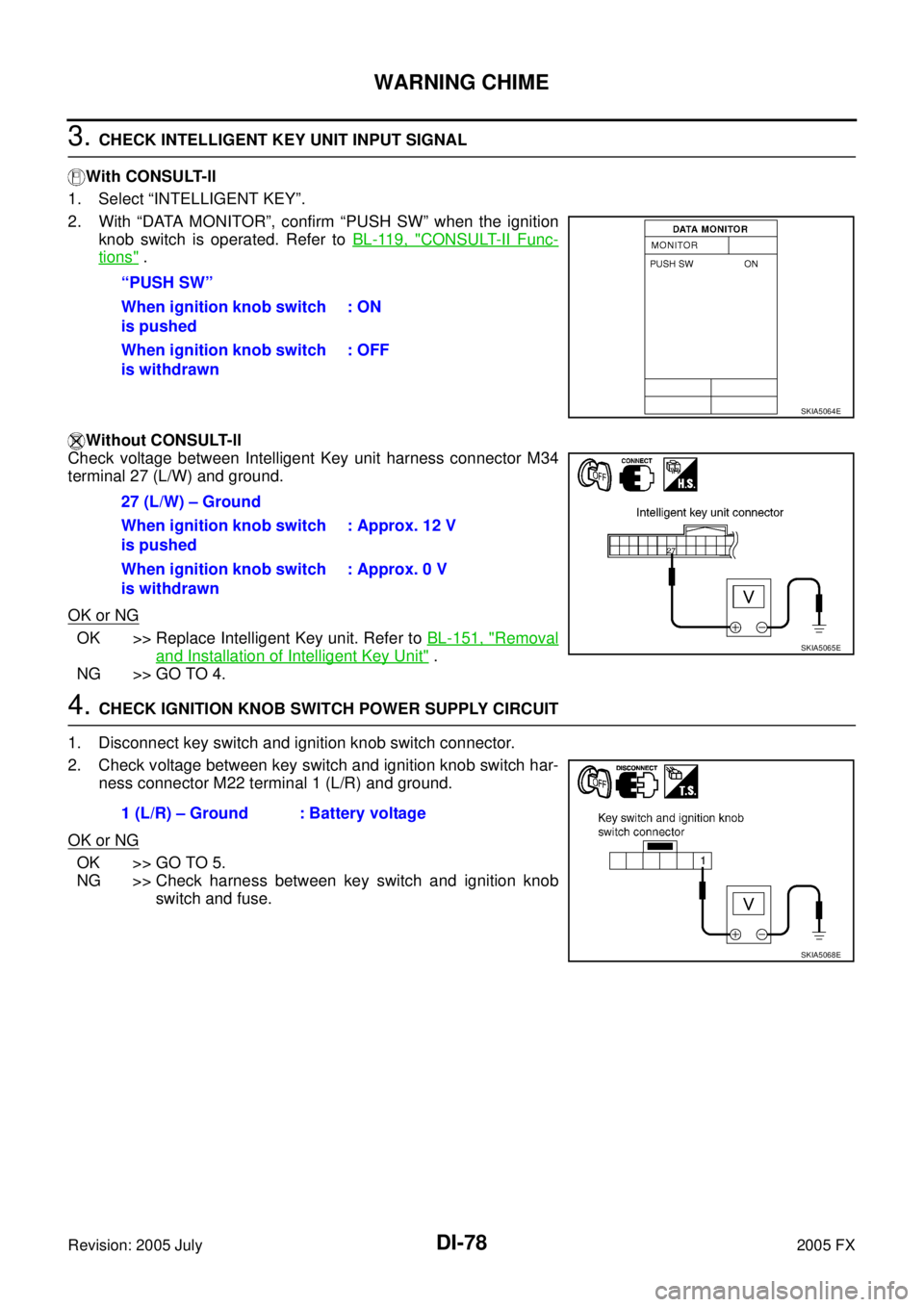

3. CHECK INTELLIGENT KEY UNIT INPUT SIGNAL
With CONSULT-ll
1. Select “INTELLIGENT KEY”.
2. With “DATA MONITOR”, confirm “PUSH SW” when the ignition knob switch is operated. Refer to BL-119, "
CONSULT-II Func-
tions" .
Without CONSULT-ll
Check voltage between Intelligent Key unit harness connector M34
terminal 27 (L/W) and ground.
OK or NG
OK >> Replace Intelligent Key unit. Refer to BL-151, "Removal
and Installation of Intelligent Key Unit" .
NG >> GO TO 4.
4. CHECK IGNITION KNOB SWITCH POWER SUPPLY CIRCUIT
1. Disconnect key switch and ignition knob switch connector.
2. Check voltage between key switch and ignition knob switch har- ness connector M22 terminal 1 (L/R) and ground.
OK or NG
OK >> GO TO 5.
NG >> Check harness between key switch and ignition knob
switch and fuse.
“PUSH SW”
When ignition knob switch
is pushed : ON
When ignition knob switch
is withdrawn : OFF
SKIA5064E
27 (L/W) – Ground
When ignition knob switch
is pushed : Approx. 12 V
When ignition knob switch
is withdrawn : Approx. 0 V
SKIA5065E
1 (L/R) – Ground : Battery voltage
SKIA5068E
Page 1340 of 4731

WARNING CHIME DI-79
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX

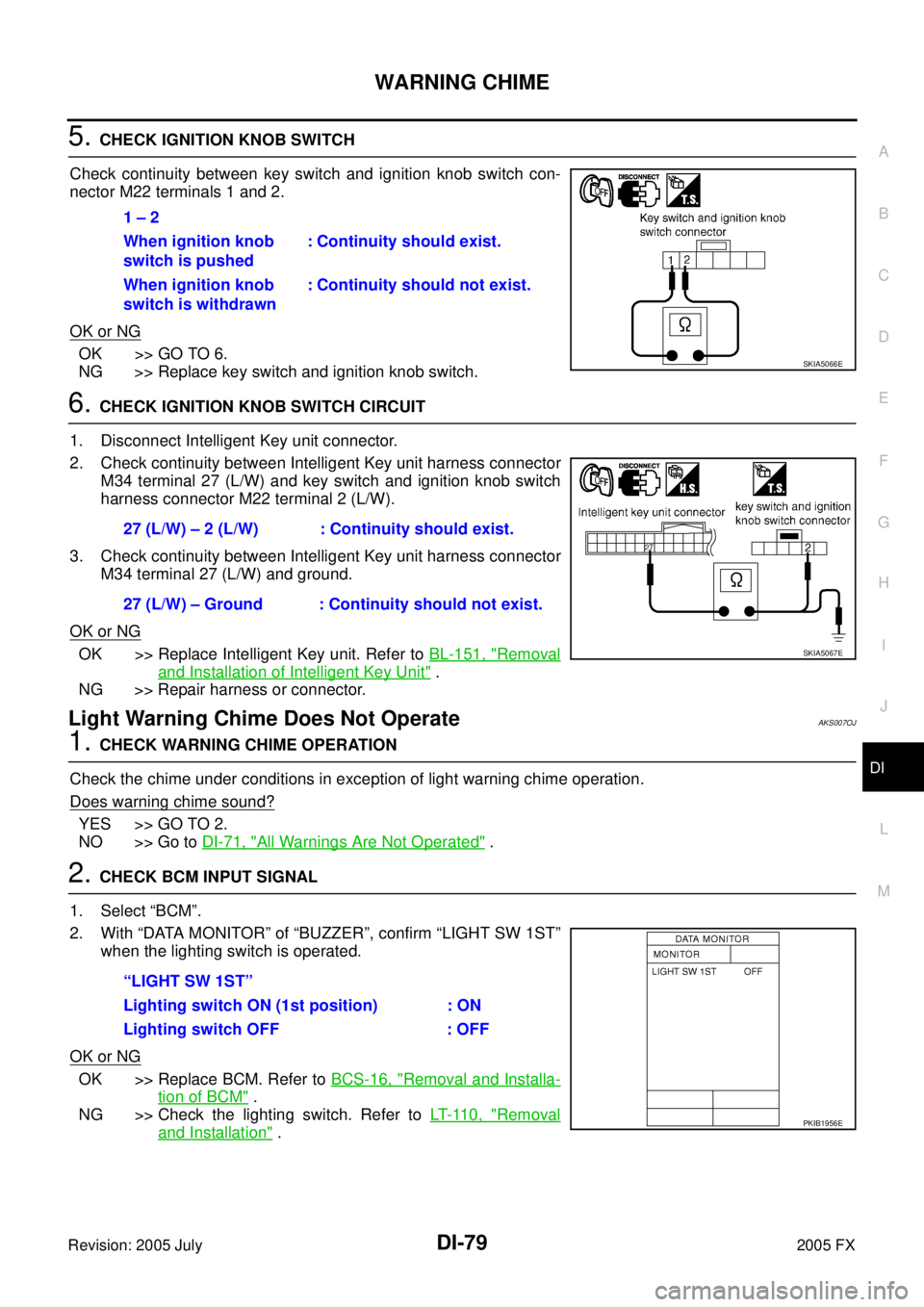

5. CHECK IGNITION KNOB SWITCH
Check continuity between key switch and ignition knob switch con-
nector M22 terminals 1 and 2.
OK or NG
OK >> GO TO 6.
NG >> Replace key switch and ignition knob switch.
6. CHECK IGNITION KNOB SWITCH CIRCUIT
1. Disconnect Intelligent Key unit connector.
2. Check continuity between Intelligent Key unit harness connector M34 terminal 27 (L/W) and key switch and ignition knob switch
harness connector M22 terminal 2 (L/W).
3. Check continuity between Intelligent Key unit harness connector M34 terminal 27 (L/W) and ground.
OK or NG
OK >> Replace Intelligent Key unit. Refer to BL-151, "Removal
and Installation of Intelligent Key Unit" .
NG >> Repair harness or connector.
Light Warning Chime Does Not OperateAKS007OJ
1. CHECK WARNING CHIME OPERATION
Check the chime under conditions in exception of light warning chime operation.
Does warning chime sound?
YES >> GO TO 2.
NO >> Go to DI-71, "
All Warnings Are Not Operated" .
2. CHECK BCM INPUT SIGNAL
1. Select “BCM”.
2. With “DATA MONITOR” of “BUZZER”, confirm “LIGHT SW 1ST” when the lighting switch is operated.
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installa-
tion of BCM" .
NG >> Check the lighting switch. Refer to LT- 11 0 , "
Removal
and Installation" .
1 – 2
When ignition knob
switch is pushed : Continuity should exist.
When ignition knob
switch is withdrawn : Continuity should not exist.
SKIA5066E
27 (L/W) – 2 (L/W) : Continuity should exist.
27 (L/W) – Ground : Continuity should not exist.
SKIA5067E
“LIGHT SW 1ST”
Lighting switch ON (1st position) : ON
Lighting switch OFF : OFF
PKIB1956E
Page 1341 of 4731

DI-80
WARNING CHIME
Revision: 2005 July 2005 FX
Seat Belt Warning Chime Does Not OperateAKS005NX
1. CHECK WARNING CHIME OPERATION
Check the chime under conditions in exception of seat belt warning chime operation.
Does warning chime sound?
YES >> GO TO 2.
NO >> Go to DI-71, "
All Warnings Are Not Operated" .

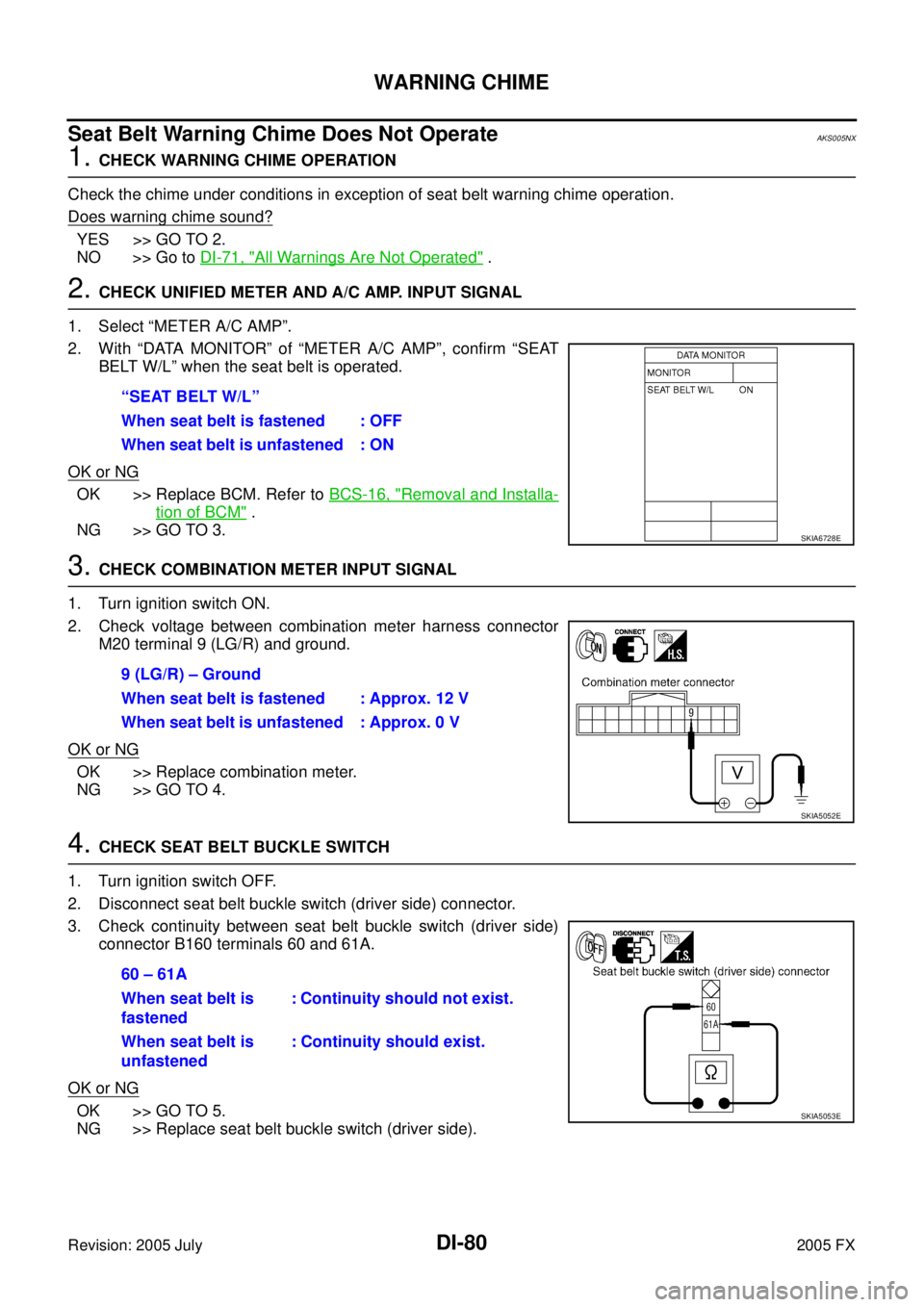

2. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Select “METER A/C AMP”.
2. With “DATA MONITOR” of “METER A/C AMP”, confirm “SEAT BELT W/L” when the seat belt is operated.
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installa-
tion of BCM" .
NG >> GO TO 3.
3. CHECK COMBINATION METER INPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between combination meter harness connector M20 terminal 9 (LG/R) and ground.
OK or NG
OK >> Replace combination meter.
NG >> GO TO 4.
4. CHECK SEAT BELT BUCKLE SWITCH
1. Turn ignition switch OFF.
2. Disconnect seat belt buckle switch (driver side) connector.
3. Check continuity between seat belt buckle switch (driver side) connector B160 terminals 60 and 61A.
OK or NG
OK >> GO TO 5.
NG >> Replace seat belt buckle switch (driver side). “SEAT BELT W/L”
When seat belt is fastened : OFF
When seat belt is unfastened : ON
SKIA6728E
9 (LG/R) – Ground
When seat belt is fastened : Approx. 12 V
When seat belt is unfastened : Approx. 0 V
SKIA5052E
60 – 61A
When seat belt is
fastened : Continuity should not exist.
When seat belt is
unfastened : Continuity should exist.
SKIA5053E
Page 1342 of 4731
WARNING CHIME DI-81
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
5. CHECK SEAT BELT BUCKLE SWITCH CIRCUIT
1. Disconnect combination meter connector.
2. Check continuity between combination meter harness connector M20 terminal 9 (LG/R) and seat belt buckle switch (driver side)
harness connector B160 terminal 60 (R/B).
3. Check harness continuity between combination meter harness connector M20 terminal 9 (LG/R) and ground.
OK or NG
OK >> Check seat belt buckle switch (driver side) ground cir- cuit.
NG >> Repair harness or connector. 9 (LG/R) – 60 (R/B) : Continuity should exist.
9 (LG/R) – Ground : Continuity should not exist.PKIB3579E
Page 1343 of 4731

DI-82
LANE DEPARTURE WARNING SYSTEM
Revision: 2005 July 2005 FX
LANE DEPARTURE WARNING SYSTEM PFP:28442
Precautions for Lane Departure Warning (LDW) systemAKS00C7T
WARNING:
Lane Departure Warning (LDW) is only a warning device to inform the driver of an unintended lane
departure. It will not steer the vehicle or prevent loss of control. It is the driver's responsibility to stay
alert, drive safely, keep the vehicle in the traveling lane, and be in control of the vehicle at all times.
LDW system does not operate under the following conditions:
–At speeds below 45 MPH (72 km/h).
–If it cannot detect lane markers.
LDW system may not function properly under the following conditions:
–On roads where a water puddle, dirt or snow is covering the lane markers.
–On roads where the lane markers are faded or are not painted clearly.
–On roads where the lane markers are painted yellow.
LDW system may not monitor the lane markers in certain road, weather or driving conditions.
–On roads where there are sharp curves.
–Where the traveling lane merges or separates.
–On roads where the discontinued lane markers are present, such as near tollgates, etc.
–On roads where there are not general lane markers.
–During bad weather (rain, fog, snow, etc.).
–When strong light (for example, at sunrise or sunset) is directly shining on the front of the vehicle.
–When entering or exiting a tunnel where sudden changes in brightness occur.
–When traveling close to the vehicle in front of you, which causes obstruction of the camera unit
range.
–When the vehicle's traveling direction does not align with the lane marker.
–When rain, snow or dirt adhere to the windshield in front of the camera unit.
Excessive noise interferes with warning system chime sound and the chime may not be heard.
CAUTION:
To keep the LDW system operating properly, be sure to observe the following:
Always keep the windshield clean. The sensing capability of the camera unit depends on the con-
dition of the windshield. See “Appearance and care” for cleaning instruction.
Never strike or damage the areas around the camera unit.
Never touch the camera lens.
Never attach a sticker (including transparent material) or install an accessory near the camera
unit.
Never place reflective materials, such as a white paper or mirrors on the instrument panel. Reflec-
tion of the sunlight may adversely affect the camera unit's lane marker detection capability.
System DescriptionAKS00C7U
LDW SYSTEM OPERATION

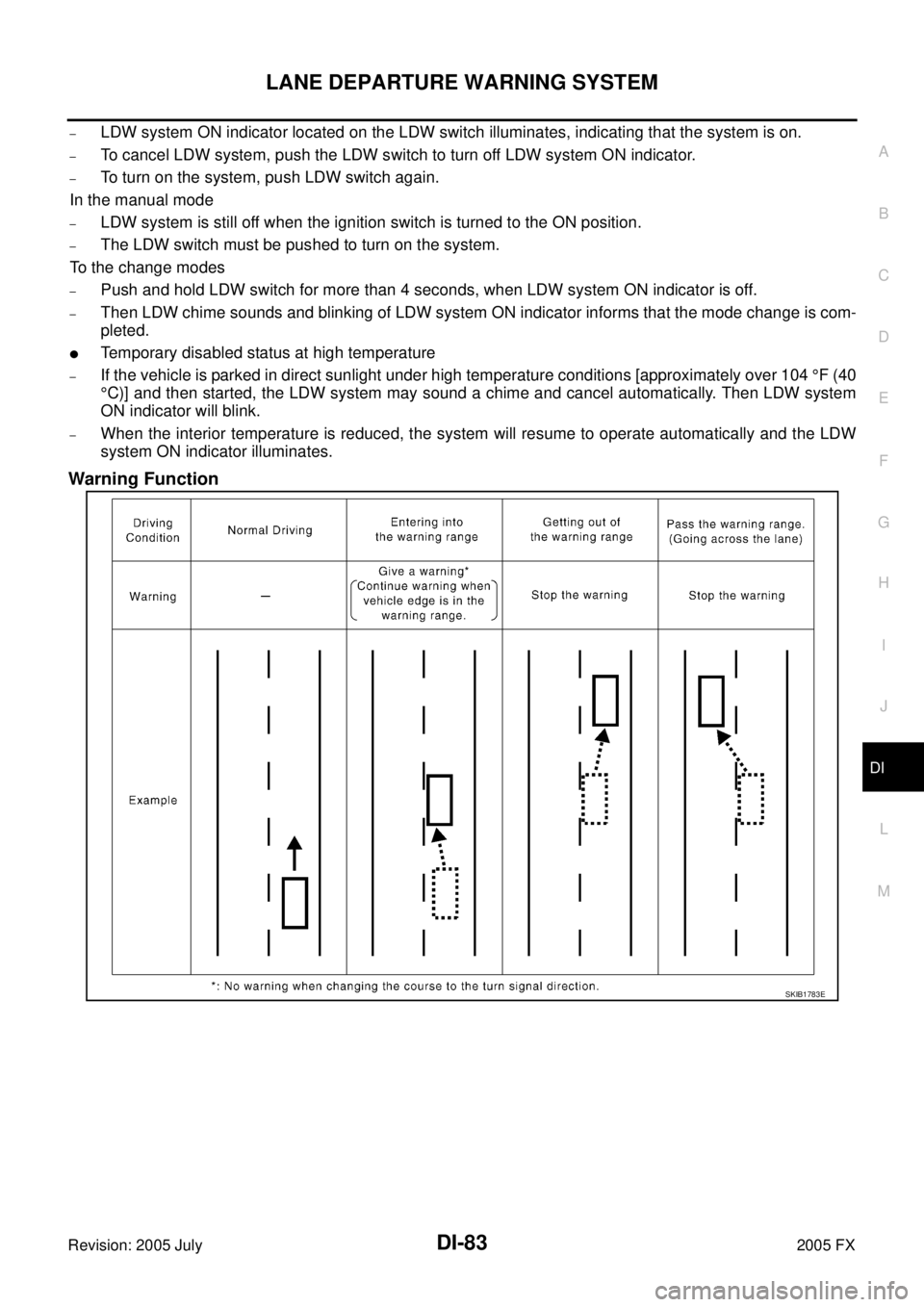

The Lane Departure Warning (LDW) system warns the driver when the vehicle is traveling close to either
the left or the right of the traveling lane.
The system monitors lane markers of the traveling lane using the LDW camera unit. When the LDW cam-
era unit detects that the vehicle is traveling close to either the left or the right of the traveling lane, the
LDW indicator lamp flashes and a chime sounds to alert the driver.
NOTE:
When activating turn signal, LDW system does not give a warning to the lane marker on the turn signal
side.
The LDW system can be turned on or off by pushing the LDW switch. When the system is on, the LDW
system ON indicator illuminates.
The LDW system has an automatic mode and manual mode.
In the automatic mode
–LDW system automatically turns on, when the ignition switch is turned to the ON position.
Page 1344 of 4731

LANE DEPARTURE WARNING SYSTEM DI-83
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
–LDW system ON indicator located on the LDW switch illuminates, indicating that the system is on.
–To cancel LDW system, push the LDW switch to turn off LDW system ON indicator.
–To turn on the system, push LDW switch again.
In the manual mode
–LDW system is still off when the ignition switch is turned to the ON position.
–The LDW switch must be pushed to turn on the system.
To the change modes
–Push and hold LDW switch for more than 4 seconds, when LDW system ON indicator is off.
–Then LDW chime sounds and blinking of LDW system ON indicator informs that the mode change is com-
pleted.
Temporary disabled status at high temperature
–If the vehicle is parked in direct sunlight under high temperature conditions [approximately over 104 °F (40
° C)] and then started, the LDW system may sound a chime and cancel automatically. Then LDW system
ON indicator will blink.
–When the interior temperature is reduced, the system will resume to operate automatically and the LDW
system ON indicator illuminates.
Warning Function
SKIB1783E
