Page 3777 of 4731

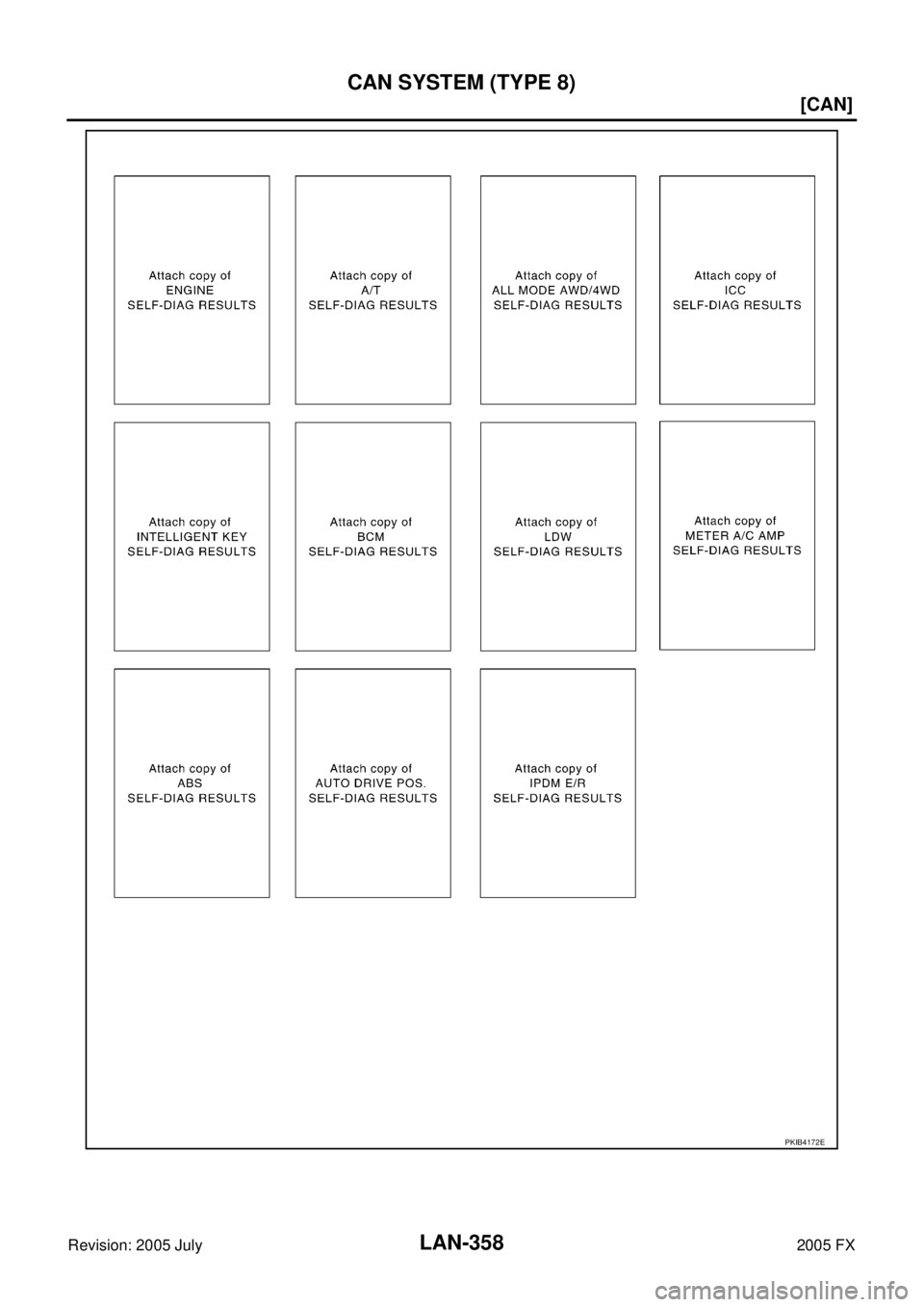

INFINITI FX35 2005 Service Manual LAN-358 [CAN] CAN SYSTEM (TYPE 8) Revision: 2005 July 2005 FX PKIB4172E

Page 3778 of 4731

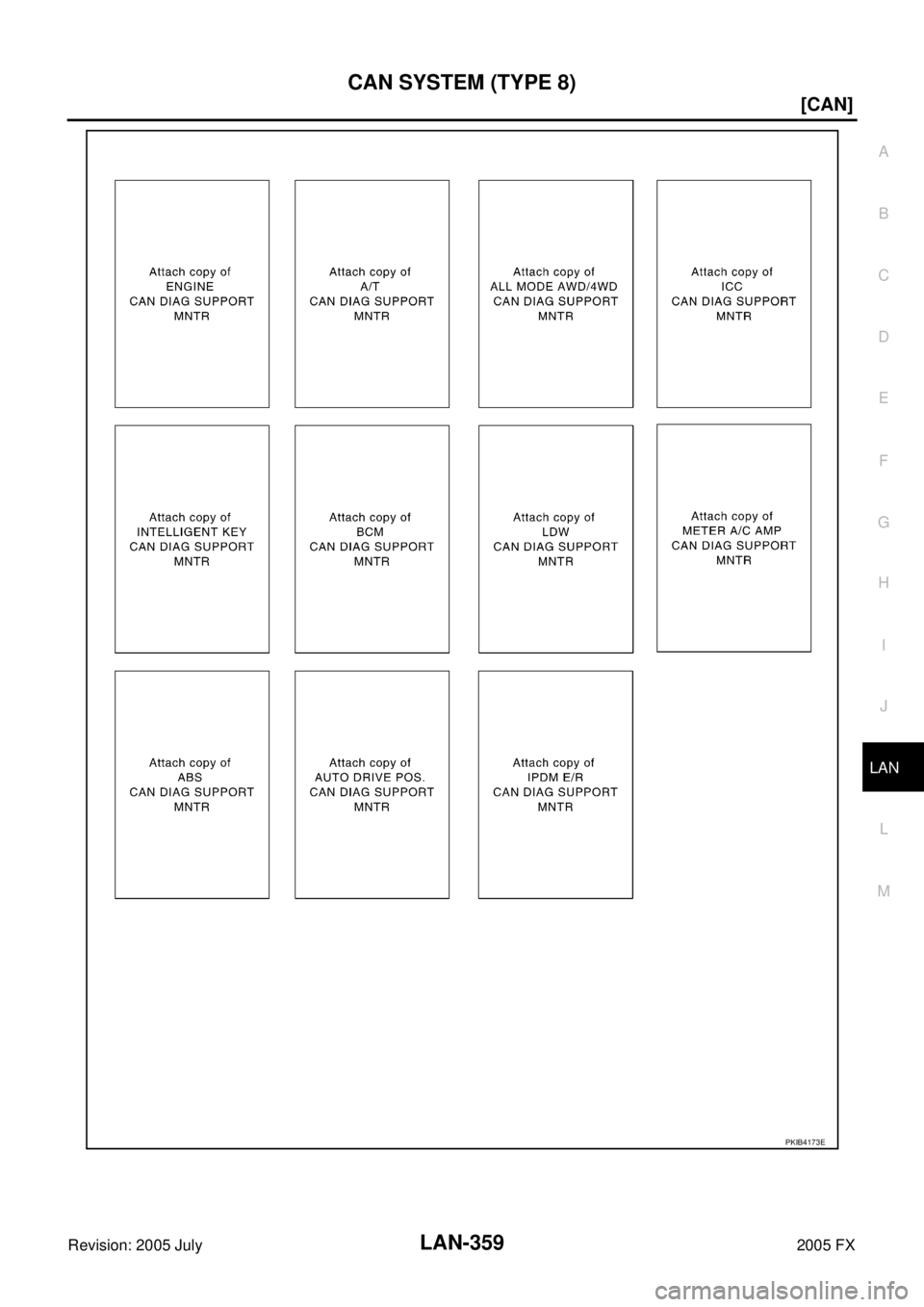

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 8) LAN-359 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX PKIB4173E

Page 3779 of 4731

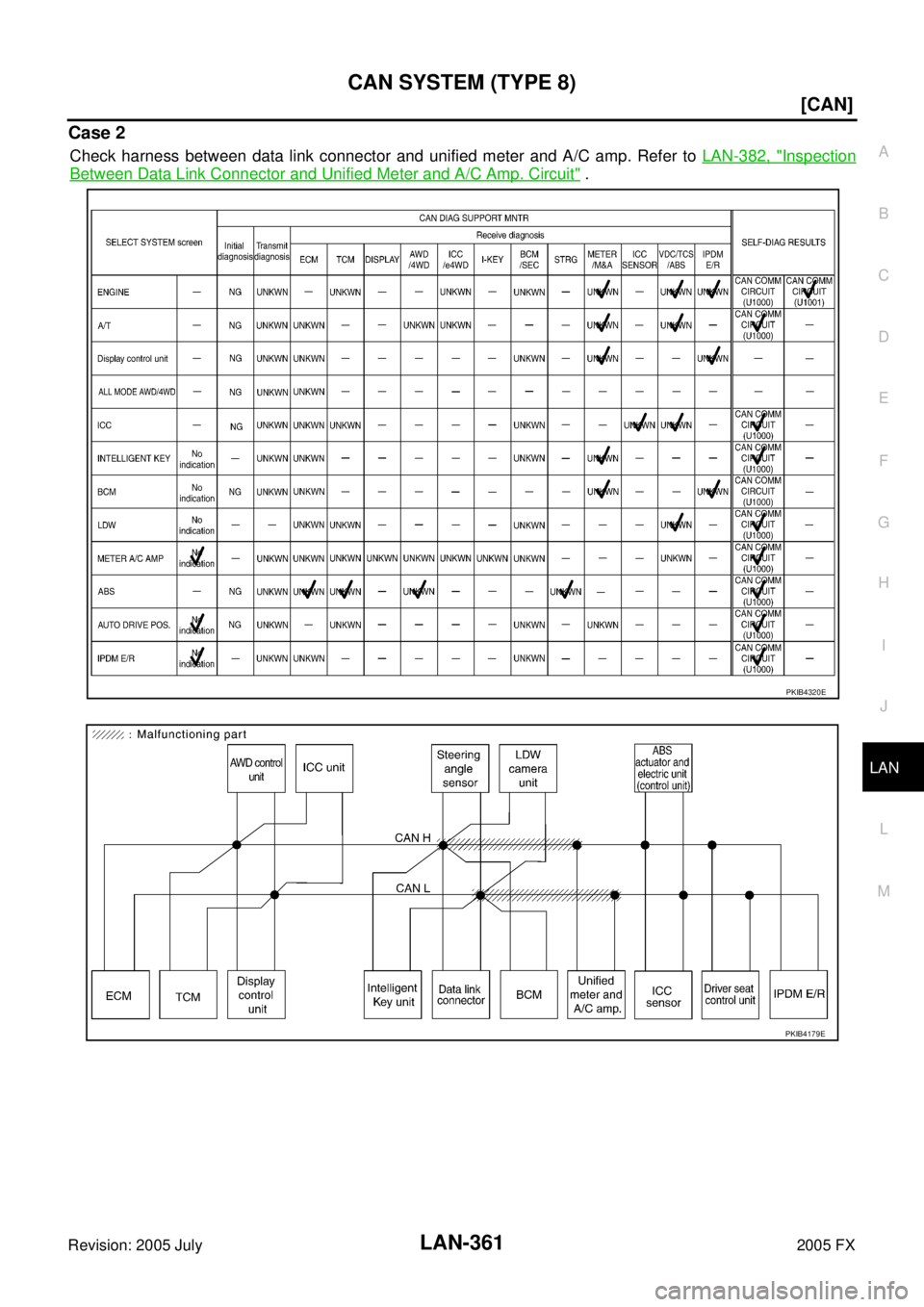

INFINITI FX35 2005 Service Manual LAN-360 [CAN] CAN SYSTEM (TYPE 8) Revision: 2005 July 2005 FX CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control uni

Page 3780 of 4731

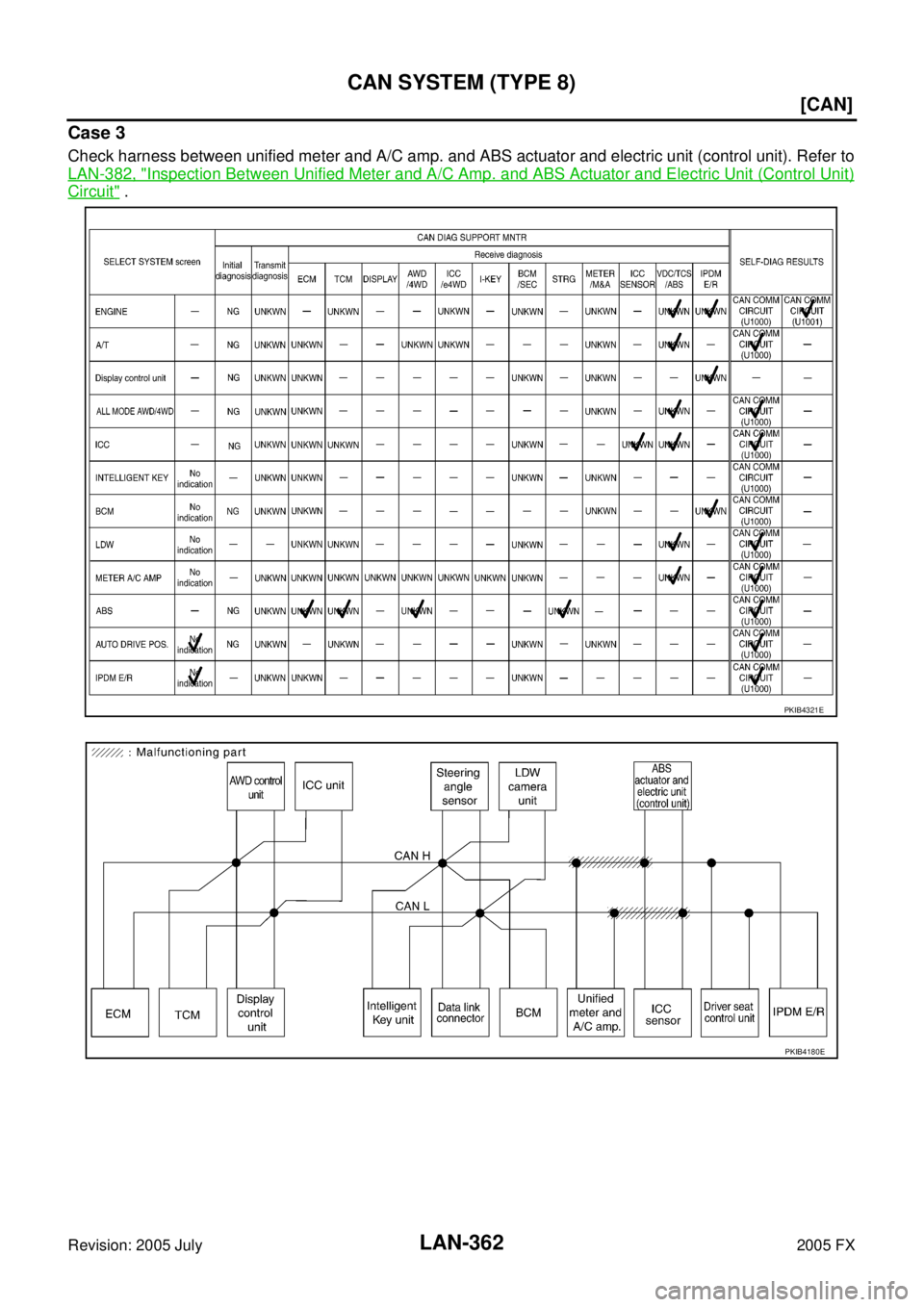

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 8) LAN-361 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 2 Check harness between data link connector and unified meter and A/C amp. Refer to LAN-382,

Page 3781 of 4731

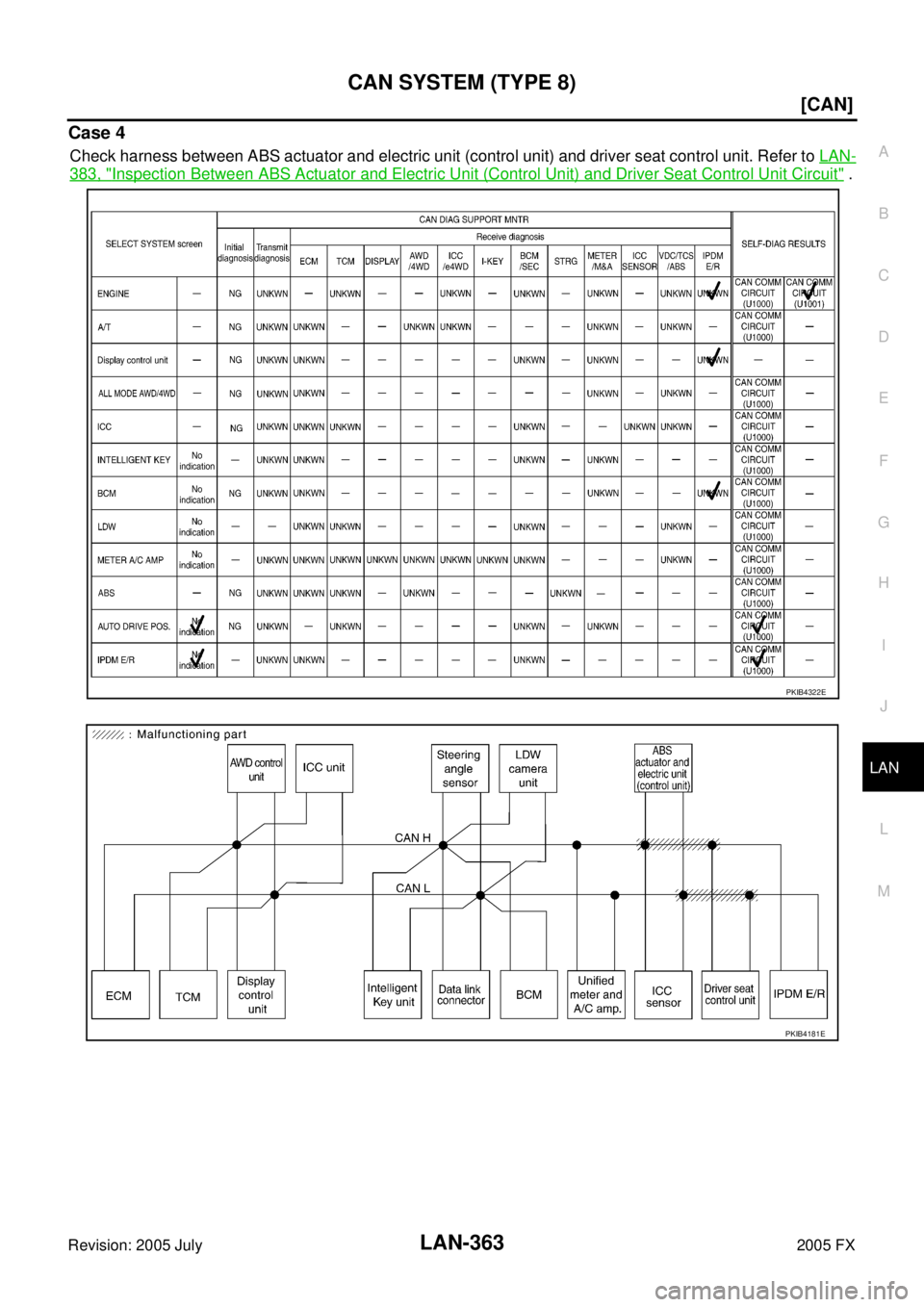

INFINITI FX35 2005 Service Manual LAN-362 [CAN] CAN SYSTEM (TYPE 8) Revision: 2005 July 2005 FX Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to LAN-382, " Inspection

Page 3782 of 4731

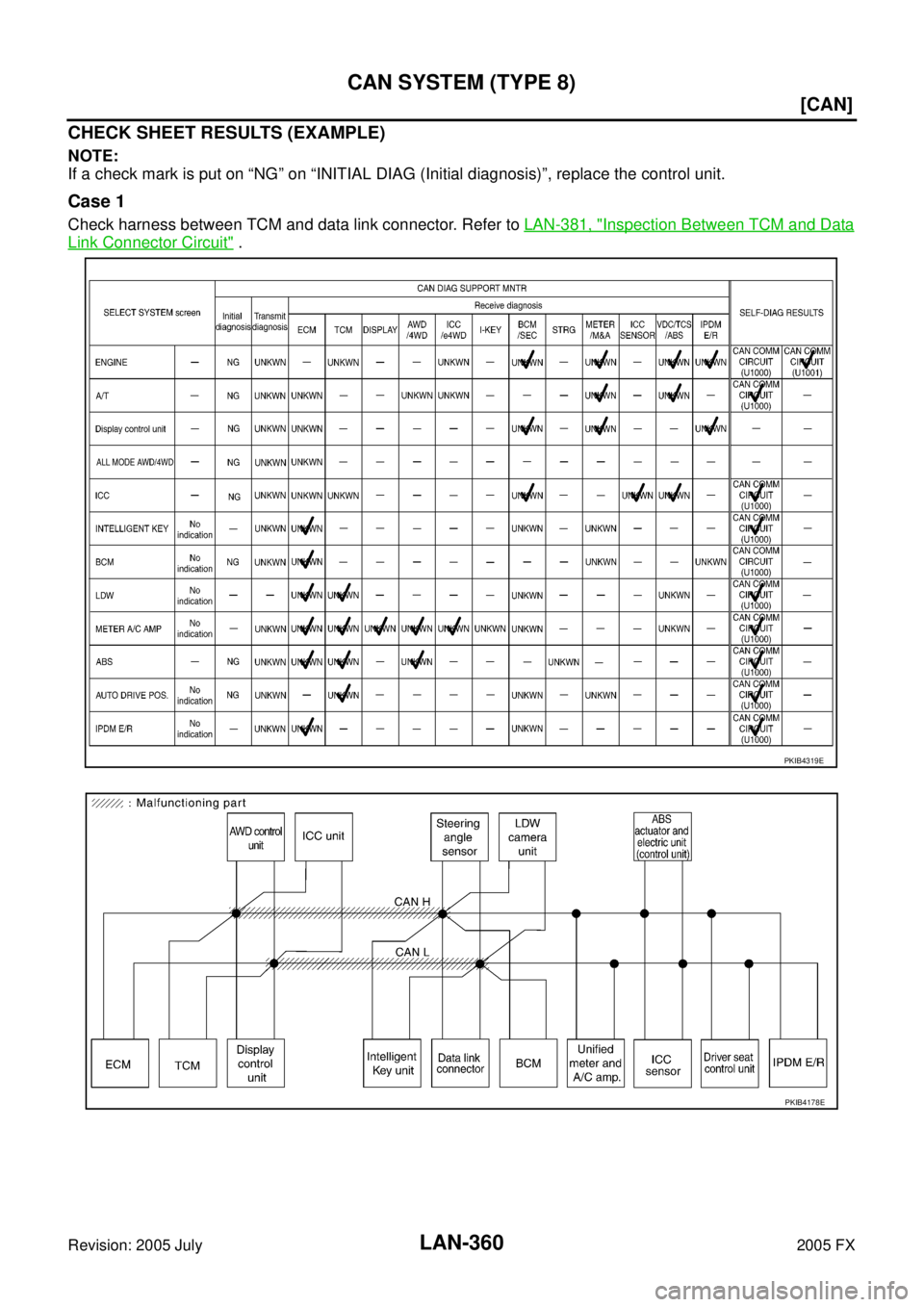

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 8) LAN-363 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 4 Check harness between ABS actuator and electric unit (control unit) and driver seat contro

Page 3783 of 4731

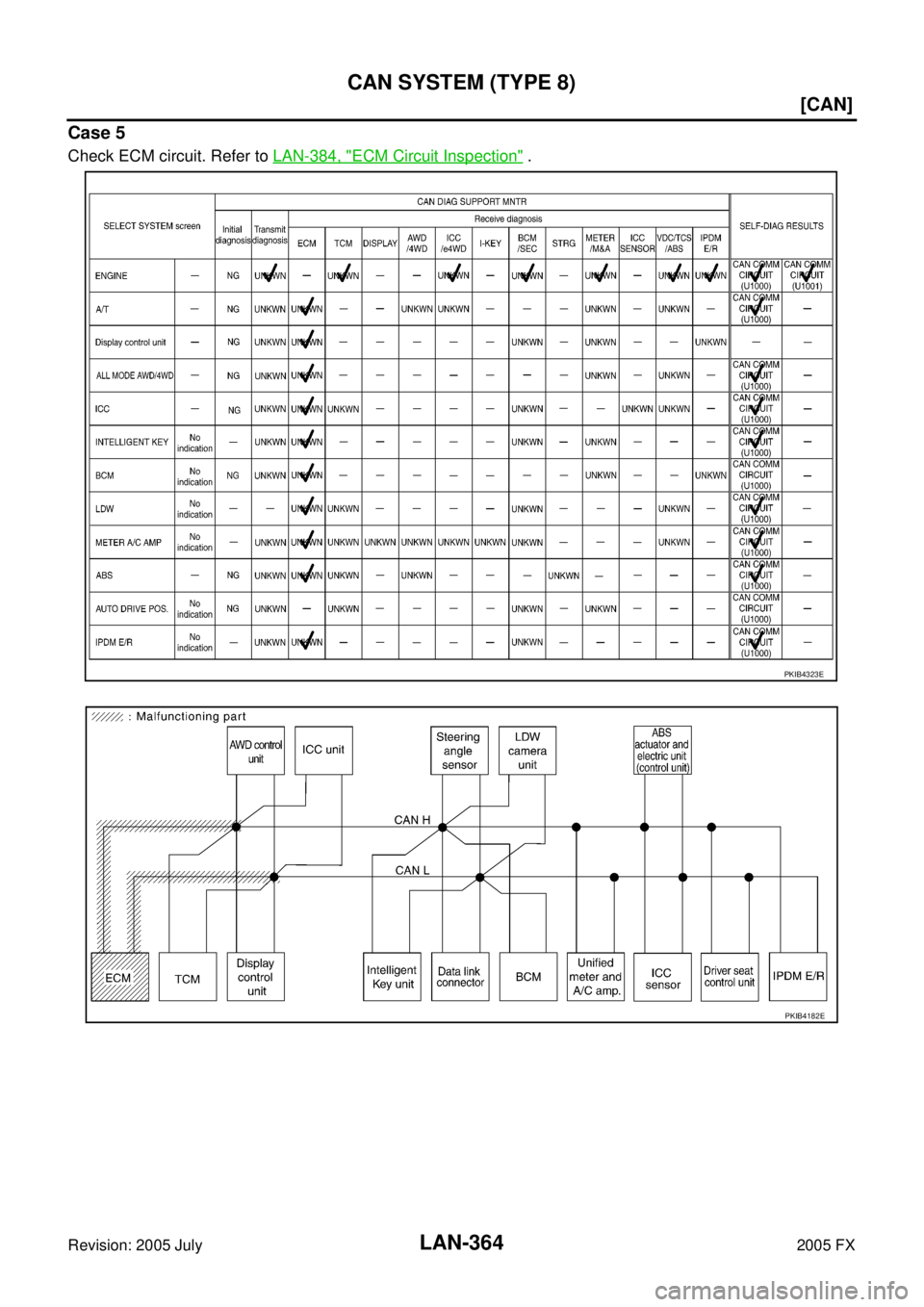

INFINITI FX35 2005 Service Manual LAN-364 [CAN] CAN SYSTEM (TYPE 8) Revision: 2005 July 2005 FX Case 5 Check ECM circuit. Refer to LAN-384, "ECM Circuit Inspection" . PKIB4323E PKIB4182E

Page 3784 of 4731

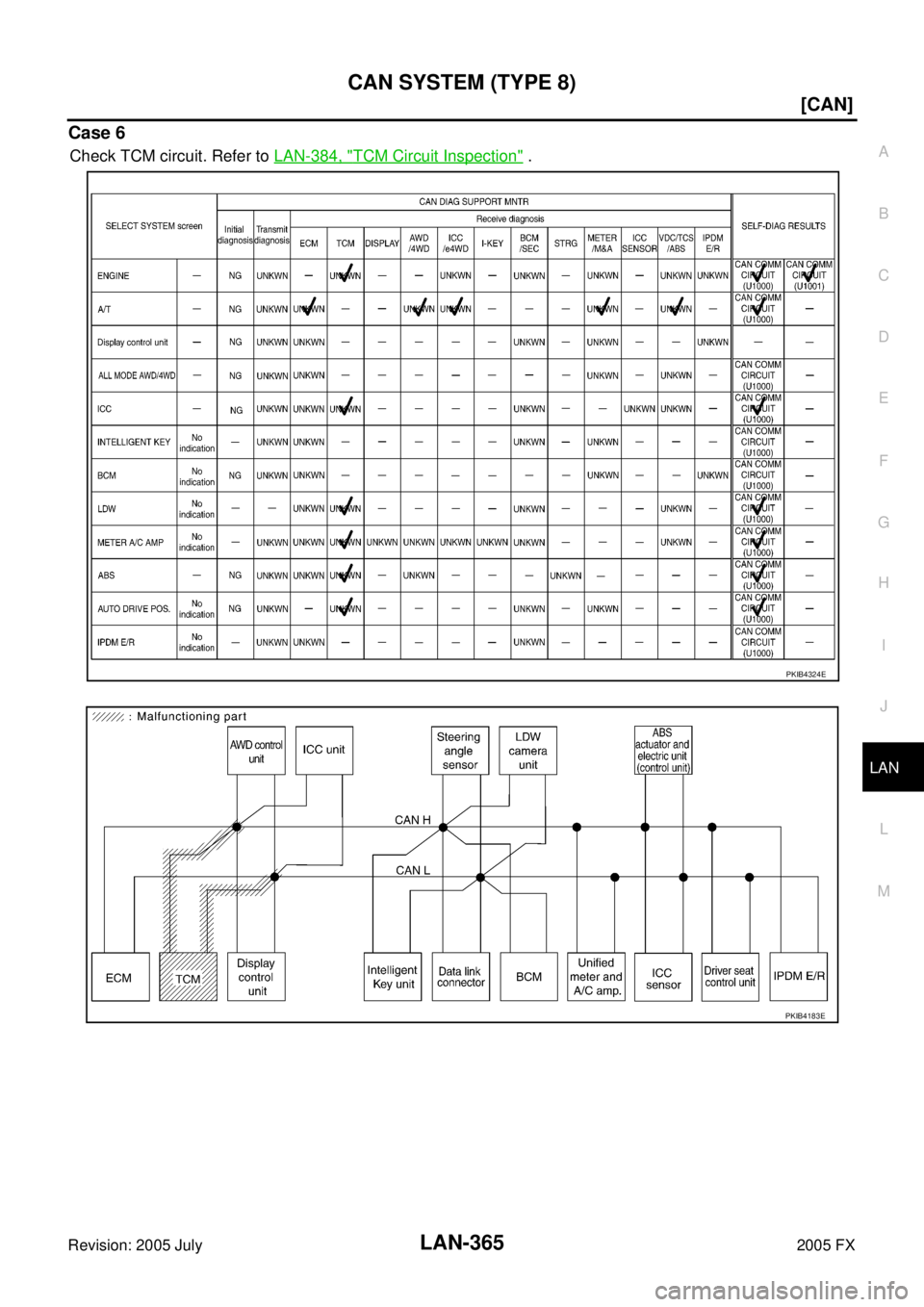

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 8) LAN-365 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 6 Check TCM circuit. Refer to LAN-384, "TCM Circuit Inspection" . PKIB4324E PKIB4183E
