2005 INFINITI FX35 Service Manual

homelinkinstrument clusterwater pumpheadlight aimingengine oil capacitygas tank size
Popular search:
trunk releasep1805automatic transmissionkey fobIgnition switchsuspensionfuse box
Previous
Next
Load previous 8 pages

Page 3473 of 4731

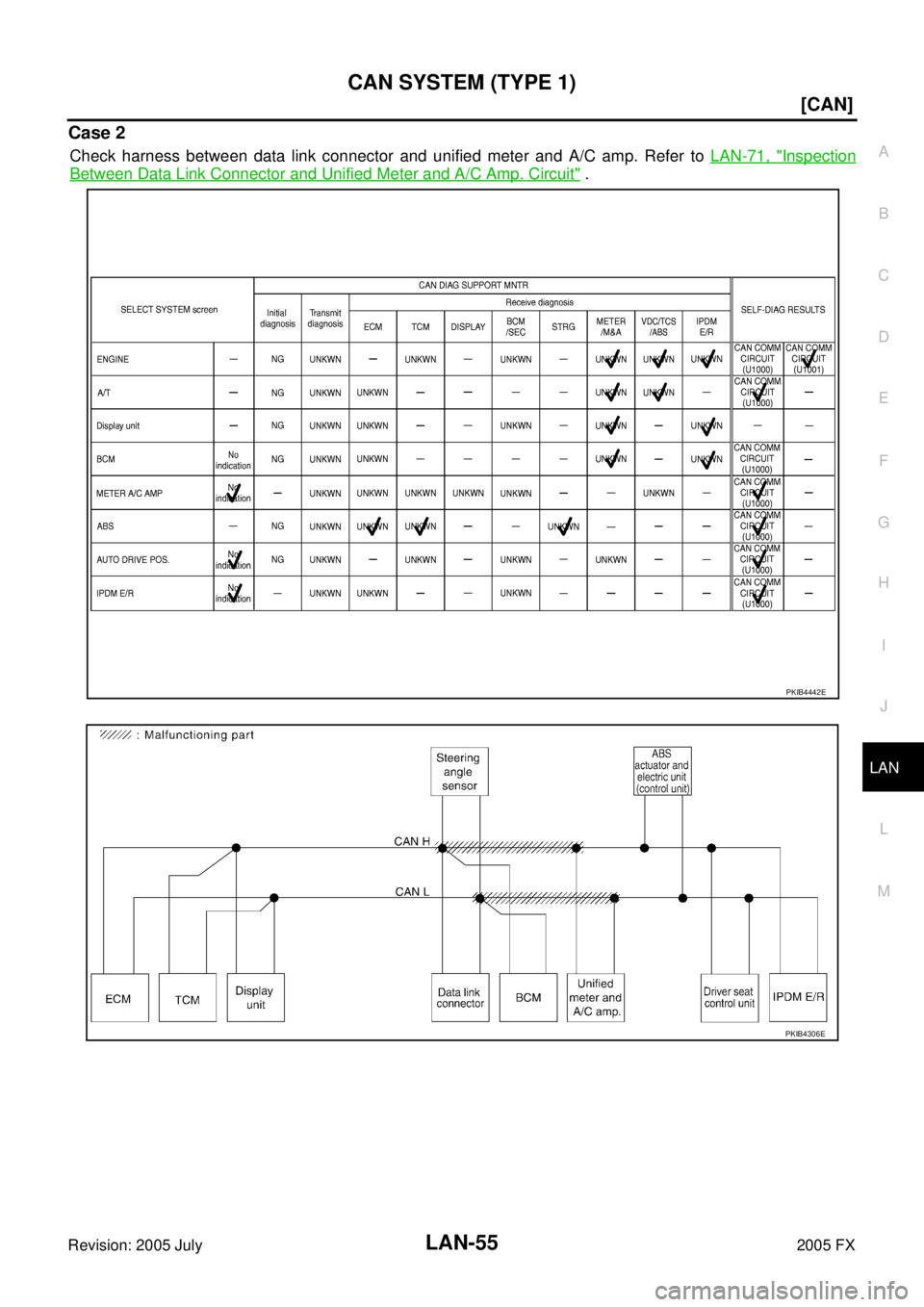

INFINITI FX35 2005 Service Manual LAN-54 [CAN] CAN SYSTEM (TYPE 1) Revision: 2005 July 2005 FX CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit

Page 3474 of 4731

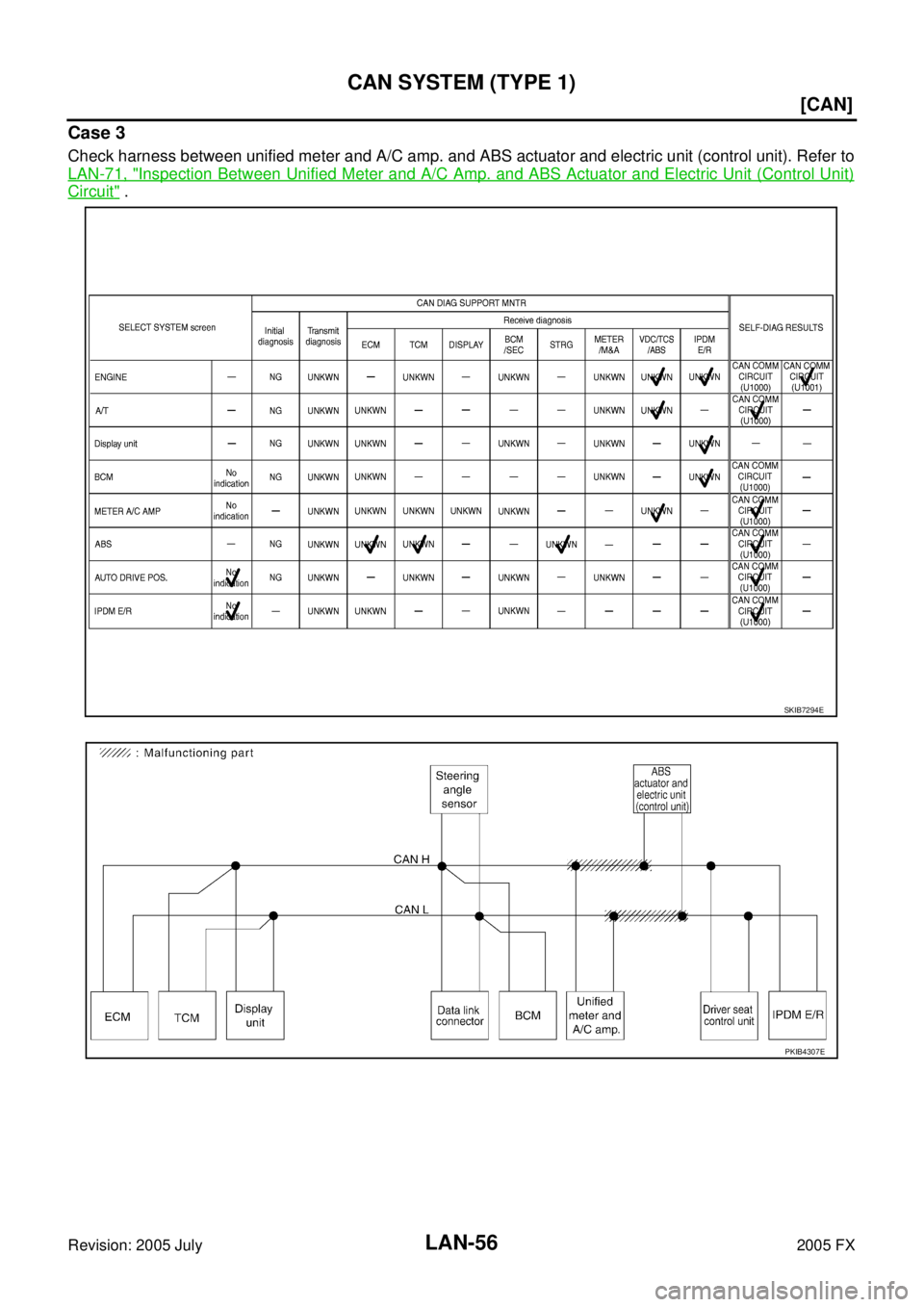

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 1) LAN-55 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 2 Check harness between data link connector and unified meter and A/C amp. Refer to LAN-71, "

Page 3475 of 4731

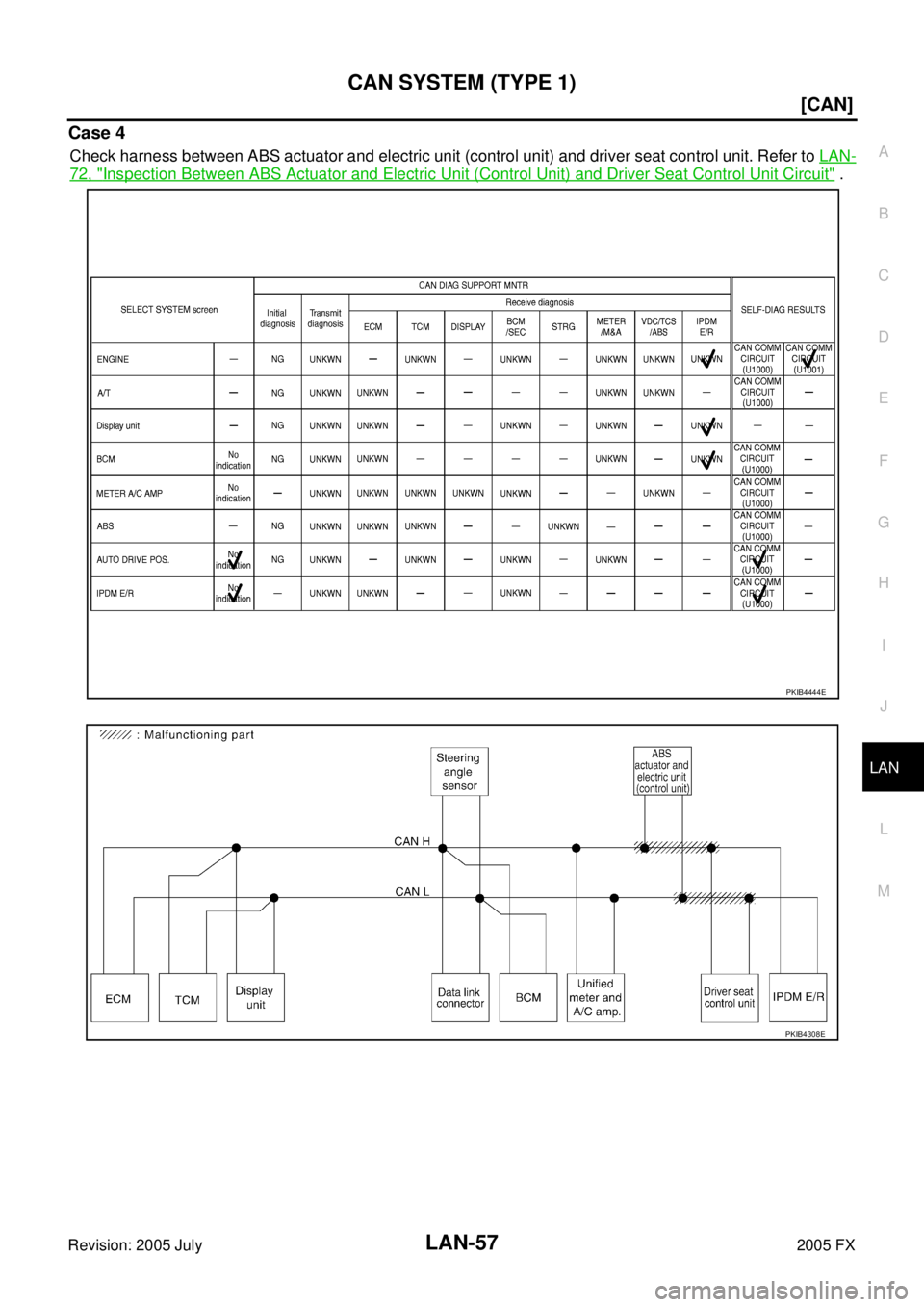

INFINITI FX35 2005 Service Manual LAN-56 [CAN] CAN SYSTEM (TYPE 1) Revision: 2005 July 2005 FX Case 3 Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to LAN-71, " Inspection B

Page 3476 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 1) LAN-57 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 4 Check harness between ABS actuator and electric unit (control unit) and driver seat control

Page 3477 of 4731

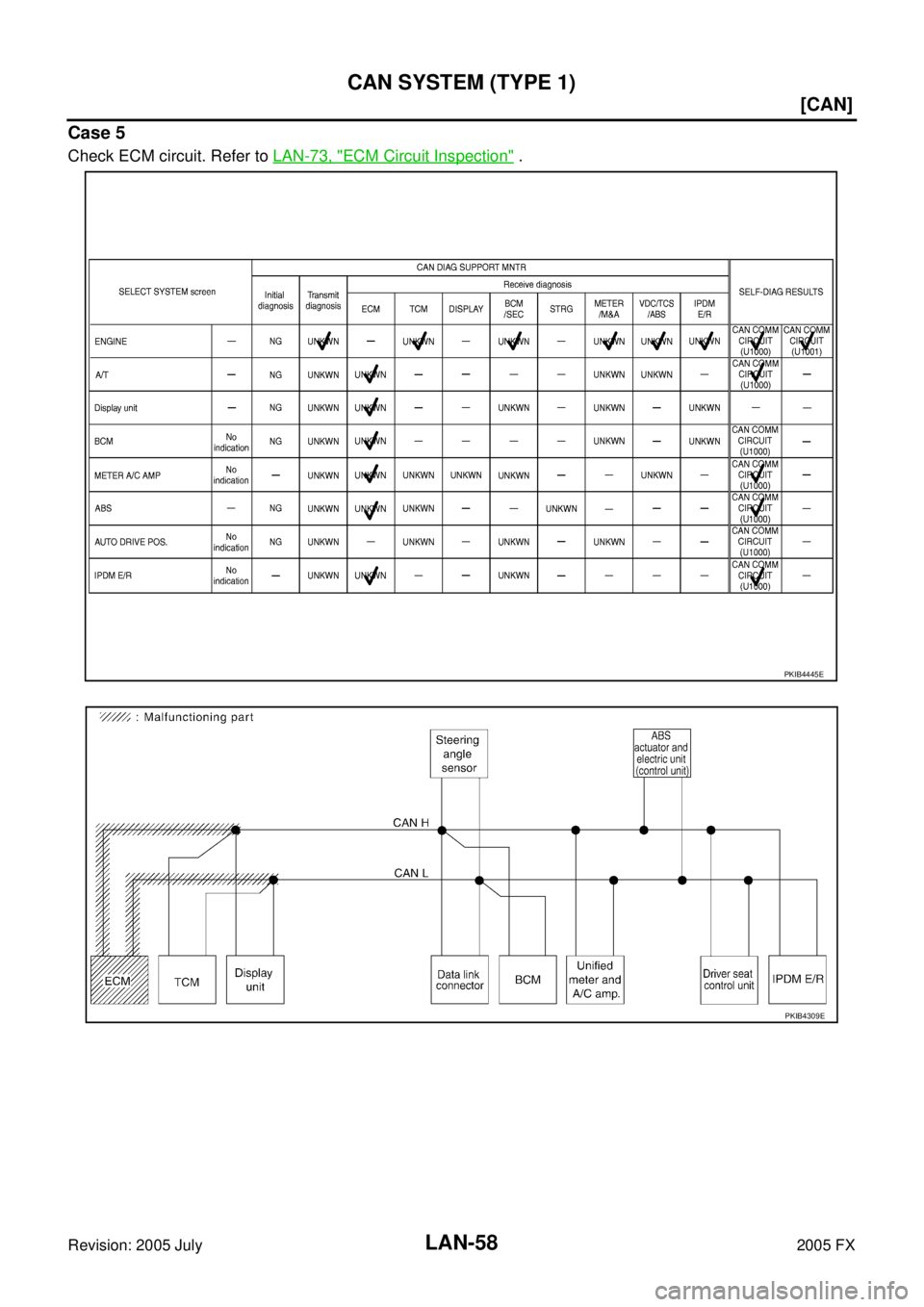

INFINITI FX35 2005 Service Manual LAN-58 [CAN] CAN SYSTEM (TYPE 1) Revision: 2005 July 2005 FX Case 5 Check ECM circuit. Refer to LAN-73, "ECM Circuit Inspection" . PKIB4445E PKIB4309E

Page 3478 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 1) LAN-59 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 6 Check TCM circuit. Refer to LAN-73, "TCM Circuit Inspection" . PKIB4446E PKIB4310E

Page 3479 of 4731

INFINITI FX35 2005 Service Manual LAN-60 [CAN] CAN SYSTEM (TYPE 1) Revision: 2005 July 2005 FX Case 7 Check display unit circuit. Refer to LAN-74, "Display Unit Circuit Inspection" . PKIB4447E PKIB4311E

Page 3480 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 1) LAN-61 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 8 Check data link connector circuit. Refer to LAN-74, "Data Link Connector Circuit Inspection
