Page 3961 of 4731

LT-72
AUTO LIGHT SYSTEM
Revision: 2005 July 2005 FX
3. CHECK OPTICAL SENSOR SIGNAL CIRCUIT
1. Check continuity (open circuit) between BCM harness connector M3 terminal 14 (P) and optical sensor harness connector M37
terminal 2 (P).
2. Check continuity (short circuit) between BCM harness connector M3 terminal 14 (P) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK OPTICAL SENSOR GROUND CIRCUIT
1. Check continuity (open circuit) between BCM harness connector M3 terminal 18 (B) and optical sensor harness connector M37
terminal 3 (B).
2. Check continuity (short circuit) between BCM harness connector M3 terminal 18 (B) and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK OPTICAL SENSOR VOLTAGE
1. Connect BCM connector.
2. Turn ignition switch ON.
3. Check voltage between BCM harness connector M3 terminal 17 (Y/G) and ground.
OK or NG
OK >> Replace optical sensor.
NG >> Replace BCM. Refer to BCS-16, "
Removal and Installa-
tion of BCM" .
14 (P) – 2 (P) : Continuity should exist.
14 (P) – Ground : Continuity should not exist.
SKIA5892E
18 (B) – 3 (B) : Continuity should exist.
18 (B) – Ground : Continuity should not exist.
SKIA5893E
17 (Y/G) – Ground : Approx. 5V
SKIA5894E
Page 3962 of 4731
AUTO LIGHT SYSTEM LT-73
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
Removal and Installation of Optical SensorAKS007F6
REMOVAL
1. Insert a screwdriver or similar tool and remove front defroster
grill (LH). Refer to IP-15, "
(V) Front Defroster Grille (RH/LH)" in
“IP” section.
2. Disconnect optical sensor connector.
3. Remove optical sensor.
INSTALLATION
Installation is the reverse order of removal.
PKIA5275E
Page 3963 of 4731
LT-74
HEADLAMP AIMING CONTROL
Revision: 2005 July 2005 FX
HEADLAMP AIMING CONTROLPFP:26010
SchematicAKS007I7
TKWH0337E
Page 3964 of 4731
HEADLAMP AIMING CONTROL LT-75
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
Wiring Diagram — H/AIM —AKS007CF
TKWM0818E
Page 3965 of 4731
LT-76
HEADLAMP AIMING CONTROL
Revision: 2005 July 2005 FX
TKWM1074E
Page 3966 of 4731
HEADLAMP AIMING CONTROL LT-77
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
TKWM0618E
Page 3967 of 4731
LT-78
HEADLAMP AIMING CONTROL
Revision: 2005 July 2005 FX
Removal and InstallationAKS007CG
REMOVAL
1. Remove combination meter. Refer to DI-25, "Removal and
Installation of Combination Meter" in “DI” section.
2. Remove screws for removing headlamp aiming switch from meter housing.
3. Remove screws and then remove headlamp aiming switch.
INSTALLATION
Installation is the reverse order of removal.
Switch Circuit InspectionAKS007CH
Using a circuit tester, check resistance between the headlamp aim-
ing switch connector terminals in each operation status of the aiming
switch.
PKIB3630E
SKIA5895E
Page 3968 of 4731

FRONT FOG LAMP LT-79
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
FRONT FOG LAMPPFP:26150

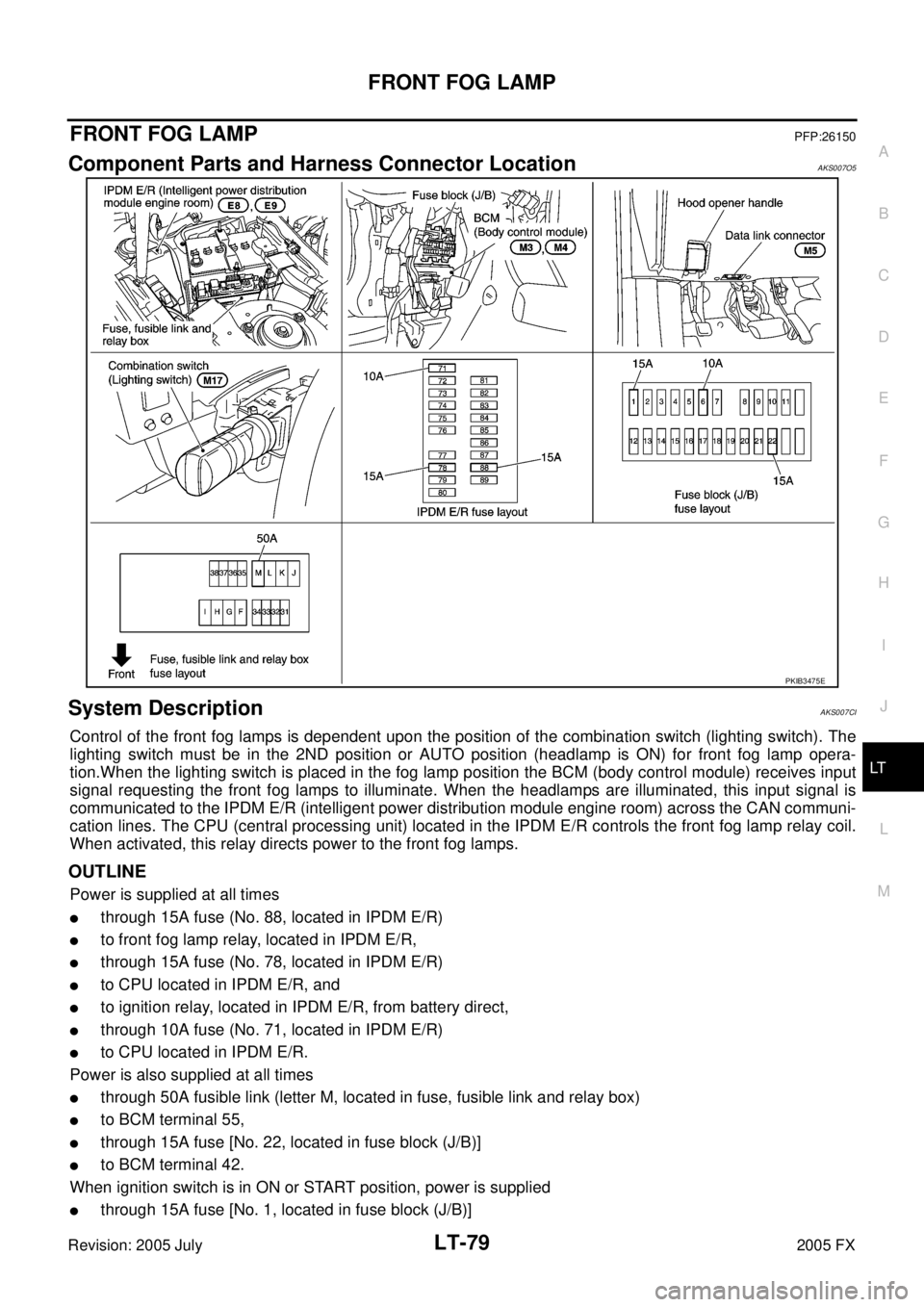

Component Parts and Harness Connector LocationAKS007O5
System DescriptionAKS007CI
Control of the front fog lamps is dependent upon the position of the combination switch (lighting switch). The
lighting switch must be in the 2ND position or AUTO position (headlamp is ON) for front fog lamp opera-
tion.When the lighting switch is placed in the fog lamp position the BCM (body control module) receives input
signal requesting the front fog lamps to illuminate. When the headlamps are illuminated, this input signal is
communicated to the IPDM E/R (intelligent power distribution module engine room) across the CAN communi-
cation lines. The CPU (central processing unit) located in the IPDM E/R controls the front fog lamp relay coil.
When activated, this relay directs power to the front fog lamps.
OUTLINE
Power is supplied at all times
through 15A fuse (No. 88, located in IPDM E/R)
to front fog lamp relay, located in IPDM E/R,
through 15A fuse (No. 78, located in IPDM E/R)
to CPU located in IPDM E/R, and
to ignition relay, located in IPDM E/R, from battery direct,
through 10A fuse (No. 71, located in IPDM E/R)
to CPU located in IPDM E/R.
Power is also supplied at all times
through 50A fusible link (letter M, located in fuse, fusible link and relay box)
to BCM terminal 55,
through 15A fuse [No. 22, located in fuse block (J/B)]
to BCM terminal 42.
When ignition switch is in ON or START position, power is supplied
through 15A fuse [No. 1, located in fuse block (J/B)]
PKIB3475E
