5. Touch “UP” or “DOWN”, and select the guide line, “PATTERN
NO. 0” or “PATTERN NO. 1”, which is the closest to the cor-
rected line.
6. Touch “SAVE”, and confirm the guide line.
7. Touch “END”.
8. Touch “ADJ GUIDELINE POSITION” on “SELECT WORK ITEM” screen.
9. Adjust the guide line touching “X UP”, “X DOWN”, “Y UP” or “Y DOWN” so that the corrected line can fit the guide line.
10. Touch “SAVE”, and confirm the guide line.
11. Touch “END” to finish correcting.
PKIB2264E
SKIA5638E
PKIB2265E
Page 1386 of 4731

REAR VIEW MONITOR DI-125
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
Power Supply and Ground Circuit InspectionAKS0068M
1. CHECK FUSE
Make sure the fuses for rear view camera control unit is blown.
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
Check voltage between rear view camera control harness connector
M48 terminals 1 (R/W), 2 (LG/R) unit and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness between rear view camera control unit and fuse.
3. CHECK REAR VIEW CAMERA CONTROL UNIT GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear view camera control unit connector.
3. Check continuity between rear view camera control unit harness connector M48 terminal 3 (B) and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
Unit Power source Fuse No.
Rear view camera control unit Battery 19
Ignition switch ACC or ON 6
Terminals
OFF ACC
(+)
(–)
Connector Terminal
(Wire color)
M48 1 (R/W) Ground Battery voltage Battery voltage
2 (LG/R) Ground 0 V Battery voltage
PKIB3580E
3 (B) – Ground : Continuity should exist.
SKIA5081E
Page 1387 of 4731

DI-126
REAR VIEW MONITOR
Revision: 2005 July 2005 FX
Rear View Is Not Displayed With The A/T Selector Lever In R-PositionAKS0068N
1. BACK-UP LAMP INSPECTION
1. Turn ignition switch ON.
2. Shift A/T selector lever to R position.
Does back-up lamp illuminate?
YES >> GO TO 2.
NO >> Check back-up lamp system. Refer to LT- 1 2 7 , "
BACK-UP LAMP" in LT section.
2. CHECK REVERSE POSITION INPUT SIGNAL
With CONSULT-II
Select “DATA MONITOR” of “REARVIEW CAMERA”. Operate igni-
tion switch with “R POSI SIG” of “DATA MONITOR” and check oper-
ate status.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect rear view camera control unit connector.
3. Turn ignition switch ON.
4. Shift A/T selector lever to R position.
5. Check voltage between rear view camera control unit harness connector M48 terminal 4 (OR) and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness between rear view camera control unit and back-up lamp relay.
3. CHECK DISPLAY CONTROL UNIT OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect rear view camera control unit connector.
3. Turn ignition switch ON.
4. Check voltage between rear view camera control unit harness connector M48 terminal 5 (G/Y) and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
SKIA7147E
4 (OR) – Ground : Battery voltage
SKIA5086E
5 (G/Y) – Ground : Approx. 5 V
SKIA7148E
Page 1388 of 4731

REAR VIEW MONITOR DI-127
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
4. CHECK DISPLAY CONTROL UNIT CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect display control unit connector.
3. Check continuity between rear view camera control unit harness connector M48 terminal 5 (G/Y) and display control unit harness
connector M75 terminal 8 (G/Y).
4. Check continuity between rear view camera control unit harness connector M48 terminal 5 (G/Y) and ground.
OK or NG
OK >> Replace display control unit.
NG >> Repair harness or connector.
5. CHECK CONTROL 1 SIGNAL
1. Turn ignition switch OFF.
2. Connect rear view camera control unit connector.
3. Shift A/T selector lever to R position.
4. Check voltage between rear view camera control unit harness connector M48 terminal 5 (G/Y) and ground.
OK or NG
OK >> GO TO 6.
NG >> Replace rear view camera control unit.
6. CHECK REAR VIEW CAMERA OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear view camera connector.
3. Check continuity between rear view camera control unit harness connector M48 terminal 8 (R/W) and rear view camera harness
connector D108 terminal 1 (PU)
4. Check continuity between rear view camera control unit harness connector M48 terminal 9 and rear view camera harness con-
nector D108 terminal 4
5. Check continuity between rear view camera control unit harness connector M48 terminal 10 (G/W) and rear view camera harness
connector D108 terminal 3 (G)
OK or NG
OK >> GO TO 7.

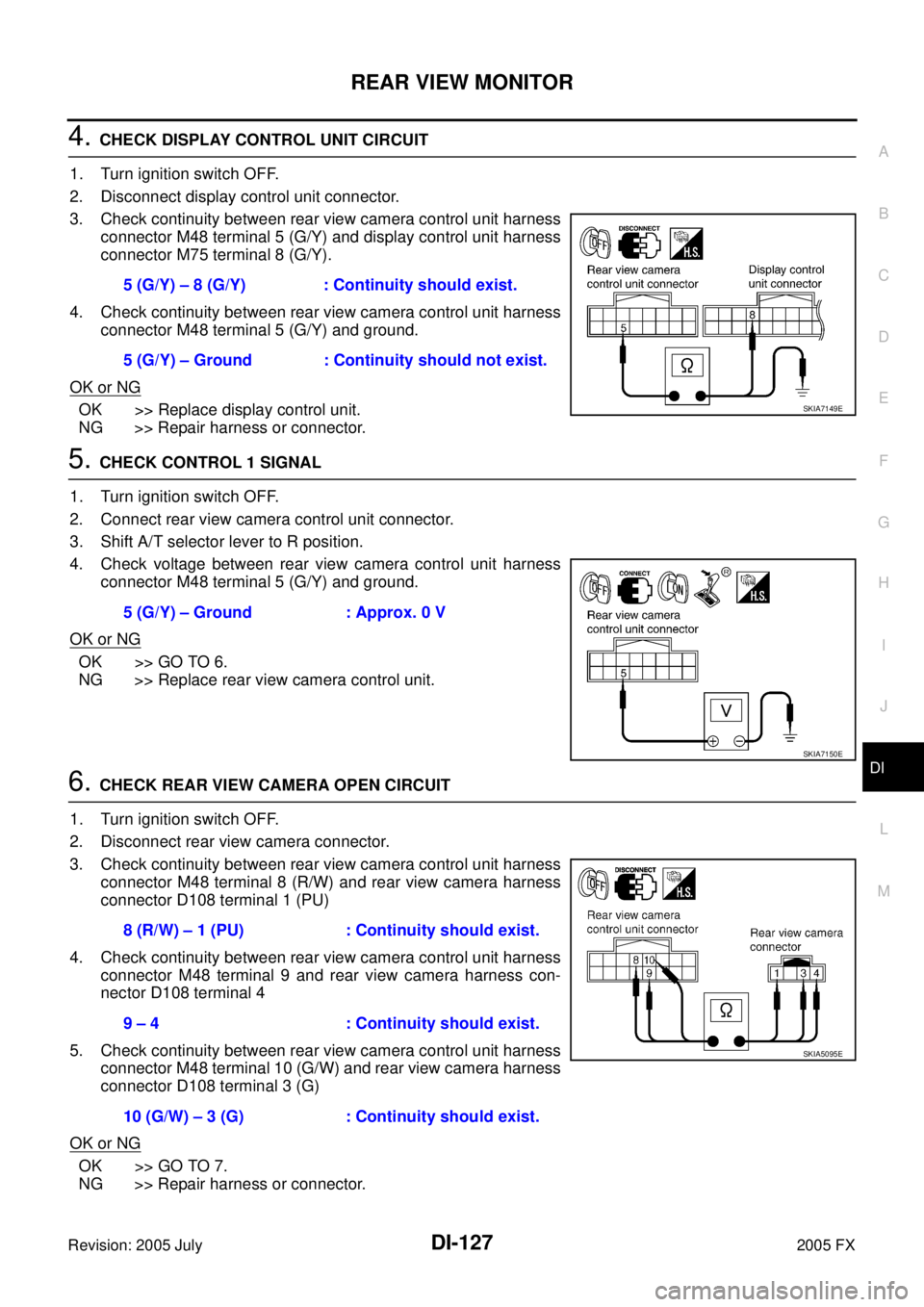

NG >> Repair harness or connector. 5 (G/Y) – 8 (G/Y) : Continuity should exist.
5 (G/Y) – Ground : Continuity should not exist.
SKIA7149E
5 (G/Y) – Ground : Approx. 0 V
SKIA7150E
8 (R/W) – 1 (PU) : Continuity should exist.
9 – 4 : Continuity should exist.
10 (G/W) – 3 (G) : Continuity should exist.
SKIA5095E
Page 1389 of 4731

DI-128
REAR VIEW MONITOR
Revision: 2005 July 2005 FX
7. CHECK REAR VIEW CAMERA SHORT CIRCUIT
1. Check continuity between rear view camera control unit harness connector M48 terminal 8 (R/W) and ground
2. Check continuity between rear view camera control unit harness connector M48 terminal 9 and ground
3. Check continuity between rear view camera control unit harness connector M48 terminal 10 (G/W) and ground
OK or NG
OK >> GO TO 8.
NG >> Repair harness on connector.
8. CHECK POWER SUPPLY AND GROUND CIRCUIT
Check power supply and ground circuit. Refer to DI-125, "
Power Supply and Ground Circuit Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Repair or replace power supply and ground circuit.
9. CHECK REAR VIEW CAMERA CONTROL UNIT OUTPUT SIGNAL
1. Connect rear view camera control unit connector.
2. Turn ignition switch ON.
3. Shift A/T selector lever to R position.
4. Check voltage between rear view camera control unit harness connector M48 terminal 8 (R/W) and ground.
OK or NG
OK >> GO TO 10.

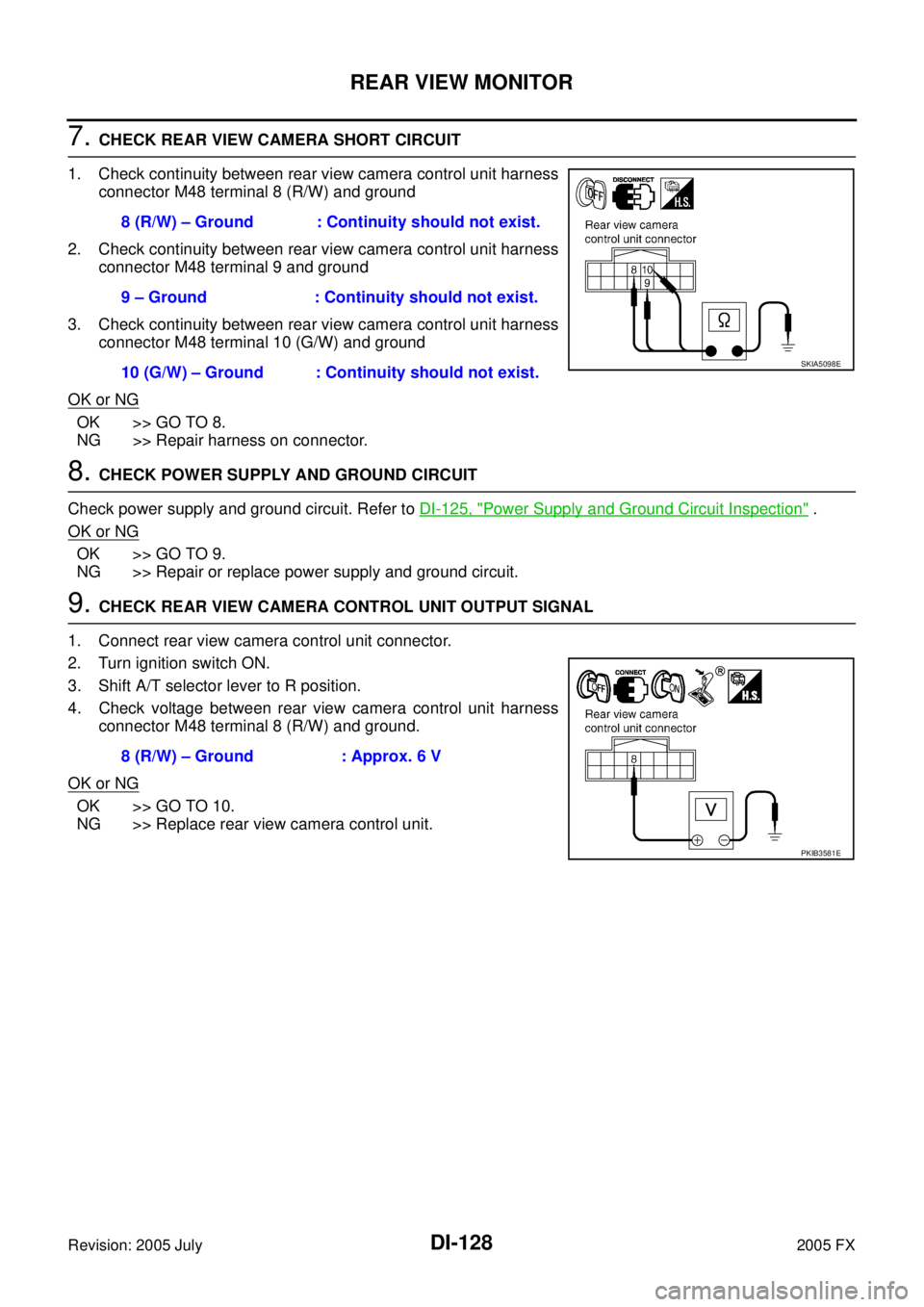

NG >> Replace rear view camera control unit. 8 (R/W) – Ground : Continuity should not exist.
9 – Ground : Continuity should not exist.
10 (G/W) – Ground : Continuity should not exist.
SKIA5098E
8 (R/W) – Ground : Approx. 6 V
PKIB3581E
Page 1390 of 4731

REAR VIEW MONITOR DI-129
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
10. CHECK REAR VIEW CAMERA SIGNAL
1. Turn ignition switch OFF.
2. Connect rear view camera connector.
3. Turn ignition switch ON.
4. Shift A/T selector lever to R position.
5. Check voltage signal between rear view camera control unit har- ness connector M48 terminal 10 (G/W) and ground.
OK or NG
OK >> GO TO 11.
NG >> Replace rear view camera.
11 . CHECK COMPOSITE SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear view camera control unit connector and display connector.
3. Check continuity between rear view camera control unit harness connector M48 terminal 12 (BR) and display harness connector
M63 terminal 15 (BR).
4. Check continuity between rear view camera control unit harness connector M48 terminal 12 (BR) and ground.
OK or NG
OK >> GO TO 12.
NG >> Repair harness or connector.
12. CHECK COMPOSITE SIGNAL GROUND CIRCUIT
1. Check continuity between rear view camera control unit harness connector M48 terminal 11 and display harness connector M63
terminal 4.
2. Check continuity between rear view camera control unit harness connector M48 terminal 11 and ground.
OK or NG
OK >> GO TO 13.

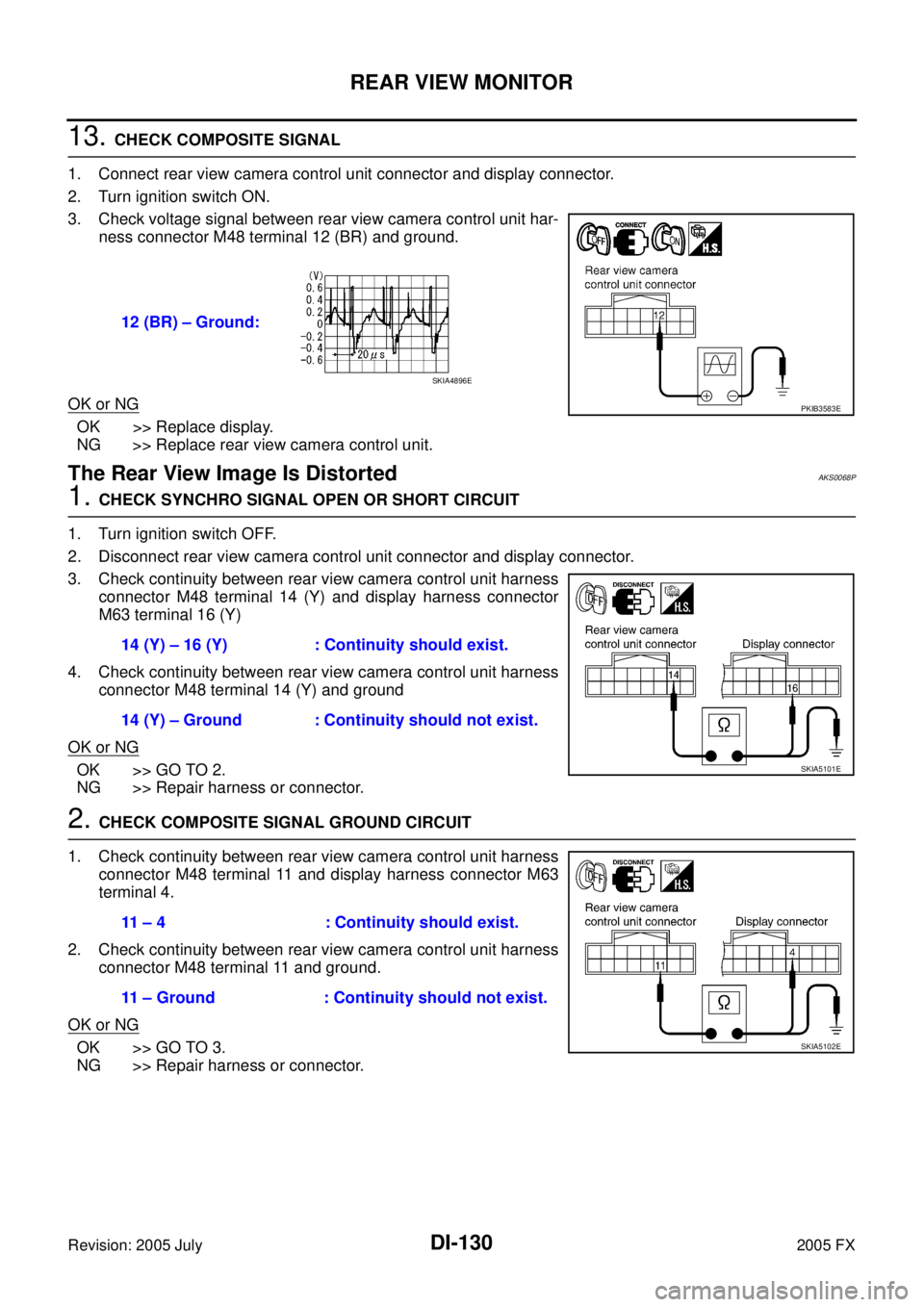

NG >> Repair harness or connector. 10 (G/W) – Ground:
PKIB3582E
SKIA4894E
12 (BR) – 15 (BR) : Continuity should exist.
12 (BR) – Ground : Continuity should not exist.
SKIB0482E
11 – 4 : Continuity should exist.
11 – Ground : Continuity should not exist.
SKIA5102E
Page 1391 of 4731

DI-130
REAR VIEW MONITOR
Revision: 2005 July 2005 FX
13. CHECK COMPOSITE SIGNAL
1. Connect rear view camera control unit connector and display connector.
2. Turn ignition switch ON.
3. Check voltage signal between rear view camera control unit har- ness connector M48 terminal 12 (BR) and ground.
OK or NG
OK >> Replace display.
NG >> Replace rear view camera control unit.
The Rear View Image Is DistortedAKS0068P
1. CHECK SYNCHRO SIGNAL OPEN OR SHORT CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear view camera control unit connector and display connector.
3. Check continuity between rear view camera control unit harness connector M48 terminal 14 (Y) and display harness connector
M63 terminal 16 (Y)
4. Check continuity between rear view camera control unit harness connector M48 terminal 14 (Y) and ground
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector.
2. CHECK COMPOSITE SIGNAL GROUND CIRCUIT
1. Check continuity between rear view camera control unit harness connector M48 terminal 11 and display harness connector M63
terminal 4.
2. Check continuity between rear view camera control unit harness connector M48 terminal 11 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector. 12 (BR) – Ground:
PKIB3583E
SKIA4896E
14 (Y) – 16 (Y) : Continuity should exist.
14 (Y) – Ground : Continuity should not exist.
SKIA5101E
11 – 4 : Continuity should exist.
11 – Ground : Continuity should not exist.
SKIA5102E
Page 1392 of 4731

REAR VIEW MONITOR DI-131
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
3. CHECK REAR VIEW CONTROL UNIT SYNCHRO SIGNAL
1. Connect rear view camera control unit connector and display connector.
2. Turn ignition switch ON.
3. Check voltage signal between rear view camera control unit har- ness connector M48 terminal 14 (Y) and ground.
OK or NG
OK >> Replace rear view camera control unit.
NG >> Replace display.
Removal and Installation of Rear View Camera Control UnitAKS0068Q
REMOVAL
1. Remove instrument clock finisher and A/T console finisher. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
2. Remove screws (2), and remove rear view camera control unit.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation of Rear View CameraAKS0068R
REMOVAL
1. Remove back door finisher lower. Refer to EI-45, "Removal and
Installation" .
2. Cut off back door module along the line.
3. Disconnect rear view camera connector. 14 (Y) – Ground:
PKIB3584E
SKIA5896E
SKIA5797E
SKIA6168E
