INFINITI FX35 2005 Service Manual LT-24 HEADLAMP - XENON TYPE - Revision: 2005 July 2005 FX 3. CHECK IPDM E/R 1. Select “IPDM E/R” on CONSULT-II, and select “DATA MONI- TOR” on “SELECT DIAG MODE” screen. 2. Make sure

Page 3914 of 4731

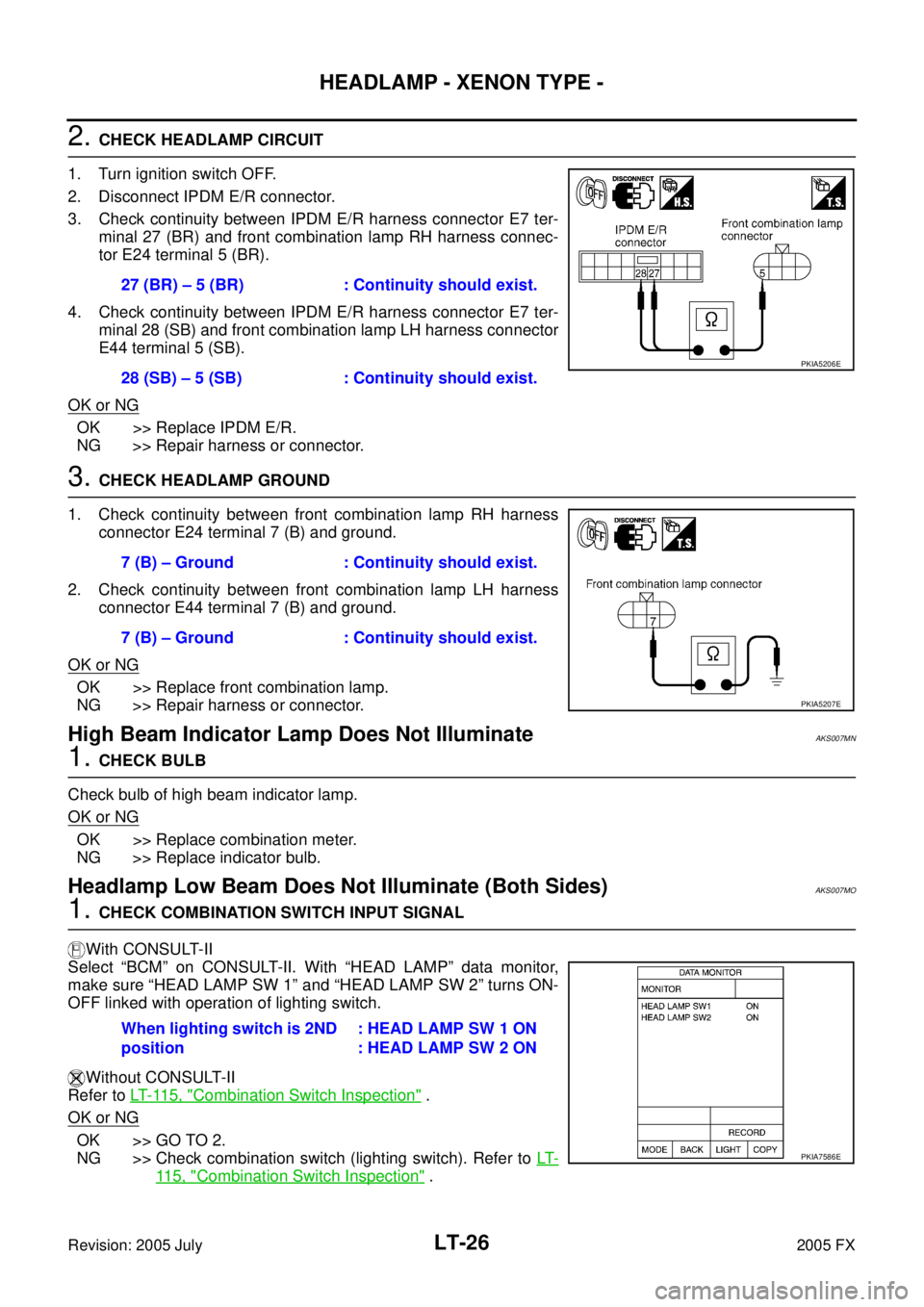

INFINITI FX35 2005 Service Manual HEADLAMP - XENON TYPE - LT-25 C D E F G H I J L M A B LT Revision: 2005 July 2005 FX 5. CHECK HEADLAMP CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect IPDM E/R connector. 3. Check c

Page 3915 of 4731

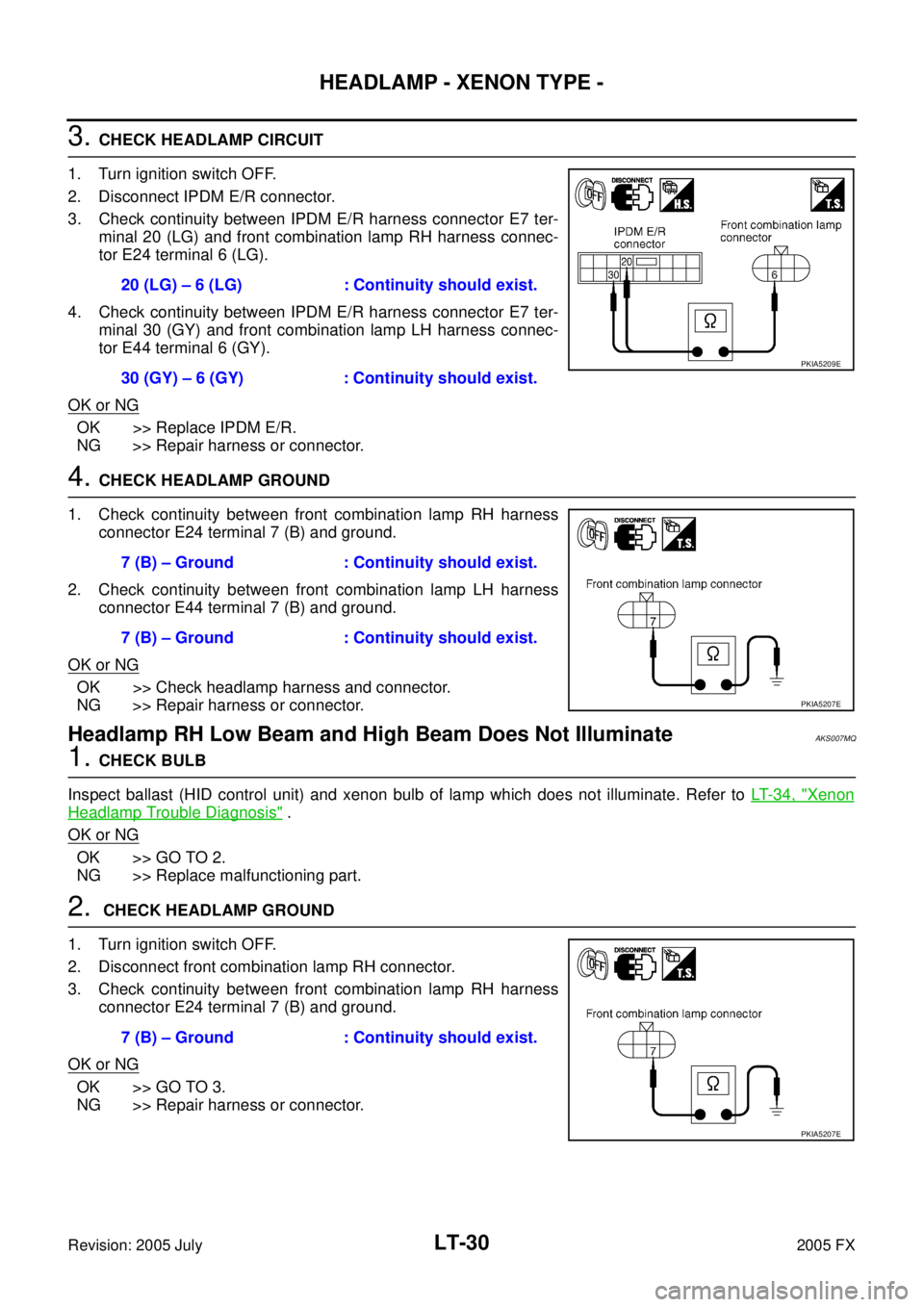

INFINITI FX35 2005 Service Manual LT-26 HEADLAMP - XENON TYPE - Revision: 2005 July 2005 FX 2. CHECK HEADLAMP CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect IPDM E/R connector. 3. Check continuity between IPDM E/R harness conne

Page 3916 of 4731

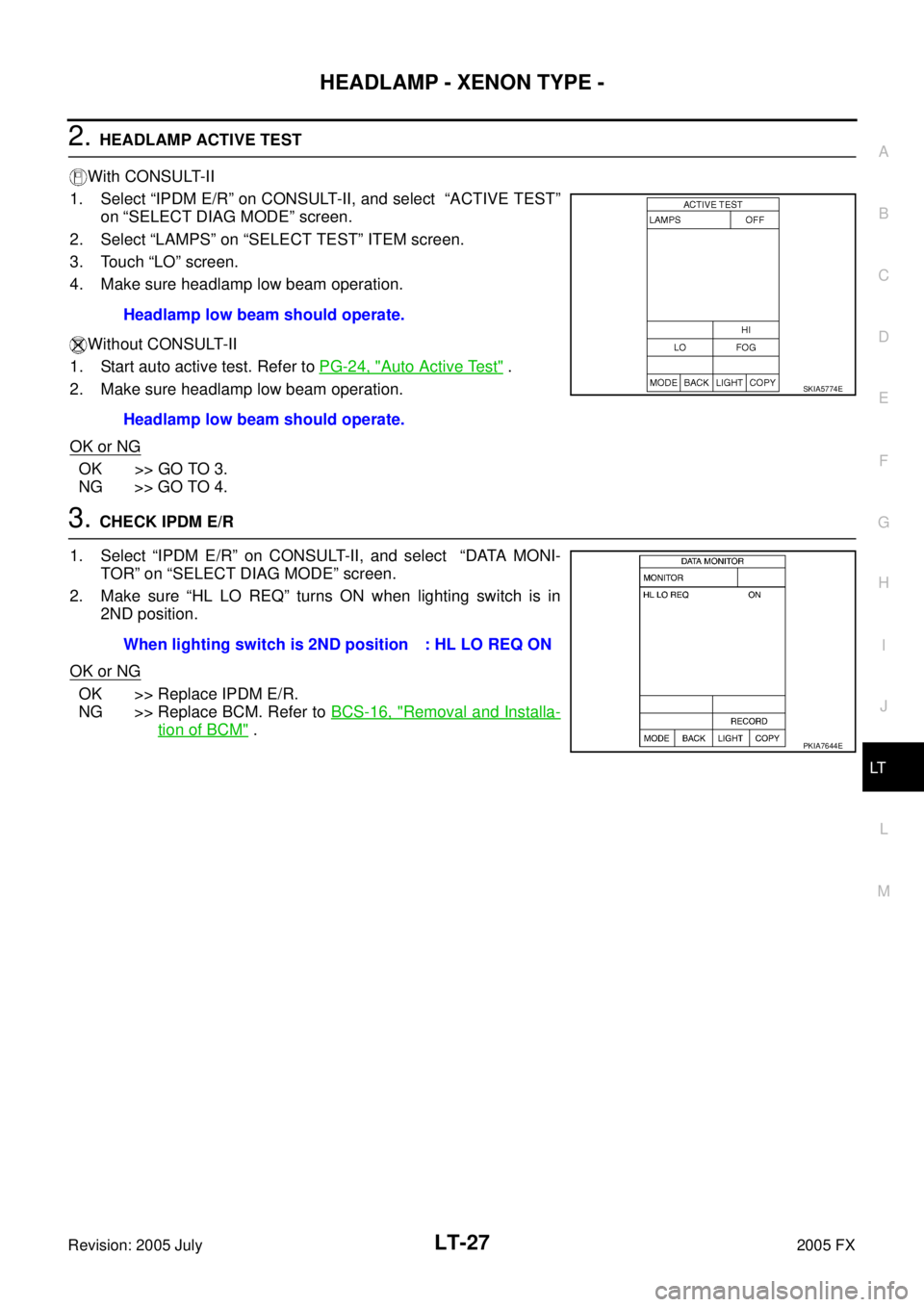

INFINITI FX35 2005 Service Manual HEADLAMP - XENON TYPE - LT-27 C D E F G H I J L M A B LT Revision: 2005 July 2005 FX 2. HEADLAMP ACTIVE TEST With CONSULT-II 1. Select “IPDM E/R” on CONSULT-II, and select “ACTIV

Page 3917 of 4731

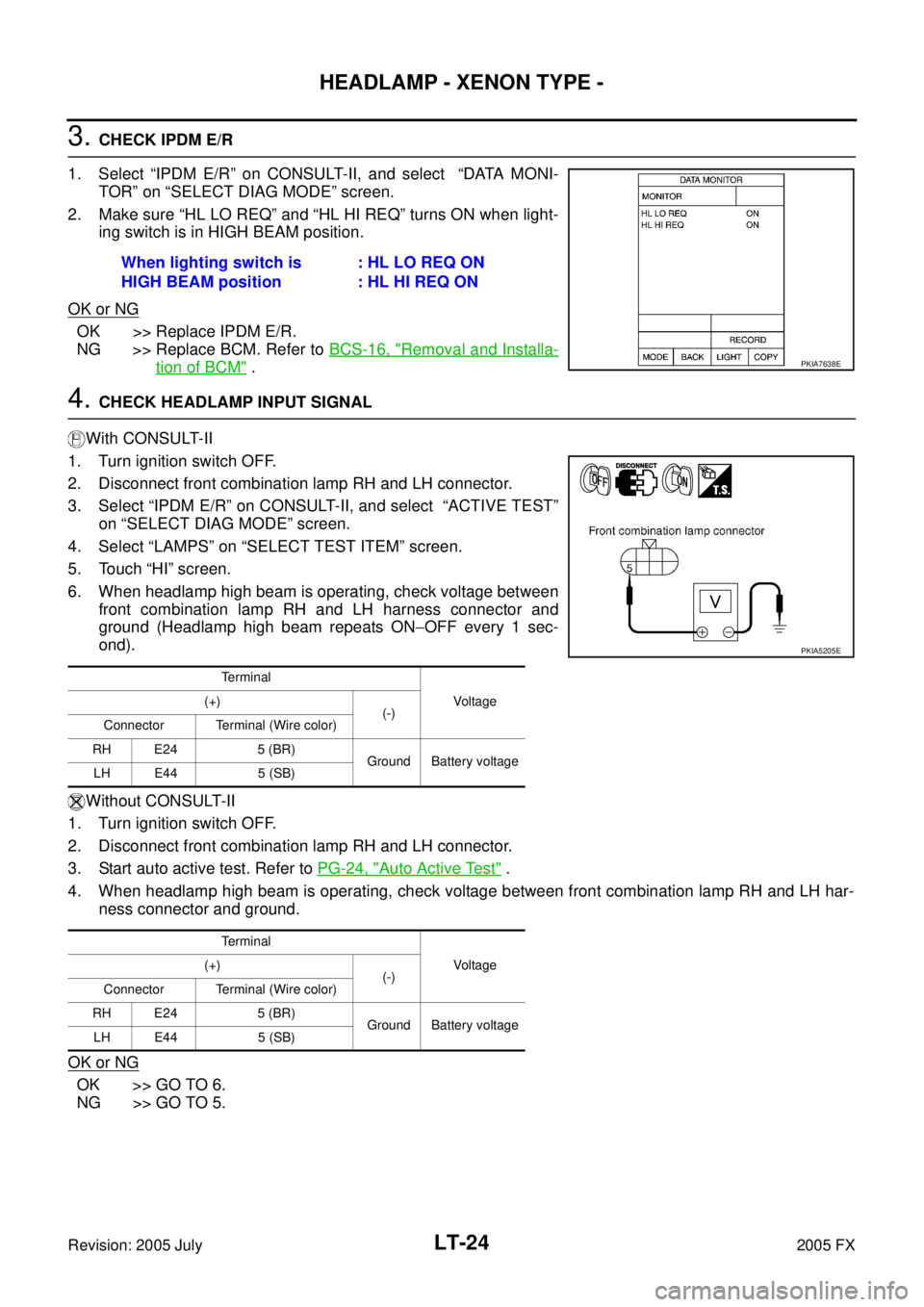

INFINITI FX35 2005 Service Manual LT-28 HEADLAMP - XENON TYPE - Revision: 2005 July 2005 FX 4. CHECK HEADLAMP INPUT SIGNAL With CONSULT-II 1. Turn ignition switch OFF. 2. Disconnect front combination lamp RH and LH connector. 3. Se

Page 3918 of 4731

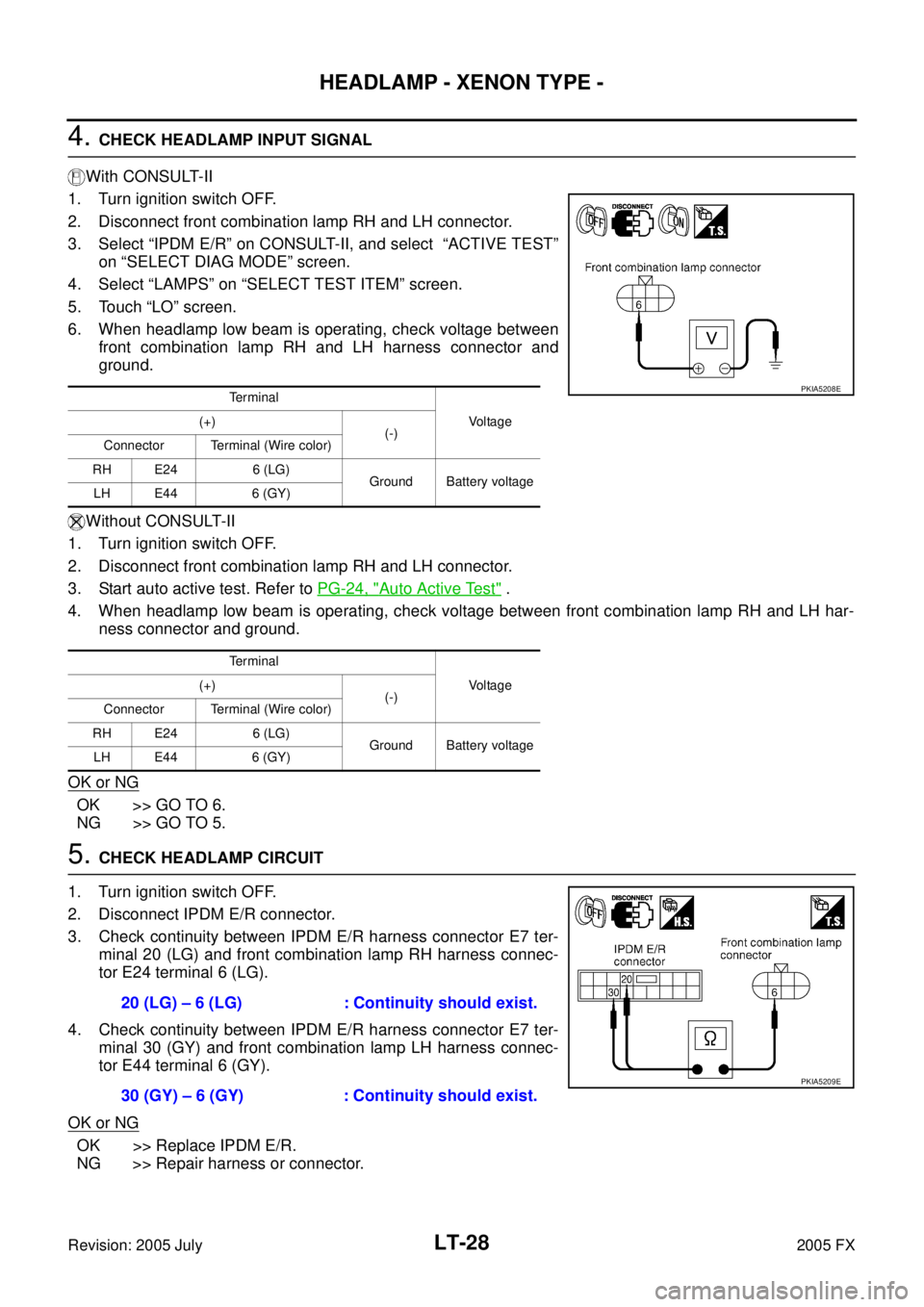

INFINITI FX35 2005 Service Manual HEADLAMP - XENON TYPE - LT-29 C D E F G H I J L M A B LT Revision: 2005 July 2005 FX 6. CHECK HEADLAMP GROUND 1. Turn ignition switch OFF. 2. Check continuity between front combination

Page 3919 of 4731

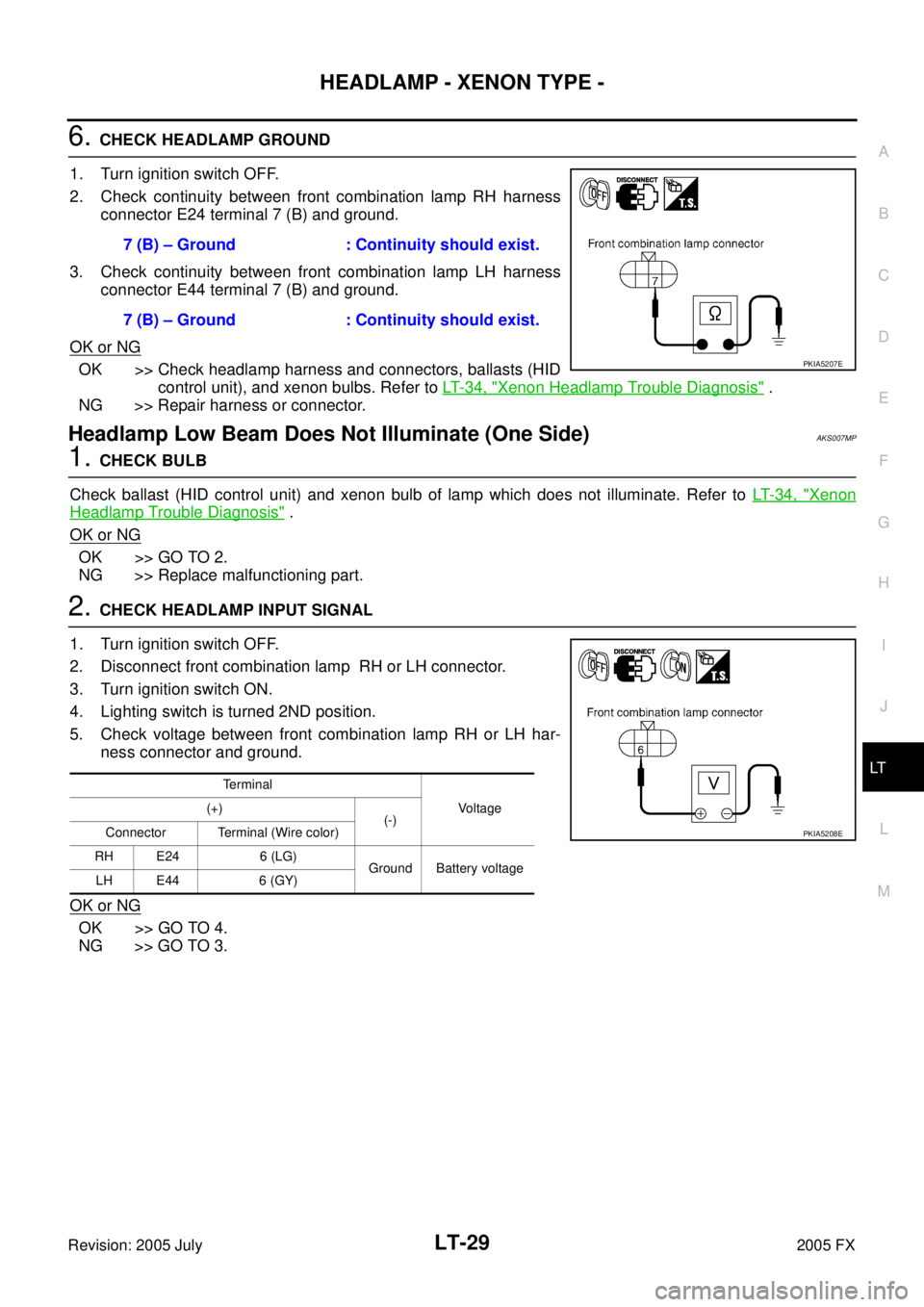

INFINITI FX35 2005 Service Manual LT-30 HEADLAMP - XENON TYPE - Revision: 2005 July 2005 FX 3. CHECK HEADLAMP CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect IPDM E/R connector. 3. Check continuity between IPDM E/R harness conne

Page 3920 of 4731

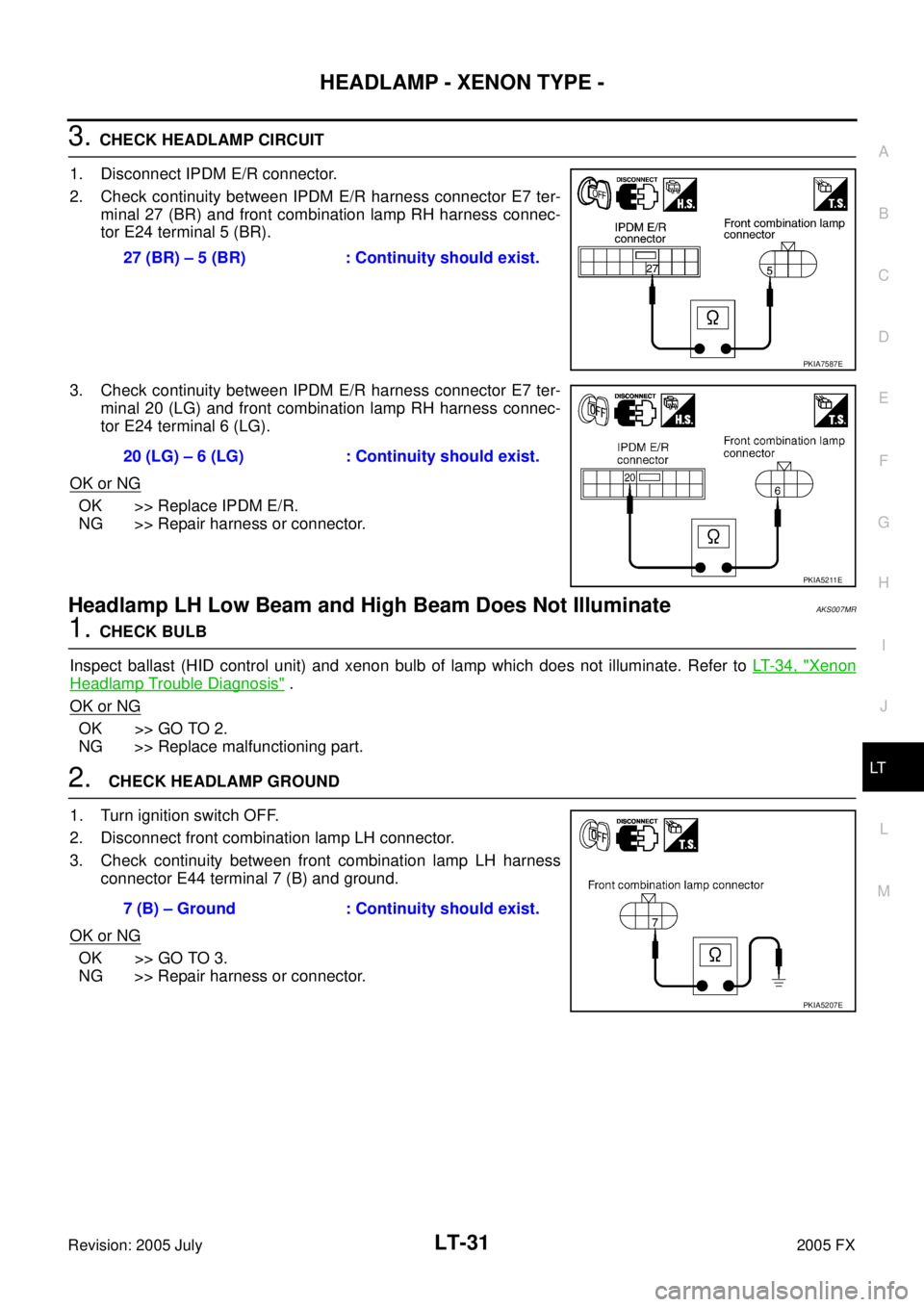

INFINITI FX35 2005 Service Manual HEADLAMP - XENON TYPE - LT-31 C D E F G H I J L M A B LT Revision: 2005 July 2005 FX 3. CHECK HEADLAMP CIRCUIT 1. Disconnect IPDM E/R connector. 2. Check continuity between IPDM E/R ha
