POWER DOOR LOCK SYSTEM
Revision: 2005 July 2005 FX
3. CHECK DOOR LOCK AND UNLOCK SWITCH GROUND HARNESS
Check continuity between power window main switch (door lock
and unlock switch) connector D7 terminal 17 and ground.
Check continuity between power window sub-switch (front pas-
senger side) (door lock and unlock switch) connector D36 termi-
nal 11 and ground.
OK or NG
OK >> Replace power window main switch or power window sub-switch.
NG >> Repair or replace harness.
Check Door Lock Actuator (Driver Side)AIS004M4
1. CHECK DOOR LOCK ACTUATOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM and front door lock actuator (driver side) connector.
3. Check continuity between BCM connector M4 terminals 44, 50 and front door lock actuator (driver side) connector D10 termi-
nals 2, 3.
4. Check continuity between BCM connector M4 terminals 44, 50 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness. 17 (B) – Ground : Continuity should exist.
PIIA6201E
11 (B) – Ground : Continuity should exist.
PIIA6202E
44 (Y) – 2 (GY) : Continuity should exist.
50 (PU) – 3 (PU) : Continuity should exist.
44 (Y) – Ground : Continuity should not exist.
50 (PU) – Ground : Continuity should not exist.
PIIA6539E
Page 866 of 4731

POWER DOOR LOCK SYSTEM BL-51
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2005 July 2005 FX
2. CHECK OUTPUT SIGNAL
1. Connect BCM and door lock actuator (driver side) connector.
2. Check voltage between BCM connector M4 terminals 44, 50 and ground.
OK or NG
OK >> Check harness connection.
NG >> Replace BCM.
Check Door Lock Actuator (Passenger Side and Rear LH/RH)AIS004M5
1. CHECK DOOR LOCK ACTUATOR CIRCUIT
1. Disconnect BCM and each door lock actuator connectors.
2. Check continuity between BCM connector M4 terminals 50, 51 and front door lock actuator passenger side, rear door lock actu-
ator LH/RH connectors D40, D52, D72 terminals 2, 3.
3. Check continuity between BCM connector M4 terminals 50, 51 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness.
Con-
nector Terminal
(Wire color) Condition Voltage (V)
(Approx.)
(+) (–)
M4 44
(Y)
Ground Driver door lock/unlock
switch is turned to
UNLOCK. 0
→ Battery voltage → 0
50
(PU) Driver door lock/unlock
switch is turned to
LOCK. 0
→ Battery voltage → 0
PIIA6383E
50 (PU) – 3 (PU) : Continuity should exist.
51 (W/B) – 2 (L or Y) : Continuity should exist.
50 (PU) – Ground : Continuity should not exist.
51 (W/B) – Ground : Continuity should not exist.
PIIA6540E
Page 867 of 4731

BL-52
POWER DOOR LOCK SYSTEM
Revision: 2005 July 2005 FX
2. CHECK DOOR LOCK ACTUATOR SIGNAL
Check voltage between BCM connector M4 terminals 50, 51 and
ground.
OK or NG
OK >> Replace front door lock assembly (passenger side) or rear door lock actuator LH/RH.
NG >> Replace BCM.
Check Fuel Lid Opener Actuator AIS004M6
1. CHECK FUEL LID OPENER ACTUATOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM and fuel lid lock actuator connector.
3. Check continuity between BCM connector M4 terminals 44, 50 and fuel lid lock actuator connector B70 terminals 1, 2.
4. Check continuity between BCM connector M4 terminals 44, 50 and ground.
OK or NG
OK >> Replace fuel lid actuator.
NG >> Repair or replace harness.
Con-
nector Terminal
(Wire color) Condition Voltage (V)
(Approx.)
(+) (–)
M4 50
(PU) Ground Door lock/unlock switch
is turned to LOCK. 0
→ Battery voltage → 0
51
(W/B) Door lock/unlock switch
is turned to UNLOCK. 0
→ Battery voltage → 0
PIIA6385E
44 (Y) – 2 (L) : Continuity should exist.
50 (PU) – 1 (PU) : Continuity should exist.
44 (Y) – Ground : Continuity should not exist.
50 (PU) – Ground : Continuity should not exist.
PIIA6386E
Page 868 of 4731

POWER DOOR LOCK SYSTEM BL-53
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2005 July 2005 FX
Check Front Door Key Cylinder Switch (Lock) AIS004M7
1. CHECK FRONT DOOR KEY CYLINDER SWITCH INPUT SIGNAL (LOCK SIGNAL)
With CONSULT-II
Check front door key cylinder switch LH (“KEY CYL LK SW”) in
“DATA MONITOR” mode with CONSULT-II.
When key cylinder switch is turned to “LOCK”.
Without CONSULT-II
Check voltage between power window main switch (door lock and
unlock switch) connector and ground.
OK or NG
OK >> Front door key cylinder switch circuit driver side (lock) is OK.
NG >> GO TO 2.
2. CHECK FRONT DOOR KEY CYLINDER SWITCH
1. Disconnect front door key cylinder switch driver side connector.
2. Check continuity between front door key cylinder switch driver side terminals 1 and 5.
OK or NG
OK >> Check the following.
Front door key cylinder switch driver side ground circuit.
Harness for open or short between power window main switch (door lock and unlock switch)
and front door key cylinder switch driver side.
NG >> Replace front door key cylinder switch driver side. KEY CYL LK-SW : ON
PIIA6541E
Connector
Terminal (Wire color)
Front door key cylinder
switch position Voltage (V)
(Approx.)
(+) (-)
D6 4 (P) Ground Neutral / Unlock 5
Lock 0
PIIA6203E
Terminal Front door key cylinder switch position Continuity
15 Neutral / Unlock No
Lock Yes
PIIA6543E
Page 869 of 4731

BL-54
POWER DOOR LOCK SYSTEM
Revision: 2005 July 2005 FX
Check Front Door Key Cylinder Switch (Unlock) AIS004M8

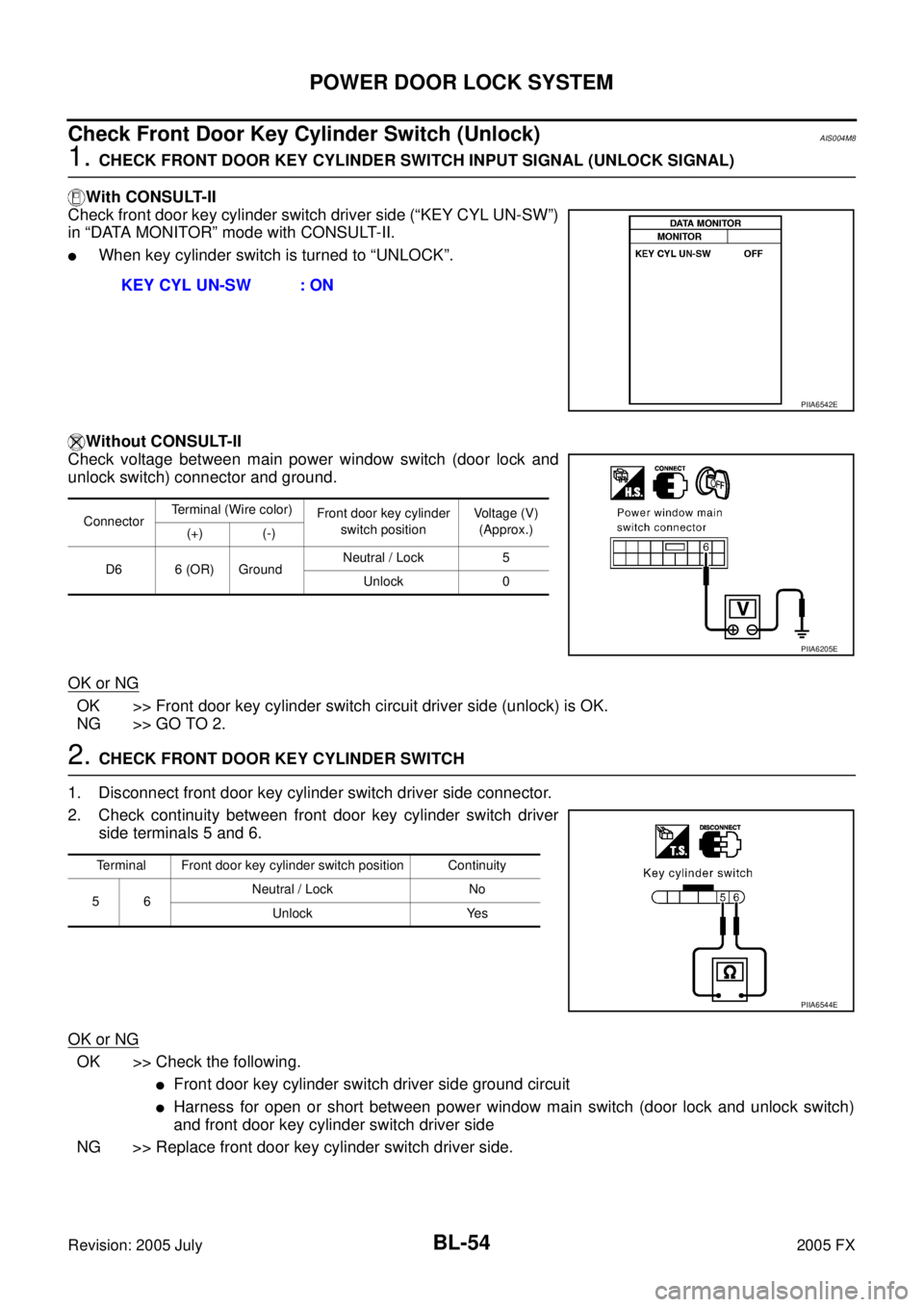

1. CHECK FRONT DOOR KEY CYLINDER SWITCH INPUT SIGNAL (UNLOCK SIGNAL)
With CONSULT-II
Check front door key cylinder switch driver side (“KEY CYL UN-SW”)
in “DATA MONITOR” mode with CONSULT-II.
When key cylinder switch is turned to “UNLOCK”.
Without CONSULT-II
Check voltage between main power window switch (door lock and
unlock switch) connector and ground.
OK or NG
OK >> Front door key cylinder switch circuit driver side (unlock) is OK.
NG >> GO TO 2.
2. CHECK FRONT DOOR KEY CYLINDER SWITCH
1. Disconnect front door key cylinder switch driver side connector.
2. Check continuity between front door key cylinder switch driver side terminals 5 and 6.
OK or NG
OK >> Check the following.
Front door key cylinder switch driver side ground circuit
Harness for open or short between power window main switch (door lock and unlock switch)
and front door key cylinder switch driver side
NG >> Replace front door key cylinder switch driver side. KEY CYL UN-SW : ON
PIIA6542E
Connector
Terminal (Wire color)
Front door key cylinder
switch position Voltage (V)
(Approx.)
(+) (-)
D6 6 (OR) Ground Neutral / Lock 5
Unlock 0
PIIA6205E
Terminal Front door key cylinder switch position Continuity
56 Neutral / Lock No
Unlock Yes
PIIA6544E
Page 870 of 4731

POWER DOOR LOCK SYSTEM BL-55
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2005 July 2005 FX
Check Select Unlock Relay Circuit AIS004M9
1. CHECK SELECT UNLOCK CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM, door lock actuator (driver side), and passenger side select unlock relay connector.
3. Check continuity between BCM connector M4 terminal 50 and passenger side select unlock relay connector M30 terminal 4.
4. Check continuity between passenger side select unlock relay connector M30 terminal 4 and ground.
5. Check continuity between passenger side select unlock relay connector M30 terminal 3 and door lock actuator connector D10
(driver side), D52 (rear LH), D72 (rear RH) terminal 3.
6. Check continuity between passenger side unlock relay connec- tor M30 terminal 3 and ground.
OK or NG
OK >> Check passenger side select unlock relay.
NG >> Repair or replace harness. 50 (PU) – 4 (PU) : Continuity should exist.
4 (PU) – Ground : Continuity should not exist.
PIIB0403E
3 (PU) – 3 (PU) : Continuity should exist.
3 (PU) – Ground : Continuity should not exist.
PIIB0404E
Page 871 of 4731
BL-56
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2005 July 2005 FX
REMOTE KEYLESS ENTRY SYSTEMPFP:28596
Component Parts and Harness Connector LocationAIS004MA
PIIB4074E
Page 872 of 4731

REMOTE KEYLESS ENTRY SYSTEM BL-57
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2005 July 2005 FX
System DescriptionAIS004MB
INPUTS
Power is supplied at all times
to BCM terminal 55
through 50A fusible link (letter M , located in the fuse and fusible link box).
to BCM terminal 42
through 15A fuse (No. 22, located in the fuse and fusible link box).
When the key switch is ON (key is inserted in ignition key cylinder), power is supplied
to BCM terminal 37
through key switch terminal 1 and 2
through 15A fuse (No. 22, located in the fuse and fusible link box).
When the ignition switch is ACC or ON, power is supplied
to BCM terminal 11
through 10A fuse [No. 6, located in the fuse block (J/B)].
When the ignition switch is ON or START, power is supplied
to BCM terminal 38
through 15A fuse [No. 1, located in the fuse block (J/B)].
When the front door switch (driver side) is ON (door is OPEN), ground is supplied
to BCM terminal 62
through front door switch (driver side) terminal 1
through front door switch (driver side) case ground.
When the front door switch (passenger side) is ON (door is OPEN), ground is supplied
to BCM terminal 12
through front door switch (passenger side) terminal 1
through front door switch (passenger side) case ground.
When the rear door switch LH is ON (door is OPEN), ground is supplied
to BCM terminal 63
through rear door switch LH terminal 1
through rear door switch LH case ground.
When the rear door switch RH is ON (door is OPEN), ground is supplied
to BCM meter terminal 13
through rear door switch RH terminal 1
through rear door switch RH case ground.
When the back door switch is ON (door is open), ground is supplied
to BCM terminal 58
through back door closure motor (door switch) terminals 7 and 8
through body grounds B15 and B45
Key fob signal is inputted to remote keyless entry receiver (the antenna of the system is built in remote keyless
entry receiver).
to BCM terminal 20
from remote keyless entry system controls operation of the
The remote keyless entry system controls operation of the
power door lock
hazard and horn reminder
auto door lock
panic alarm
keyless power window down (open)
room lamp and key ring illumination
