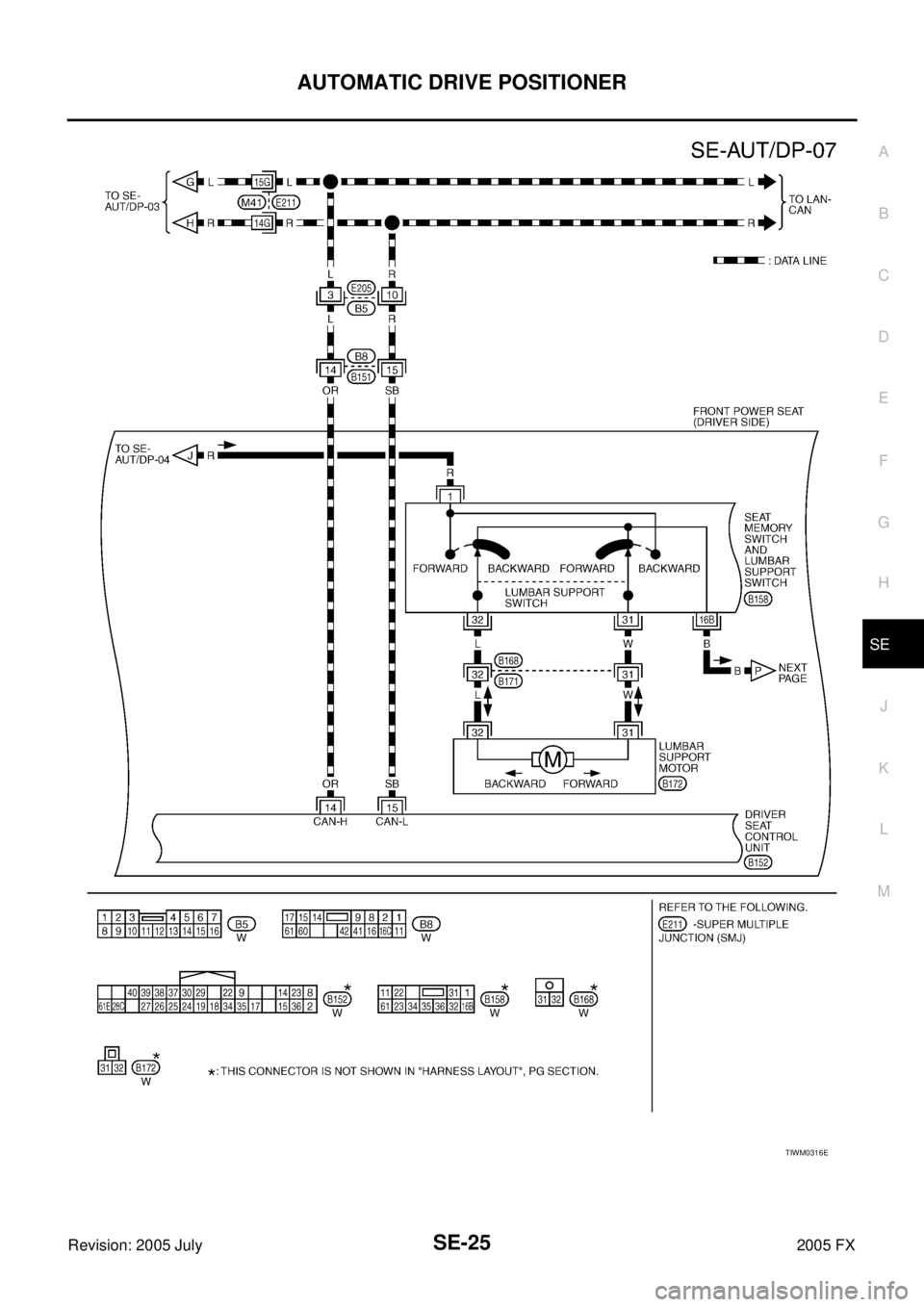

AUTOMATIC DRIVE POSITIONER
Revision: 2005 July 2005 FX
TIWM0986E
Page 4498 of 4731
AUTOMATIC DRIVE POSITIONER SE-25
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2005 July 2005 FX
TIWM0316E
Page 4499 of 4731
SE-26
AUTOMATIC DRIVE POSITIONER
Revision: 2005 July 2005 FX
TIWH0064E
Page 4500 of 4731
AUTOMATIC DRIVE POSITIONER SE-27
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2005 July 2005 FX
TIWM0318E
Page 4501 of 4731
SE-28

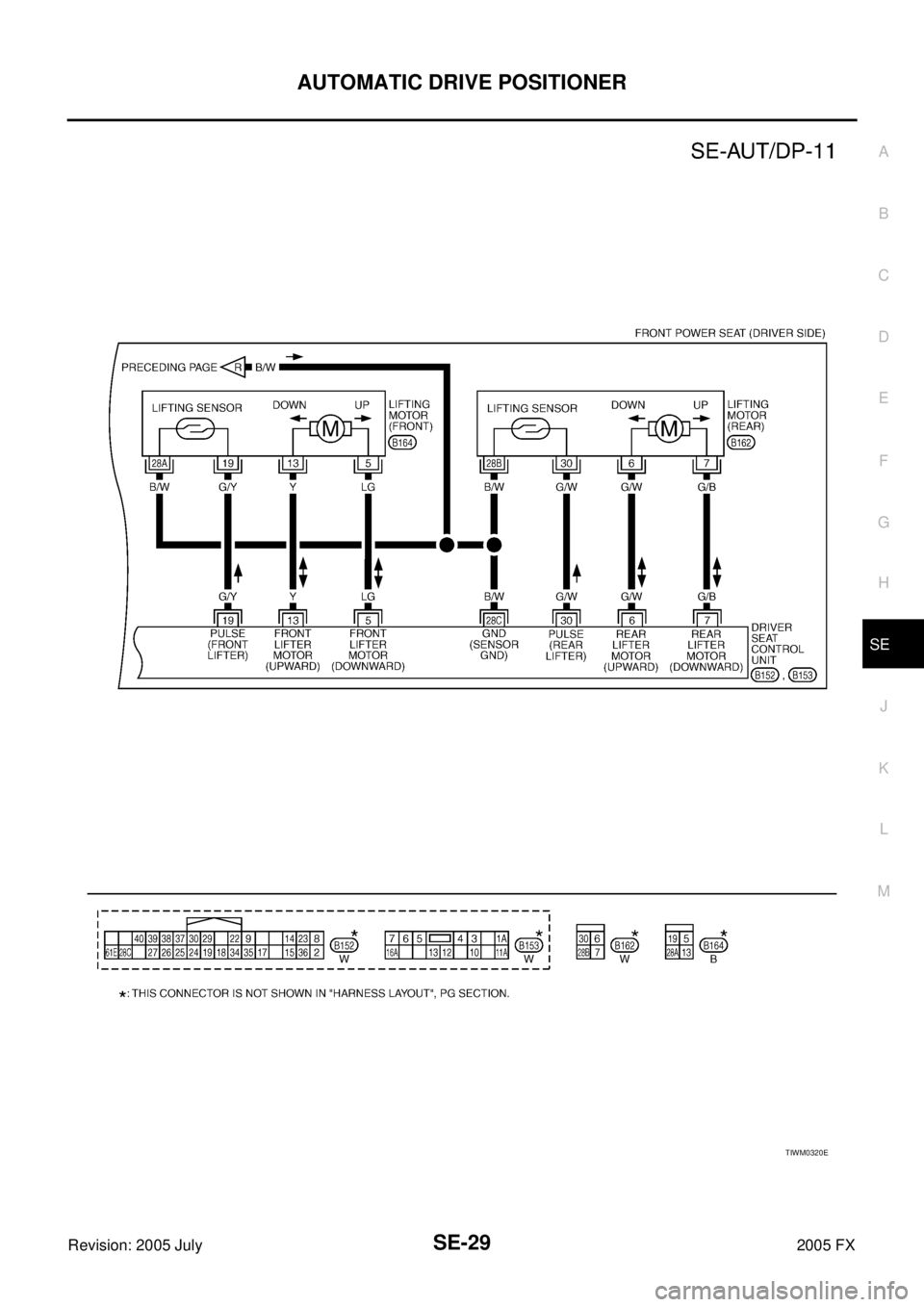

AUTOMATIC DRIVE POSITIONER
Revision: 2005 July 2005 FX
TIWM0319E
Page 4502 of 4731
AUTOMATIC DRIVE POSITIONER SE-29
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2005 July 2005 FX
TIWM0320E
Page 4503 of 4731

SE-30
AUTOMATIC DRIVE POSITIONER
Revision: 2005 July 2005 FX
Terminals and Reference Values for BCMAIS002XG
Terminals and Reference Values for Automatic Drive Positioner Control UnitAIS002XH
TERMINAL WIRE
COLOR ITEM CONDITION
VOLTAGE (V)
(Approx.)
11 LG/R Ignition switch (ACC) Ignition switch
(ACC or ON position) Battery voltage
37 B/W Key switch signal Key switch ON (key is inserted in
ignition key cylinder) Battery voltage
Key switch OFF (key is removed
from ignition key cylinder) 0
38 W/L Ignition switch (ON) Ignition switch
(ON or START position) Battery voltage
39 L CAN-H — —
40 R CAN-L — —
42 L/R Power source (Fuse) — Battery voltage
49 B Ground (signal) — 0
52 B Ground (power) — 0
55 G Power supply (Fusible link) — Battery voltage
62 W Front door switch (driver side) ON (Open) → OFF (Closed) 0 → Battery voltage
TERMI-
NAL WIRE
COLOR ITEM CONDITION VOLTAGE (V)
(Approx.)
1 LG/R Tilt switch UP signal Tilt switch turned to upward 0
Other than above 5
2 G/W Changeover switch RH signal When changeover switch in RH posi-
tion 0
Other than above 5
3 GY Mirror switch UP signal When mirror switch in turned to
upward position 0
Other than above 5
4 Y Mirror switch LEFT signal When mirror switch in turned to left-
ward position 0
Other than above 5
5OR Passenger side mirror sensor
(vertical) signal When passenger side mirror motor is
UP or DOWN operation Changes between 3 (close to perk)
- 1 (close to valley)
6P/L Driver side mirror sensor
(vertical) signal When driver side mirror motor is UP
or DOWN operation Changes between 3 (close to perk)
- 1 (close to valley)
7 Y/R Tilt sensor signal Tilt position, top 2
Tilt position, bottom 4
10 B UART LINE (TX) Memory switch 1 or 2 operated
11 B R Telescopic switch
FORWARD signal Telescopic switch turned to forward 0
Other than above 5
PIIA4813E
Page 4504 of 4731

AUTOMATIC DRIVE POSITIONER SE-31
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2005 July 2005 FX
14 L/W Passenger side mirror motor
UP signal When passenger side mirror motor
UP operation 1.5 - Battery voltage
Other than above 0
15 L/B Passenger side mirror motor
LEFT signal When passenger side mirror motor
LEFT operation 1.5 - Battery voltage
Other than above 0
16 P Driver side mirror motor
DOWN signal When driver side mirror motor DOWN
operation 1.5 - Battery voltage
Other than above 0
Driver side mirror motor
RIGTH signal When driver side mirror motor RIGHT
operation 1.5 - Battery voltage
Other than above 0
17 R/B Tilt switch DOWN signal Tilt switch turned to downward 0
Other than above 5
18 L/OR Changeover switch LH signal When changeover switch in LH posi-
tion 0
Other than above 5
19 GY/L Mirror switch DOWN signal When mirror switch in turned to down-
ward position 0
Other than above 5
20 PU Mirror switch RIGHT signal When mirror switch in turned to right-
ward position 0
Other than above 5
21 G/Y Passenger side mirror sensor
(horizontal) signal When passenger side mirror motor is
LEFT or RIGHT operation Changes between 1 (close to left
edge) - 3 (close to right edge)
22 L/Y Driver side mirror sensor
(horizontal) signal When driver side mirror motor is LEFT
or RIGHT operation Changes between 1 (close to right
edge) - 3 (close to left edge)
23 Y/B Telescopic sensor input Telescopic position, top 1
Telescopic position, bottom 4
26 W UART LINE (RX) Memory switch 1 or 2 operated
27 LG Telescopic switch
BACKWARD signal Telescopic switch turned to backward 0
Other than above 5
28 SB Ignition switch (START) Ignition switch
(START position) Battery voltage
30 W/R Passenger side mirror motor
DOWN signal When passenger side mirror motor
downward 1.5 - Battery voltage
Other than above 0
Passenger side mirror motor
RIGTH signal When passenger side mirror motor
RIGHT operation 1.5 - Battery voltage
Other than above 0
31 R/W Driver side mirror motor
UP signal When driver side mirror motor upward 1.5 - Battery voltage
Other than above 0
TERMI-
NAL WIRE
COLOR ITEM CONDITION VOLTAGE (V)
(Approx.)
PIIA4814E
