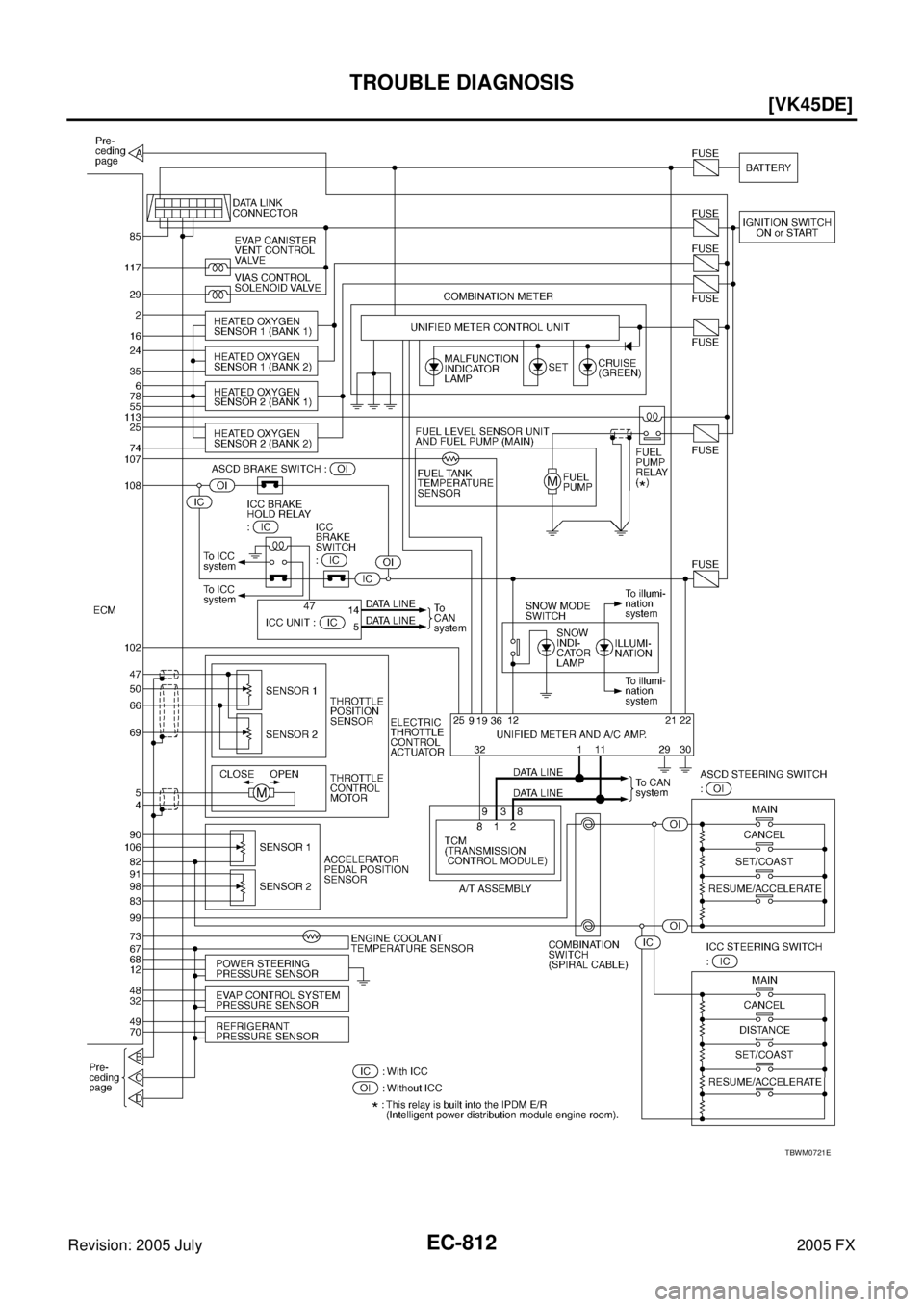

Circuit DiagramABS007I4
TBWM0720E
Page 2205 of 4731
EC-812
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
TBWM0721E
Page 2206 of 4731
![INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS EC-813
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
ECM Harness Connector Terminal LayoutABS007I5
ECM Terminals and Reference ValueABS007I6
PREPARATIO INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS EC-813
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
ECM Harness Connector Terminal LayoutABS007I5
ECM Terminals and Reference ValueABS007I6
PREPARATIO](/manual-img/42/57020/w960_57020-2205.png)
TROUBLE DIAGNOSIS EC-813
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
ECM Harness Connector Terminal LayoutABS007I5
ECM Terminals and Reference ValueABS007I6
PREPARATION

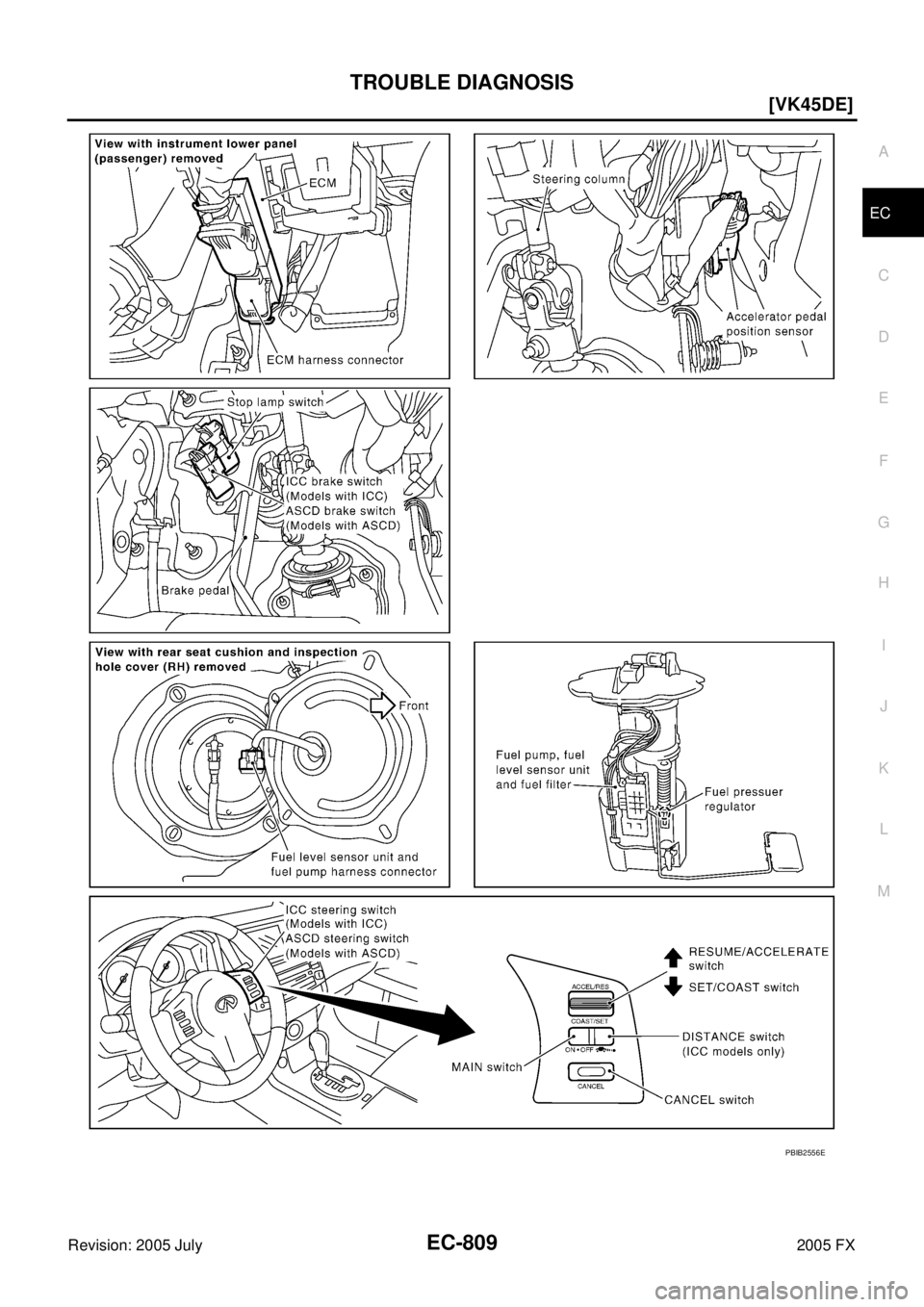

1. ECM is located behind the passenger side instrument lower
panel. For this inspection, remove passenger side instrument
lower panel.
2. Remove ECM harness connector.
3. When disconnecting ECM harness connector, loosen it with levers as far as they will go as shown at right.
4. Connect a break-out box (SST) and Y-cable adapter (SST) between the ECM and ECM harness connector.
Use extreme care not to touch 2 pins at one time.
Data is for comparison and may not be exact.
ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.
PBIB1192E
PBIB1505E
PBIB1512E
TER-
MINAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
1 B ECM ground [Engine is running]
Idle speedBody ground
Page 2207 of 4731
![INFINITI FX35 2005 Service Manual EC-814
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
2L Heated oxygen sensor 1
heater (bank 1) [Engine is running]
Warm-up condition
Engine speed: Below 3,000 rpm Approximately 7V
[Eng INFINITI FX35 2005 Service Manual EC-814
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
2L Heated oxygen sensor 1
heater (bank 1) [Engine is running]
Warm-up condition
Engine speed: Below 3,000 rpm Approximately 7V
[Eng](/manual-img/42/57020/w960_57020-2206.png)
EC-814
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
2L Heated oxygen sensor 1
heater (bank 1) [Engine is running]
Warm-up condition
Engine speed: Below 3,000 rpm Approximately 7V
[Engine is running]
Engine speed: Above 3,000 rpm BATTERY VOLTAGE
(11 - 14V)
3P Throttle control motor relay
power supply [Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
4L/W Throttle control motor
(Close) [Ignition switch: ON]
Engine stopped
Selector lever: D
Accelerator pedal: Released 0 - 14V
5L/B Throttle control motor
(Open) [Ignition switch: ON]
Engine stopped
Selector lever: D
Accelerator pedal: Fully depressed 0 - 14V
6R Heated oxygen sensor 2
heater (bank 1) [Engine is running]
Engine speed: Below 3,600 rpm after the
following conditions are met
–Engine: after warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load 0 - 1.0V
[Ignition switch: ON]
Engine stopped
[Engine is running]
Engine speed: Above 3,600 rpm BATTERY VOLTAGE
(11 - 14V)
10 OR Intake valve timing control
solenoid valve (bank 1) [Engine is running]
Warm-up condition
Idle speed
BATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Warm-up condition
Engine speed: 2,000rpm 7 - 12V
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
PBIB0519E
PBIB1104E
PBIB1105E
PBIB1790E
Page 2208 of 4731
![INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS EC-815
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
11 B R Intake valve timing control
solenoid valve (bank 2) [Engine is running]
Warm-up conditi INFINITI FX35 2005 Service Manual TROUBLE DIAGNOSIS EC-815
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
11 B R Intake valve timing control
solenoid valve (bank 2) [Engine is running]
Warm-up conditi](/manual-img/42/57020/w960_57020-2207.png)
TROUBLE DIAGNOSIS EC-815
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
11 B R Intake valve timing control
solenoid valve (bank 2) [Engine is running]
Warm-up condition
Idle speed
BATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Warm-up condition
Engine speed: 2,000rpm 7 - 12V
12 R/G Power steering pressure
sensor [Engine is running]
Steering wheel: Being turned
0.5 - 4.5V
[Engine is running]
Steering wheel: Not being turned 0.4 - 0.8V
13 Y Crankshaft position sensor
(POS) [Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle 1.0 - 2.0V
[Engine is running]
Engine speed: 2,000 rpm 1.0 - 2.0V
14 W Camshaft position sensor
(PHASE) [Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle 1.0 - 4.0V
[Engine is running]
Engine speed: 2,000 rpm 1.0 - 4.0V
15 W Knock sensor (bank 1) [Engine is running]
Idle speed Approximately 2.5V
16 R/L Heated oxygen sensor 1
(bank 1) [Engine is running]
Warm-up condition
Engine speed: 2,000 rpm 0 - Approximately 1.0V
(Periodically change)
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
PBIB1790E
PBIB1041E
PBIB1042E
PBIB1039E
PBIB1040E
