Page 3609 of 4731

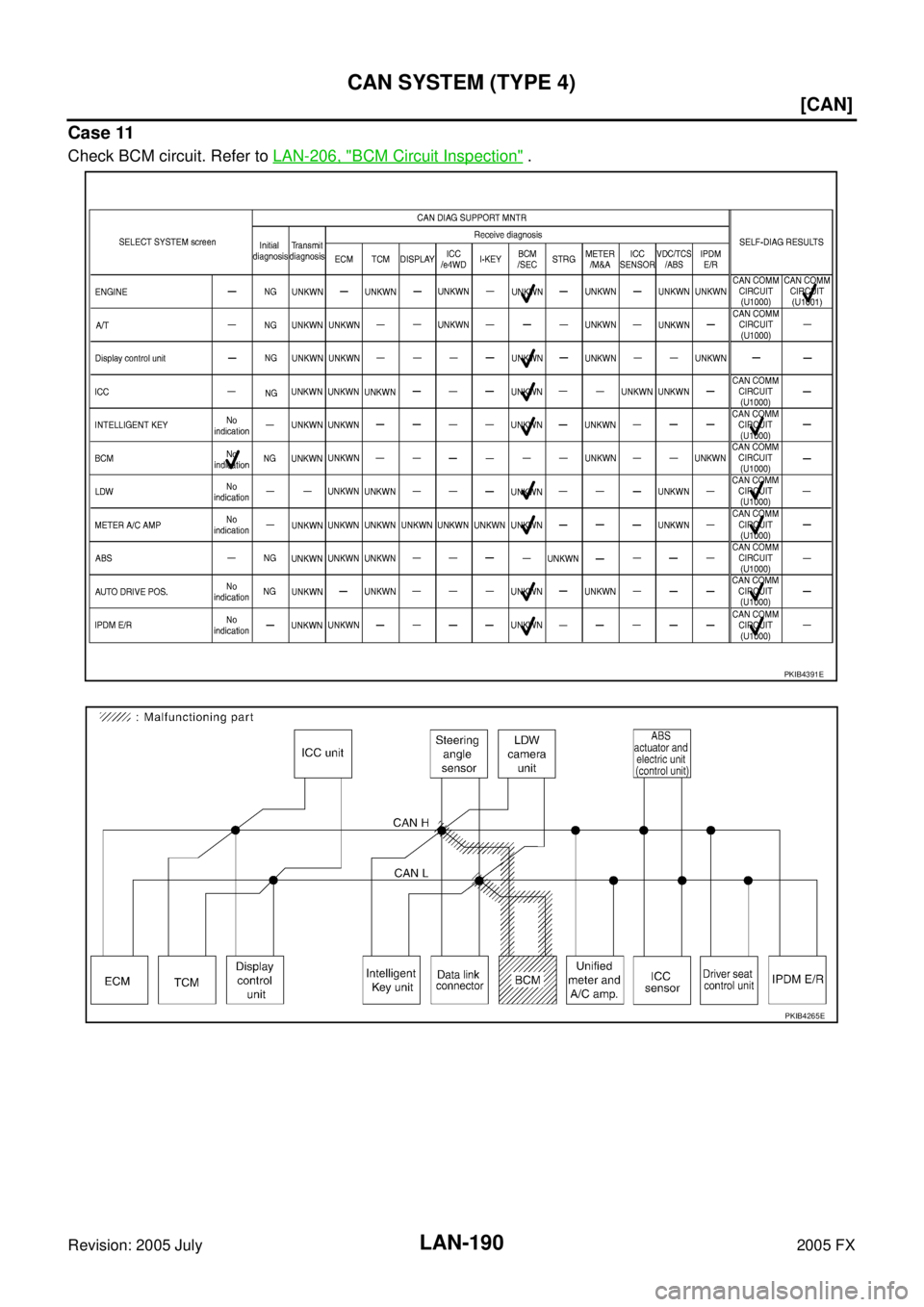

INFINITI FX35 2005 Service Manual LAN-190 [CAN] CAN SYSTEM (TYPE 4) Revision: 2005 July 2005 FX Case 11 Check BCM circuit. Refer to LAN-206, "BCM Circuit Inspection" . PKIB4391E PKIB4265E

Page 3610 of 4731

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 4) LAN-191 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 12 Check steering angle sensor circuit. Refer to LAN-206, "Steering Angle Sensor Circuit Ins

Page 3611 of 4731

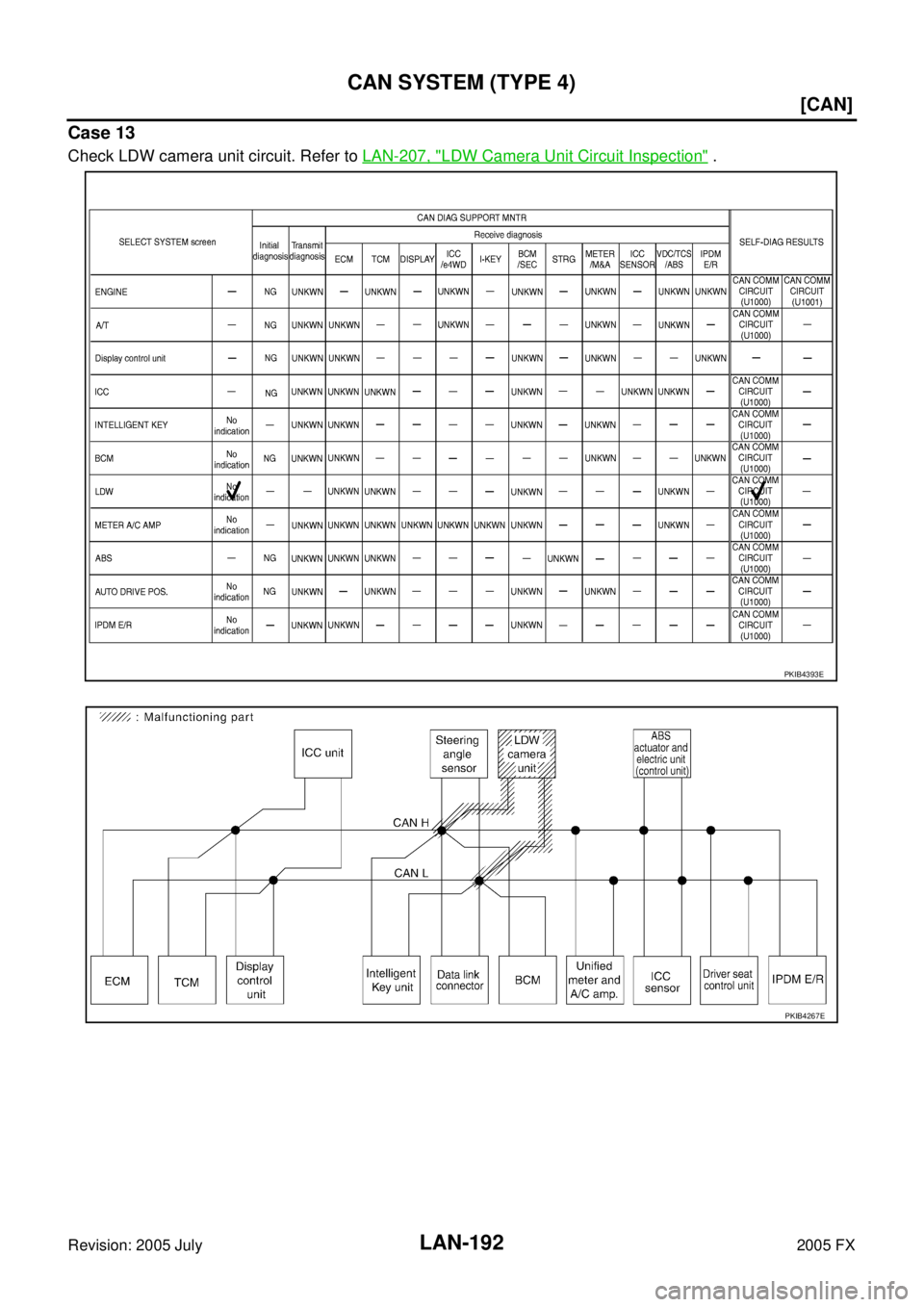

INFINITI FX35 2005 Service Manual LAN-192 [CAN] CAN SYSTEM (TYPE 4) Revision: 2005 July 2005 FX Case 13 Check LDW camera unit circuit. Refer to LAN-207, "LDW Camera Unit Circuit Inspection" . PKIB4393E PKIB4267E

Page 3612 of 4731

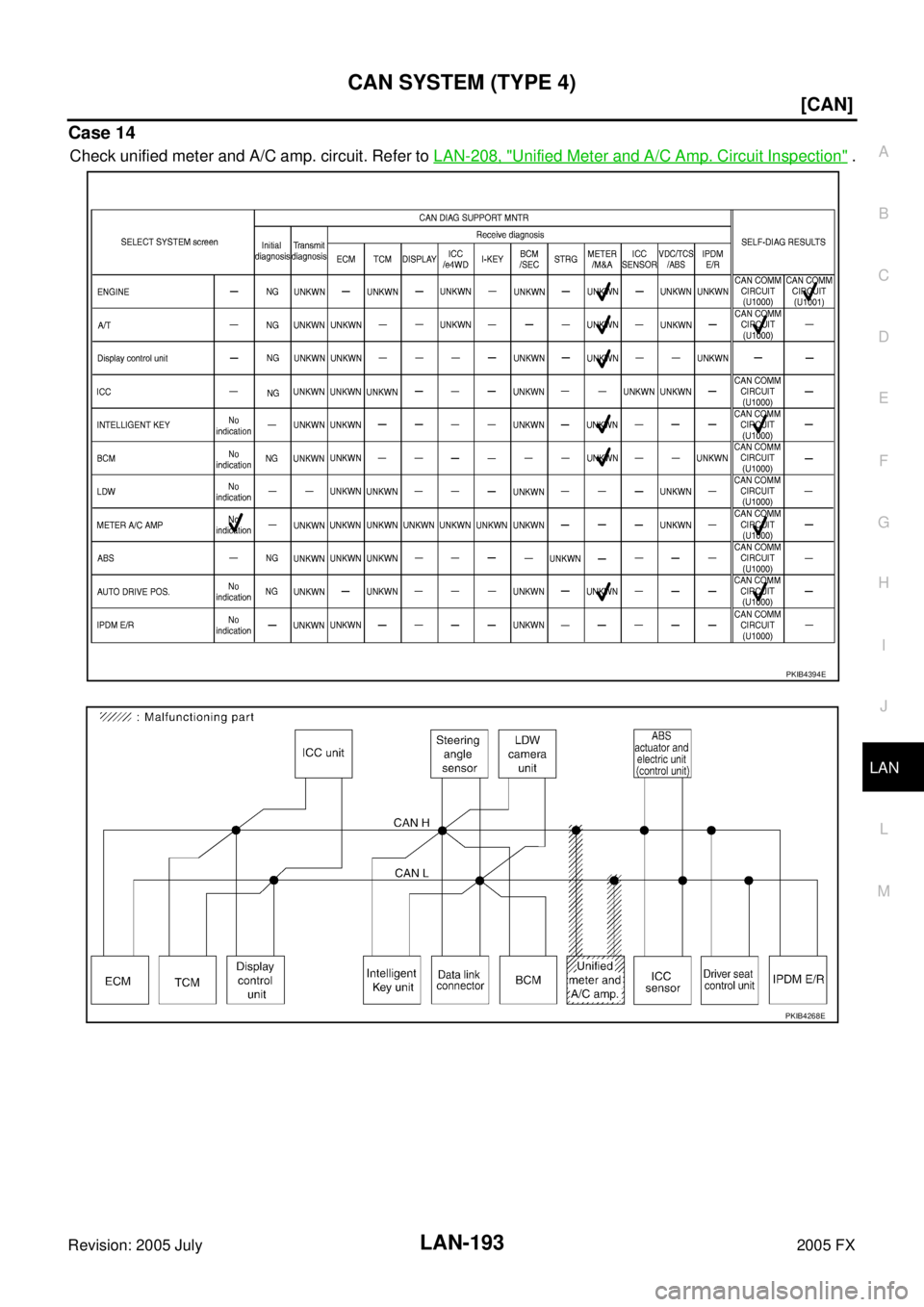

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 4) LAN-193 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 14 Check unified meter and A/C amp. circuit. Refer to LAN-208, "Unified Meter and A/C Amp. C

Page 3613 of 4731

INFINITI FX35 2005 Service Manual LAN-194 [CAN] CAN SYSTEM (TYPE 4) Revision: 2005 July 2005 FX Case 15 Check ICC sensor circuit. Refer to LAN-208, "ICC Sensor Circuit Inspection" . PKIB4395E PKIB4269E

Page 3614 of 4731

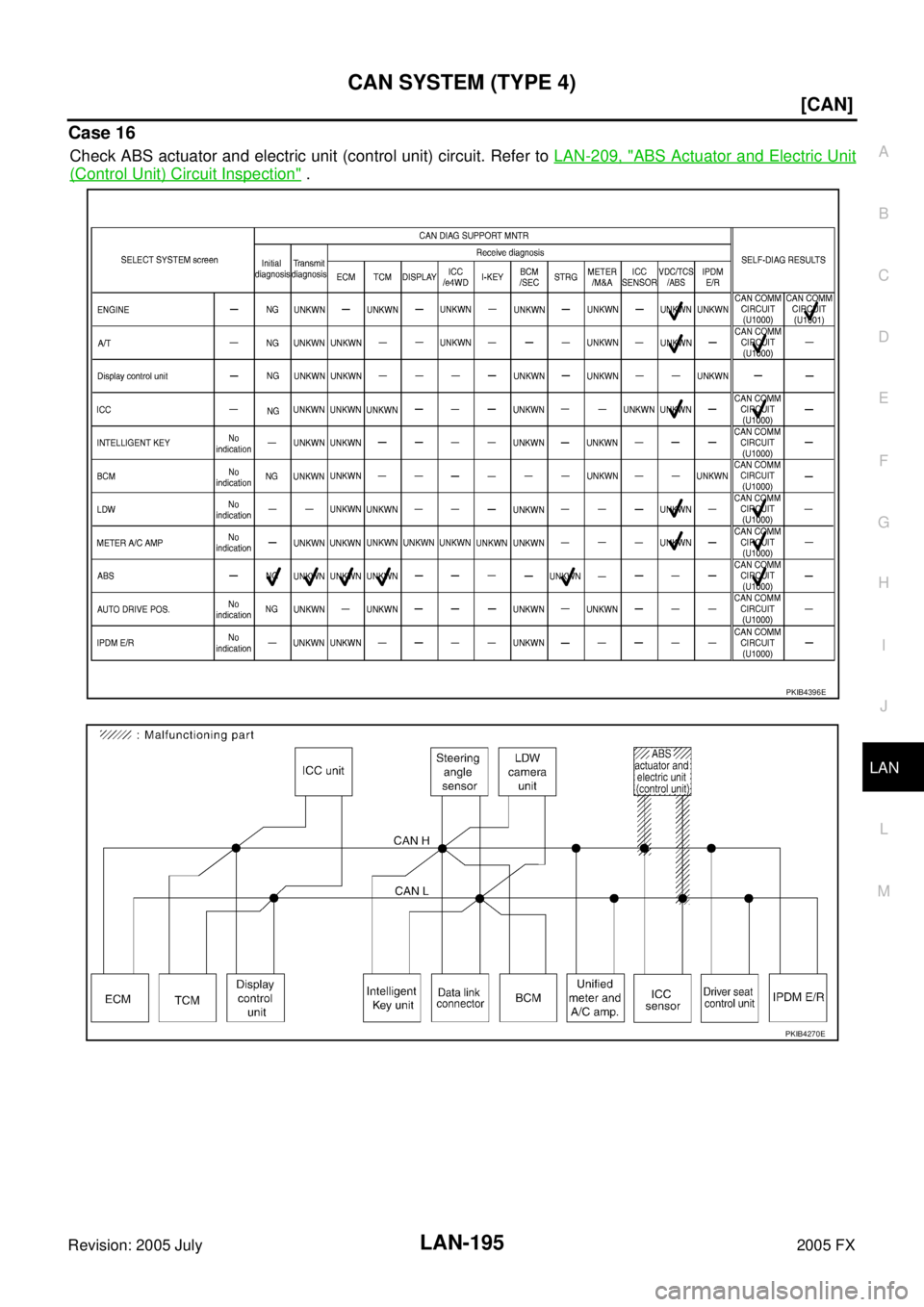

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 4) LAN-195 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 16 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-209, "ABS Actua

Page 3615 of 4731

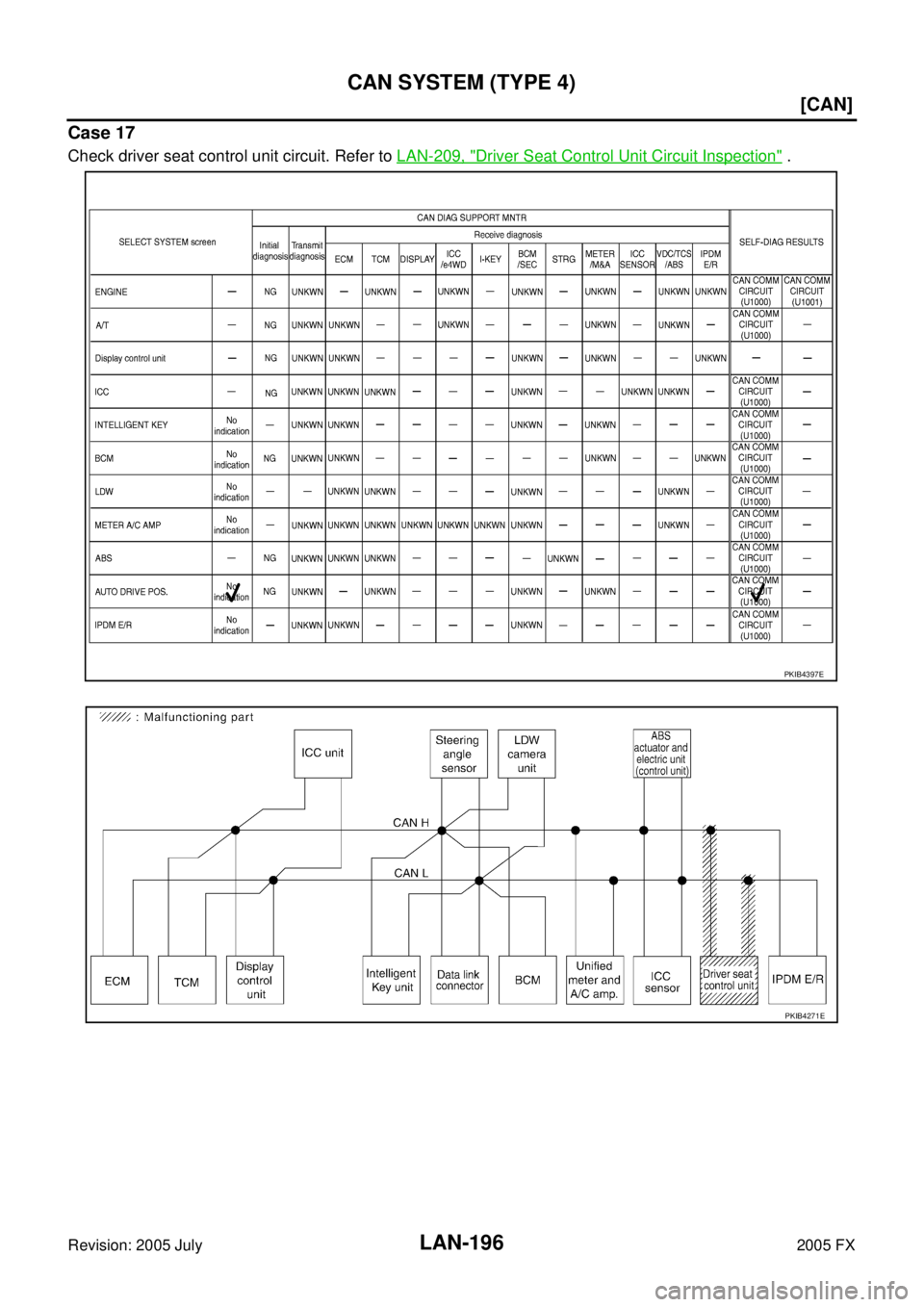

INFINITI FX35 2005 Service Manual LAN-196 [CAN] CAN SYSTEM (TYPE 4) Revision: 2005 July 2005 FX Case 17 Check driver seat control unit circuit. Refer to LAN-209, "Driver Seat Control Unit Circuit Inspection" . PKIB4397E PKIB4271E

Page 3616 of 4731

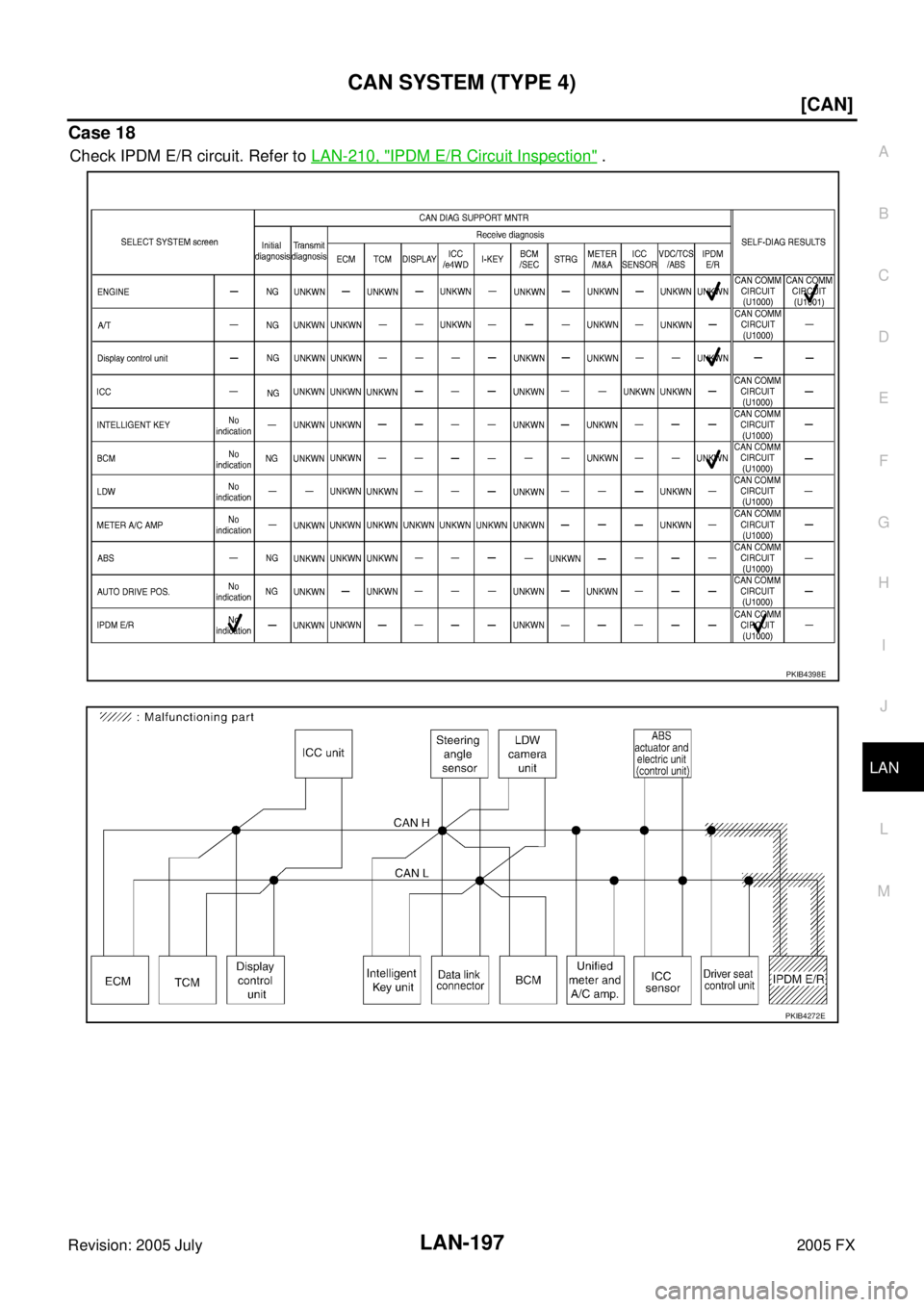

INFINITI FX35 2005 Service Manual CAN SYSTEM (TYPE 4) LAN-197 [CAN] C D E F G H I J L M A B LAN Revision: 2005 July 2005 FX Case 18 Check IPDM E/R circuit. Refer to LAN-210, "IPDM E/R Circuit Inspection" . PKIB4398E PKIB4
