Page 3121 of 4731
EX-2
PREPARATION
Revision: 2005 July 2005 FX
PREPARATIONPFP:00002
Commercial Service ToolsABS005Z4
Tool nameDescription
Power tool Loosening nuts and bolts
PBIC0190E
Page 3122 of 4731
EXHAUST SYSTEM EX-3
C
D E
F
G H
I
J
K L
M A
EX
Revision: 2005 July 2005 FX
EXHAUST SYSTEMPFP:20100
Checking Exhaust SystemABS005Z5
Check exhaust pipes, muffler and mounting for improper attachment,
leaks, cracks, damage or deterioration.
If anything is found, repair or replace damaged parts.
Removal and InstallationABS005Z6
CAUTION:
Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat
resistance, corrosion resistance, and shape.
Perform the operation with the exhaust system fully cooled down because the system will be hot
just after engine stops.
Be careful not to cut your hand on the heat insulator edge.
VQ35DE
SMA211A
PBIC1583E

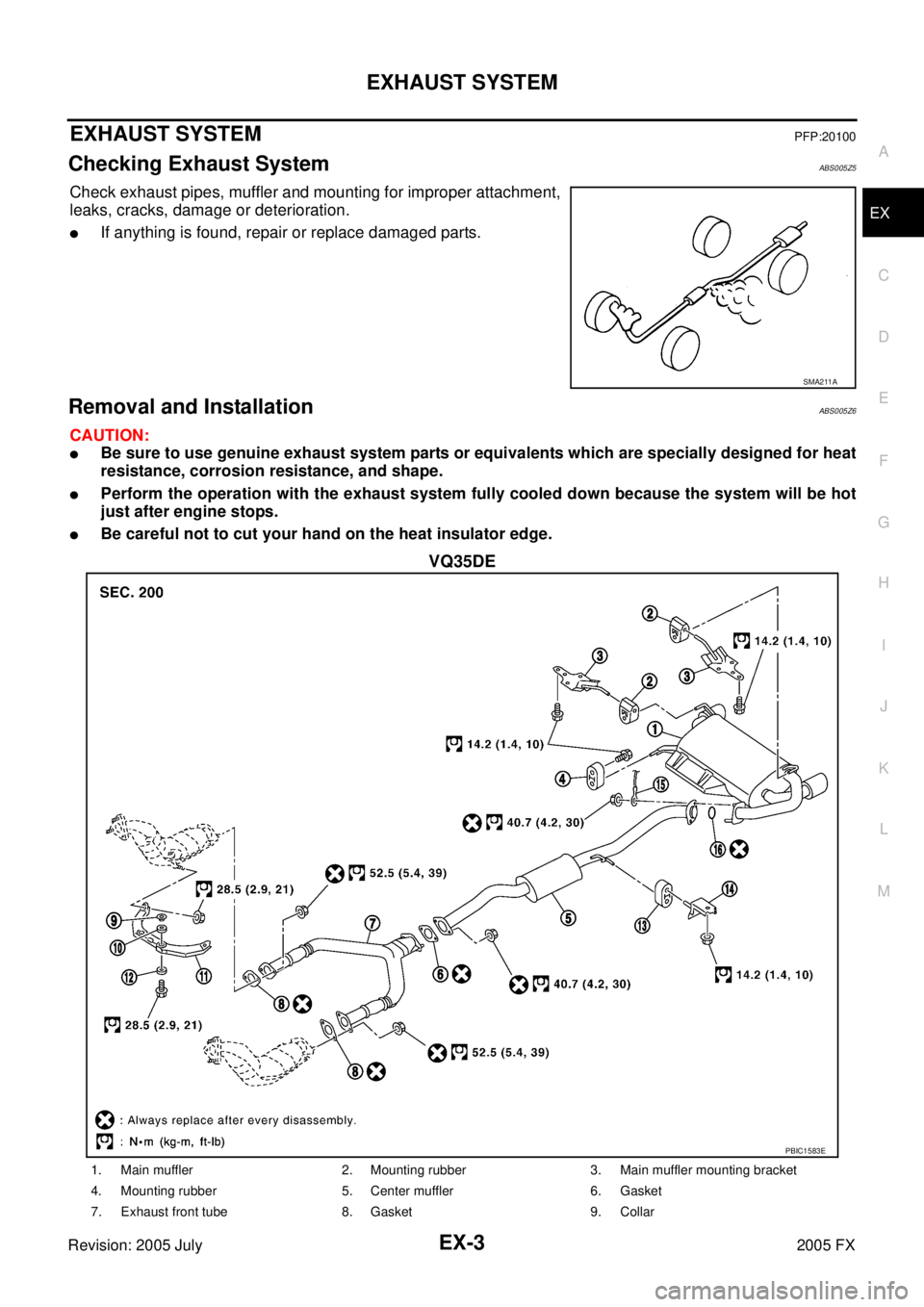

1. Main muffler 2. Mounting rubber 3. Main muffler mounting bracket
4. Mounting rubber 5. Center muffler 6. Gasket
7. Exhaust front tube 8. Gasket 9. Collar
Page 3123 of 4731
EX-4
EXHAUST SYSTEM
Revision: 2005 July 2005 FX
VK45DE
REMOVAL
Disconnect each joint and mounting using power tool.
When removing main muffler, remove main muffler mounting bracket bolts.
Remove exhaust mounting bracket as follows:
1. Remove engine rear undercover.
2. Remove front cross bar. FSU-6, "
FRONT SUSPENSION ASSEMBLY" .
3. Remove exhaust mounting bracket.
INSTALLATION
Note the following, and install in the reverse order of removal.
10. Grommet 11. Exhaust mounting bracket 12. Grommet
13. Mounting rubber 14. Bracket 15. Ground cable
16. Ring gasket
PBIC1775E

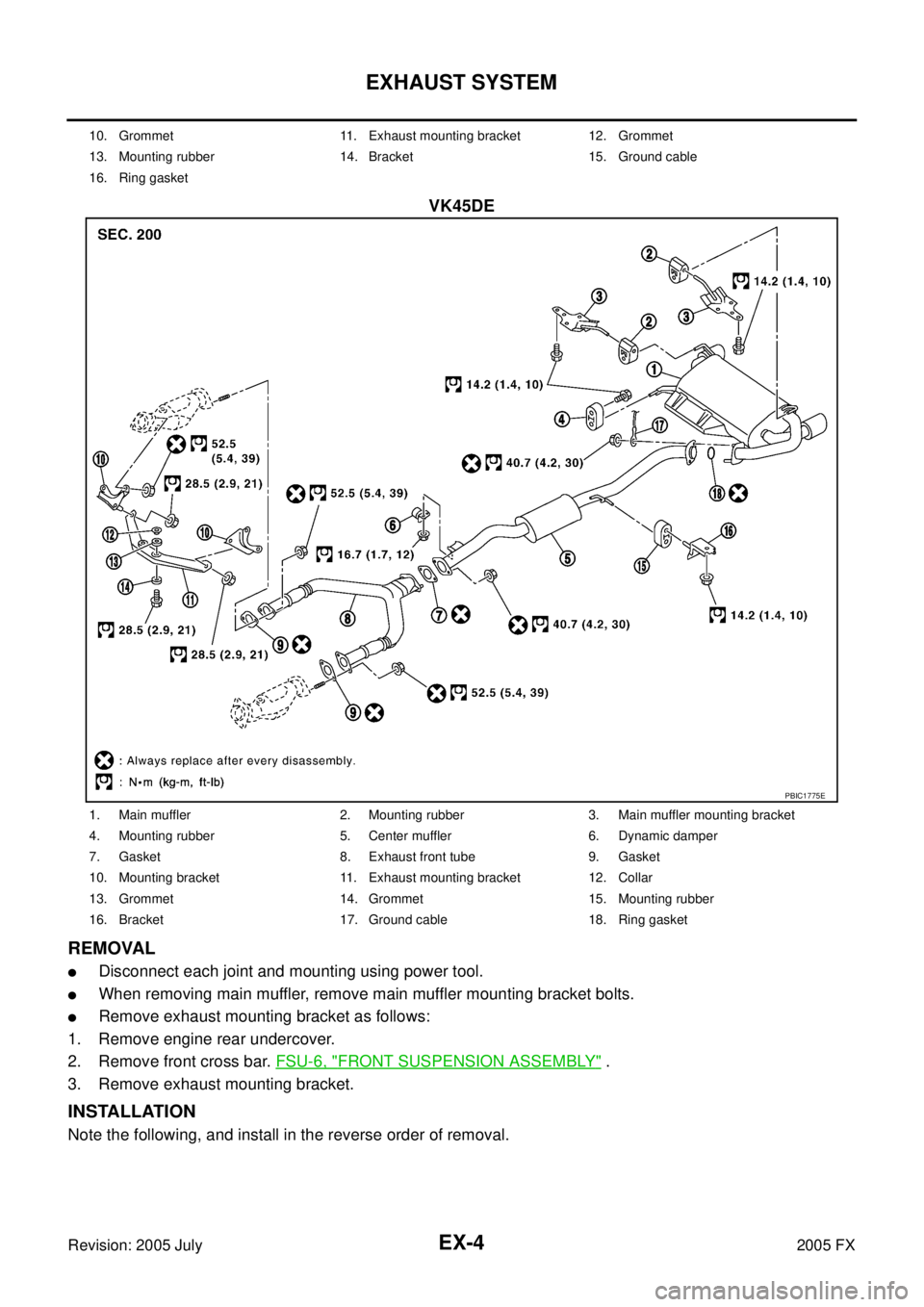

1. Main muffler 2. Mounting rubber 3. Main muffler mounting bracket
4. Mounting rubber 5. Center muffler 6. Dynamic damper
7. Gasket 8. Exhaust front tube 9. Gasket
10. Mounting bracket 11. Exhaust mounting bracket 12. Collar
13. Grommet 14. Grommet 15. Mounting rubber
16. Bracket 17. Ground cable 18. Ring gasket
Page 3124 of 4731

EXHAUST SYSTEM EX-5
C
D E
F
G H
I
J
K L
M A
EX
Revision: 2005 July 2005 FX
Tighten main muffler mounting bracket bolts in numerical order
as shown in the figure.
CAUTION:
Always replace exhaust tube gaskets with new ones when reassembling.
If heat insulator is badly deformed, repair or replace it. If deposits such as mud pile up on the heat
insulator, remove them.
When installing heat insulator avoid large gaps or interference between heat insulator and each
exhaust pipe.
Remove deposits from the sealing surface of each connection. Connect them securely to avoid
gases leakage.
Temporarily tighten mounting nuts on the exhaust manifold side and mounting bolts on the vehi-
cle side. Check each part for unusual interference, and then tighten them to the specified torque.
When installing each mounting rubber, avoid twisting or unusual extension in up/down and right/
left directions.
INSPECTION AFTER INSTALLATION
Make sure clearance between tail tube and bumper is even.
With engine running, check exhaust tube joints for gas leakage and unusual noises.
Check to ensure that mounting brackets and mounting rubbers are installed properly and free from undue
stress. Improper installation could result in excessive noise and vibration.
PBIC1049E
Page 3125 of 4731
EX-6
EXHAUST SYSTEM
Revision: 2005 July 2005 FX
Page 3126 of 4731

FAX-1
FRONT AXLE
D DRIVELINE/AXLE
CONTENTS
C E F
G H
I
J
K L
M
SECTION FA X
A
B
FA X
Revision: 2005 July 2005 FX
FRONT AXLE
2WD
PREPARATION ........................................................... 2
Special Service Tools (SST) ................................ ..... 2
Commercial Service Tools ................................... ..... 2
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 3
NVH Troubleshooting Chart ................................ ..... 3
FRONT WHEEL HUB AND KNUCKLE ................. ..... 4
On-Vehicle Inspection and Service ..................... ..... 4
WHEEL BEARING INSPECTION .................... ..... 4
Removal and Installation ..................................... ..... 4
REMOVAL ........................................................ ..... 4
INSPECTION AFTER REMOVAL .................... ..... 5
INSTALLATION ................................................ ..... 5
SERVICE DATA ..................................................... ..... 6
Wheel Bearing ..................................................... ..... 6
AWD
PRECAUTIONS ..................................................... ..... 7
Caution ................................................................ ..... 7
PREPARATION ...................................................... ..... 8
Special Service Tools (SST) ................................ ..... 8
Commercial Service Tools ................................... ..... 8
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 9
NVH Troubleshooting Chart ................................ ..... 9 FRONT WHEEL HUB AND KNUCKLE .................
... 10
On-Vehicle Inspection and Service ...................... ... 10
WHEEL BEARING INSPECTION .................... ... 10
Removal and Installation ..................................... ... 10
REMOVAL ........................................................ ... 10
INSPECTION AFTER REMOVAL .................... ... 11
INSTALLATION ................................................ ... 11
FRONT DRIVE SHAFT .......................................... ... 12
Removal and Installation (Left Side) .................... ... 12
REMOVAL ........................................................ ... 12
INSPECTION AFTER REMOVAL .................... ... 12
INSTALLATION ................................................ ... 12
Removal and Installation (Right Side) ................. ... 13
REMOVAL ........................................................ ... 13
INSPECTION AFTER REMOVAL .................... ... 13
INSTALLATION ................................................ ... 14
Disassembly and Assembly (Left Side) ............... ... 14
DISASSEMBLY ................................................ ... 14
INSPECTION AFTER DISASSEMBLY ............. ... 15
ASSEMBLY ...................................................... ... 16
Disassembly and Assembly (Right Side) ............. ... 20
DISASSEMBLY ................................................ ... 20
INSPECTION AFTER DISASSEMBLY ............. ... 21
ASSEMBLY ...................................................... ... 22
SERVICE DATA ..................................................... ... 26
Wheel Bearing ..................................................... ... 26
Drive Shaft ........................................................... ... 26
Tightening Torque ................................................ ... 26
Page 3127 of 4731
FAX-2
[2WD]
PREPARATION
Revision: 2005 July 2005 FX
[2WD]PREPARATIONPFP:00002
Special Service Tools (SST)ADS000HM
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsADS000HN
Tool number
(Kent-Moore No.)
Tool name Description
HT72520000
(J25730-A)
Ball joint remover
a: 33 mm (1.30 in)
b: 50 mm (1.97 in)
r: 11.5 mm (0.453 in)
Removing steering outer socket
Removing transverse link
NT546
Tool name Description
Power tool
Removing wheel nuts
Removing brake caliper assembly
Removing strut lower side
Removing wheel hub and bearing
assembly
PBIC0190E
Page 3128 of 4731
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING FAX-3
[2WD]
C E F
G H
I
J
K L
M A
B
FA X
Revision: 2005 July 2005 FX
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting ChartADS000HO
Use chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.
×: Applicable
Reference page
FA X -4—
FA X -4
NVH in WT section
NVH in WT section
NVH in PS section
Possible cause and SUSPECTED PARTS
Improper installation, looseness
Parts interference
Wheel bearing damage
TIRES
ROAD WHEEL
STEERING
Symptom FRONT AXLE Noise
×× ×××
Shake ×× ×××
Vibration ×× × ×
Shimmy ×× ×××
Judder × ×××
Poor quality ride or handling ×××××
