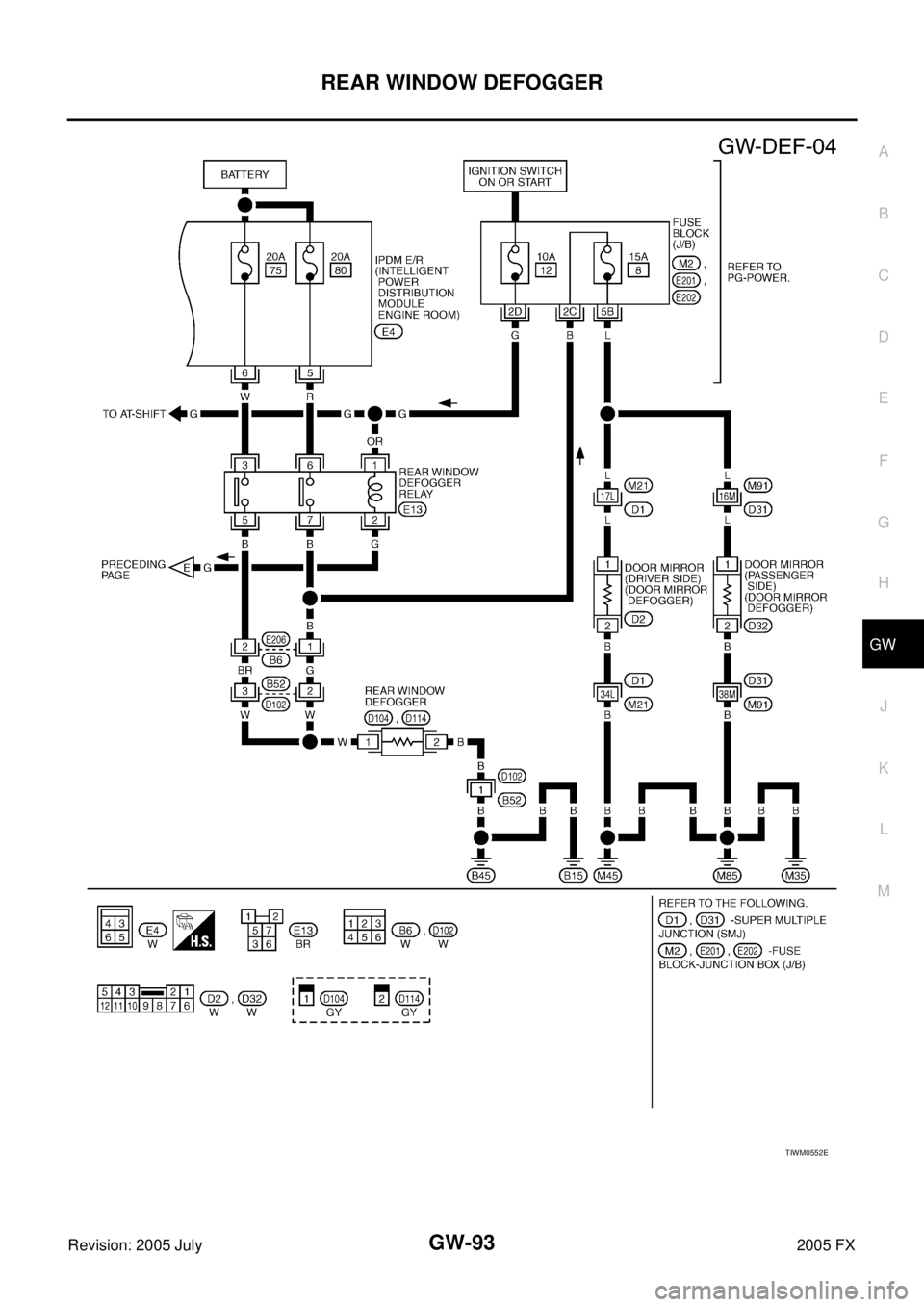

Terminal and Reference Value for BCMAIS004R4

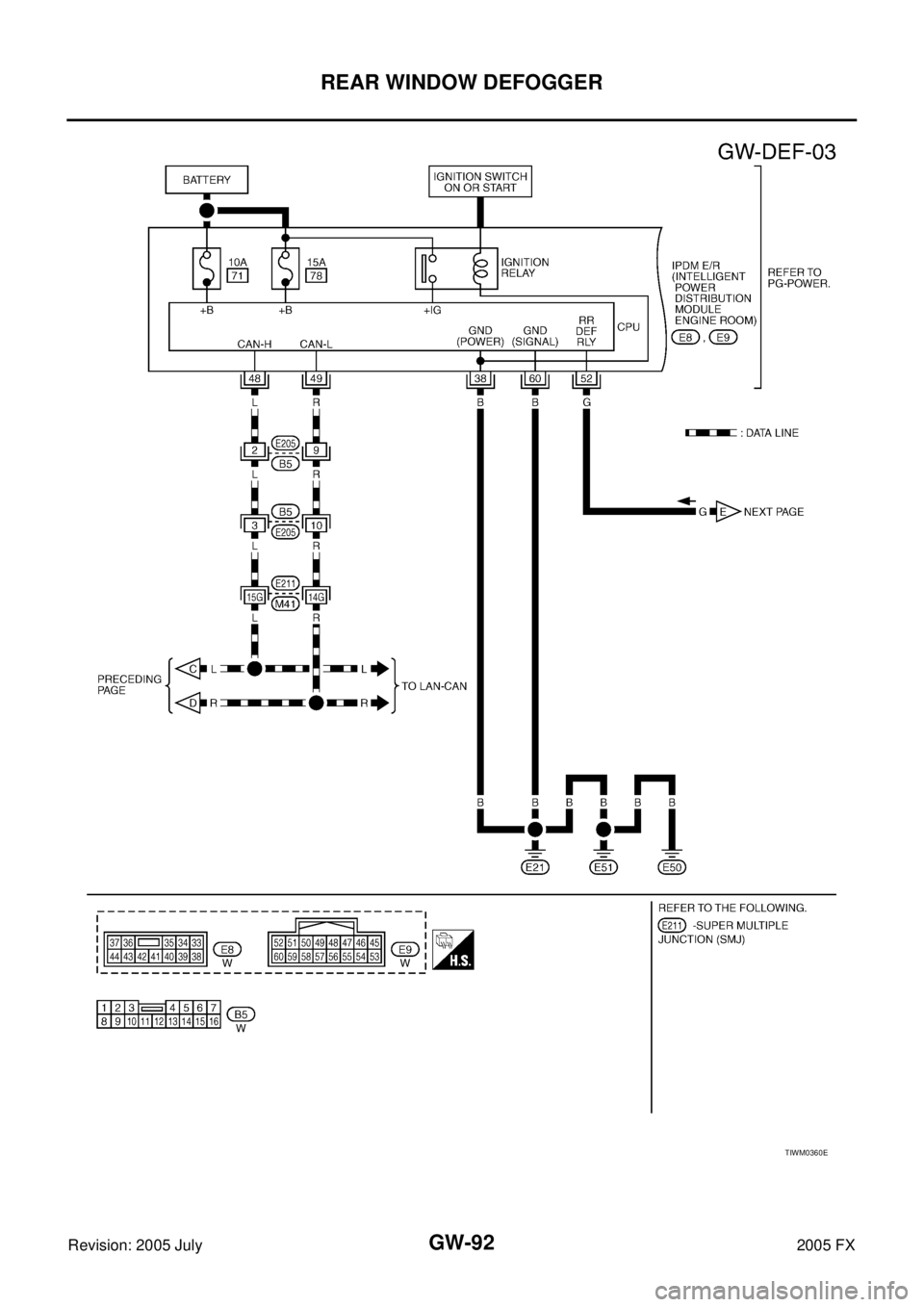

Terminal and Reference Value for IPDM E/RAIS004R5
Terminal Wire color Item Condition Voltage (V)
(Approx.)
9L/W Rear window defogger
switch signal When rear window defogger switch is pressed. 0
When rear window defogger switch is OFF. 5
38 W/L Ignition switch ON or START Ignition switch (ON or START position) Battery voltage
39 L CAN − H——
40 R CAN − L——
42 L/R Power source (Fuse) — Battery voltage
49 B Ground (signal) — 0
52 B Ground (power) — 0
55 G Power source (Fusible link) — Battery voltage
Terminal Wire color Item Condition Voltage (V)
(Approx.)
5 R Battery power supply — Battery voltage
6 W Battery power supply — Battery voltage
38 B Ground (Power) — 0
48 L CAN − H——
49 R CAN − L——
52 G Rear window defogger relay
control signal When rear window defogger switch is ON. 0
When rear window defogger switch is OFF. Battery voltage
60 B Ground (Signal) — 0
Page 3372 of 4731
REAR WINDOW DEFOGGER GW-95
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
CONSULT-II Function (BCM)AIS004R7
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
1. Turn ignition switch “OFF”.
2. Connect “CONSULT-II” and CONSULT-II CONVERTER to data link connector.
3. Turn ignition switch “ON”.
4. Touch “START (NISSAN BASED VHCL)”.
5. Touch “BCM”. If “BCM” is not indicated, go to GI-39
, “CONSULT-II Date Link
Connector (DLC) Circuit”
6. Touch “REAR DEFOGGER”.
BCM diagnostic test item Check item diagnostic test mode Content REAR DEFOGGER Data monitor Displays the input data of BCM in real time.
Active test Gives a drive signal to a load to check the operation.
PBIB1503E
BCIA0029E
BCIA0030E
LIIA0153E
Page 3373 of 4731
GW-96
REAR WINDOW DEFOGGER
Revision: 2005 July 2005 FX
7. Select diagnosis mode,“DATA MONITOR” and “ACTIVE TEST”
are available.
DATA MONITOR
Display Item List
ACTIVE TEST
Display Item List
BCIA0031E
Monitor item Content
REAR DEF SW Displays “Press (ON)/others (OFF)” status determined with the rear window defogger switch.
IGN ON SW Displays “IGN (ON)/OFF” status determined with the ignition switch signal.
Test item Content
REAR DEFOGGER Gives a drive signal to the rear window defogger relay to activate it.
Page 3374 of 4731

REAR WINDOW DEFOGGER GW-97
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
Work FlowAIS004R6
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to GW-86, "
System Description" .
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to GW-97,
"Trouble Diagnoses Symptom Chart" .
4. Does rear window defogger operate normally? YES: GO TO 5, NO: GO TO 3.
5. INSPECTION END.
Trouble Diagnoses Symptom ChartAIS004R8
Make sure other systems using the signal of the following systems operate normally.
Symptom Diagnoses / Service procedure Refer to page
Rear window defogger and door mirror defogger do not
operate. 1. BCM power supply and ground circuit check.
GW-98
2. IPDM E/R auto active test check PG-24
3. Rear window defogger switch circuit checkGW-99
4. Rear window defogger power supply circuit checkGW-100
5. Replace IPDM E/ R PG-30
Rear window defogger does not operate but both of door
mirror defogger operate. 1. Rear window defogger circuit check
GW-102
2. Filament checkGW-108
Door mirror defogger does not operated but both of rear
window defogger operate. 1. Door mirror defogger power supply circuit check
GW-103
Driver side door mirror defogger does not operate. 1. Driver side door mirror defogger circuit check GW-105
Passenger side door mirror defogger does not operate. 1. Passenger side door mirror defogger circuit checkGW-106
Rear window defogger switch does not light, and rear win-
dow defogger is not displayed on the display.
But rear window defogger operates. 1. Rear window defogger signal check
GW-106
Page 3375 of 4731

GW-98
REAR WINDOW DEFOGGER
Revision: 2005 July 2005 FX
BCM Power Supply and Ground Circuit CheckAIS004R9
First perform the “SELF-DIAG RESULTS” in “BCM” with CONSULT-II, when perform the each trouble
diagnosis. Refer to BCS-15, "
CAN Communication Inspection Using CONSULT-II (Self-Diagnosis)" .
1. CHECK FUSE
Check 15A fuse [No.1, located in the fuse block (J/B)]
Check 15A fuse [No.22, located in the fuse block (J/B)]
Check 50A fusible link (letter M located in the fuse and fusible link box).
NOTE:
Refer to GW-86, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown out, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between BCM connector M3, M4 terminal 38, 42, 55 and ground.
OK or NG
OK >> GO TO 3.
NG >> Check BCM power supply circuit for open or short.
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check continuity between BCM connector M4 terminal 49, 52 and ground.
OK or NG
OK >> Power supply and ground circuit are OK.
NG >> Check BCM ground circuit for open or short. 38 (W/L) – Ground : Battery voltage
42 (L/R) – Ground : Battery voltage
55 (G) – Ground : Battery voltage
PIIA6160E
49 (B) – Ground : Continuity should exist.
52 (B) – Ground : Continuity should exist.
PIIA6161E
Page 3376 of 4731

REAR WINDOW DEFOGGER GW-99
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2005 July 2005 FX
Rear Window Defogger Switch Circuit CheckAIS004RA
1. CHECK REAR WINDOW DEFOGGER SWITCH OPERATION
With CONSULT-II

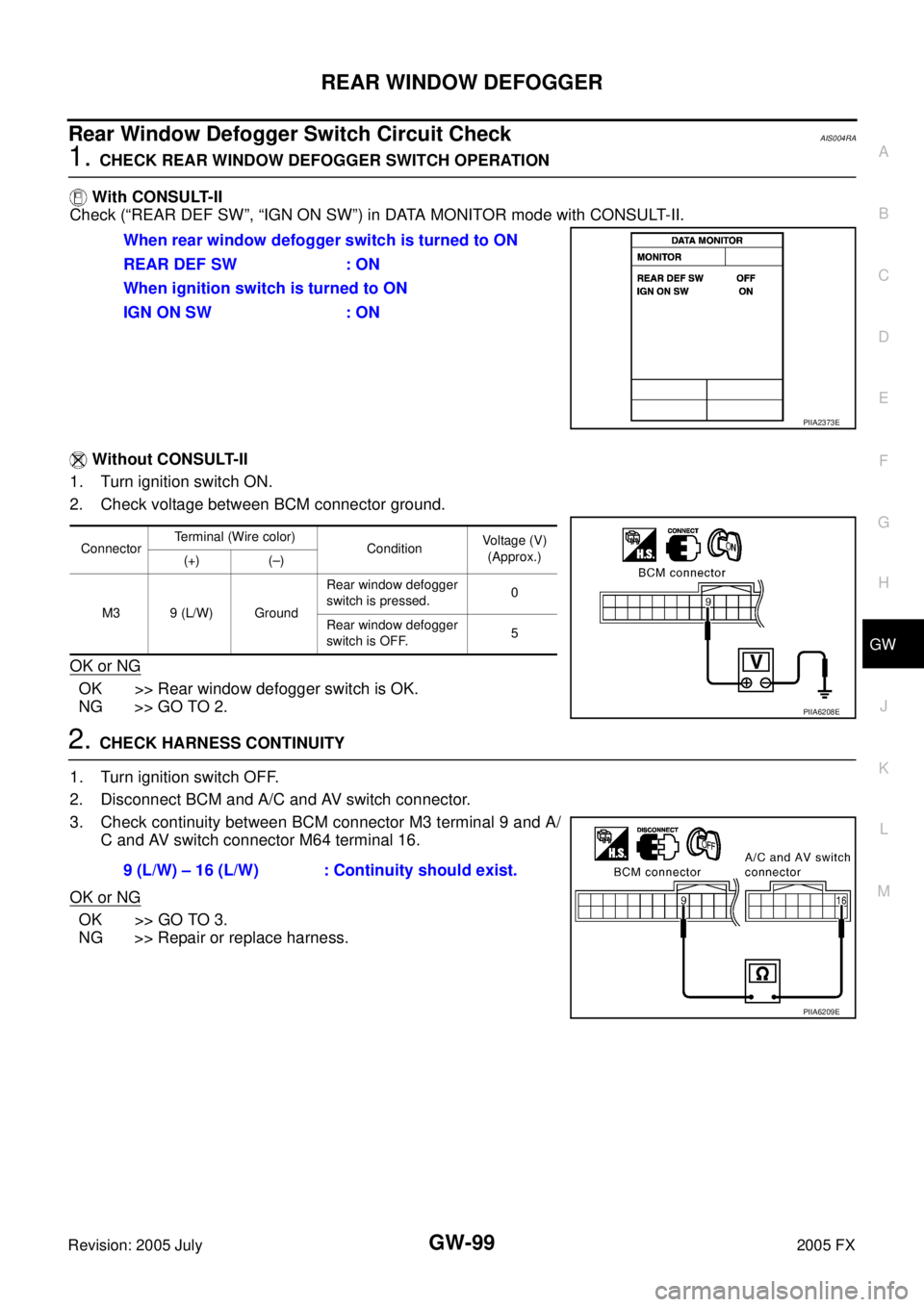

Check (“REAR DEF SW”, “IGN ON SW”) in DATA MONITOR mode with CONSULT-II.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between BCM connector ground.
OK or NG
OK >> Rear window defogger switch is OK.
NG >> GO TO 2.
2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect BCM and A/C and AV switch connector.
3. Check continuity between BCM connector M3 terminal 9 and A/ C and AV switch connector M64 terminal 16.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness. When rear window defogger switch is turned to ON
REAR DEF SW : ON
When ignition switch is turned to ON
IGN ON SW : ON
PIIA2373E
Connector Terminal (Wire color)
Condition Voltage (V)
(Approx.)
(+) (–)
M3 9 (L/W) Ground Rear window defogger
switch is pressed. 0
Rear window defogger
switch is OFF. 5
PIIA6208E
9 (L/W) – 16 (L/W) : Continuity should exist.
PIIA6209E
