Page 4185 of 4731

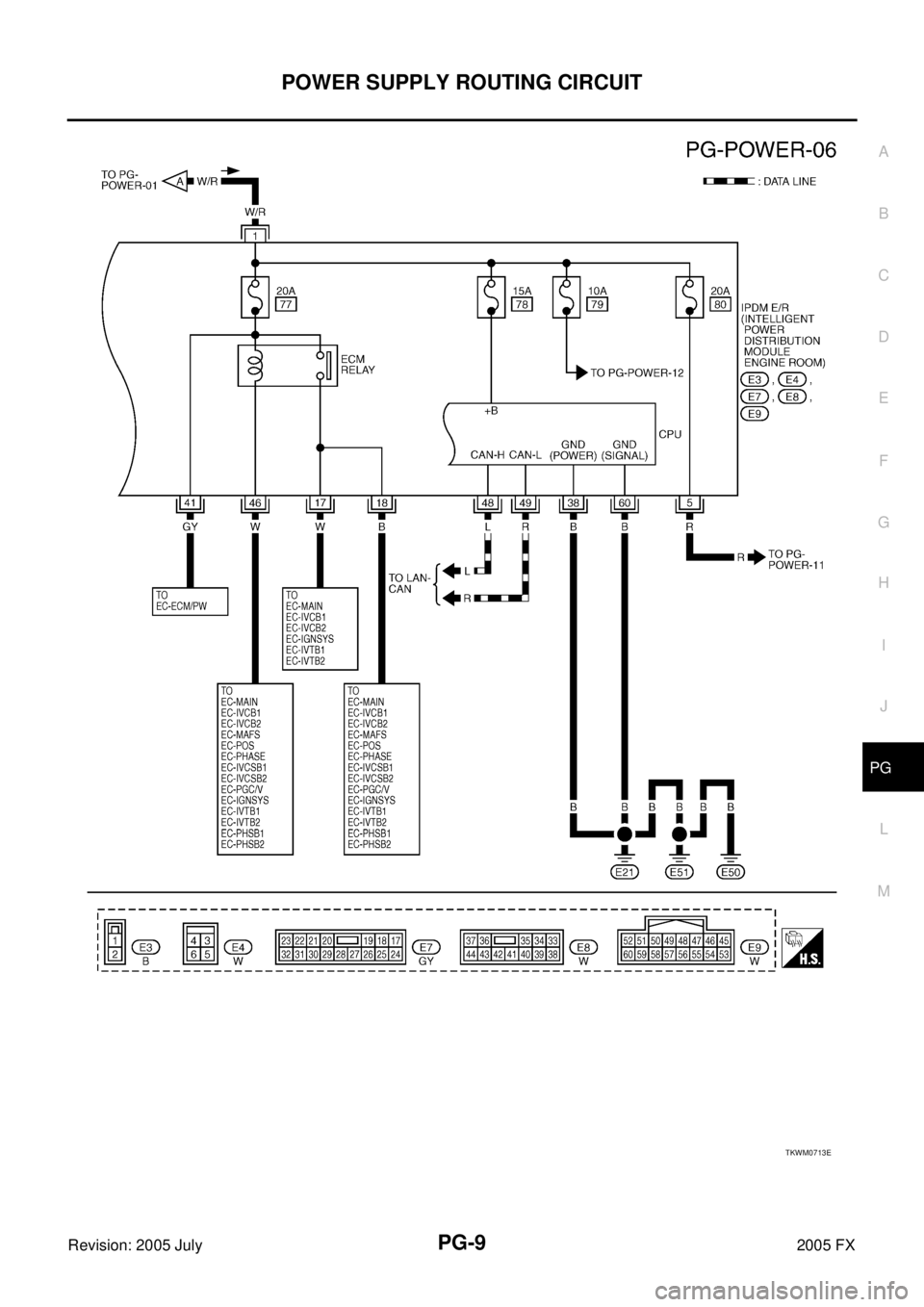

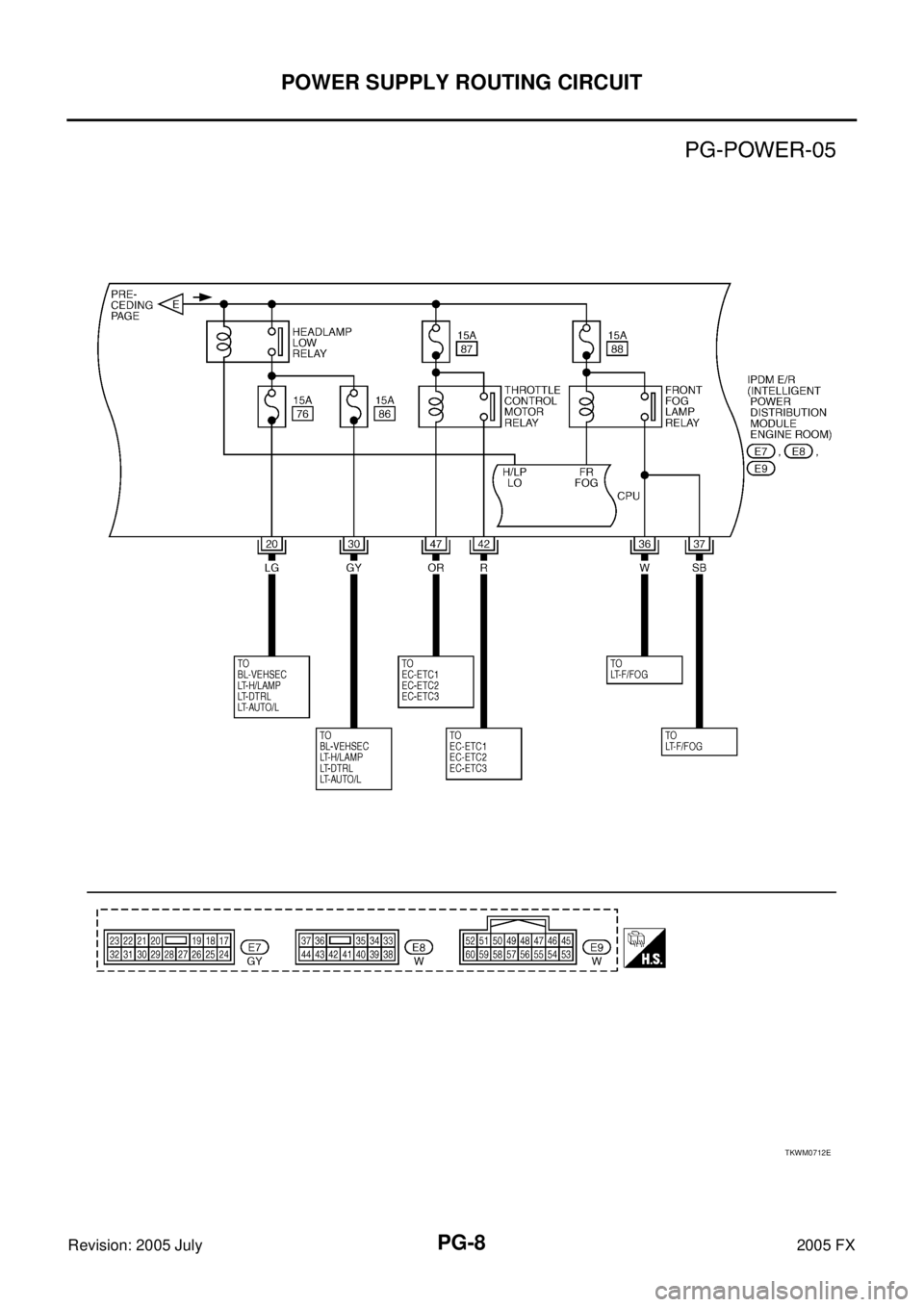

INFINITI FX35 2005 Service Manual PG-8 POWER SUPPLY ROUTING CIRCUIT Revision: 2005 July 2005 FX TKWM0712E

Page 4186 of 4731

INFINITI FX35 2005 Service Manual POWER SUPPLY ROUTING CIRCUIT PG-9 C D E F G H I J L M A B PG Revision: 2005 July 2005 FX TKWM0713E

Page 4187 of 4731

INFINITI FX35 2005 Service Manual PG-10 POWER SUPPLY ROUTING CIRCUIT Revision: 2005 July 2005 FX ACCESSORY POWER SUPPLY - IGNITION SW. IN “ACC” OR “ON” TKWM0714E

Page 4188 of 4731

INFINITI FX35 2005 Service Manual POWER SUPPLY ROUTING CIRCUIT PG-11 C D E F G H I J L M A B PG Revision: 2005 July 2005 FX TKWM2097E

Page 4189 of 4731

INFINITI FX35 2005 Service Manual PG-12 POWER SUPPLY ROUTING CIRCUIT Revision: 2005 July 2005 FX IGNITION POWER SUPPLY - IGNITION SW. IN “ON” AND/OR “START” TKWM2098E

Page 4190 of 4731

INFINITI FX35 2005 Service Manual POWER SUPPLY ROUTING CIRCUIT PG-13 C D E F G H I J L M A B PG Revision: 2005 July 2005 FX TKWM2099E

Page 4191 of 4731

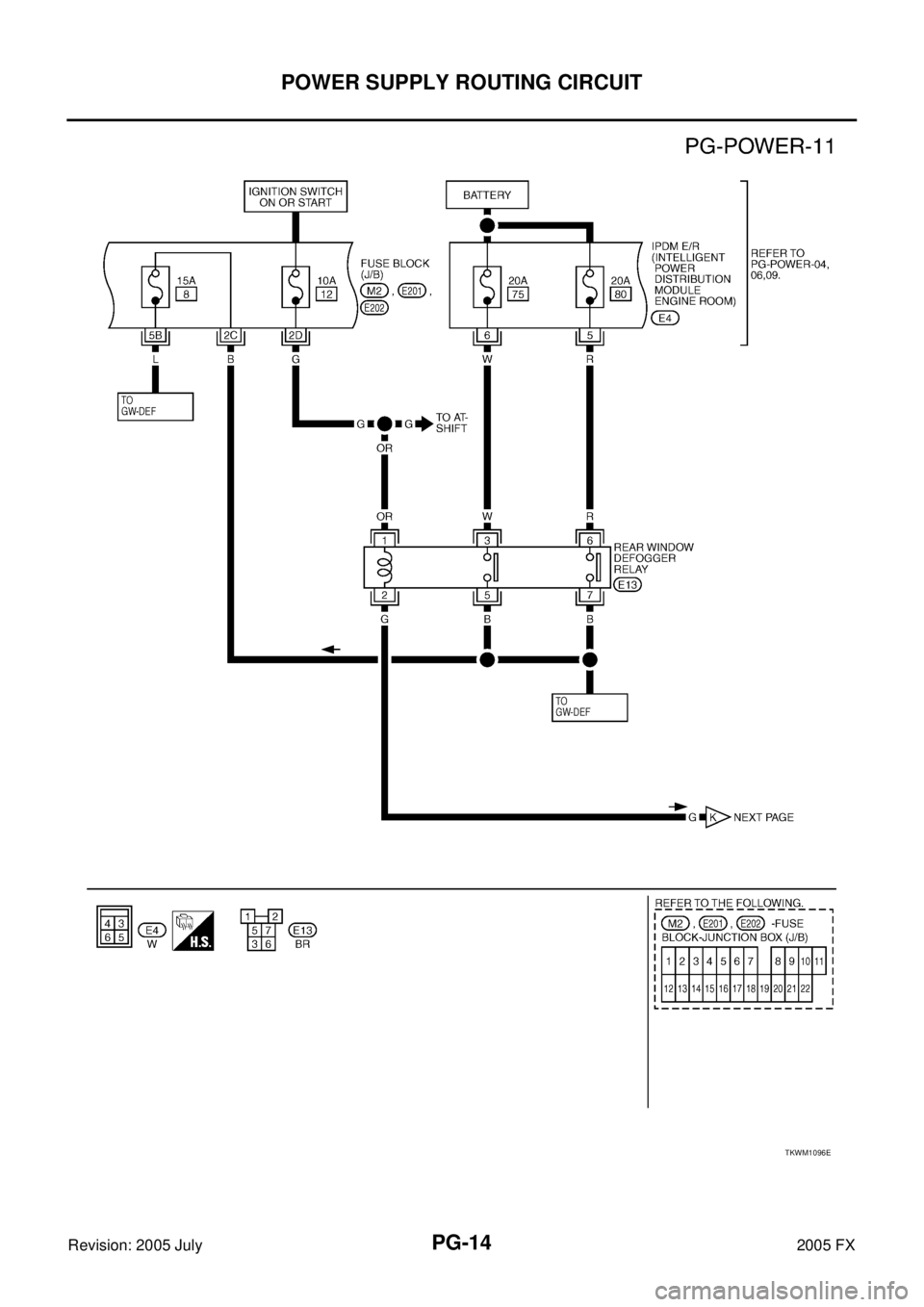

INFINITI FX35 2005 Service Manual PG-14 POWER SUPPLY ROUTING CIRCUIT Revision: 2005 July 2005 FX TKWM1096E

Page 4192 of 4731

INFINITI FX35 2005 Service Manual POWER SUPPLY ROUTING CIRCUIT PG-15 C D E F G H I J L M A B PG Revision: 2005 July 2005 FX TKWM0719E
